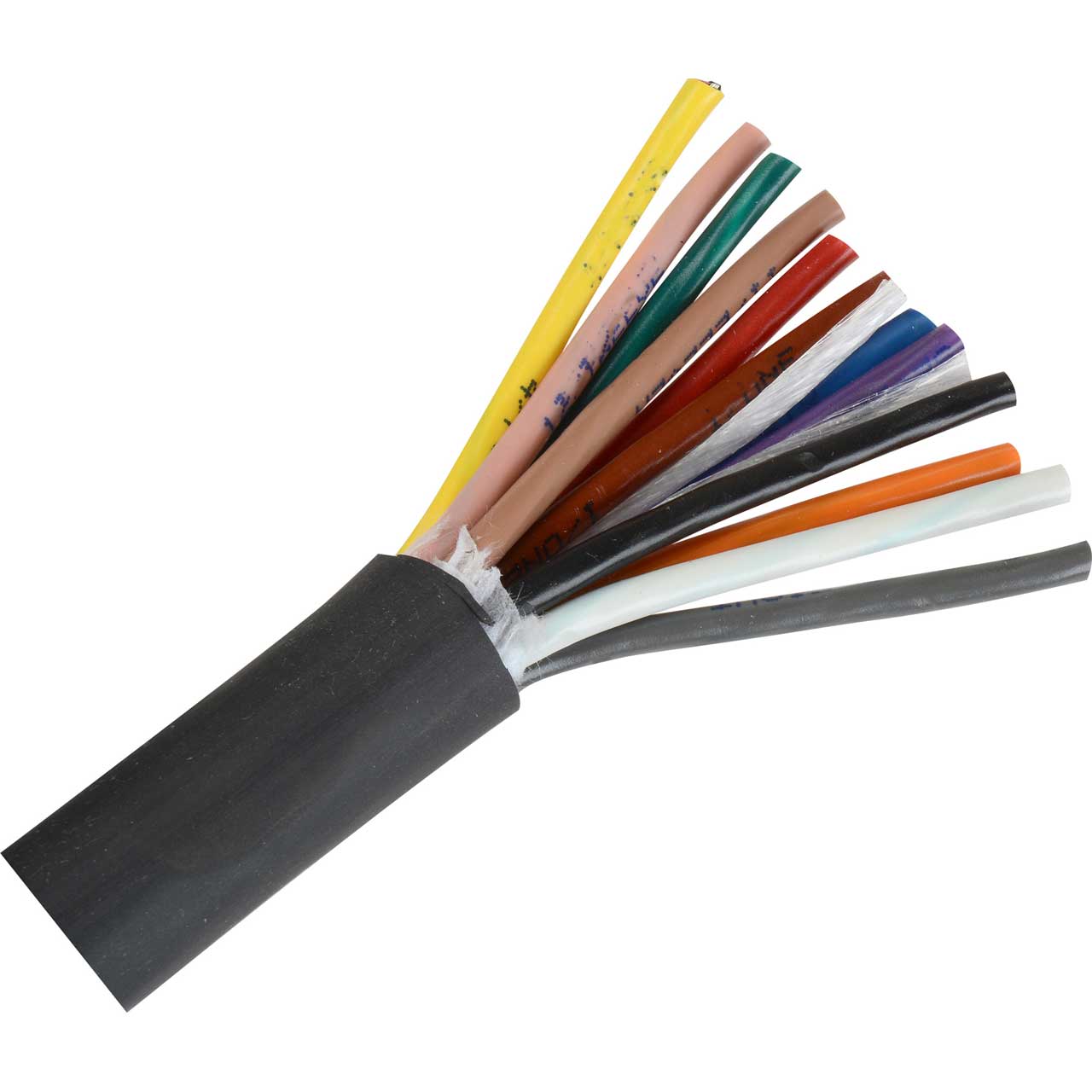

Belden 1220B 22AWG 12 Pair Flexible Low-Capacitance Cable - 1000 Foot

ITEM #: BL-1220B-1000 MFG #: 1220B B591000

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$12,391.10

Our Price:

$10,074.39

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1220B B591000 - Overview

Belden 1220B Audio Snake Cable, 12-22 AWG tinned copper pairs, Datalene insulation, individually shielded with Beldfoil bonded to numbered/color-coded PVC jackets so both strip simulteaneously, flexible PVC jacket.

  • Specifications:

    • AWG: 20
    • Stranding: 7x30
    • Material: TC - Tinned Copper
    • Nom. Diameter: 0.03 in
    • Conductor Count: 24
    • Total Number of Pairs: 12
    • Individual Pair Nominal Shield DCR: 10.6 Ohm/1000ft
    • Nominal Conductor DCR: 15 Ohm/1000ft
    • Nominal Conductor DCR Conductor Resistance: 15 Ohm/1000ft
    • Nom. Capacitance Conductor to Conductor: 19 pF/ft
    • Nom. Capacitance Conductor to Other Conductor to Shield: 35 pF/ft
    • Nominal Inductance: 0.2 µH/ft
    • Non-UL Voltage Rating: 150 V RMS / 300 VRMS
    • Voltage Rating [V]: 300 V RMS
    • Non-UL Temp Rating: 60°C
    • Operating Temp Range: -20°C To +60°C
    • Bulk Cable Weight: 271 lbs/1000ft
    • Max. Pull Tension: 328 lbs
    • Min Bend Radius/Minor Axis: 7.75 in


  • GTIN:

    0612825109082
