Belden 1530A 18AWG RG-6 CAT5 Cable - 1000 Foot Roll

Name: Belden 1530A 18AWG RG-6 CAT5 Cable - 1000 Foot Roll
Brand: Belden
SKU: BL-1530A-1000
Price: 202.99 USD
Availability: PreSale

ITEM #: BL-1530A-1000 MFG #: 1530A 0101000

Belden

List Price:

$290.40

Our Price:

$202.99

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1530A 0101000 - Overview

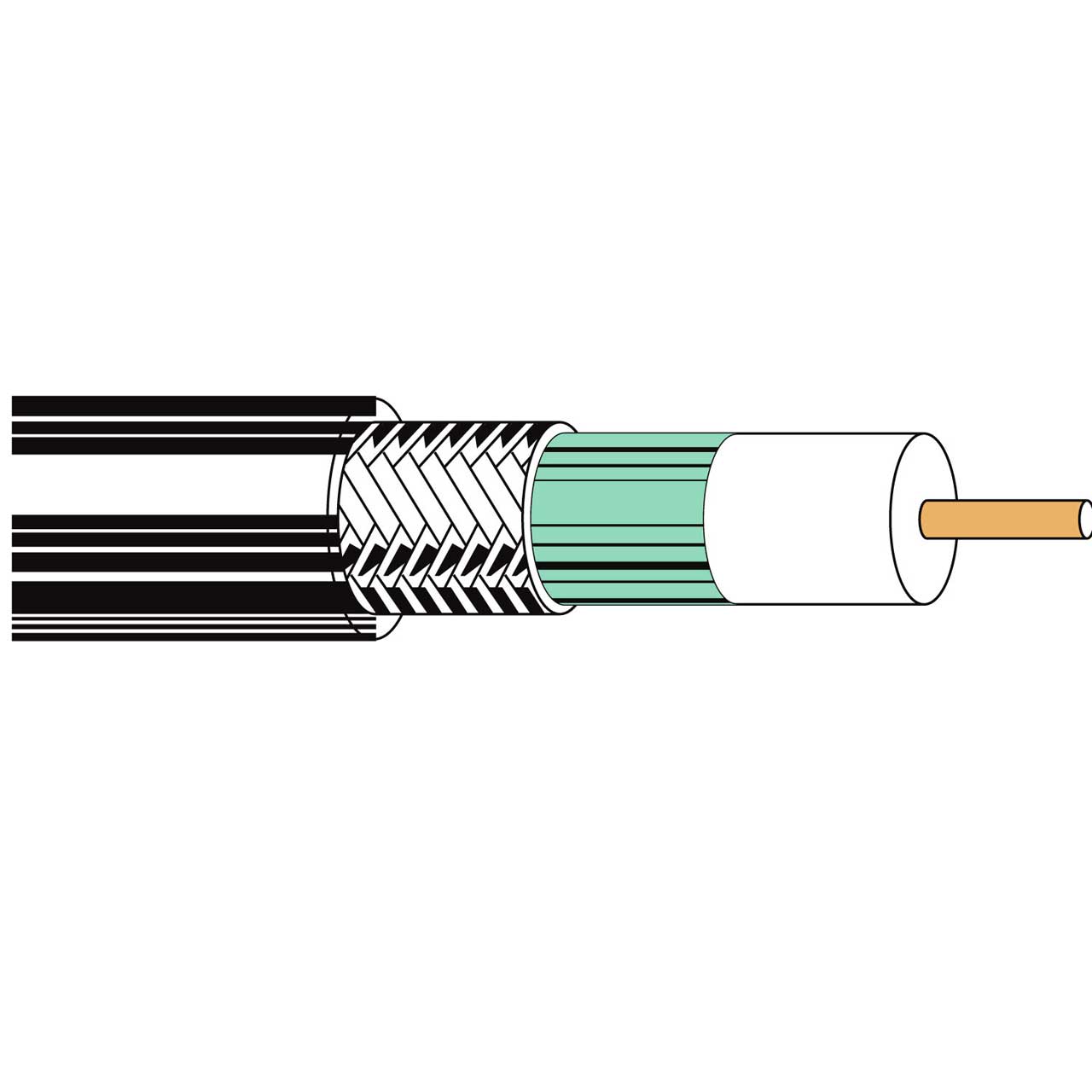

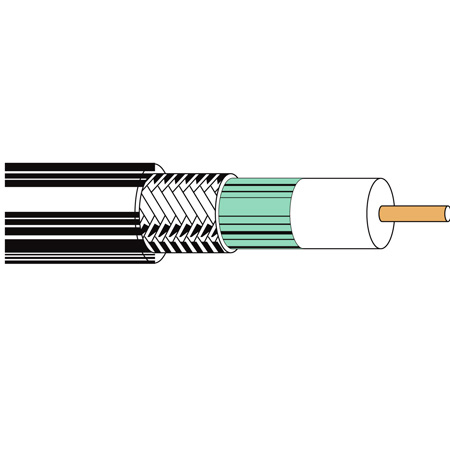

Belden 1530A CATV, Series 6, 18 AWG solid .040" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond II, aluminum braid shield (90% coverage), CM PVC jacket.

Specifications:
- Number of Coax: 1
- Series Type: Series 6
- AWG: 18
- Stranding: Solid
- Conductor Material: BCCS - Bare Copper Covered Steel
- Insulation Material: Gas-injected FPE - Foam Polyethylene
- Outer Shield Material Trade Name: Duobond II
- Outer Shield Material: Bonded Aluminum Foil-Polyester Tape-Aluminum Foil
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Plenum (Y/N): N
- Plenum Number: BL-1530AP
- Nom. Characteristic Impedance: 75 +/-3O
- Nominal Conductor DCR: 28 Ohm/1000ft
- Nominal Outer Shield DCR: 5 Ohm/1000ft
- Outer Conductor DCR: 5 Ohm/1000ft
- Nom. Capacitance Conductor to Shield: 16.2 pF/ft
- Nominal Inductance: 0.097 µH/ft
- Nominal Characteristic Impedance: 75 Ohm
- UL Voltage Rating: 350 V RMS
- UL Temp Rating: 80°C
- Operating Temp Range: -40°C To +80°C
- Bulk Cable Weight: 28 lbs/1000ft
- Max. Pull Tension: 162 lbs
- Min Bend Radius/Minor Axis: 2.75 in
- NEC/(UL) Compliance: CATV, CM
- CEC/C(UL) Compliance: CM
- RG Type: 6/U Type
- Series Type: 6
GTIN:
0612825117247

1530A 0101000 - Recommended Accessories

ICM FSNS6U RG6/6 Quad F Compression Connector Nickel Green - Snap-n-Seal - 25pk
FSNS6U
Our Price: $23.27
ICM CPLCRBC-BR Cable Pro Radial Double Bubble Compression Tool - Blue
ICM-CPLCRBC-B
Our Price: $157.95
ICM Cable Pro PSA59/6 RG59/6 Adjustable Cable Stripper with RG6 Flaring Tool
ICM-PSA596
Our Price: $45.58
Blonder Tongue DGS-2 Digital Ready 5-1000 MHz 2-Way F Splitter
DGS-2
Our Price: $3.52
Jensen VRD-1FF IsoMax CATV Digital RF Isolator
JEN-VRD1FF
Our Price: $74.99
Connectronics B-FJ Type F Female to BNC Male 75 Ohm Connector
B-FJ
Our Price: $2.49

1530A 0101000 - Reviews

1530A 0101000 - Attachments

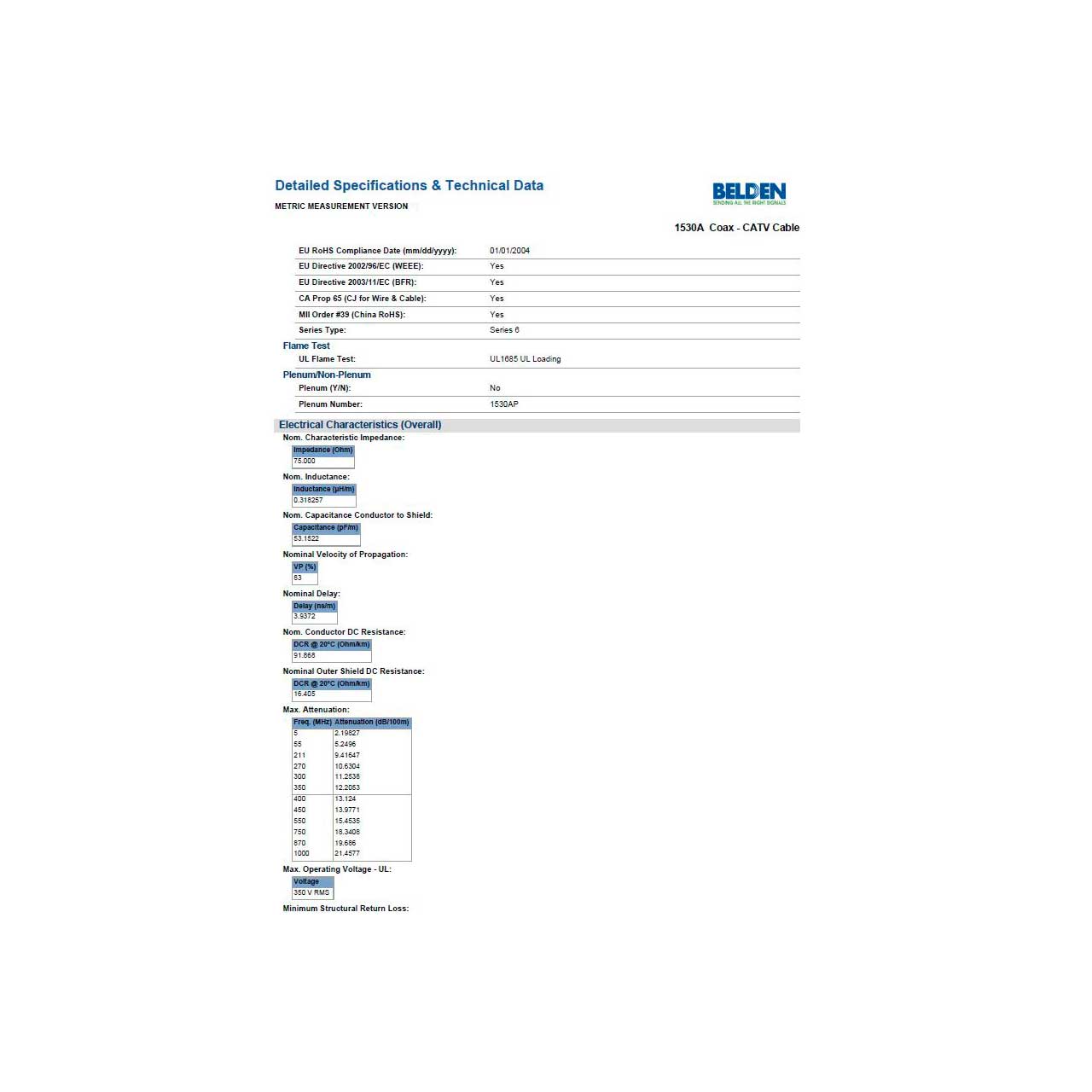

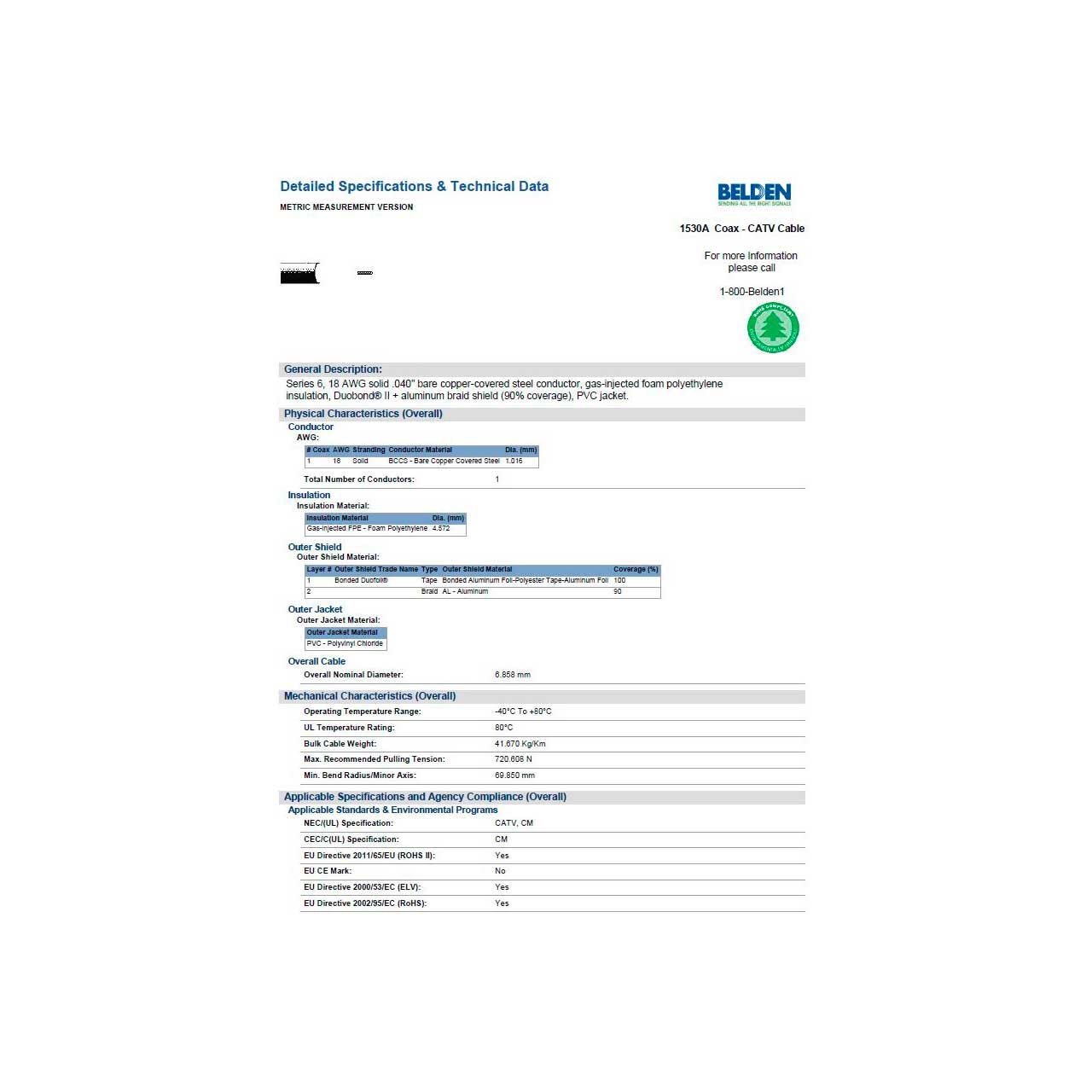

See Belden BL-1530A-1000 Specifications (PDF)
