Belden 1813A Paired Two-Conductor 24 AWG Low-Impedance Audio Cable - 328 Foot

Name: Belden 1813A Paired Two-Conductor 24 AWG Low-Impedance Audio Cable - 328 Foot
Brand: Belden
SKU: BL-1813A-328
Price: 447.92 USD
Availability: PreSale

ITEM #: BL-1813A-328 MFG #: 1813A B59328

Belden

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$513.09

Our Price:

$447.92

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1813A B59328 - Overview

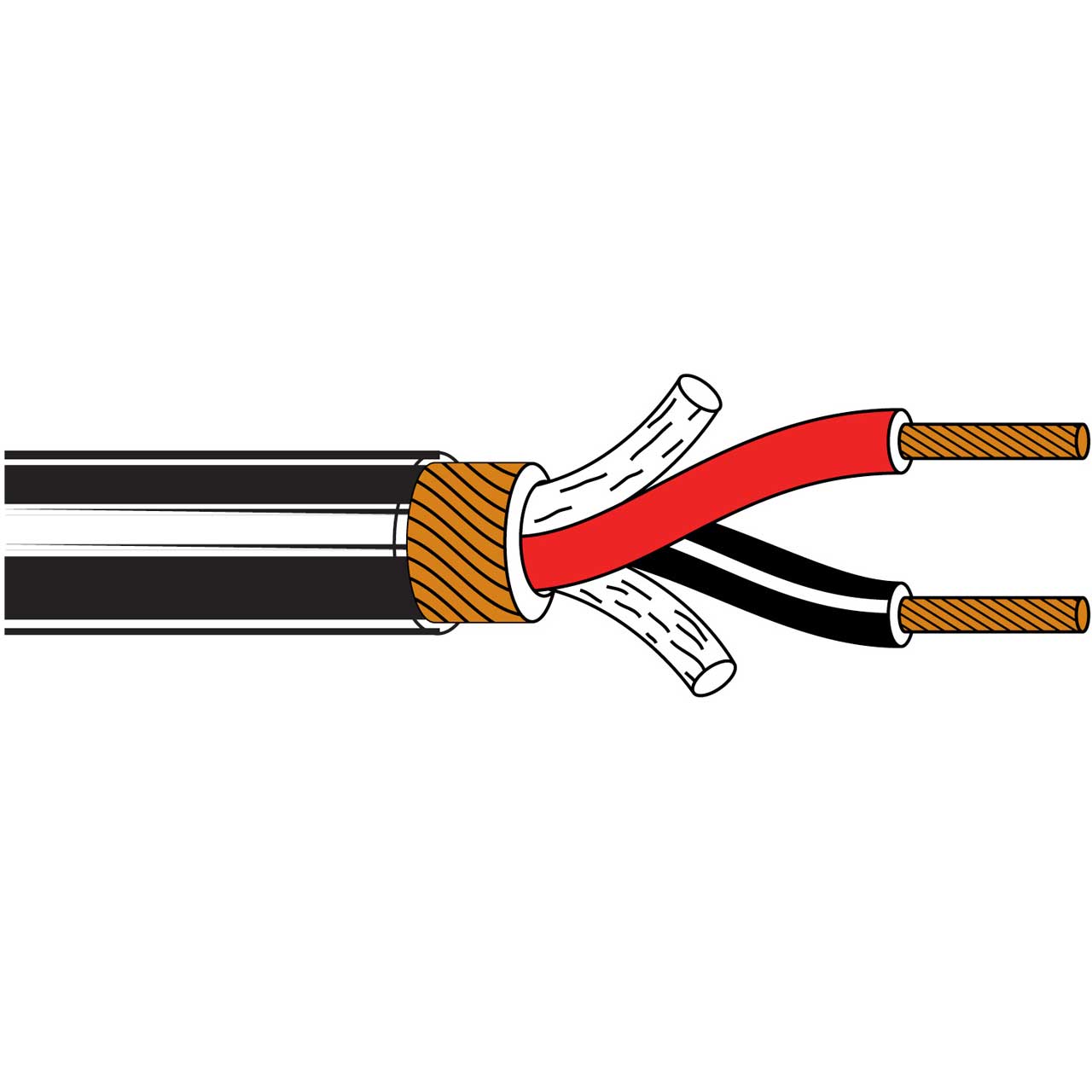

Belden 1813A Audio Cable, CM-Rated, 1-24 AWG stranded high-conductivity bare copper pair with PVC insulation, +90% bare copper spiral shield, PVC jacket.

Specifications:
- Number of Pairs: 1
- Total Number of Conductors: 2
- AWG: 24
- Stranding: 27x38
- Conductor Material: High Conductivity BC - Bare Copper
- Insulation Material: PVC - Polyvinyl Chloride
- Outer Shield Material: BC - Bare Copper
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Plenum (Y/N): N
- Nominal Conductor DCR: 22.8 Ohm/1000ft
- Nominal Conductor DCR Conductor Resistance: 22.8 Ohm/1000ft
- Nominal Outer Shield DCR: 11.6 Ohm/1000ft
- Nom. Capacitance Conductor to Conductor: 33 pF/ft
- Nom. Capacitance Conductor to Other Conductor to Shield: 61 pF/ft
- Nominal Inductance: 0.219 µH/ft
- Non-UL Voltage Rating: 100 V RMS
- Operating Temp Range: -30°C To +60°C
- Bulk Cable Weight: 30 lbs/1000ft
- Max. Pull Tension: 10 lbs
- Min Bend Radius/Minor Axis: 2.5 in
- Environmental Space: Indoor (Not Riser or Plenum)
Applications:
- Microphone and Musical Instrument Cable Two-Conductor Low-Impedance Cables
GTIN:
0612825123408
