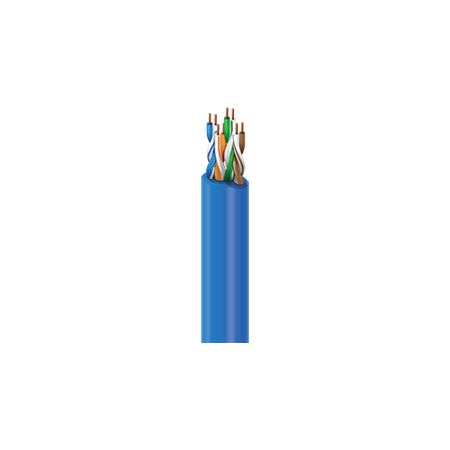

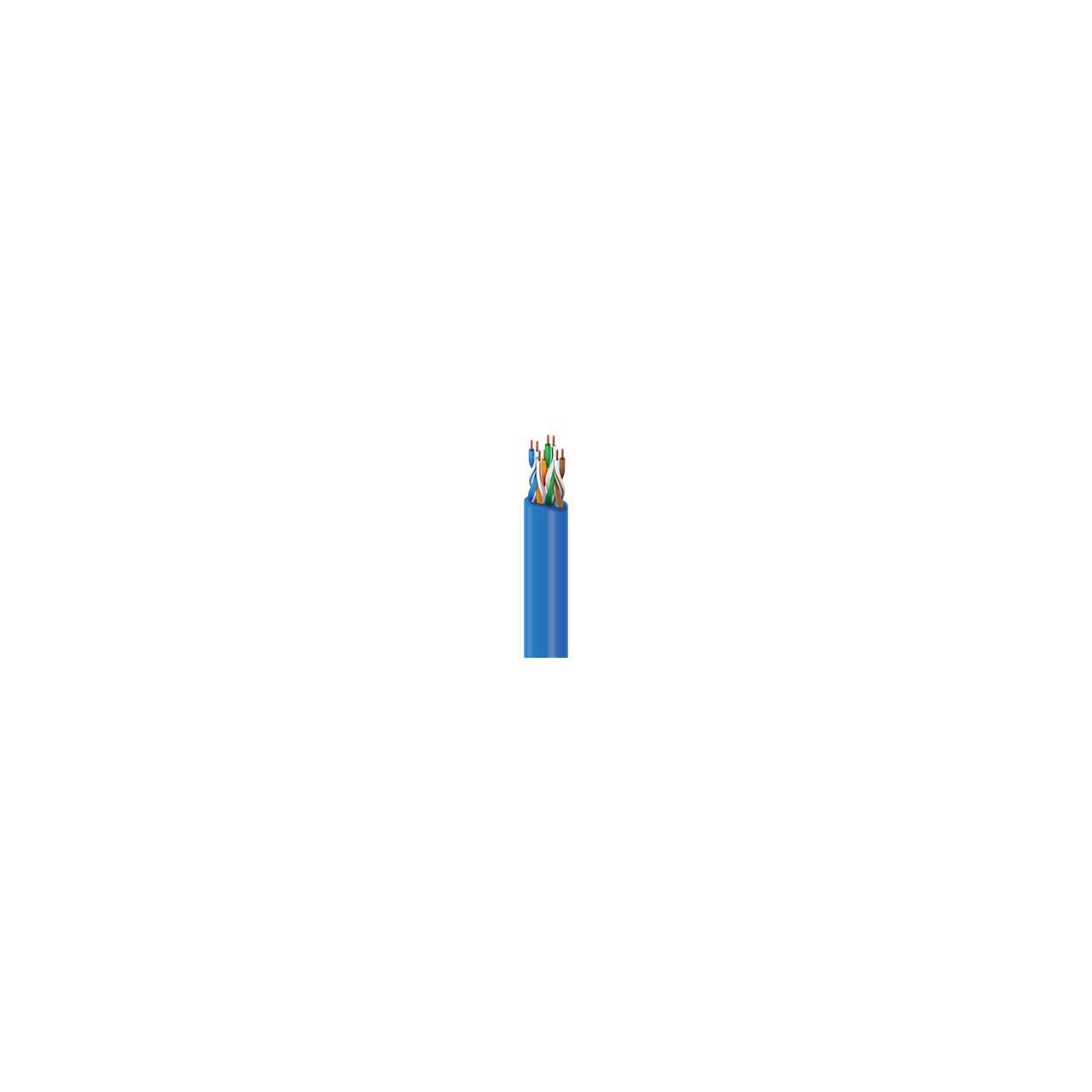

Belden 1874A Plenum/CMP CAT6+ Enhanced Premise Horizontal 350MHz U/UTP 4-Pr Cable 23AWG - Blue - 1000 Foot

Name: Belden 1874A Plenum/CMP CAT6+ Enhanced Premise Horizontal 350MHz U/UTP 4-Pr Cable 23AWG - Blue - 1000 Foot
Brand: Belden
SKU: BL-1874A-1000BE
Price: 918.00 USD
Availability: PreSale

ITEM #: BL-1874A-1000BE MFG #: 1874A D151000

Belden

Colors:

Colors

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,134.80

Our Price:

$918.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

1874A D151000 - Overview

Belden 1874A is a Category 6+, U/UTP, Premise Horizontal Cable (350MHz). It features 4 Bonded-Pairs with 23 AWG Solid Bare Copper Conductors in a Plenum-CMP rated Flamarrest® PVC-LS Jacket.

Belden offers several Category 6 performance levels with every level exceeding TIA-568-C.2 performance and produced with Belden's superior quality. Bonded-Pair technology is an option to make your installation as robust as possible.

Applications
Premise Horizontal Cable
Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T
PoE++, PoE+, PoE

Features:
- Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
- Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
- Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
- Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radii
Specifications:
- Conductor Number of Pairs: 4
- Total Number of Conductors: 8
- Conductor AWG: 23
- Conductor Stranding: Solid
- Conductor Material: BC - Bare Copper
- Bonded Pair: Yes
- Insulation Material: PO - Polyolefin
- Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
- Outer Shield Material: Unshielded
- Outer Jacket Material Trade Name: Flamarrest
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Diameter: 0.365 x 0.165 in
- Outer Jacket Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.365 x 0.165 in
- Plenum (Y/N): Y
- Frequency Delay [MHz]: 100 MHz
- Max. Delay Max.: 537.6 ns/100m
- Delay Skew: 25 ns/100m
- Max. Pull Tension: 40 lbs
- Bulk Cable Weight: 35 lbs/1000ft
- Environmental Suitability: Plenum, Indoor
- Sustainability: Product Lens, Environmental Product Declaration (EPD) Available
- Flammability / Fire Resistance: NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2
- NEC / UL Compliance: 800, CMP
- CEC / C(UL) Compliance: CMP
- ICEA Compliance: S-116-732-2013
- IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
- NEMA Compliance: ANSI/NEMA WC-66
- Data Category: Category 6
- TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6
- CPR Euroclass: Eca
Item Includes:
- 1874A Plemum/CMP CAT6+ Enhanced Premise Horizontal 4-Pr Cable - Blue - 1000 Ft
Warranty:
- Limited 10 Year Warranty
GTIN:
0612825125488
