Belden C6PFCU-B25 Cat5E/6 Field Crimped Plug Kit - 25 Pack

ITEM #: BL-C6PFCU-B25 MFG #: C6PFCU-B25

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

List Price:

$27.41

Our Price:

$26.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

C6PFCU-B25 - Overview

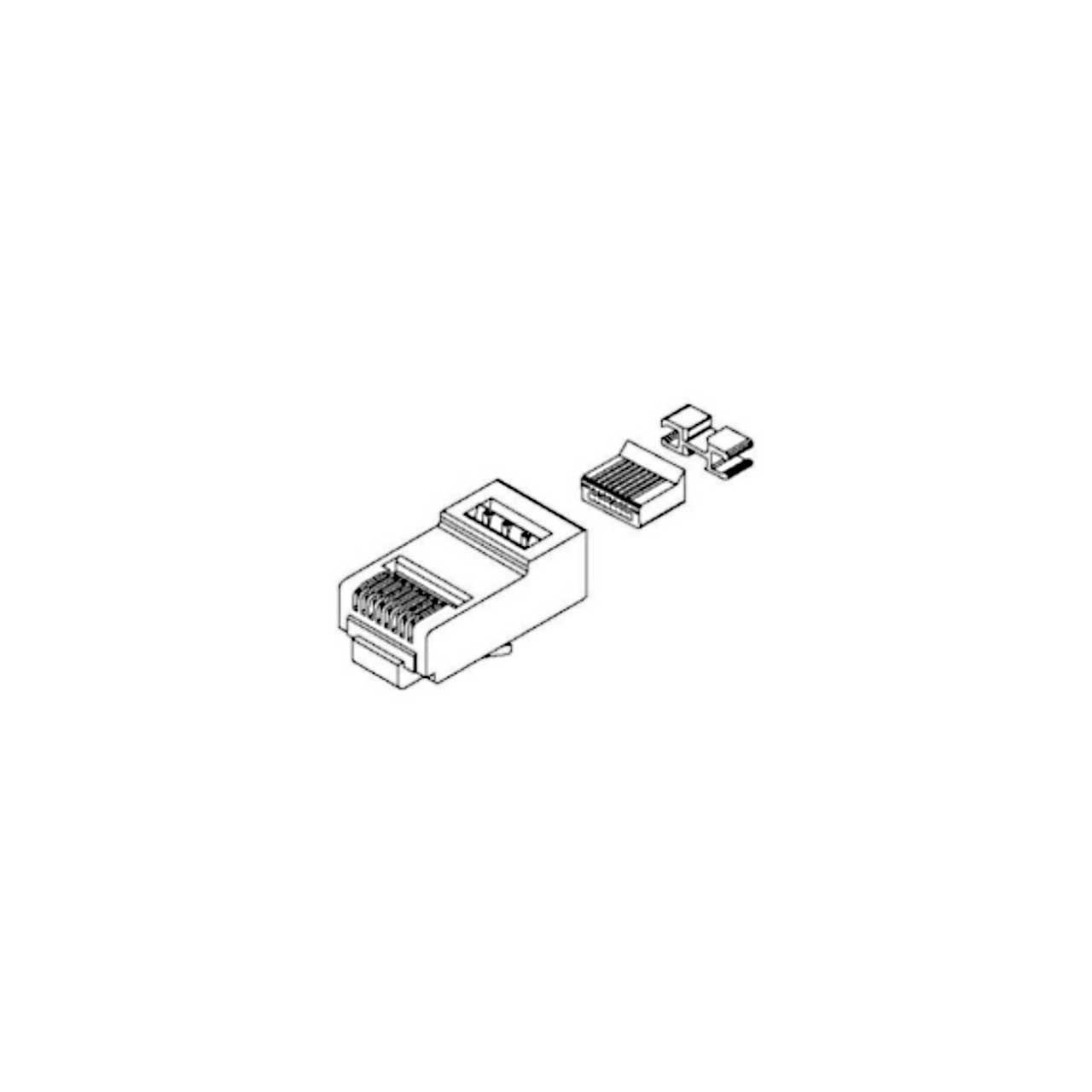

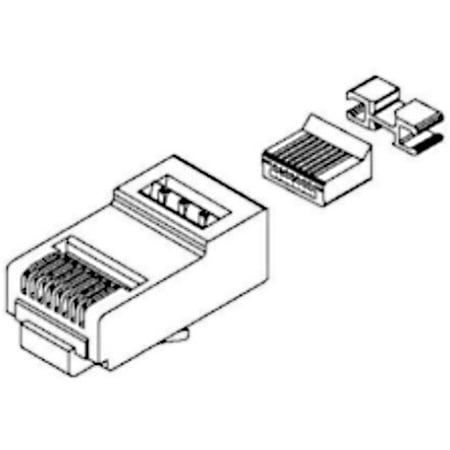

The Belden C6PFCU-B25 8MOD CAT5e/6 RJ45 UTP field crimped plug connector kit (Kit of 25 units per Bag).

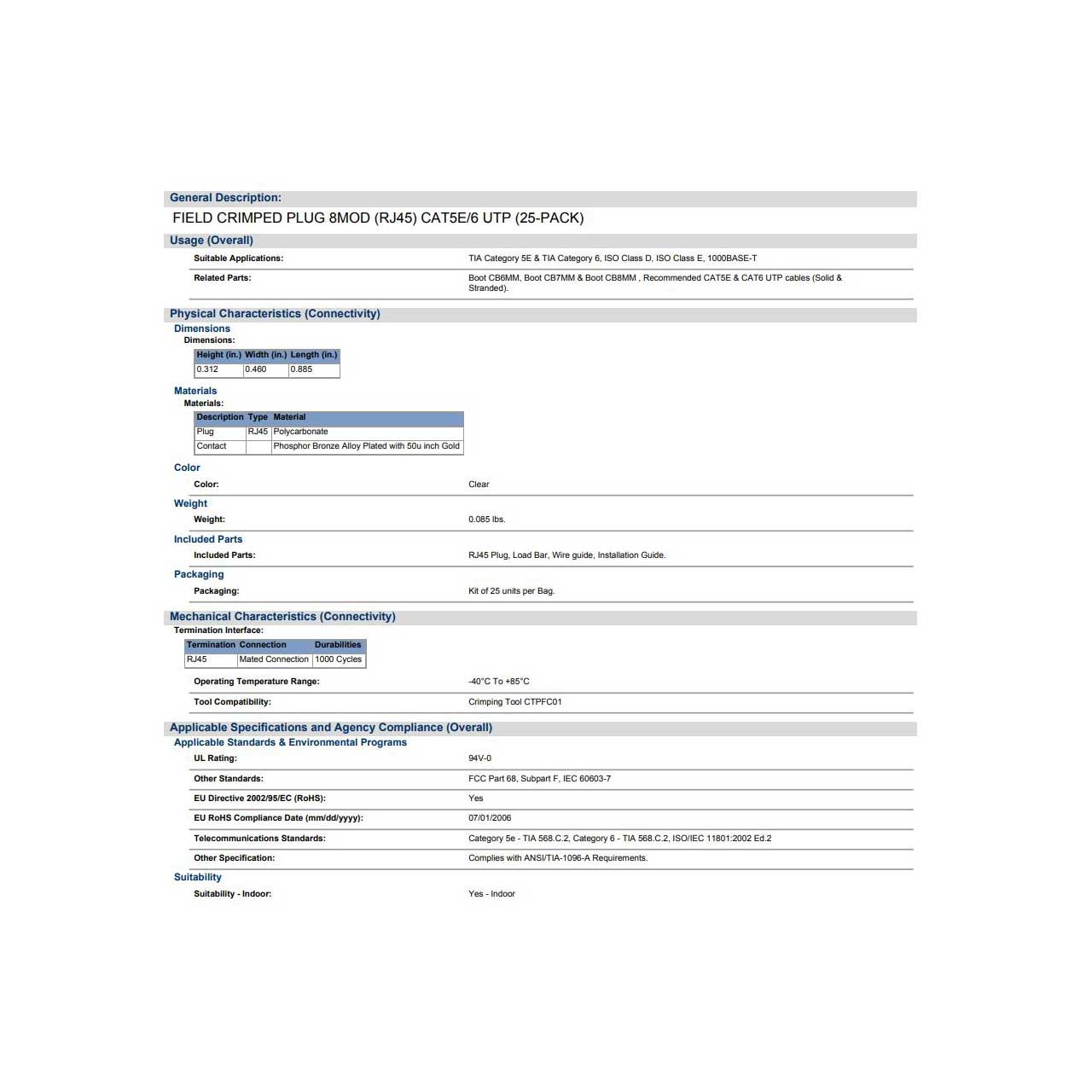

  • Specifications:

    • Color: Clear
    • Weight: 0.039 kg
    • Operating Temperature Range: -40°C To +85°C
    • UL Rating: 94V-0
    • Other Standards: FCC Part 68, Subpart F, IEC 60603-7
    • Telecommunications Standards: Category 5e - TIA 568.C.2, Category 6 - TIA 568.C.2, ISO/IEC 11801:2002 Ed.2
    • Other Specification: Complies with ANSI/TIA-1096-A Requirements.
    • Mated Connection Table - Footnote: Category 5E - TIA 568.C.2 when tested with Recommended CAT5E Cables. Category 6 - TIA 568.C.2 when tested with Recommended CAT6 Cables.
    • Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
    • Current Rating: 1.500 A
    • Insulation Resistance: 500 M-Ohm Minimum
    • Max. Contact Resistance: 10 m-Ohm


  • Item Includes:

    • 1x RJ45 Plug
    • 1x Load Bar
    • 1x Wire guide
    • 1x Installation Guide


  • GTIN:

    0611589015110
