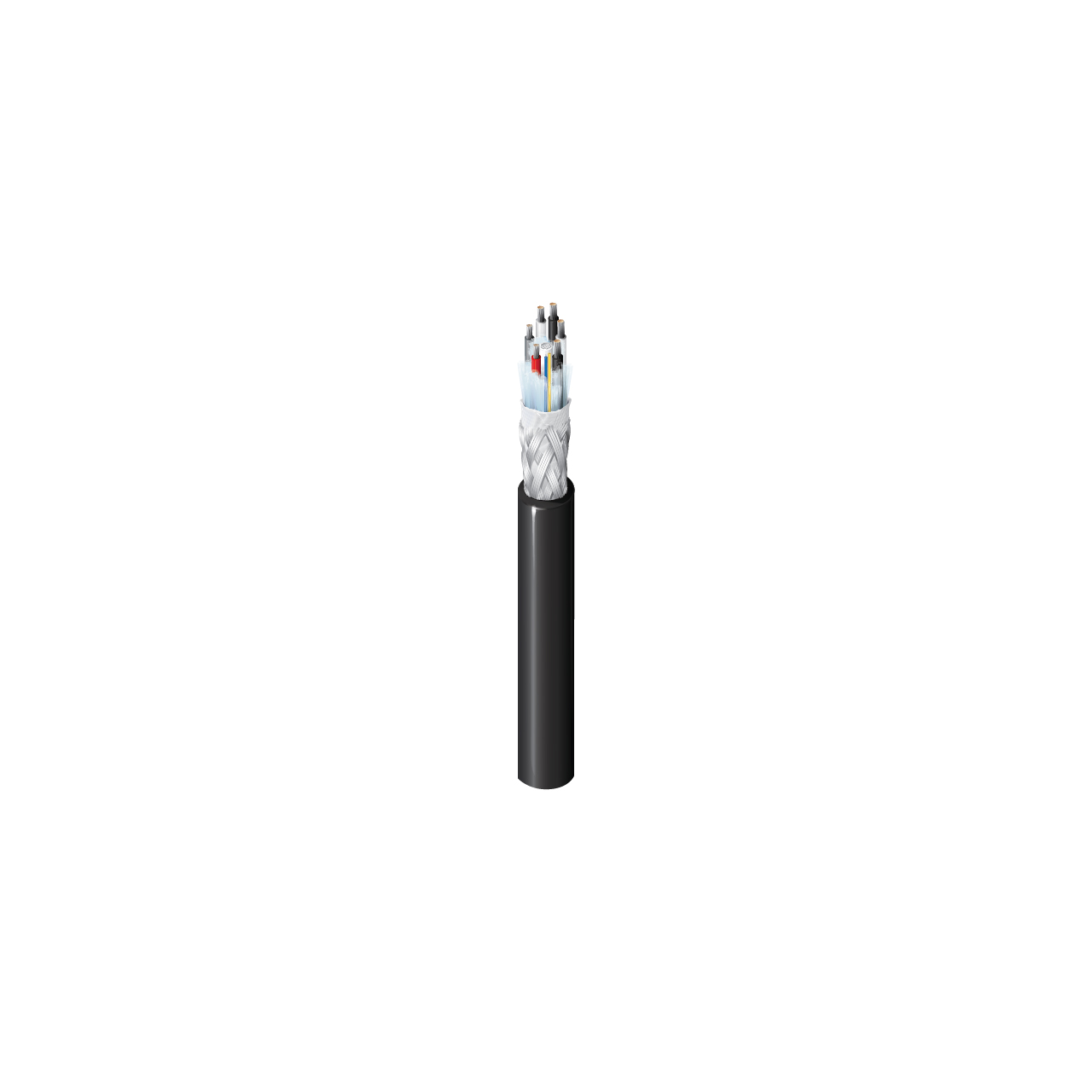

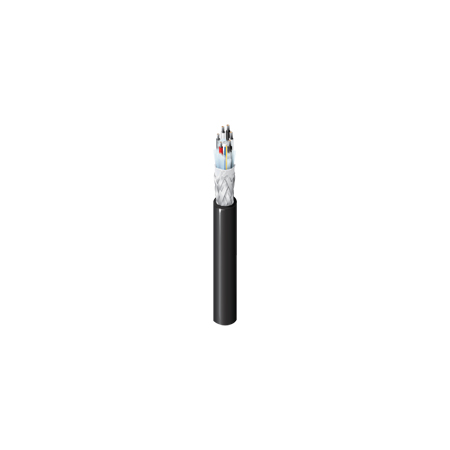

Belden 2804RW Indoor/Outdoor Stadium Cable - SMPTE 311M - 2 Fiber/2 Conductor 24AWG/4 Conductor 20AWG - Blk - 1000 Foot

2804RW 0101000 - Overview

• Features:

  • Increased Durability: Internal stainless steel strength member added to assemblies
  • Low Attenuation and Return Loss: Performance enables high-speed uncompressed HD video transmission
  • Many Options Available: Choose the SMPTE hybrid cable variation that best suits the needs of your application
  • Compliance: SMPTE 311M


• Specifications:

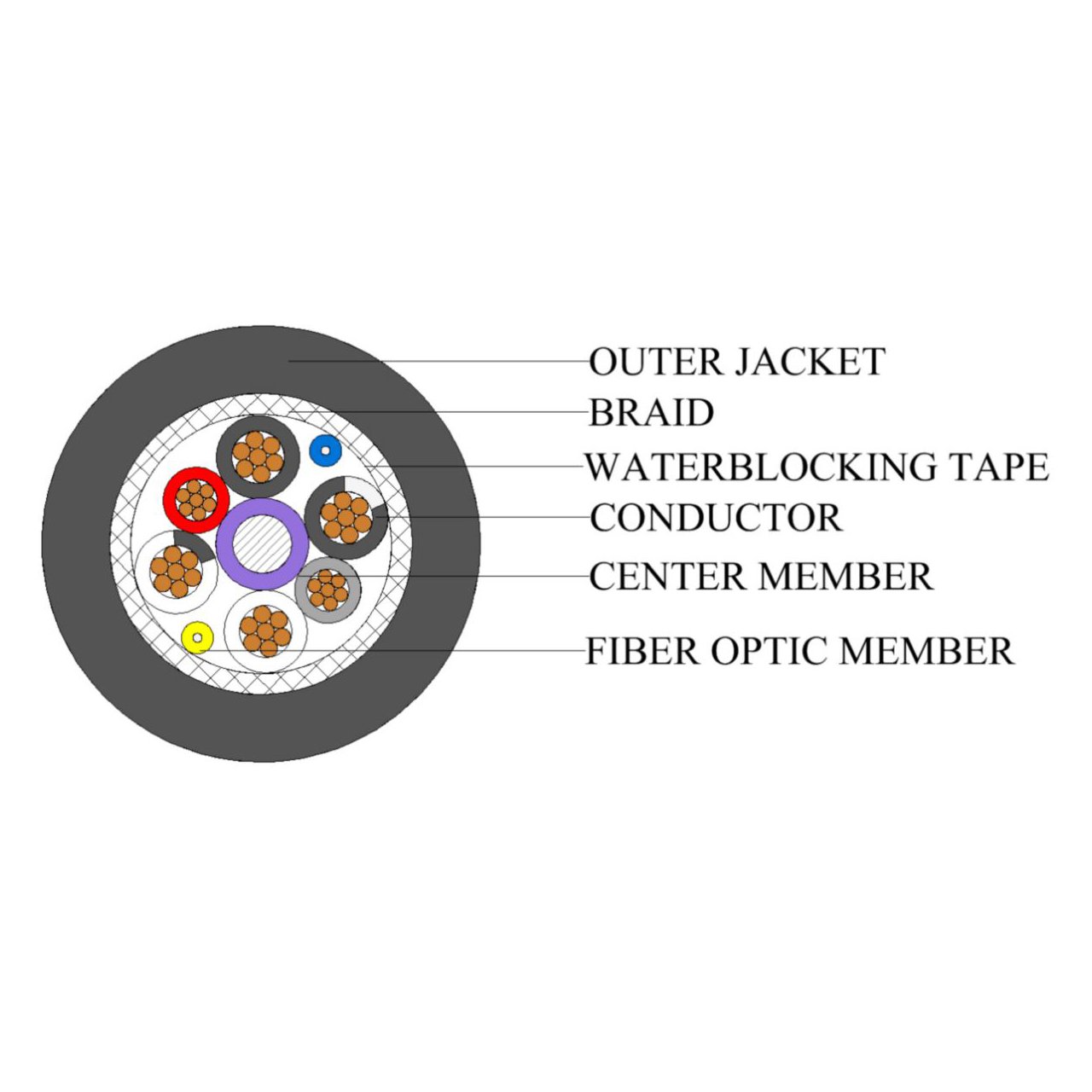

  • Multiconductor Conductor and Insulation
  • No. of Conductors: 2
    AWG: 24
    Stranding: 7x32
    Material: TC - Tinned Copper
    Nominal Conductor DCR: 23.3 Ohm/1000ft
    Insulation Material: PVC - Polyvinyl Chloride
    Insulation Nominal Diameter: 0.050 in
  • No. of Conductors: 4
    AWG: 20
    Stranding:19x32
    Material: TC - Tinned Copper
    Nominal Conductor DCR: 8.8 Ohm/1000ft
    Insulation Material: PVC - Polyvinyl Chloride
    Insulation Nominal Diameter: 0.063 in

    Multiconductor UL Voltage
  • 24 AWG - 300 V RMS
  • 20 AWG - 300 V RMS


  • Fiber Type: OS2, G.657.A2
  • Fiber Count: 2
  • Fiber Color Coding: Yellow, Blue
  • Mode Field Diameter: 9.2 µm
  • Wavelength@Optical SM1: 1310 nm, 1550 nm
  • Max. Attenuation at 1310 nm: 0.50 dB/km
  • Max. Attenuation at 1550 nm: 0.50 dB/km
  • Jacket: CPE
  • Operating Temperature Range: -40°C To +70°C
  • Installation Temperature Range: -10°C To +70°C
  • Storage Temperature Range: -40°C To +70°C
  • Max. Pull Tension: 450 lbs
  • Bulk Cable Weight: 97 lbs/1000ft
  • NEC/(UL) Compliance: CMR
  • Suitability - Indoor: Yes
  • Suitability - Outdoor: Yes
  • UL Flammability: UL1666 Vertical Shaft
  • UL Rating/Flame Test: Riser


• Item Includes:

  • 1x Belden 2804RW Indoor/Outdoor Stadium Cable - SMPTE 311M/2 Fiber/2 Conductor 24AWG/4 Conductor 20AWG - Black - 1000 Foot


• GTIN:

  0612825397489
