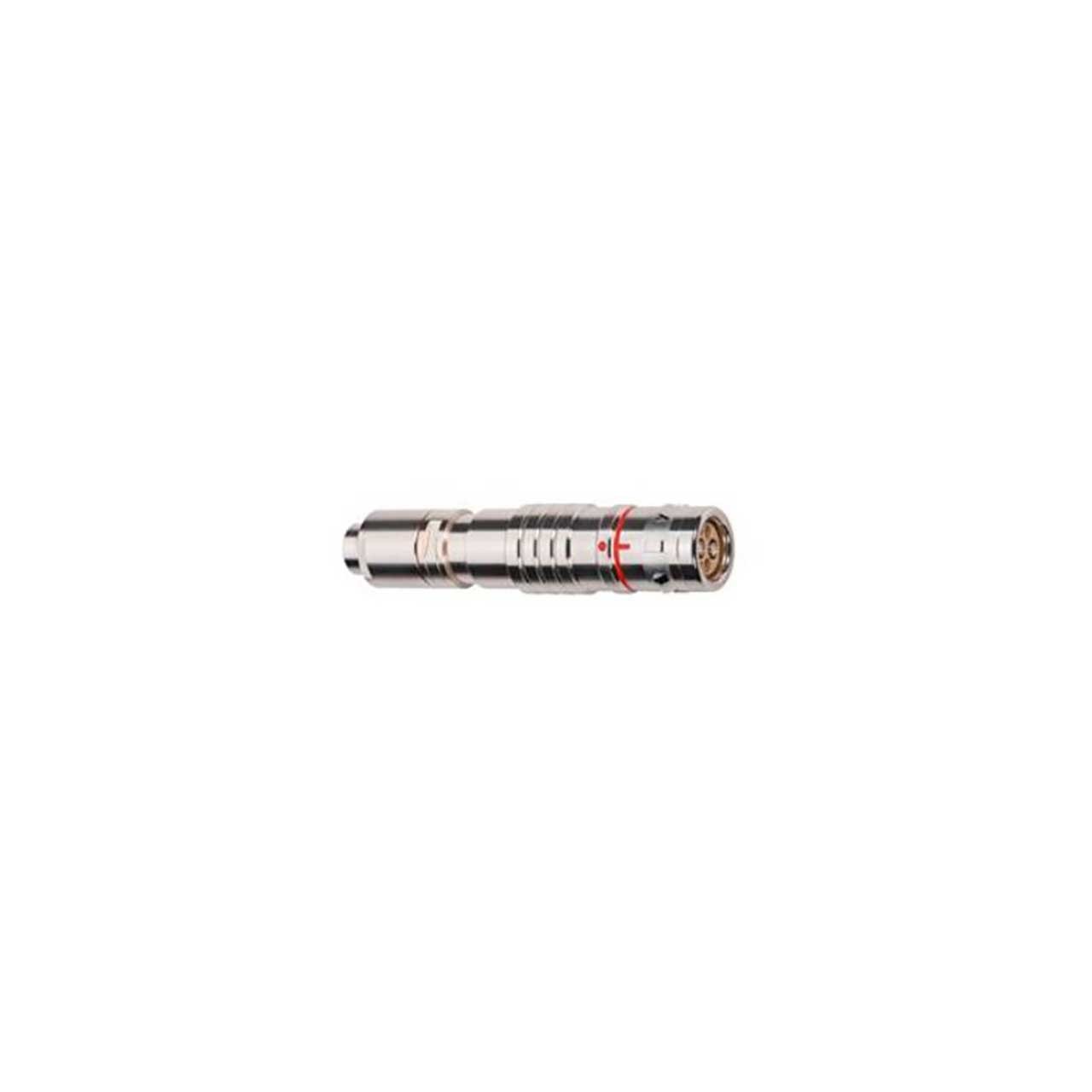

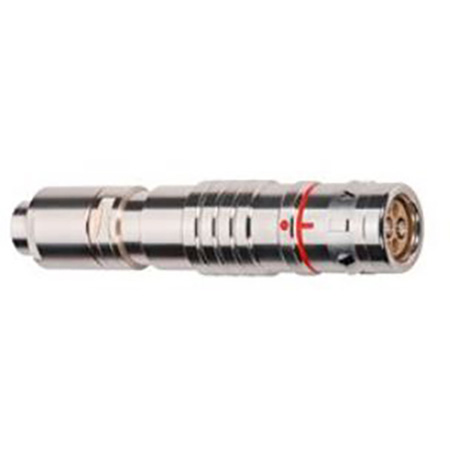

Lemo FUW.3K.93C.YSEC96 IP68 10A SMPTE Fiber Optic Straight Plug Cable Collet with Hybrid Contacts

FUW.3K.93C.YSEC96 - Overview

• Specifications:

  • Wires
  • Low Voltage: 2
  • High Voltage: 2
  • Fiber Optic: 2
  • Series: 3K
  • Termination Type: Hybrid contacts
  • IP Raiting: 68
  • AWG Wire Size: 24.00 - 20.00
  • Cable Ø: 8.90 - 9.50mm
  • Status: Active

    Mechanics
  • Shell Style/Model: FU*: Straight plug 'Y' new design, cable collet adapter and long shell for fitting a bend relief with cap (with enhanced screen efficiency)
  • Keying: 5 keys (alpha=95, beta=115, gamma=20, delta=30, plug: female LV, male HV, female FO contacts)
  • Housing Material: Special housing
  • Weight: 98.93 g

    Performance
  • Configuration: 3K.93C : 2 FO Type F2, 2 HV + 2 LV
  • Rated Current: 10 Amps

    Specifications
  • Fiber Optic Contact: Type F2
  • VtesT Power/Signal (AC): 2250V , 1000V
  • Working Voltage Power/Signal(AC): 600V , 42V
  • Cable Type: SMPTE 311M or EBU R100
  • Endurance (Shell): 20000 mating cycles
  • Temp (min / max): -40°C / +80°C
  • Humidity (max): <=95% [at 60 deg C /140 F]
  • Vibration: 15 g [10 Hz - 2000 Hz]
  • Shock Resistance: 100 g [ 6 ms]
  • Climatical Category: 50/175/21
  • Shielding (min): 95 dB (10 MHz)
  • Shielding (min): 80 dB (1 GHz)


• Item Includes:

  • 1x Lemo FUW.3K.93C.YSEC96 IP68 10A SMPTE Fiber Optic Straight Plug Cable Collet with Hybrid Contacts
