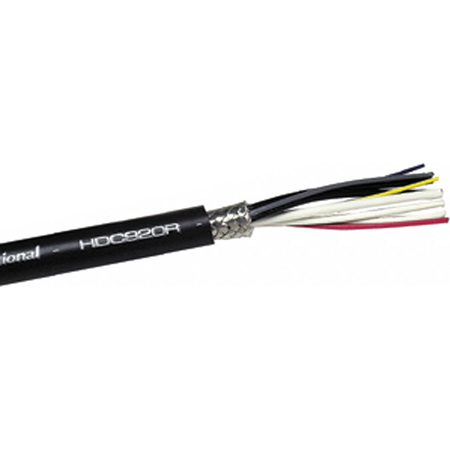

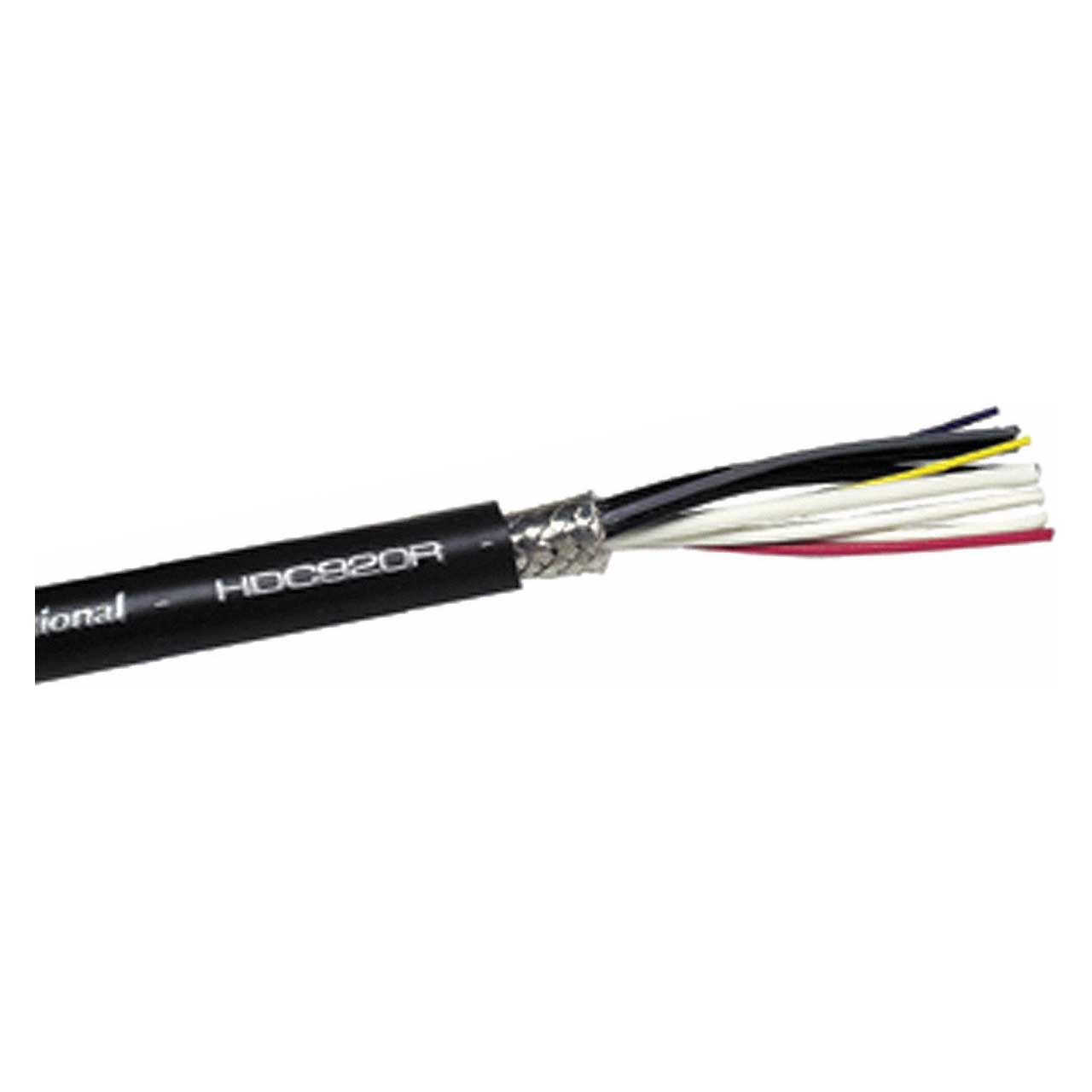

Gepco HDC920R SMPTE 311M Hybrid Fiber Optic Cable with Copper Conductors for Permanent Install - 1000 Foot Roll

ITEM #: GEP-HDC920R-1000 MFG #: HDC920R.41

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$3,880.70

Our Price:

$2,961.28

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HDC920R.41 - Overview

Fiber optic and copper conductor HDC920R SMPTE 311M hybrid cable for High Definition video cameras. In the hybrid 311M format, the HD video signal is transmitted over two single-mode optical fibers to ensure accurate and extended distance data transmission. To increase the durability, a special nylon-based polymer with increased tensile strength is used for the fiber coatings, and a 16 gage steel strength member is cabled at the center of the cable core. All copper elements now feature heat-resistant PE insulation and are shielded by a dense 95% copper braid. Both extra-flexible and permanent installation versions are available for studio, remote or permanent installation applications.

  • Features:

    • Ultra-Low Attenuation
    • SMPTE 311 Compliant
    • Single-Mode Optical Glass Fibers
    • Proprietary Fiber Coating for Increased Tensile Strength
    • Six Copper Conductors
    • Heat-Resistant
    • Strength Member for Additional Durability
    • Copper Braid Shield
    • Extra-flexible TPE or Riser PVC Jacket

  • Specifications:

    • Length: 1000 foot
    • Optical component: (2) Single Mode 9µ Mode Field, 125µ Cladding
    • Signal component: (2) 24 AWG Stranded TC
    • Auxiliary component: (4) 20 AWG Stranded TC
    • Strength member: (1) 16 AWG Stranded Steel
    • Overall shield: 95% TC Braid
    • Jacket: PVC

  • GTIN:

    0612825413127
