Belden 7804WB SMPTE 311M Waterblocked Outdoor Camera Cable - 2 SM Fiber / 2 cond 24AWG / 4 cond 20AWG - 1000 Ft - Black

ITEM #: BL-7804WB-1000 MFG #: 7804WB 0101000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,399.10

Our Price:

$3,959.19

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


7804WB 0101000 - Overview

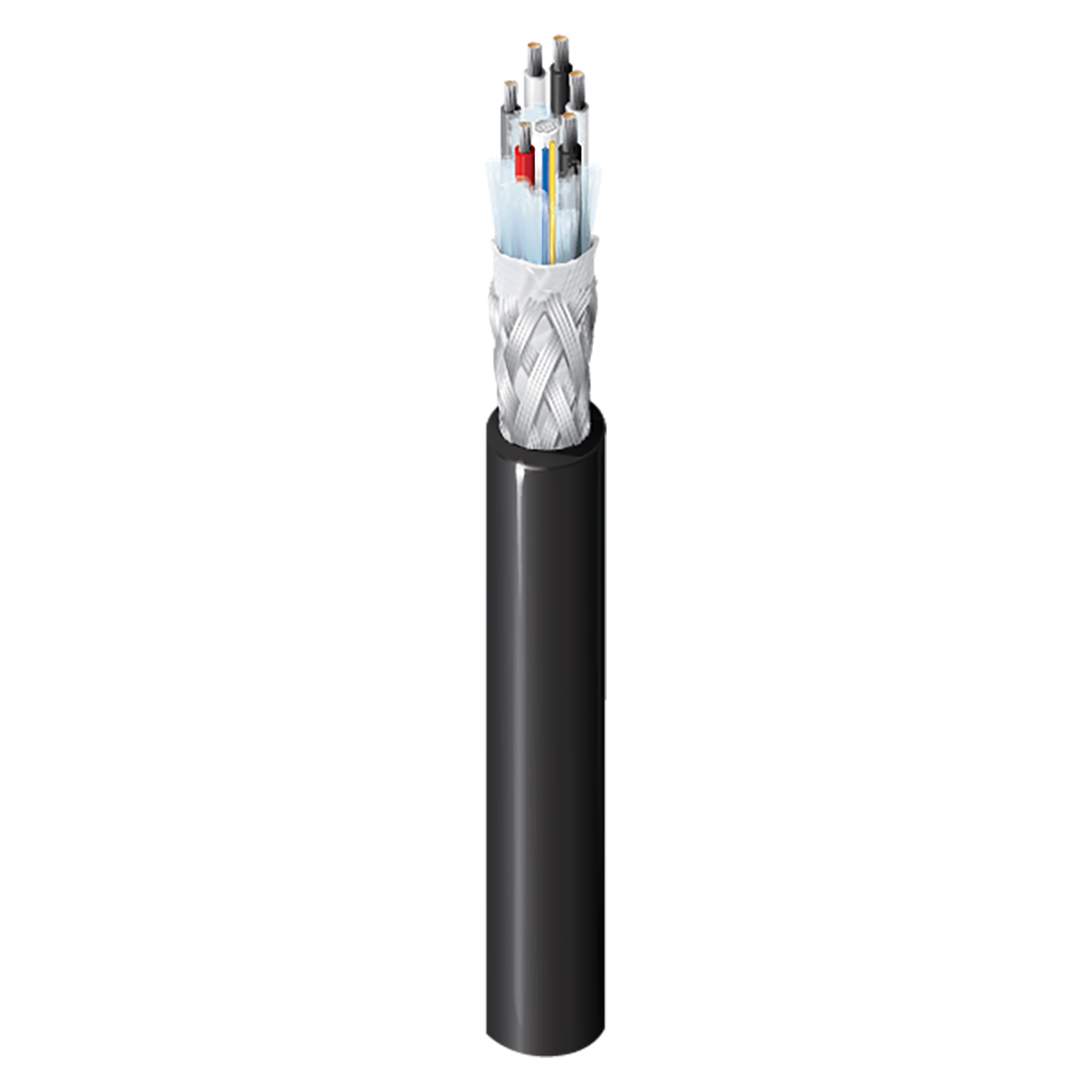

The Belden 7804WB 0101000 is a 1000 foot, waterblocked, outdoor, industry standard, SMPTE 311M Cable. It features two Single Mode Fiber, 2 Tinned Copper Conductor 24 AWG (7x32) and 4 Tinned Copper Conductors 20 AWG (19x32), PE Insulation, a Tinned Copper Braid Shield (95% coverage), Water Blocking Tape, in a black polyethylene jacket.

Suitable Applications: SMPTE 311

  • Specifications:

    • Mode Field Diameter: 9.2µm
    • Wavelength@Optical SM1: 1310nm, 1550nm
    • Max Attenuation at 1310nm: 0.5dB/km
    • Max Attenuation at 1550nm: 0.5dB/km
    • Jacket: Polyolefin (PO, PE, PP)
    • Operating Temp Range: -40°F - 158°F (-40°C - 70°C)
    • Installation Temp Range: -10°F - 158°F (-10°C - 70°C)
    • Storage Temp Range: -40°F - 158°F (-40°C - 70°C)
    • Max. Pull Tension: 1350 N
    • Bulk Cable Weight: 80 lbs/1000ft
    • Suitability - Outdoor: Yes
    • Fiber: Type OS2
    • Fiber Count: 2
    • Element 1: 24 AWG
    • No. of Conductors: 2
    • AWG: 24
    • Stranding: 7x32
    • Material: TC - Tinned Copper
    • Nominal Conductor: DCR 23.3 Ohm/1000ft
    • Insulation Material: PE - Polyethylene
    • Insulation Nominal Diameter: 0.043 in
    • Element 2: 20 AWG
    • No. of Conductors: 4
    • AWG: 20
    • Stranding: 19x32
    • Material: TC - Tinned Copper
    • Nominal Conductor: DCR 8.8 Ohm/1000ft
    • Insulation Material: PE - Polyethylene
    • Insulation Nominal Diameter: 0.057"

  • Item Includes:

    • 1x Belden 7804WB SMPTE 311M 2 Fiber Composite Cable - 2 Conductor - 24 AWG - PE Jacket - 1000 Feet - Black
