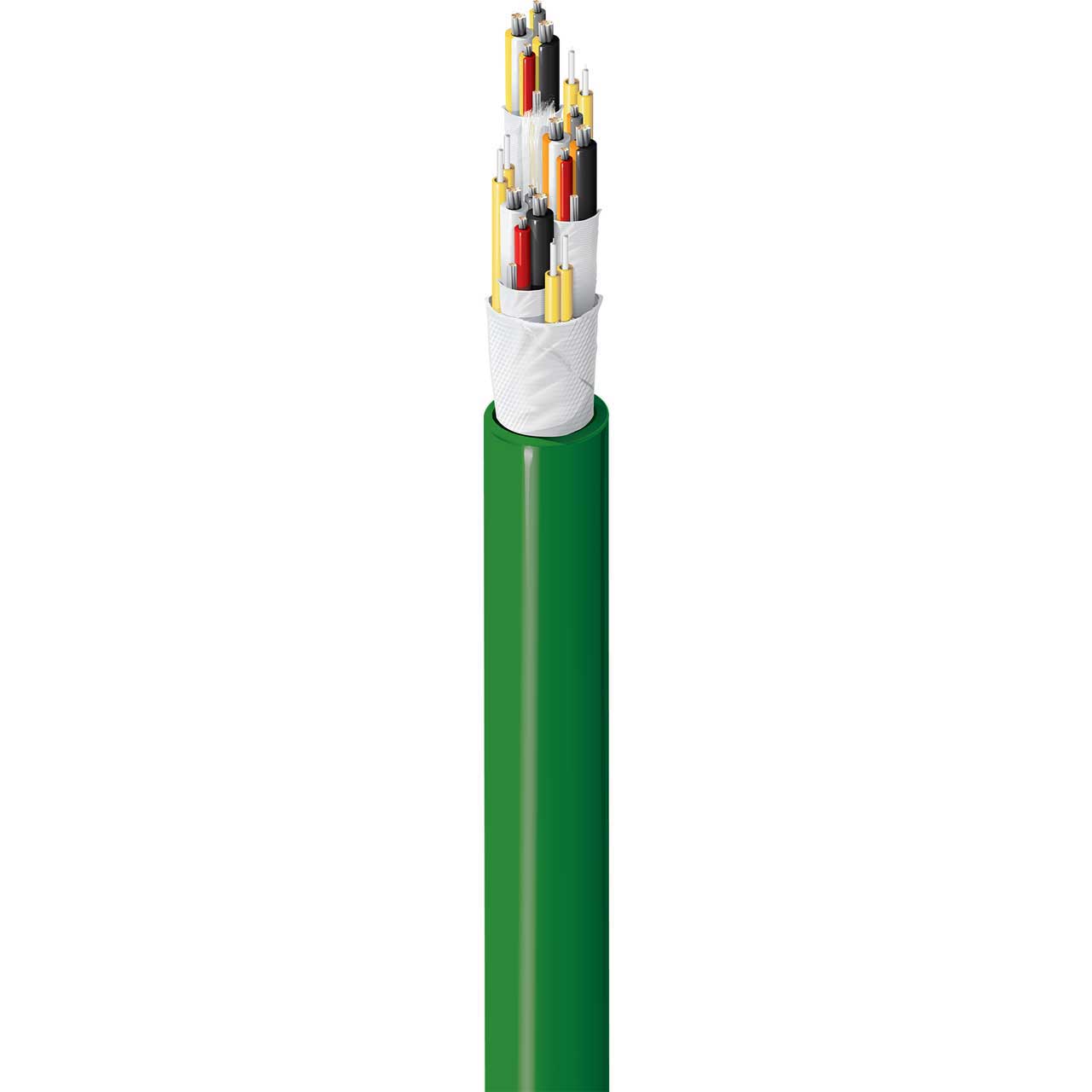

Belden 7824R 0051000 CMR/Riser 3-Ch SMPTE 311M Stadium Cable 6 Fiber/6 Conductor 18AWG/6 Conductor 24AWG-Green-1000 Ft

7824R 0051000 - Overview

• Features:

  • Increased Durability: Internal stainless steel strength member added to assemblies
  • Low Attenuation and Return Loss: Performance enables high-speed uncompressed HD video transmission
  • Compliance: SMPTE 311M and 304M


• Specifications:

  • Multiconductor Conductor and Insulation
  • Element 1: Quad 1, Quad 2, Quad 3
  • No. of Conductors: 6
  • AWG: 24
  • Stranding: 7x32
  • Material: TC - Tinned Copper
  • Nominal Conductor DCR: 23.3 Ohm/1000ft
  • Insulation Material: PVC - Polyvinyl Chloride
  • Insulation Nominal Diameter: 0.038 in
  • Element 2: Quad 1, Quad 2, Quad 3
  • No. of Conductors: 6
  • AWG: 18
  • Stranding: 19x30
  • Material: TC - Tinned Copper
  • Nominal Conductor DCR: 6.67 Ohm/1000ft
  • Insulation Material: PVC - Polyvinyl Chloride
  • Insulation Nominal Diameter: 0.080 in
  • Multiconductor Color Chart
  • Quad 1 - 24 AWG Red
  • Quad 1 - 24 AWG Gray
  • Quad 1 - 18 AWG White
  • Quad 1 - 18 AWG Black
  • Quad 2 - 24 AWG Red/Yellow
  • Quad 2 - 24 AWG Gray/Yellow
  • Quad 2 - 18 AWG White/Yellow
  • Quad 2 - 18 AWG Black/Yellow
  • Quad 3 - 24 AWG Red/Orange
  • Quad 3 - 24 AWG Gray/Orange
  • Quad 3 - 18 AWG White/Orange
  • Quad 3 - 18 AWG Black/Orange
  • Fiber Type: OS2, G.657.A2
  • Fiber Count: 6
  • Buffer Material: PVC - Polyvinyl Chloride
  • Buffer Diameter: 900 µm
  • Number of Active Subunits: 6
  • Number of Subunit Positions: 6
  • Fibers Per Subunit: 1
  • Mode Field Diameter: 9.2 µm
  • Wavelength@Optical SM1: 1310 nm, 1550 nm
  • Max. Attenuation at 1310 nm: 0.50 dB/km
  • Max. Attenuation at 1550 nm: 0.50 dB/km
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Nominal Diameter@OuterJacket1 1_CP_OV: .525 in
  • Operating Temperature Range: -20°C to 60°C


• Item Includes:

  • 7824R 0051000 CMR/Riser 3-Ch SMPTE 311M Stadium Cable 24AWG- Dark Green-1000 Ft


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825418252
