Belden 7804PX SMPTE 311M CMP Camera Cable - 2 Fiber - 2 Conductor 24AWG/4 Conductor 20AWG - PVDF Jacket - Black - 4000Ft

Name: Belden 7804PX SMPTE 311M CMP Camera Cable - 2 Fiber - 2 Conductor 24AWG/4 Conductor 20AWG - PVDF Jacket - Black - 4000Ft
Brand: Belden
SKU: BL-7804PX-4000BK
Price: 18432.40 USD
Availability: PreSale

ITEM #: BL-7804PX-4000BK MFG #: 7804PX 0104000

Belden

Our Price:

$18,432.40

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

7804PX 0104000 - Overview

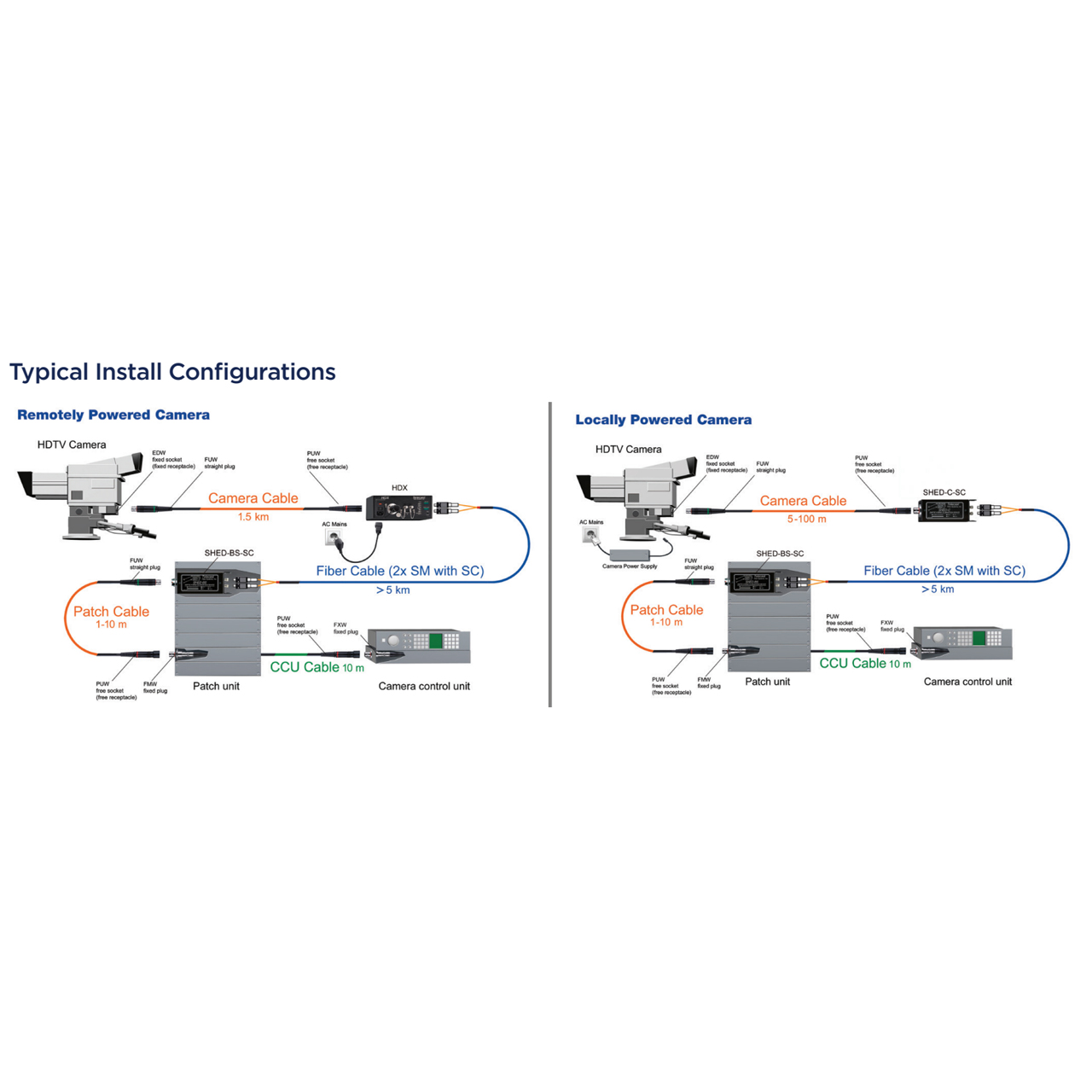

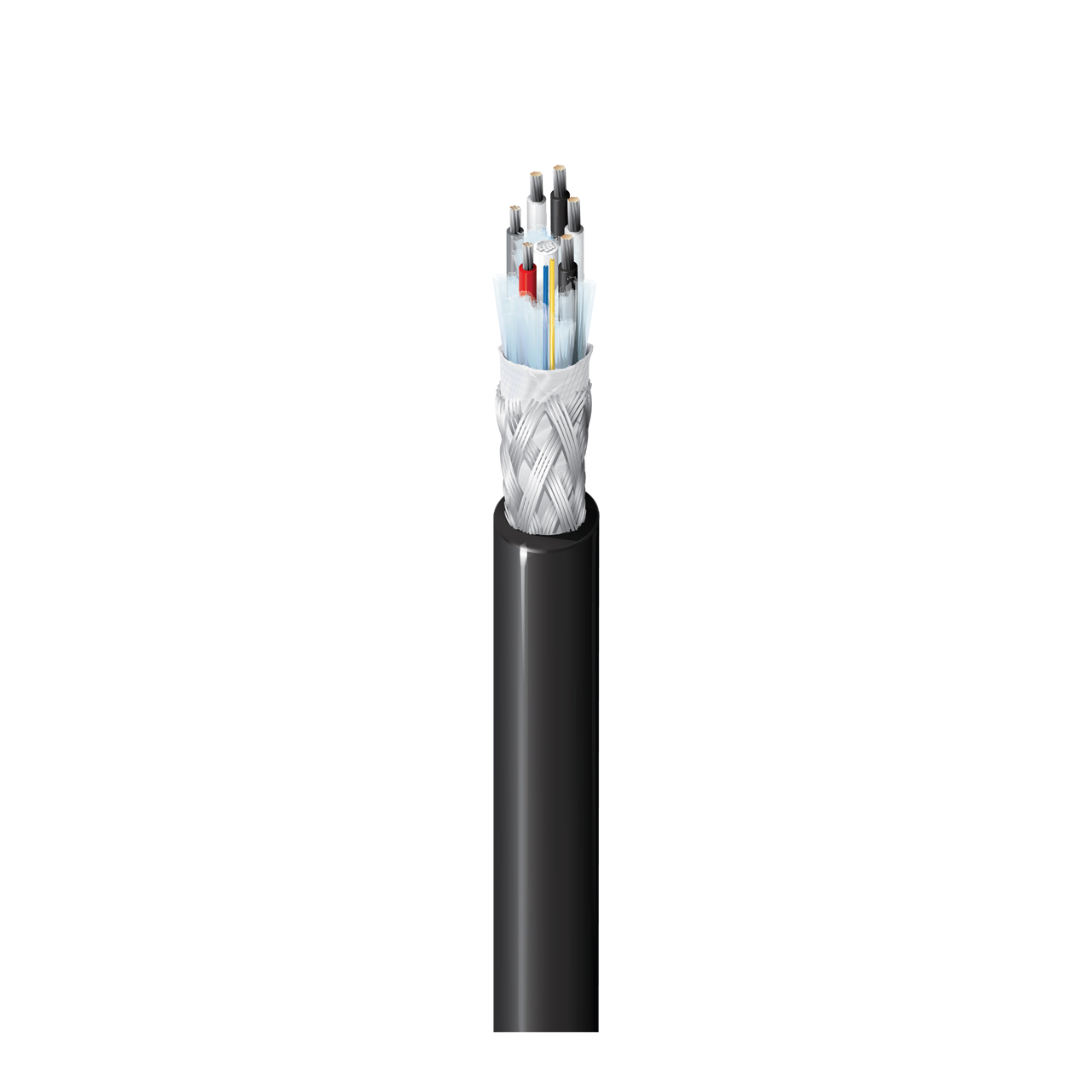

Belden's 7804PX 0104000 is an industry standard SMPTE 311M cable, with two single mode fibers, two TC conductors at 24AWG and four TC Conductors at 20AWG. The PVC insulation, TC braid shield, PVDF jacket, and 4000 feet length make it ideal for either indoor or outdoor useage.

Specifications:
- 24 AWG
  - Count: 2x
  - Colors: Red, Gray
  - Stranding: 7x32
  - Material: Tinned Copper
  - Nominal Conductor DCR: 23.3 Ω/1000ft
  - Insulation Material: FEP - Fluorinated Ethylene Propylene
  - Insulation Nominal Diamater: 0.038" (0.97mm)
  - UL Voltage Rating: 300 V RMS
  - Shielding: Braid
- 20 AWG
  - Count: 4x
  - Colors: 2x White, 2x Black
  - Stranding: 19x32
  - Material: Tinned Copper
  - Nominal Conductor DCR: 8.8 Ω/1000ft
  - Insulation Material: FEP - Fluorinated Ethylene Propylene
  - Insulation Nominal Diamater: 0.054" (1.37mm)
  - UL Voltage Rating: 300 V RMS
  - Shielding: Braid

  Fiber
- Fiber Type: OS2, G.657.A2
- Count: 2x
- Colors: Yellow, Blue
- Buffer Diamter: 900 μm
- Mode Field Diamater: 9.2 μm
- Wavelength @ Optical SM1: 1310nm, 1550 nm
- Max Attenuation at 1310nm: 0.50 dB/km
- Max Attenuation at 1550 nm: 0.50 dB/km

  Overall Cable
- Outer Jacket, Nominal Diameter: 0.249"
- Overall Shielding:
  - Type: Braid
  - Material: Tinned Copper
  - Coverage: 80%
- Jacket: PVDF
- Operating Temperature Range: -4°F - 167°F (-20°C - 75°C)
- Installation Temperature Range: 32°F - 167°F (0°C - 75°C)
- Storage TemperatureRange: -4°F - 167°F (-20°C - 75°C)
- Max. Pull Tension: 303.5lbf (1350N)
- Bulk Cable Weight: 59lb/1000' (26.76kg/304.8m)

  Applicable Standards and Enviornmental Programs
- NEC/(UL) Compliance: CMP
- CEC/C(UL) Compliance: CMP
- European Directive Compliance: EU Directive 2011/65/EU (RoHS 2), EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2000/53/EC (ELV), EU Directive 2012/19/EU (WEEE), EU Directive 2003/11/EC (BFR)

  Suitability
- Aerial: Yes, when suppported by messenger wire
- Indoor: Yes
- Outdoor: Yes
- Sunlight Resistance: Yes

  Flame Test
- UL Flammability: UL910 Steiner Tunnel
- CSA/C(UL) Flammability: FT6

  History
- Revision Number: 0.15
- Revision Date: 02-27-2024
Item Includes:
- 1x 7804PX 0104000 SMPTE 311M cable

7804PX 0104000 - Reviews

7804PX 0104000 - Attachments

7804PX 0104000 Spec Sheet

Overview

7804PX 0104000 - Overview

Specifications:
- 24 AWG
  - Count: 2x
  - Colors: Red, Gray
  - Stranding: 7x32
  - Material: Tinned Copper
  - Nominal Conductor DCR: 23.3 Ω/1000ft
  - Insulation Material: FEP - Fluorinated Ethylene Propylene
  - Insulation Nominal Diamater: 0.038" (0.97mm)
  - UL Voltage Rating: 300 V RMS
  - Shielding: Braid
- 20 AWG
  - Count: 4x
  - Colors: 2x White, 2x Black
  - Stranding: 19x32
  - Material: Tinned Copper
  - Nominal Conductor DCR: 8.8 Ω/1000ft
  - Insulation Material: FEP - Fluorinated Ethylene Propylene
  - Insulation Nominal Diamater: 0.054" (1.37mm)
  - UL Voltage Rating: 300 V RMS
  - Shielding: Braid

  Fiber
- Fiber Type: OS2, G.657.A2
- Count: 2x
- Colors: Yellow, Blue
- Buffer Diamter: 900 μm
- Mode Field Diamater: 9.2 μm
- Wavelength @ Optical SM1: 1310nm, 1550 nm
- Max Attenuation at 1310nm: 0.50 dB/km
- Max Attenuation at 1550 nm: 0.50 dB/km

  Overall Cable
- Outer Jacket, Nominal Diameter: 0.249"
- Overall Shielding:
  - Type: Braid
  - Material: Tinned Copper
  - Coverage: 80%
- Jacket: PVDF
- Operating Temperature Range: -4°F - 167°F (-20°C - 75°C)
- Installation Temperature Range: 32°F - 167°F (0°C - 75°C)
- Storage TemperatureRange: -4°F - 167°F (-20°C - 75°C)
- Max. Pull Tension: 303.5lbf (1350N)
- Bulk Cable Weight: 59lb/1000' (26.76kg/304.8m)

  Applicable Standards and Enviornmental Programs
- NEC/(UL) Compliance: CMP
- CEC/C(UL) Compliance: CMP
- European Directive Compliance: EU Directive 2011/65/EU (RoHS 2), EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2000/53/EC (ELV), EU Directive 2012/19/EU (WEEE), EU Directive 2003/11/EC (BFR)

  Suitability
- Aerial: Yes, when suppported by messenger wire
- Indoor: Yes
- Outdoor: Yes
- Sunlight Resistance: Yes

  Flame Test
- UL Flammability: UL910 Steiner Tunnel
- CSA/C(UL) Flammability: FT6

  History
- Revision Number: 0.15
- Revision Date: 02-27-2024
Item Includes:
- 1x 7804PX 0104000 SMPTE 311M cable
