Belden 5200UP CM-Rated High Flex Audio and Speaker Cable 2x16AWG - Black - 500 Foot

Name: Belden 5200UP CM-Rated High Flex Audio and Speaker Cable 2x16AWG - Black - 500 Foot
Brand: Belden
SKU: BL-5200UP-500
Price: 240.66 USD
Availability: PreSale

ITEM #: BL-5200UP-500 MFG #: 5200UP 010500

Belden

Lengths:

Reel Types:

Lengths

Reel Types

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$294.40

Our Price:

$240.66

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

5200UP 010500 - Overview

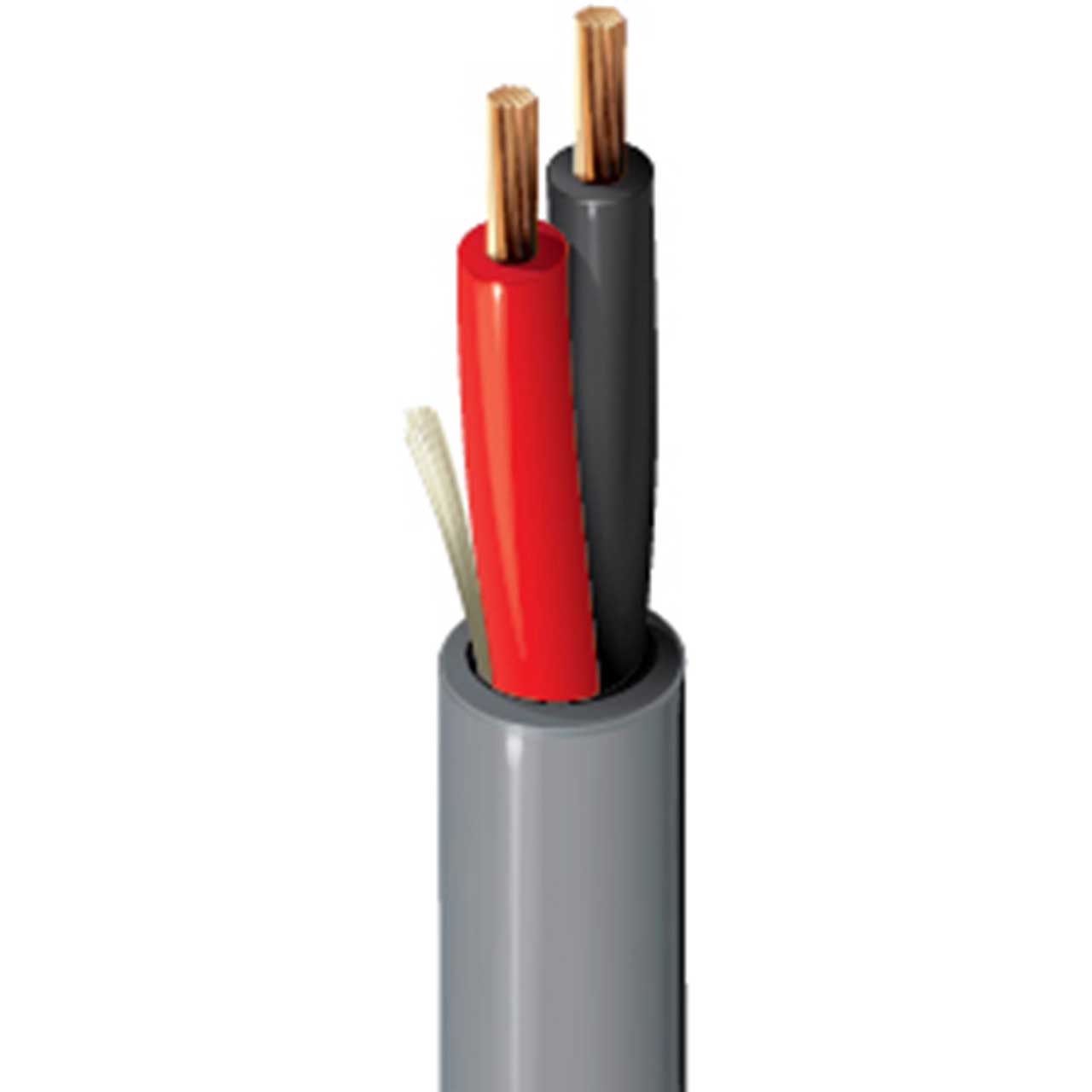

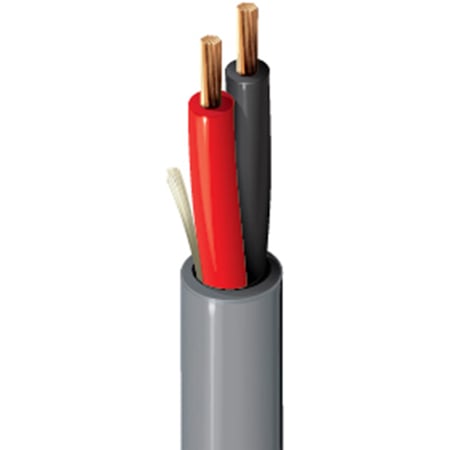

Belden 5200UP is a CM rated Highly Flexible Audio Cable. It features 2-16 AWG highly flexible stranded bare copper conductors with PVC insulation in a PVC jacket with ripcord.

Applications
Security Systems
Intercom/PA
Audio/Speaker
Power-Limited Controls

Features:
- Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
- Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
- Easy Identification: Cable jackets feature footage room and zone markings

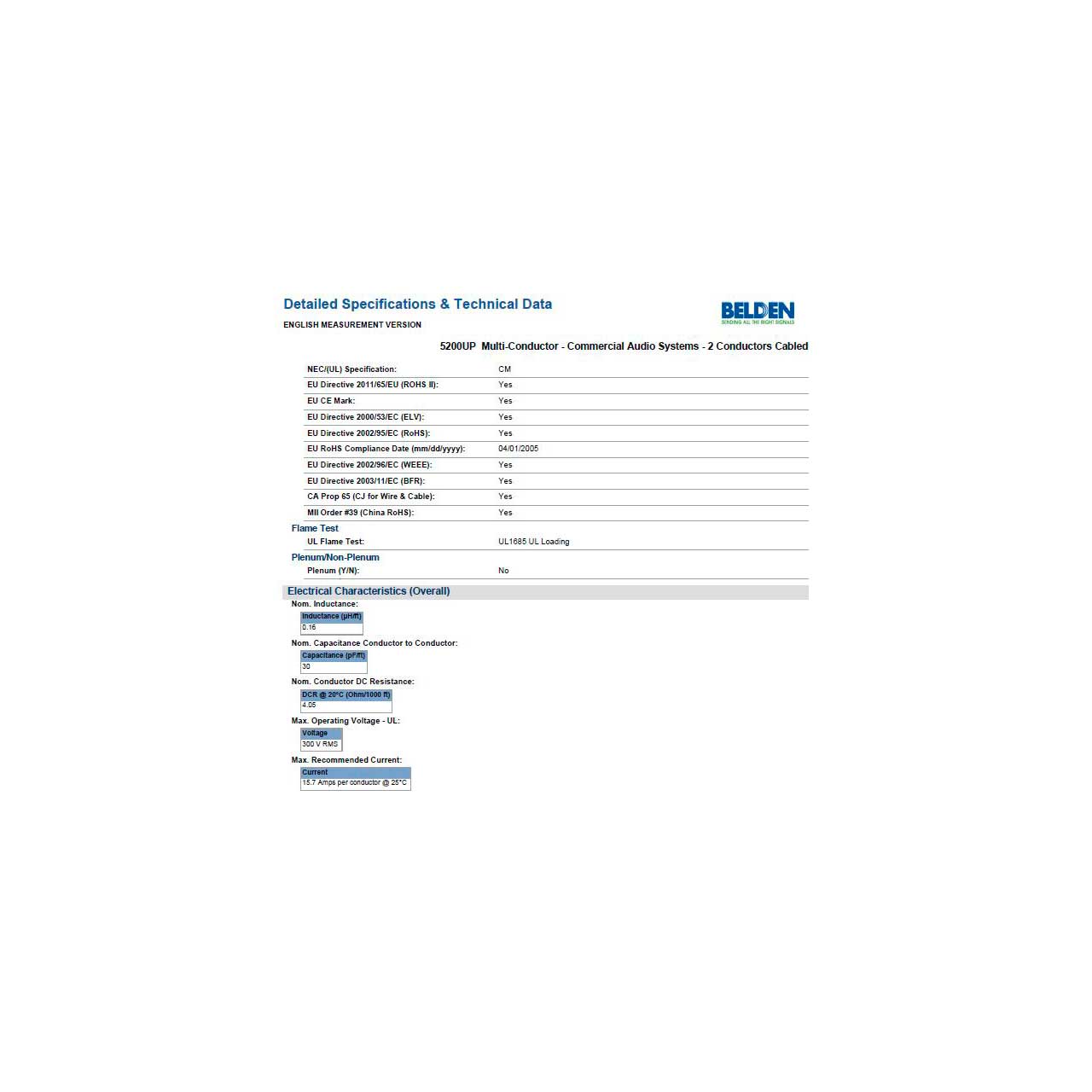

Specifications:
- Conductors: 2
- AWG: 16
- Stranding: 65x34
- Material: Bare High-Conductivity ETP Copper
- Overall Nominal Diameter: 0.208 in.
- Operating Temperature Range: -20°C To +75°C
- UL Temperature Rating: 75°C
- Bulk Cable Weight: 25.700 lbs/1000 ft.
- Max. Recommended Pulling Tension: 65 lbs.
- Min. Bend Radius/Minor Axis: 2 in.
- Capacitance (pF/ft): 30
- DCR @ 20°C (Ohm/1000 ft): 4.05
- Voltage: 300 V RMS
- Current: 15.7 Amps per conductor @ 25°C
Item Includes:
- 5200UP High Flex Audio and Speaker Cable 2x16AWG - Black - 500 Ft
Warranty:
- 10 Year Limited Warranty
GTIN:
0612825157694
