Belden 5304FE 6-Conductor 18 AWG Riser-CMR Security & Alarm Cable - Gray - 1000 Foot

ITEM #: BL-5304FE-1000GY MFG #: 5304FE 0081000

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$606.50

Our Price:

$480.63

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


5304FE 0081000 - Overview

New Generation Alarm Cables from Belden are part of a large, economical selection of multi-conductor and coaxial products. For situations located outside of a building or between adjacent buildings, try Waterdog versions for additional protection. Cables meet NEC and UL guidelines for safety in any application.

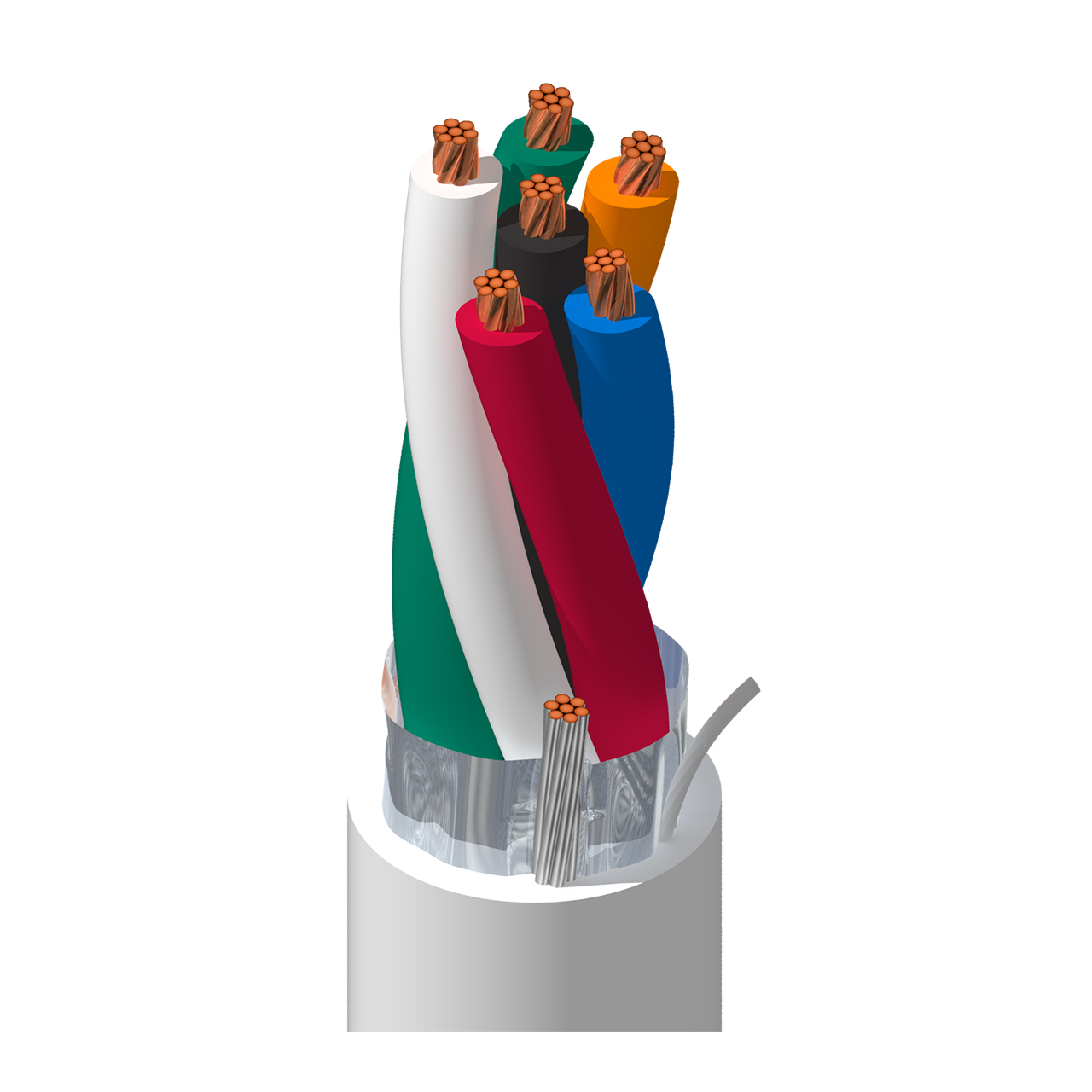

Belden 5304FE is a CMR/Riser rated Security & Sound Cable. It features 6-18 AWG stranded bare copper conductors with polypropylene insulation, a Beldfoil® shield in a PVC jacket with ripcord.

Applications:
- Security System
- Intercom/PA
- Audio/Speaker
- Power-Limited Controls
- Noisy Environment

  • Features:

    • Quick Installation: Rip cords support easy jacket removal
    • Time Savings: Sequential footage markings on jacketing indicate remaining cable

  • Specifications:

    • Conductor AWG: 18
    • Conductor Elements: 6
    • Conductor Stranding: 7x26
    • Conductor Material: BC - Bare Copper
    • Insulation Element: Conductor(s)
    • Insulation Material: PO - Polyolefin
    • Insulation Nom. Thickness: 0.009" (0.23mm)
    • Nom. Insulation Diameter: 0.062" (1.6mm)
    • Insulation Color Code: Black, Red, White, Green, Brown, Blue
    • Outer Shield Type: Tape
    • Outer Shield Material: Bi-Laminate (Alum+Poly)
    • Outer Shield Coverage: 100%
    • Outer Shield Drainwire Type: 24 AWG (7x32) TC
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.017" (0.43mm)
    • Outer Jacket Nom. Diameter: 0.224" (5.69mm)
    • Outer Jacket Ripcord: Yes
    • Overall Cable Diameter (Nominal): 0.224" (5.69mm)
    • UL Voltage Rating: 300 V (CMP)
    • UL Rating Temp.: 167°F (75°C)
    • Operating: -4°F - 167°F (-20°C - 75°C)
    • Max. Pull Tension: 143.5lbs
    • Bulk Cable Weight: 43lbs/1000ft
    • Environmental Suitability: Indoor - Riser, Indoor
    • Flammability / Fire Resistance: UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2
    • NEC / UL Compliance: Article 800, CMR
    • CEC / C(UL) Compliance: CMG

  • Item Includes:

    • 1x Belden 5304FE 6-Conductor 18 AWG Riser-CMR Security & Alarm Cable - Gray - 1000 Foot
