Belden 7700A 75 Ohm Ultra-mini RG-59 30AWG Plenum S-Video Cable - 1000 Foot

Name: Belden 7700A 75 Ohm Ultra-mini RG-59 30AWG Plenum S-Video Cable - 1000 Foot
Brand: Belden
SKU: BL-7700A-1000
Price: 1756.06 USD
Availability: PreSale

ITEM #: BL-7700A-1000 MFG #: 7700A B591000

Belden

Lengths:

Lengths

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,134.70

Our Price:

$1,756.06

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

7700A B591000 - Overview

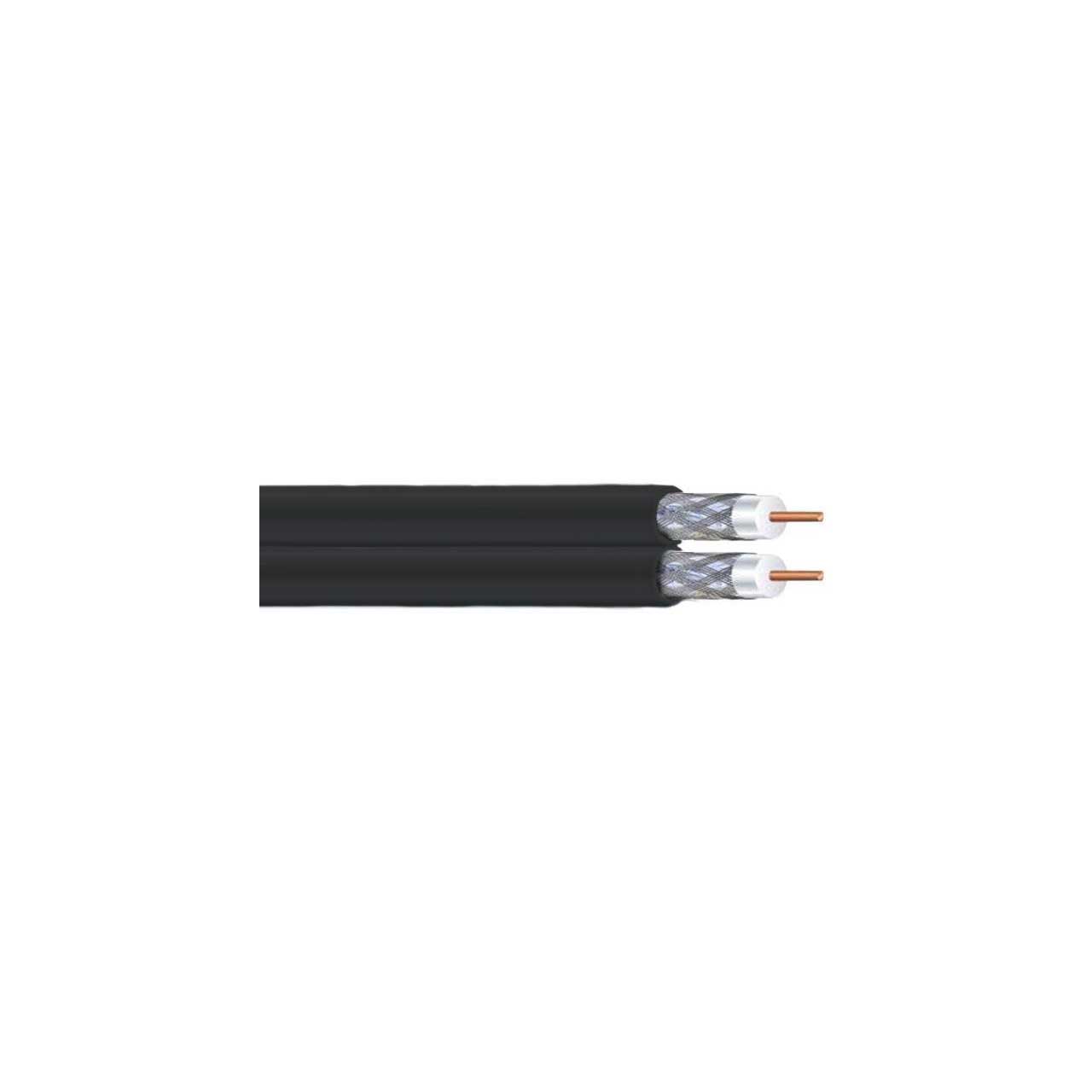

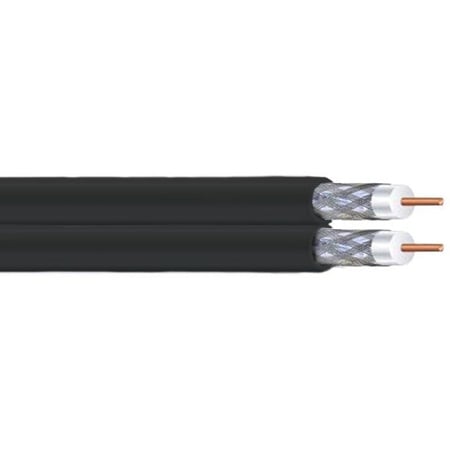

Belden 7700A 75 Ohm Analog Video Coax, Dual Ultra-miniature RG-59, 30 AWG (7x38) Tinned Copper Conductors , FEP Insulation, 95% Tinned Copper French Braid Inner Shields, Flamarrest® Jacket, CMP, Flexible. Suitable for S-Video, Standard analog video applications.

Specifications:
- RG Type: Ultra-miniature 59
- AWG: 30
- Stranding: 7x38
- Nom. Diameter: 0.012in
- Material: TC - Tinned Copper
- Nom. Conductor DCR: 92.6 Ohm/1000ft
- Nom. Inner Shield DCR: 7.5 Ohm/1000ft
- Nom. Capacitance Cond-to-Shield: 17.3 pF/ft
- Nom. Impedence: 75 Ohm
- Nom. Velocity: 78%
- UL Voltage Rating: 300 V (CMP)
- Non-UL Voltage Rating: 300 V
- UL Rating Temp: 60°C
- Operating Temp: -10°C to +60°C
- Bulk Cable Weight: 20 lbs/1000ft
- Max. Pull Tension: 12 lbs
GTIN:
0612825188216

7700A B591000 - Recommended Accessories

Weller WE1010NA Digital Soldering Station with 70W Iron
WEL-WE1010NA
Our Price: $149.04
Qualitek RA300 Rosin Core 21 Gauge 60/40 0.032 Diameter 1 Lb. Solder
SOLDER-31
Our Price: $43.19
S-Video Balun - S-Video 4-Pin Mini Din to RJ45 Jack
ETS-PV907
Our Price: $62.56
Laird Super Tough Field Deployment-Ready Cat5e Cable w/ Belden 7923A - 10 Foot
TUFFCAT-10
Our Price: $29.95

7700A B591000 - Reviews

7700A B591000 - Attachments

See Belden 7700AB591000 Specifications (PDF)
