Belden 7810A 50 Ohm Wireless Transmission Coax RG-8 Type Cable - Per Foot

ITEM #: BL-7810A MFG #: BL-7810A

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3.48

Our Price:

$3.29

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


BL-7810A - Overview

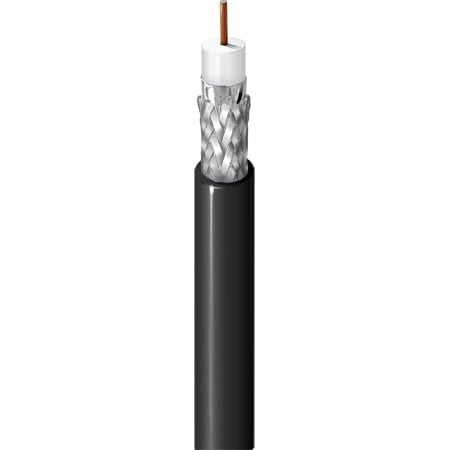

Belden 7810A 50 Ohm Wireless Transmission Coax, RF 400, RG8, 10 AWG Solid Bare Copper Covered Aluminum Conductor, PE Insulation, Duofoil II + 95% Tinned Copper Braid Shield, PE Jacket. Suitable for Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification) applications.

  • Specifications:

    • RG Type: 8
    • AWG: 10
    • Stranding: Solid
    • Nom. Diameter: 0.108in
    • Material: BCCA - Bare Copper Covered Aluminum
    • VSWR Frequency [MHz]: 5 - 6000 MHz
    • Max. VSWR: 1.25:1
    • Nom. Conductor DCR: 1.3 Ohm/1000ft
    • Nom. Outer Shield DCR: 2.0 Ohm/1000ft
    • Nom. Capacitance Cond-to-Shield: 23 pF/ft
    • Nom. Impedance: 50 Ohm
    • Nom. Velocity: 86%
    • Non-UL Voltage Rating: 300 V
    • Operating Temperature: -30°C to +75°C
    • Bulk Cable Weight: 70 lbs/1000ft
    • Max. Pull Tension: 150 lbs
    • Environmental Suitability: Indoor/Outdoor, Indoor
    • Sustainability: CA Prop 65

  • GTIN:

    0612825189794
