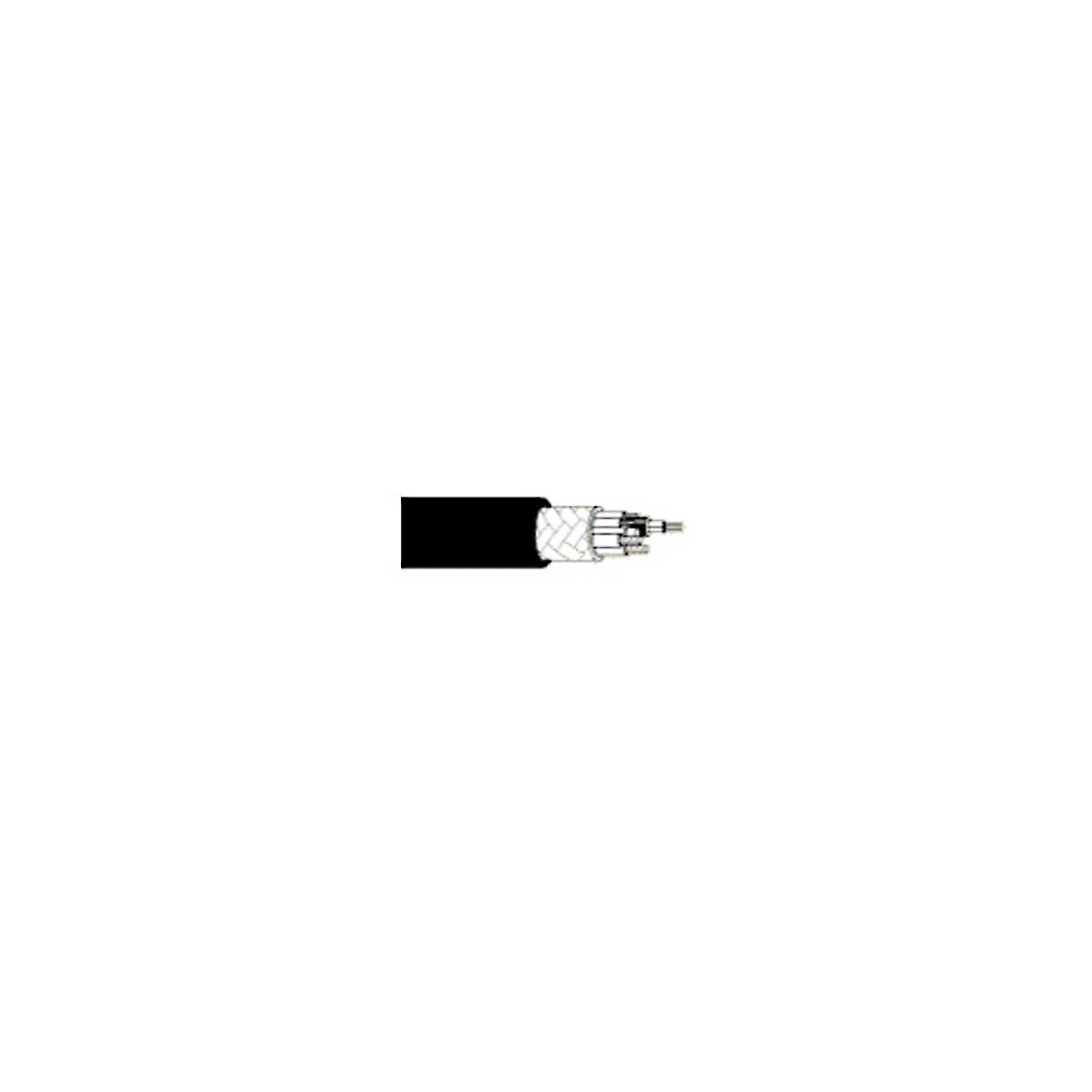

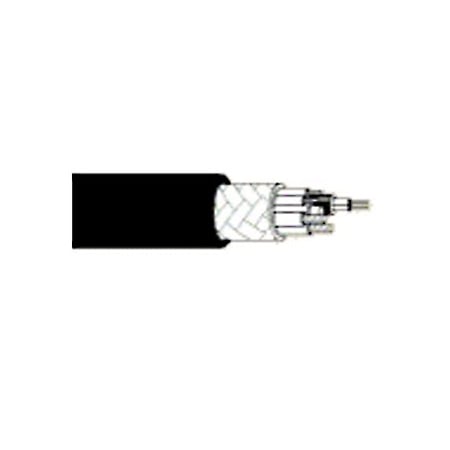

Belden 7825P CMP/Plenum SMPTE Electrical Camera Breakout Cable 2-Conductor 16 AWG/2-Conductor 22 AWG - Natural - Per Ft

7825P 877 - Overview

• Specifications:

  • Condocutor: 2 16AWG 19x29 stranding Tinned Copper; 2 22 AWG 7x30 stranding - Tinned Copper
  • Insulation: Flamarrest Low Smoke Polyvinyl Chloride
  • Conductor DC Resistance @ 20° C (Ohm/1000 ft): 22 AWG - 17.500; 16 AWG - 4.500
  • Outer Shield DC Resistance @ 20° C (Ohm/1000 ft): 2.800
  • Outer Shield Material: Braided Tinned Copper
  • Outer Jacket Material: Flamarrest Low Smoke Polyvinyl Chloride
  • Operating Temperature Range: -20° C To +60° C
  • Bulk Cable Weight: 45 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 147 lbs.
  • Min. Bend Radius/Minor Axis: 2.250 in.
  • Overall Nominal Diameter: 0.212 in.
  • NEC/(UL) Specification: CMP
  • CEC/C(UL) Specification: CMP
  • EU Directive 2011/65/EU (ROHS II): Yes
  • EU Directive 2000/53/EC (ELV): Yes
  • EU Directive 2002/95/EC (RoHS): Yes
  • EU Directive 2002/96/EC (WEEE): Yes
  • EU Directive 2003/11/EC (BFR): Yes
  • CA Prop 65 (CJ for Wire & Cable): Yes
  • MII Order #39 (China RoHS): Yes
  • Other Specification: SMPTE311
  • UL Flame Test: NFPA 262
  • CSA Flame Test: FT6
  • Suitability - Indoor: Yes
  • Plenum (Y/N): Yes
