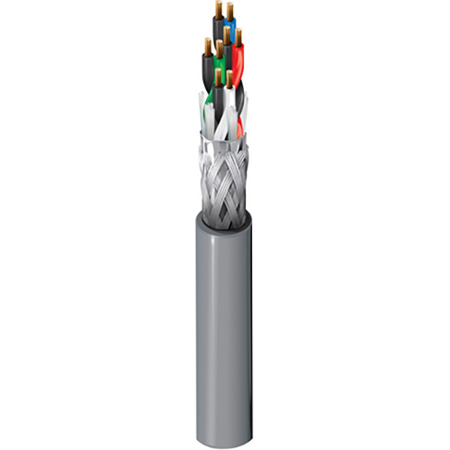

Belden 8104 is a Computer EIA RS-232/422 Cable with 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, twisted pairs, an overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), plus a 24 AWG stranded tinned copper drain wire in a PVC jacket.
With an unmatched ability to ensure system uptime, Belden Classics Electronic, Audio, Control and Instrumentation Cables are uniquely engineered for rugged industrial jobs. With proven reliability and performance backed by a 10-year no-cost warranty, these utility-grade essentials will outlast alternative options - even in the most demanding environments.
Applications
RS-232 extended distance applications
RS-422 applications
Computer communications
Low voltage analog signals (4-20ma, 0-10v)
Low voltage digital control (24v)
Line level audio
Panel wiring
