Belden 8216 Aerial Indoor/Outdoor RG-174/U 50 Ohm Wireless Transmission Coax Shielded Str BCCS 26AWG - Black - 500 Ft

Name: Belden 8216 Aerial Indoor/Outdoor RG-174/U 50 Ohm Wireless Transmission Coax Shielded Str BCCS 26AWG - Black - 500 Ft
Brand: Belden
SKU: BL-8216-500
Price: 420.66 USD
Availability: PreSale

ITEM #: BL-8216-500 MFG #: 8216 500 FT.

Belden

List Price:

$486.45

Our Price:

$420.66

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

8216 500 FT. - Overview

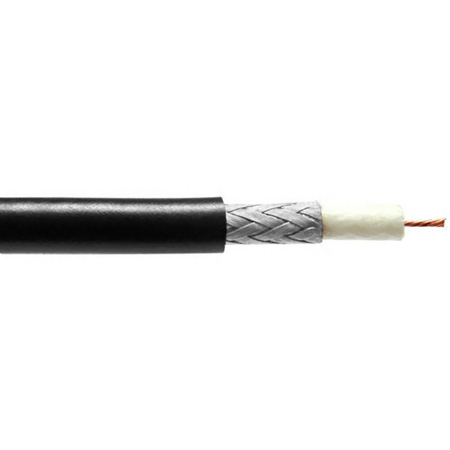

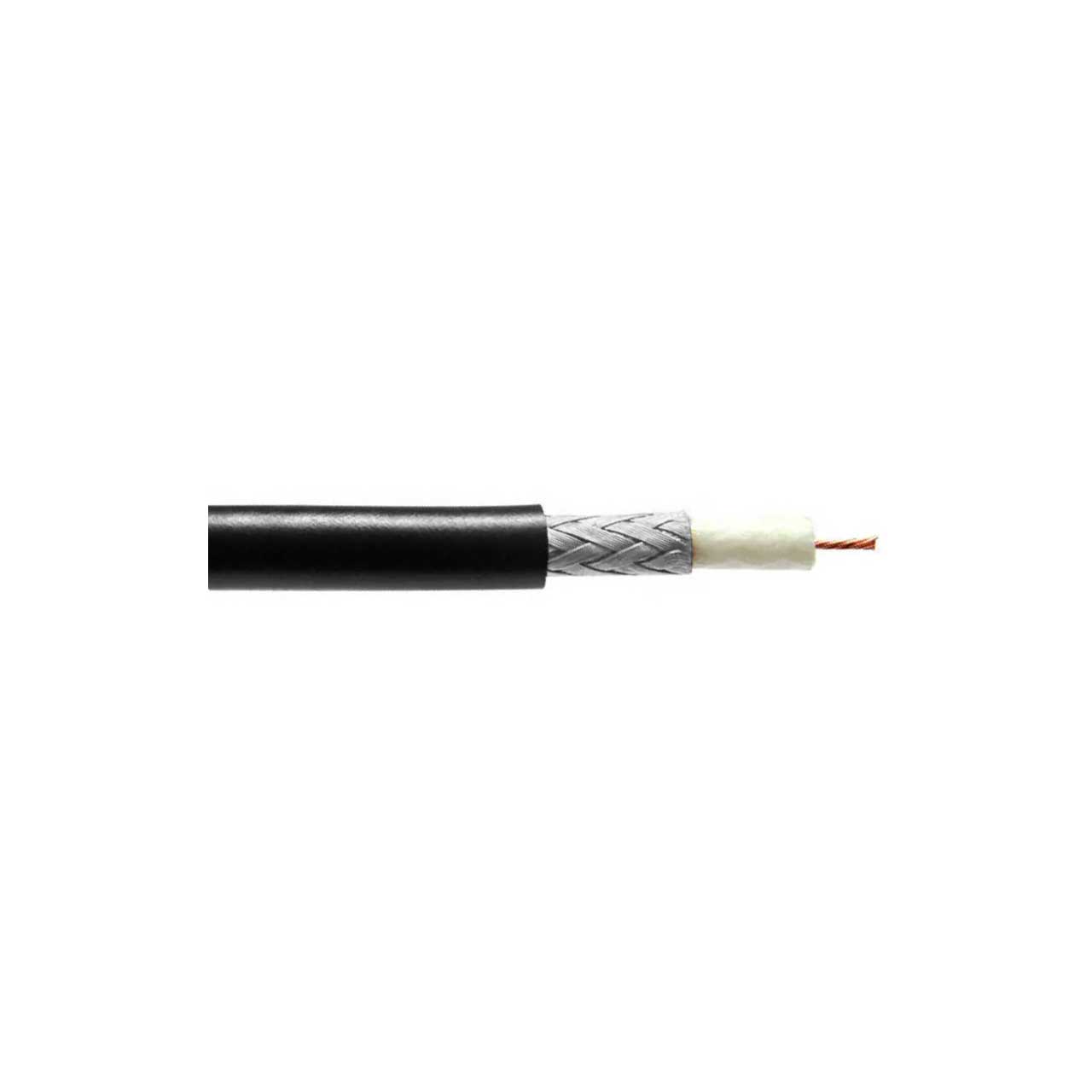

Belden 8216 is a 50 Ohm Wireless Transmission Coax. It's RG-174 with a 26 AWG (7x34) Bare Copper Covered Steel Conductor , PE Insulation, a 90% Tinned Copper Braid Shield in a PVC Jacket.

Applications
Point-to-point and point-to-multipoint wireless antenna communication
Wireless microphones
Two-Way Radios
Amateur (Ham) Radio
Low Power FM, GPS, RFID (Radio Frequency Identification)

Specifications:
- Conductor AWG: 26
- Conductor Stranding: 7x34
- Conductor Nom. Diameter: 0.019in
- Conductor Material: BCCS - Bare Copper Covered Steel
- Insulation Material: PE - Polyethylene
- Insulation Color Code: White
- Nom. Insulation Diameter: 0.060 in (1.5 mm)
- Outer Shield Type: Braid
- Outer Shield Material: Tinned Copper (TC)
- Outer Shield Coverage: 90%
- Outer Jacket Material: Tinned Copper (TC)
- Outer Jacket Nom. Diameter: 0.110 in (2.79 mm)
- Overall Cable Diameter (Nominal): 0.110 in (2.79 mm)
- Nom. Conductor DCR: 97 Ohm/1000ft
- Nom. Outer Shield DCR: 10.7 Ohm/1000ft
- Nom. Capacitance Cond-to-Shield: 30.8 pF/ft
- Nom. Impedence: 50 Ohm
- Nom. Velocity: 66%
- UL Voltage Rating: 30 V (UL AWM 1354)
- Non-UL Voltage Rating: 1100 V
- UL Rating Temp: 60°C (UL AWM 1354)
- Operating Temp: -30°C to +75°C
- Bulk Cable Weight: 8 lbs/1000ft
- Max. Pull Tension: 20 lbs
- Environmental Suitability: Outdoor - Aerial, Indoor, Aerial - Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- AWM Compliance: 1354
Item Includes:
- 8216 50 Ohm Wireless Transmission Coax - Black - 500 Ft
Warranty:
- 10 Year Limited Warranty
GTIN:
0612825196273

8216 500 FT. - Recommended Accessories

Kings 2065-29-9 Male BNC Connector for 1277R - 1279R & 1279P
2065-29-9
Our Price: $9.65
Paladin PA8049 Universal HDTV CrimpALL Crimp Tool with 2699 Die for Popular Belden Coax & Amphenol BNC
PAL-8049
Our Price: $95.84
Canare TS100E 5-In-1 Multi Stripper
TS100E
Our Price: $84.64
Connectronics BF-BF BNC Female to Female Barrel 75 Ohm
BF-BF
Our Price: $2.38

8216 500 FT. - Reviews

8216 500 FT. - Attachments

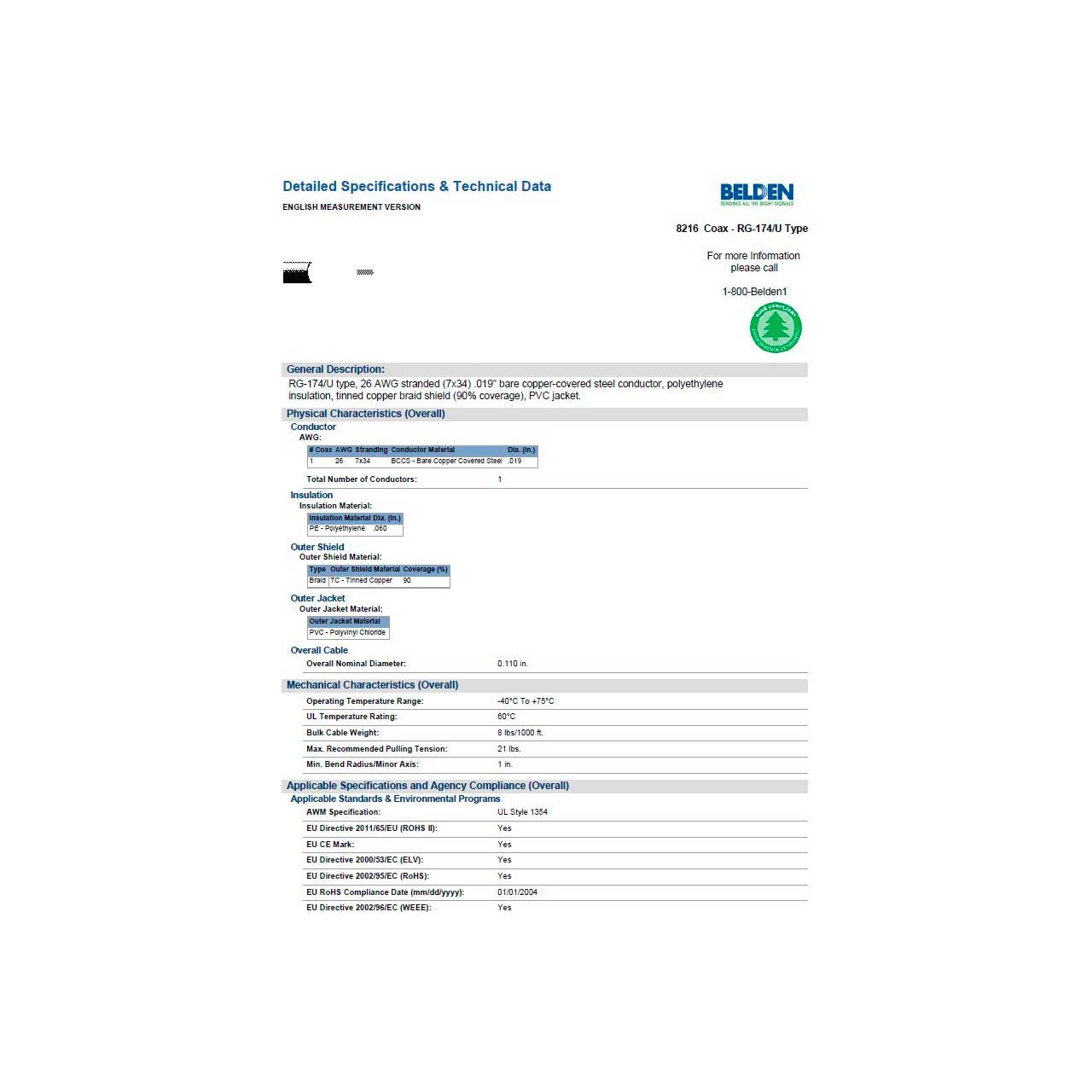

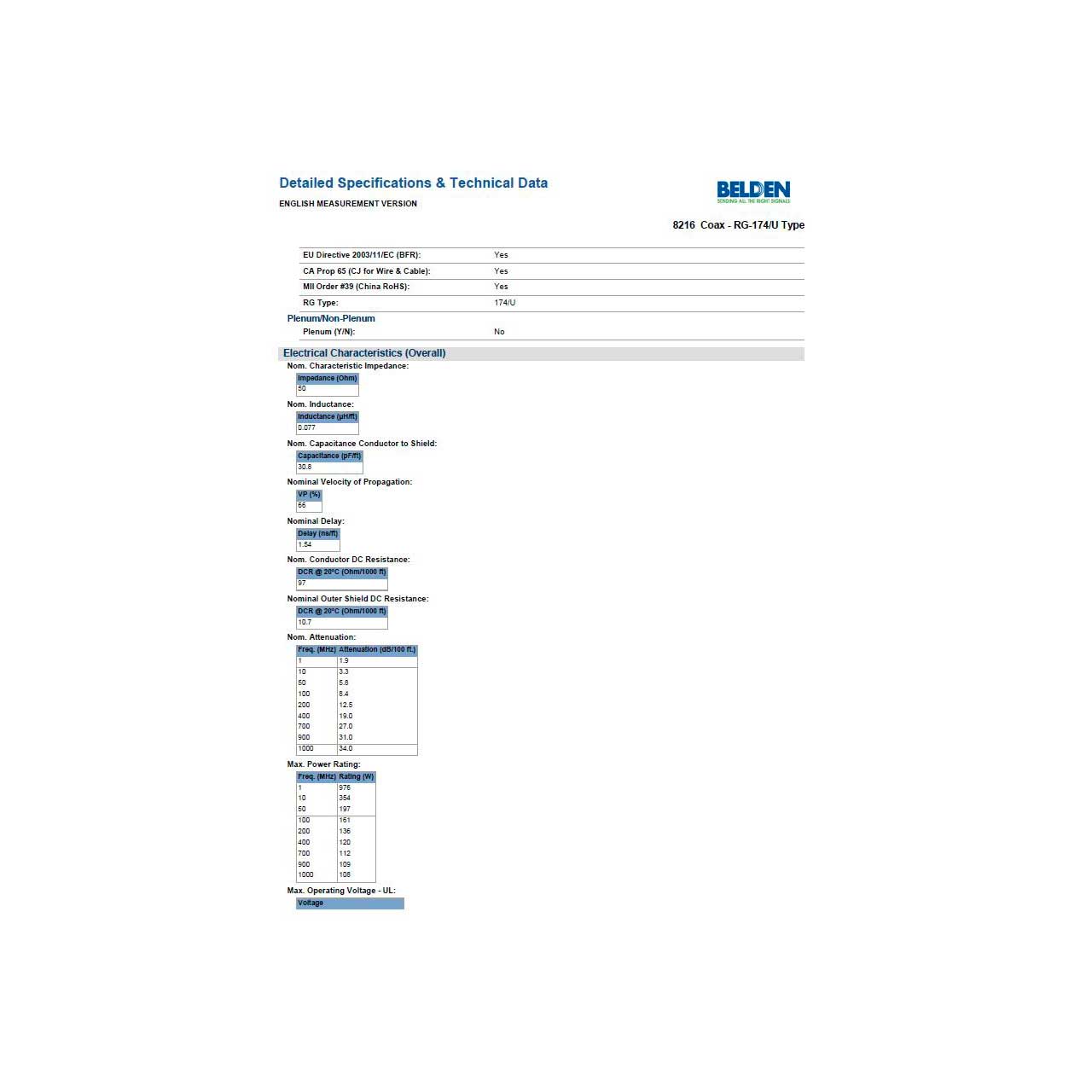

8216 Spec Sheet
