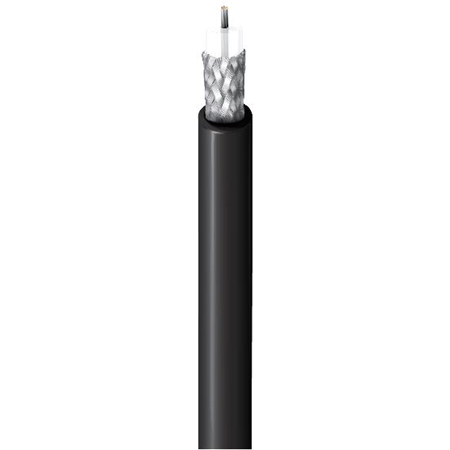

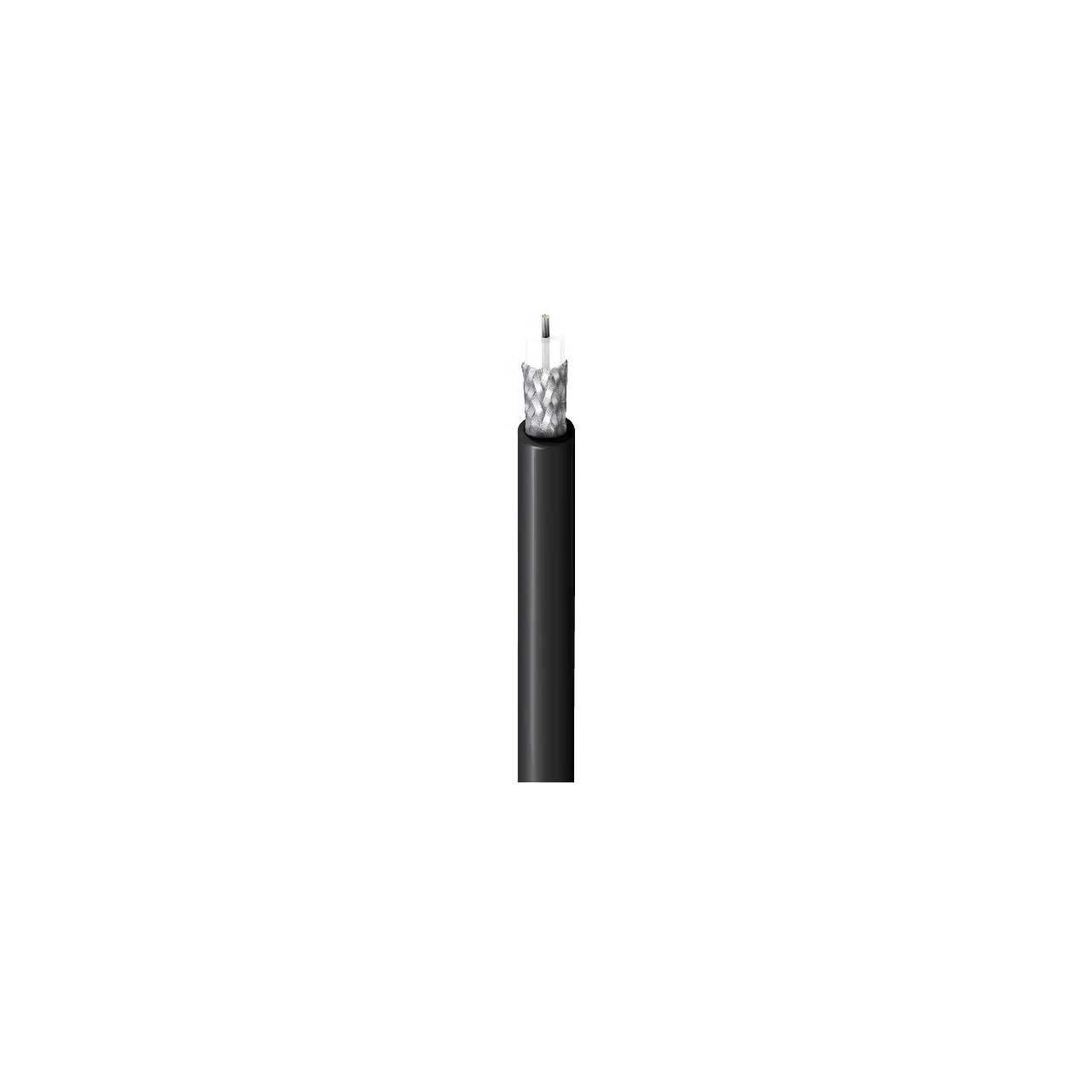

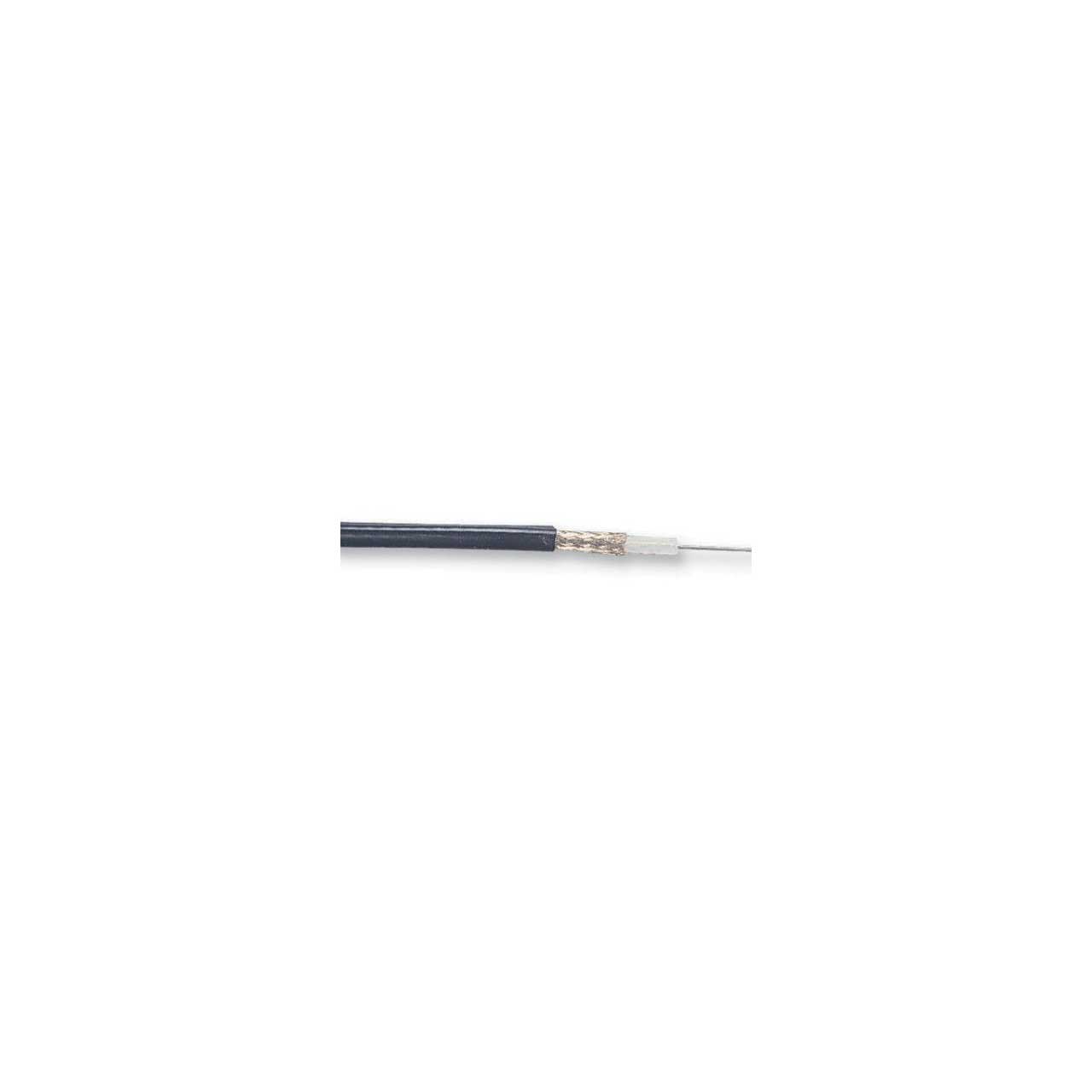

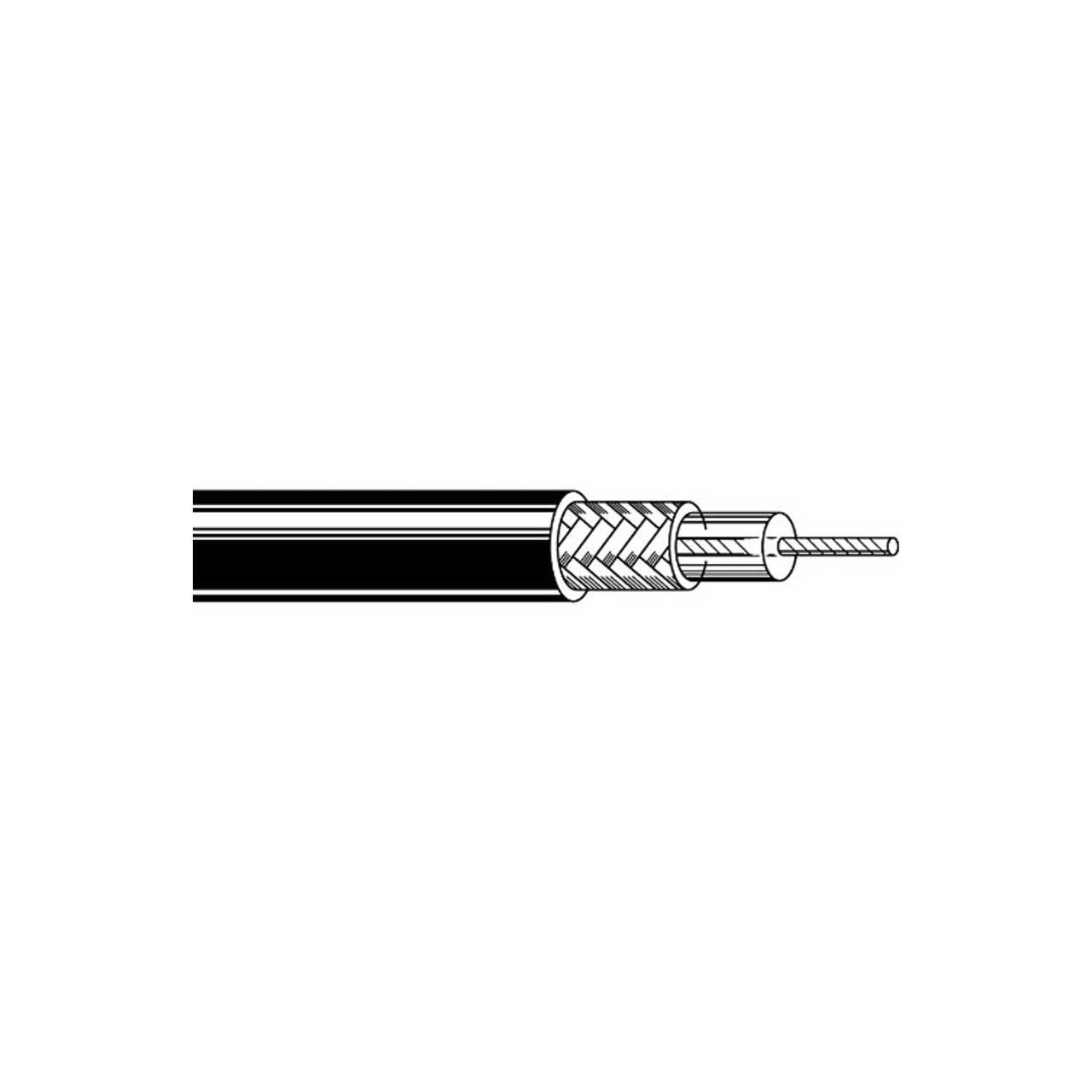

Belden 8262 RG-58 50 Ohm Mil-Spec Commercial Non-QPL Outdoor Coax Str TC/Shld 20AWG - Black - 1000 Ft

8262 0101000 - Overview

Commercial, non-QPL product (M17/155-00001)

• Features:

  • Designed for Communication: Supports point-to-point and point-to-multipoint wireless antenna communication: wireless mics, two-way radios, etc.
  • Suitable for a Variety of Applications: Available in outdoor, riser-rated and water-blocked options


• Specifications:

  • Conductor Size: 20 AWG
  • Conductor Stranding: 19x33
  • Conductor Nom. Diameter: 0.035 in
  • Conductor Material: TC - Tinned Copper
  • Insulation Material: PE - Polyethylene
  • Nom. Insulation Diameter: 0.115 in (2.92 mm)
  • Insulation Color Code: White
  • Outer Shield Type: Braid
  • Outer Shield Material: Tinned Copper (TC)
  • Outer Shield Coverage: 95%
  • Outer Jacket Material: PVC - Polyvinyl Chloride (Non-Contaminating)
  • Outer Jacket Nom. Diameter: 0.195 in (4.95 mm)
  • Overall Cable Diameter (Nominal): 0.195 in (4.95 mm)
  • Voltage Rating: 1400 V (Mil-Spec)
  • Environmental Suitability: Outdoor - Aerial, Indoor, Aerial - Black only, When supported by messenger wire
  • Sustainability: CA Prop 65
  • CPR Euroclass: Eca
  • Operating Temperature Range: -40°C To +85°C
  • UL Temperature Rating: 85°C
  • Bulk Cable Weight: 24 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 42 lbs.
  • Min. Bend Radius/Minor Axis: 2 in.
  • CA Prop 65 (CJ for Wire & Cable): Yes
  • MII Order #39 (China RoHS): Yes
  • Military Specification: Commercial, non-QPL product (M17/155-00001)
  • RG Type: 58C/U
  • Plenum (Y/N): No


• Item Includes:

  • 8262 RG-58 50 Ohm Mil-Spec Commercial Non-QPL Outdoor Coax - Black - 1000 Ft


• Warranty:

  • 10 Year Limited Warranty


• GTIN:

  0612825197447
