Belden 8410 Single-Conductor TC Shielded High-Impedance Copper 52 Ohm Microphone Cable 25 AWG - 500 Foot

ITEM #: BL-8410-500 MFG #: 8410 010500

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BL-8410-500

8410 010500 - Overview

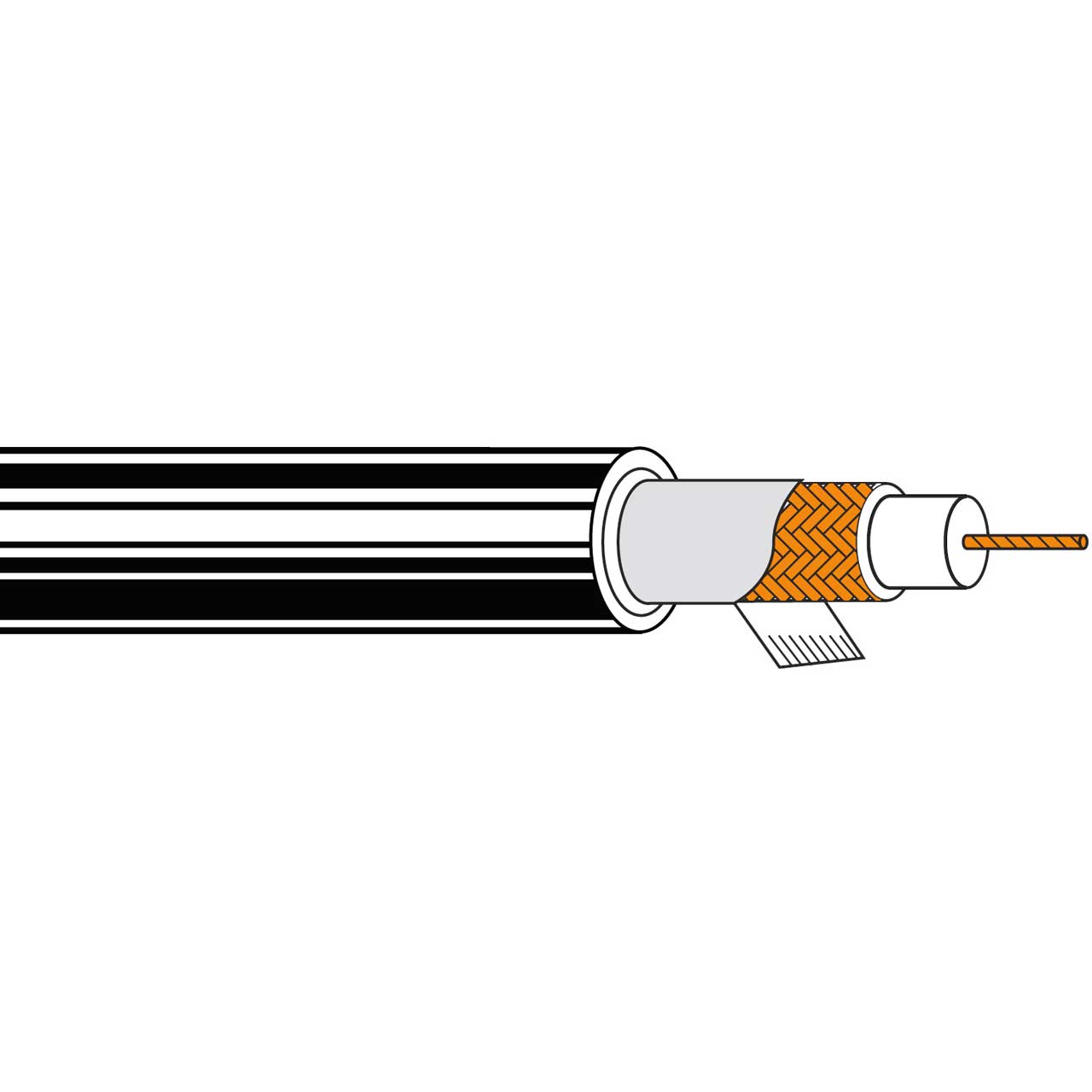

Belden 8410 is a 25 AWG, stranded (7x33) Microphone Cable with a composite copper conductor. It features EPDM (Ethylene Propylene Diene Monomer) synthetic rubber insulation, rayon braid + TC braid shield (80% coverage) with cotton serve in a EPDM rubber jacket.

Belden offers a comprehensive selection of digital audio cables for professional recording applications, sound system installations and multi-channel audio applications. Digital Audio Cables from Belden can be used anywhere a traditional analog or digital shielded pair cables are used. These cables are also ideally suited for applications requiring small size, low weight and high-performance.

Applications
Microphones
Guitars/Musical Instruments
Amplifiers

  • Features:

    • Patented Bonded-Pair technology for maximum ruggedness & consistent electrical performance during & following installation
    • Ready-to-use jacketed single pair cable eliminates inconvenient steps for faster installation times & deployment efficiencies
    • High impedance ensures low capacitance making them an ideally suited as analog cables
    • Ruggedized PVC jacket designed for flexibility

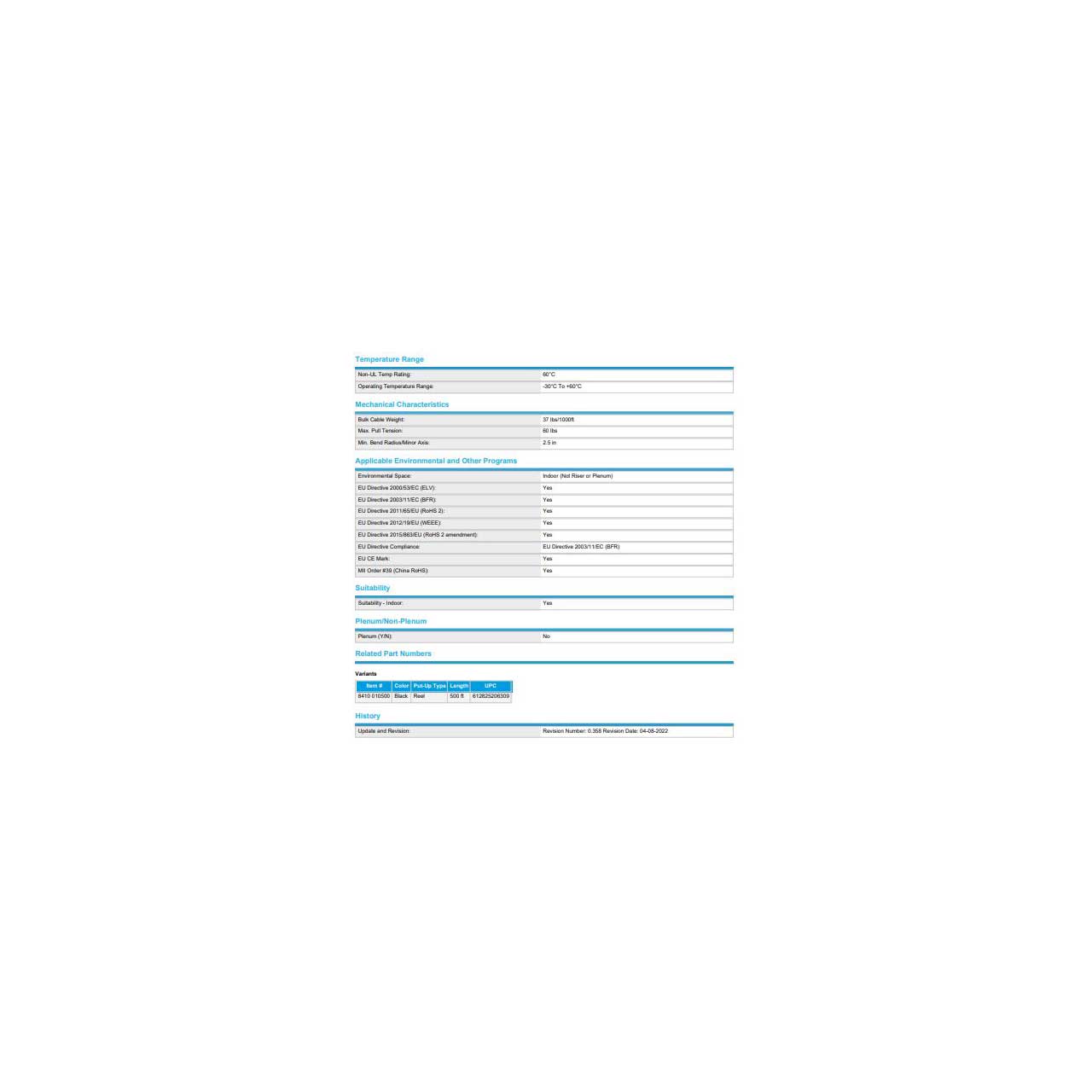

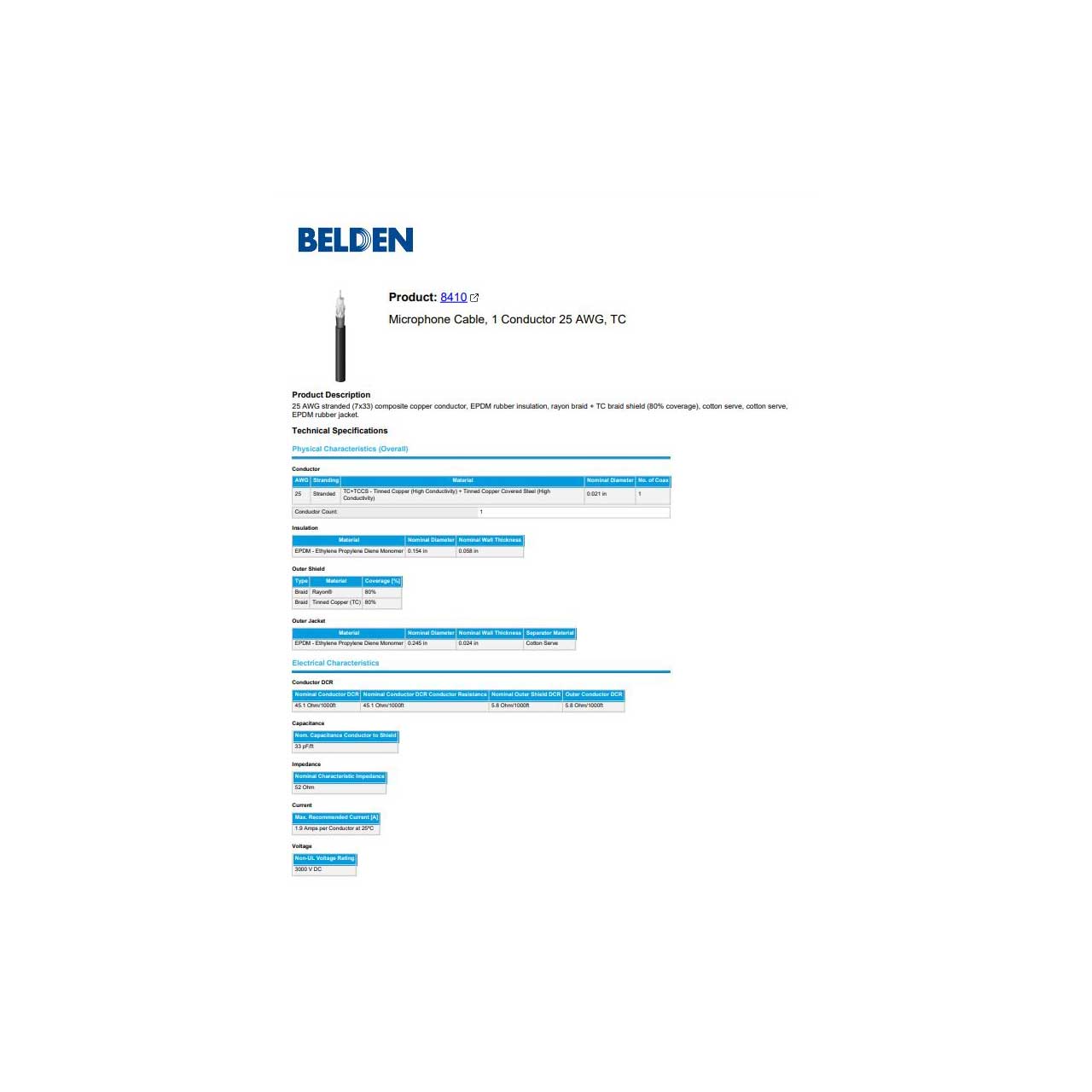

  • Specifications:

    • Conductor Number of Coax: 1
    • Conductor AWG: 25
    • Conductor Stranding: 3x33,4x33
    • Conductor Material: TC+TCCS - Tinned Copper (High Conductivity) + Tinned Copper Covered Steel (High Conductivity)
    • Conductor Nominal Diameter: 0.021 in
    • Insulation Material: EPDM - Ethylene Propylene Diene Monomer Rubber
    • Outer Shield Material 1: Braid Rayon® 80%
    • Outer Shield Material 2: TC - Tinned Copper 80%
    • Outer Jacket Material: EPDM - Ethylene Propylene Diene Monomer Rubber
    • Outer Jacket Nominal Diameter: 0.245 in
    • Outer Jacket Nominal Wall Thickness: 0.024 in
    • Outer Jacket Separator Material: Cotton Serve
    • Non-UL Voltage Rating: 3000 V DC
    • Plenum (Y/N): N
    • Nom. Characteristic Impedance: 52 Ohm
    • Non-UL Temp Rating: 60°C
    • Operating Temperature Range: -30°C To +60°C
    • Suitability: Indoor


  • Item Includes:

    • 8410 Single-Conductor 52 Ohm Microphone Cable 25 AWG - 500 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • Applications

    :

    • Microphone and Musical Instrument Cable
    • Single-Conductor
    • High-Impedance Cables


  • GTIN:

    0612825355274
