Belden 8412 2 Conductor High-Conductivity Analog Microphone Cable Str TC 20 AWG EDPM Jacket - Red - 1000 Foot

ITEM #: BL-8412-1000RD MFG #: 8412 0021000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,757.40

Our Price:

$1,921.98

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

8412 0021000 - Overview

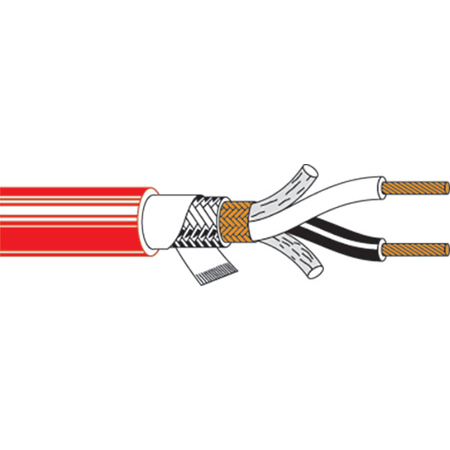

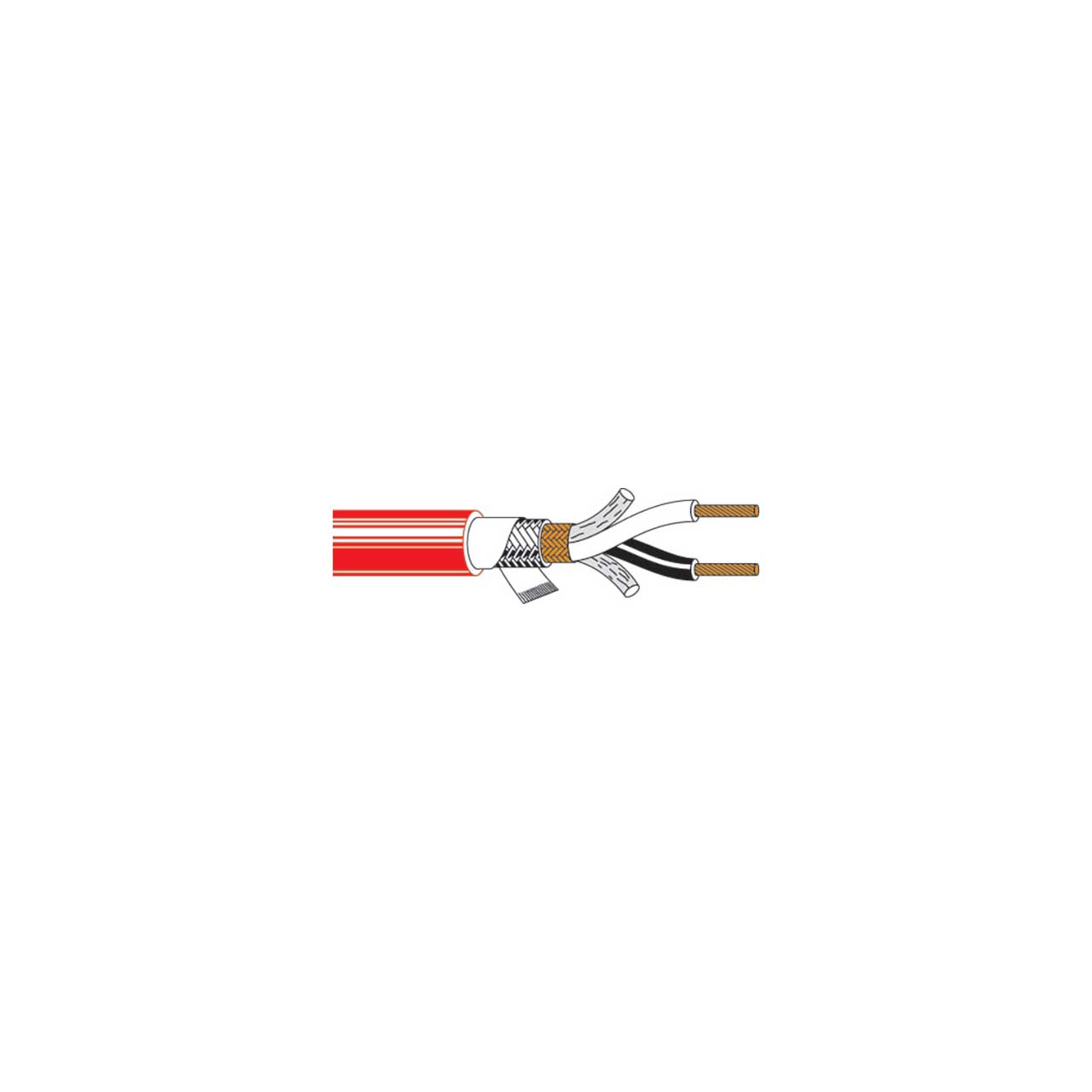

Belden 8412 is a balanced, analog, 2 Conductor, 20 AWG (26 x 34) ruggedized and deployable indoor Microphone Cable with a Stranded Tinned Copper (High conductivity) conductor. It features EPDM (Ethylene Propylene Diene Monomer) Insulation, Rayon® Braid, 85% Tinned Copper Braid Shield, Cotton Serve jacket Separator in a EPDM jacket to provide flexibility, durability and resistance to moisture.

Belden's Analog Audio Cables allow for easier stripping and quicker installation, saving time and money. These cables are designed to ensure that audio signals deliver efficiently with Belden’s quality standards in mind.

Applications
Studio or live performance
Recording
Balanced analog audio
House of Worship
Guitar and Pedal cabling

  • Features:

    • Easy Stripping: Foil shields bonded to the cable jacket support faster installation.
    • Rated for Many Applications: EPDM jacket to provide flexibility, durability and resistance to moisture.
    • Improved Performance: Shorting fold technique to maintain metal-to-metal contact.


  • Specifications:

    • Number of Conductors: 2
    • Conductor AWG: 20
    • Conductor Stranding: 26x34
    • Conductor Material: High Conductivity TC - Tinned Copper
    • Insulation Material: EPDM - Ethylene Propylene Diene Monomer Rubber
    • Insulation Nom. Thickness: 0.023 in (0.58 mm)
    • Nom. Insulation Diameter: 0.083 in (2.1 mm)
    • Insulation Color Code: White, Black
    • Outer Shield Material: Rayon,TC - Tinned Copper
    • Outer Jacket Material: EPDM - Ethylene Propylene Diene Monomer Rubber
    • Outer Jacket Nom. Thickness: 0.035 in (0.89 mm)
    • Outer Jacket Nom. Diameter: 0.262 in (6.65 mm)
    • Overall Cable Diameter (Nominal): 0.262 in (6.65 mm)
    • Voltage Rating: 600 V
    • Operating Temperature: -50°C to +90°C
    • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
    • Plenum (Y/N): N
    • Applications: Microphone and Musical Instrument Cables
    • Nom. Conductor DCR: 10.6 Ohm/1000ft
    • Nom. Capacitance Cond-to-Cond: 33 pF/ft
    • Nom. Capacitance Cond-to-Other (Conds + Shield): 58 pF/ft
    • Characteristic Impedance: 67 Ohm
    • Max. Current: 4 Amps per conductor @ 25°C
    • Max. Pull Tension: 100 lbs
    • Bulk Cable Weight: 44 lbs/1000ft


  • Item Includes:

    • Belden 8412 2 Conductor Microphone Cable - Red - 1000 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825206309
