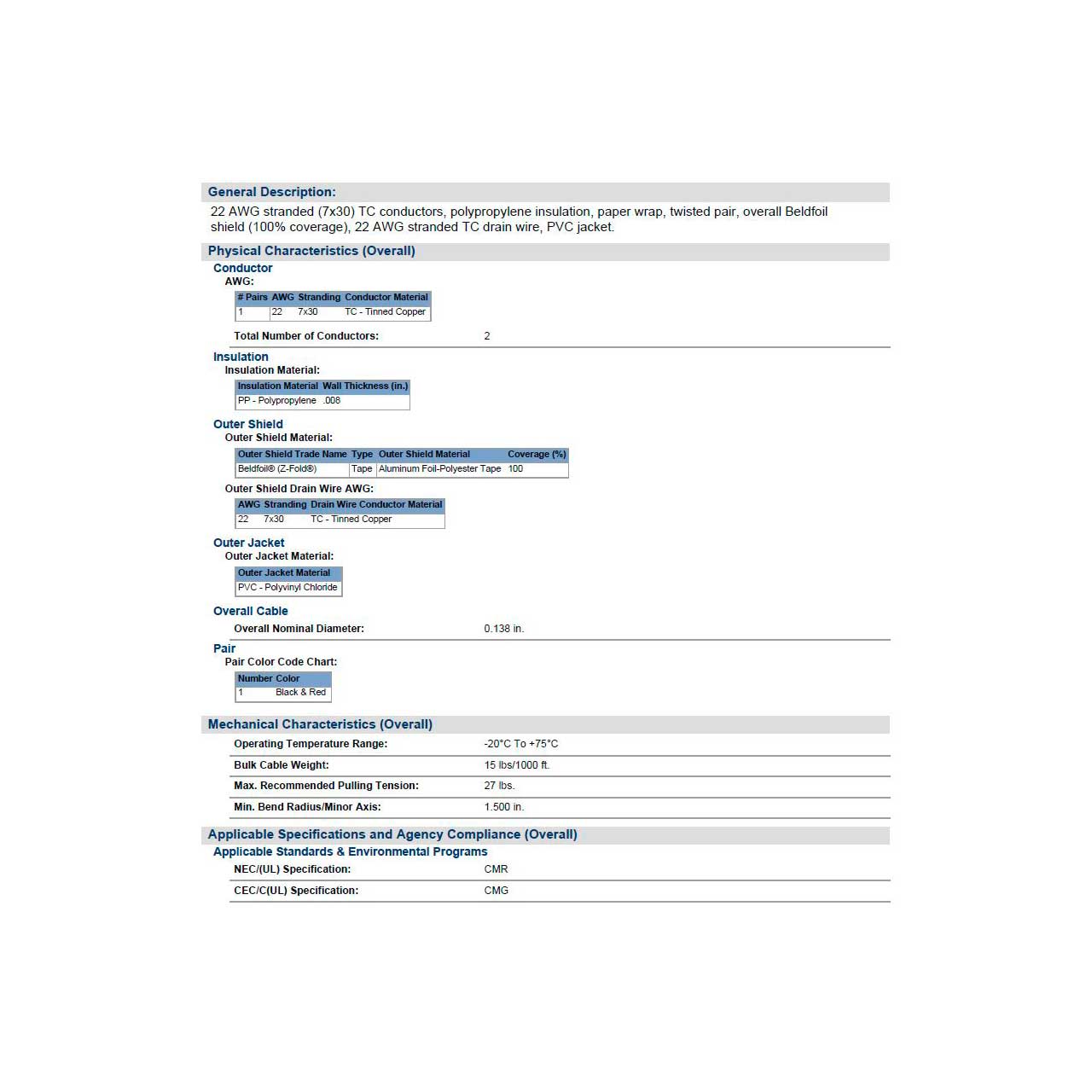

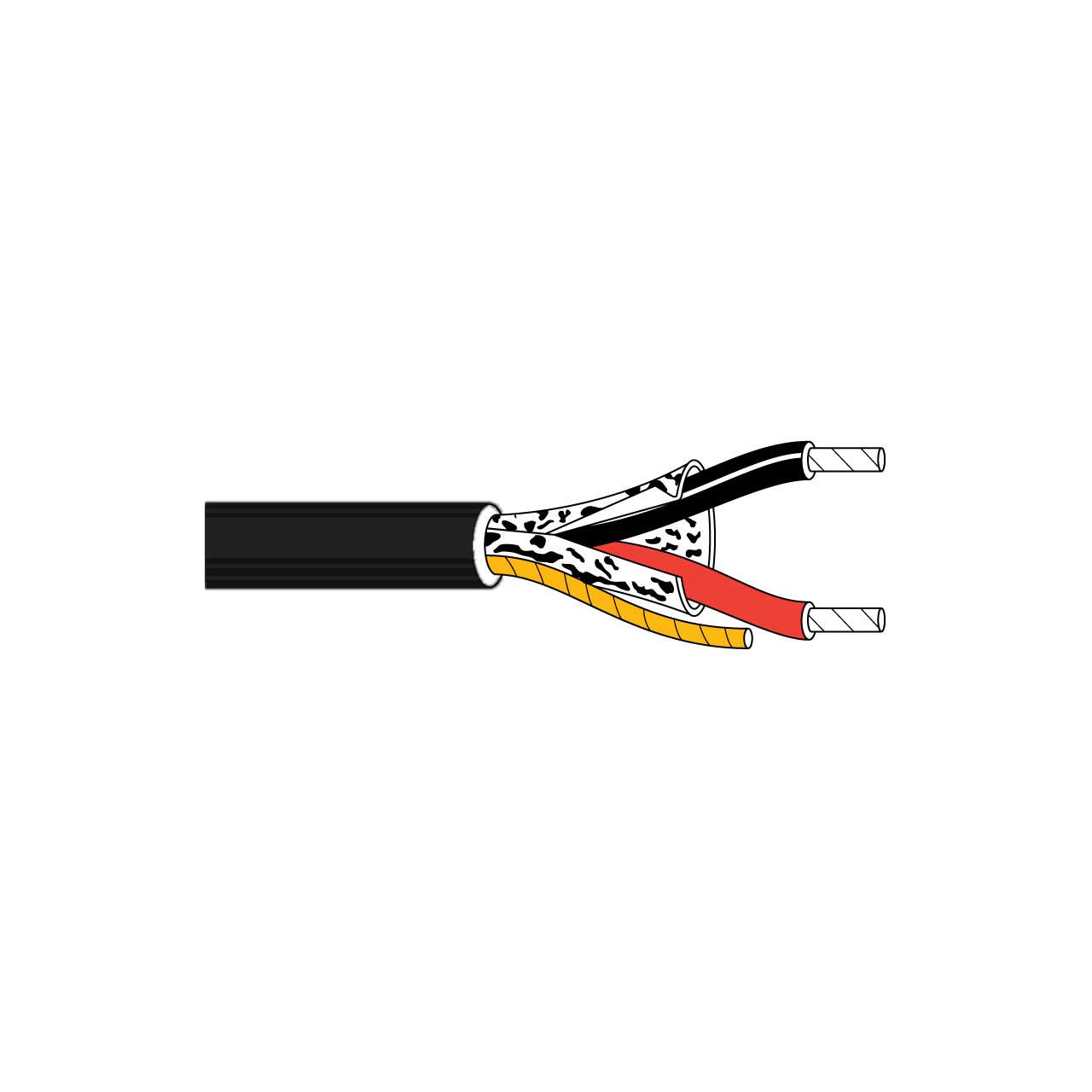

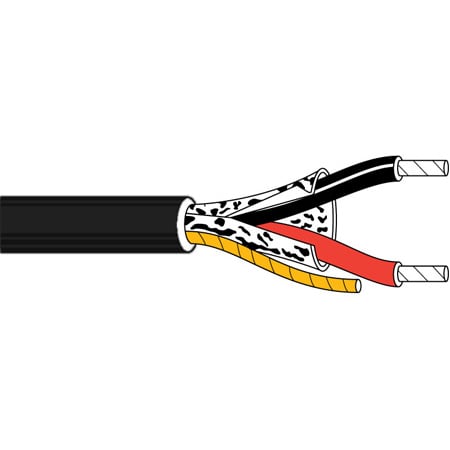

Belden 8451 is a single Pair, 22AWG Analog Audio & Instrumentation Cable with stranded (7x30) TC conductors, polypropylene insulation, paper wrap and twisted pair. It features an overall Beldfoil® shield (100% coverage) and a 22 AWG stranded TC drain wire in a PVC jacket.
Belden's Analog Audio Cables allow for easier stripping and quicker installation, saving time and money. These cables are designed to ensure that audio signals deliver efficiently with Belden’s quality standards in mind.
Applications
Designed for ease of use with automatic stripping equipment
Low voltage analog signals (4-20ma, 0-10v, ...)
Low voltage digital control (24v, …)
Line level audio
Computer communication; panel wiring
Audio instrument or microphone cable for studio and live stage application
Internal wiring of portable audio equipment racks
Balanced and unbalanced audio signals in commercial and residential audio installations
