Belden 8723 CM Rated 2-Pair Audio - Control & Instrument Cable - SFTP (7x30) TC 22AWG - Chrome - 100 Foot

Name: Belden 8723 CM Rated 2-Pair Audio - Control & Instrument Cable - SFTP (7x30) TC 22AWG - Chrome - 100 Foot
Brand: Belden
SKU: BL-8723-100
Price: 63.14 USD
Availability: InStock

ITEM #: BL-8723-100 MFG #: 8723 060100

Belden

List Price:

$174.51

Our Price:

$63.14

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

8723 060100 - Overview

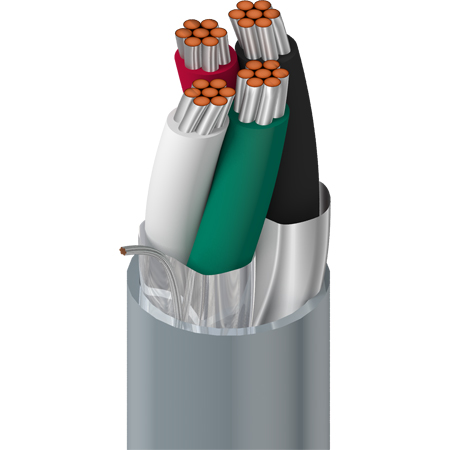

Belden 8723 is an Audio, Control & Instrument Cable. It's 22 AWG with stranded (7x30) tinned copper conductors, polypropylene insulation, individually Beldfoil® shielded (100% coverage) twisted pairs with 24 AWG stranded tinned copper drain wire in a PVC jacket.

Belden Multi-Pair Cable is electronic cable that consists of multiple groups of twisted-pair circuits. This construction allows many wires to be bundled into one package, reducing electromagnetic interference and crosstalk, as well as providing easier installation.

Applications:
Low voltage analog signals (4-20ma, 0-10v, ...)
Low voltage digital control (24v, …)
Line level audio; computer communication
Panel wiring

Features:
- Dependable Signaling: Ideal for critical applications like telecommunications, water meters, thermometers, instrumentation and control panels, etc.
- Easier Installation: Bundling multiple wires within one cable allows for faster wire installation.
- Prevent Downtime: Multi-pair cable offers consistency and reliability to your operations, guarding against crosstalk and electromagnetic interference.
Specifications:
- Conductor Number of Element: 2
- Total Number of Conductors: 4
- Conductor Size AWG: 22
- Conductor Stranding: 7x30
- Conductor Material: TC - Tinned Copper
- Insulation Material: PP - Polypropylene Pair
- Insulation Nom. Thickness: 0.009 in (0.23 mm)
- Insulation Nom. Insulation Diameter: 0.046 in (1.2 mm)
- Insulation Color Code: Black & Red, Green & White
- Inner Shield Type: Tape
- Inner Shield Material: Bi-Laminate (Alum+Poly)
- Inner Shield Coverage: 100%
- Inner Shield Drainwire Type: 24 AWG (7x32) TC
- Inner Shield Notes: Foil-out tape on each pair, one drain wire
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Thickness: 0.020 in (0.51 mm)
- Outer Jacket Nom. Diameter: 0.160 in (4.06 mm)
- Overall Cable Diameter (Nominal): 0.160 in (4.06 mm)
- UL Voltage Rating: 300 V (CM)
- UL Temperature: 60°C
- Operating Temperature: -20°C to +75°C
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2
- CEC/NEC/UL Compliance: Article 800, CM
- Plenum (Y/N): N
- Plenum Numbers: BL-82723, BL-87723, BL-88723
Item Includes:
- 8723 2-Pair Audio,Control & Instrument Cable - Chrome - 100 Foot
Warranty:
- Limited 10 Year Warranty
GTIN:
0612825214441

8723 060100 - Recommended Accessories

Neutrik NC3MX Male 3-Pin XLR Connector - Nickel/Silver
NC3MX
Our Price: $3.30
Neutrik NC3FX Female 3-Pin XLR Connector - Nickel/Silver
NC3FX
Our Price: $3.71
Weller WE1010NA Digital Soldering Station with 70W Iron
WEL-WE1010NA
Our Price: $149.04
Qualitek RA300 Rosin Core 21 Gauge 60/40 0.032 Diameter 1 Lb. Solder
SOLDER-31
Our Price: $43.19
Neutrik NP3X 1/4in 3-Conductor Phone Plug - Nickel Contacts / Nickel Shell
NP3X
Our Price: $5.52
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Connectronics M-3.5S 3.5mm Mini TRS Stereo Male Plug
M-3.5S
Our Price: $1.95
Canare F-16 1/4in TRS Phone Plug
F-16
Our Price: $6.34
Sescom 3 Channel Passive Balanced Audio Adapter Box over CAT5/6/7 - RJ45 to 3 Female XLR Connectors
SES-3XLRF-CATBX
Our Price: $171.95
Laird Super Tough Field Deployment-Ready Cat5e Cable w/ Belden 7923A - 10 Foot
TUFFCAT-10
Our Price: $29.95

8723 060100 - Reviews

8723 060100 - Attachments

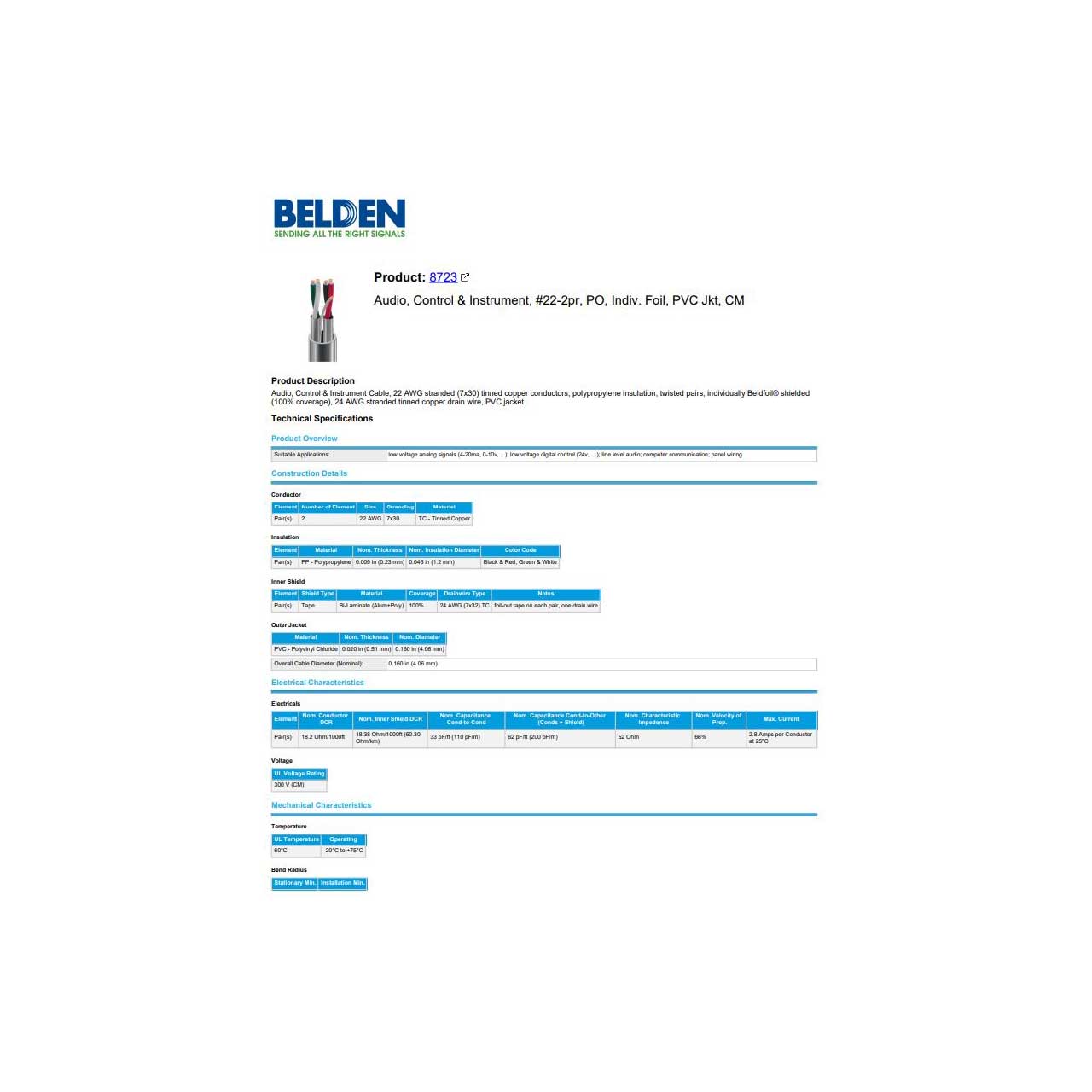

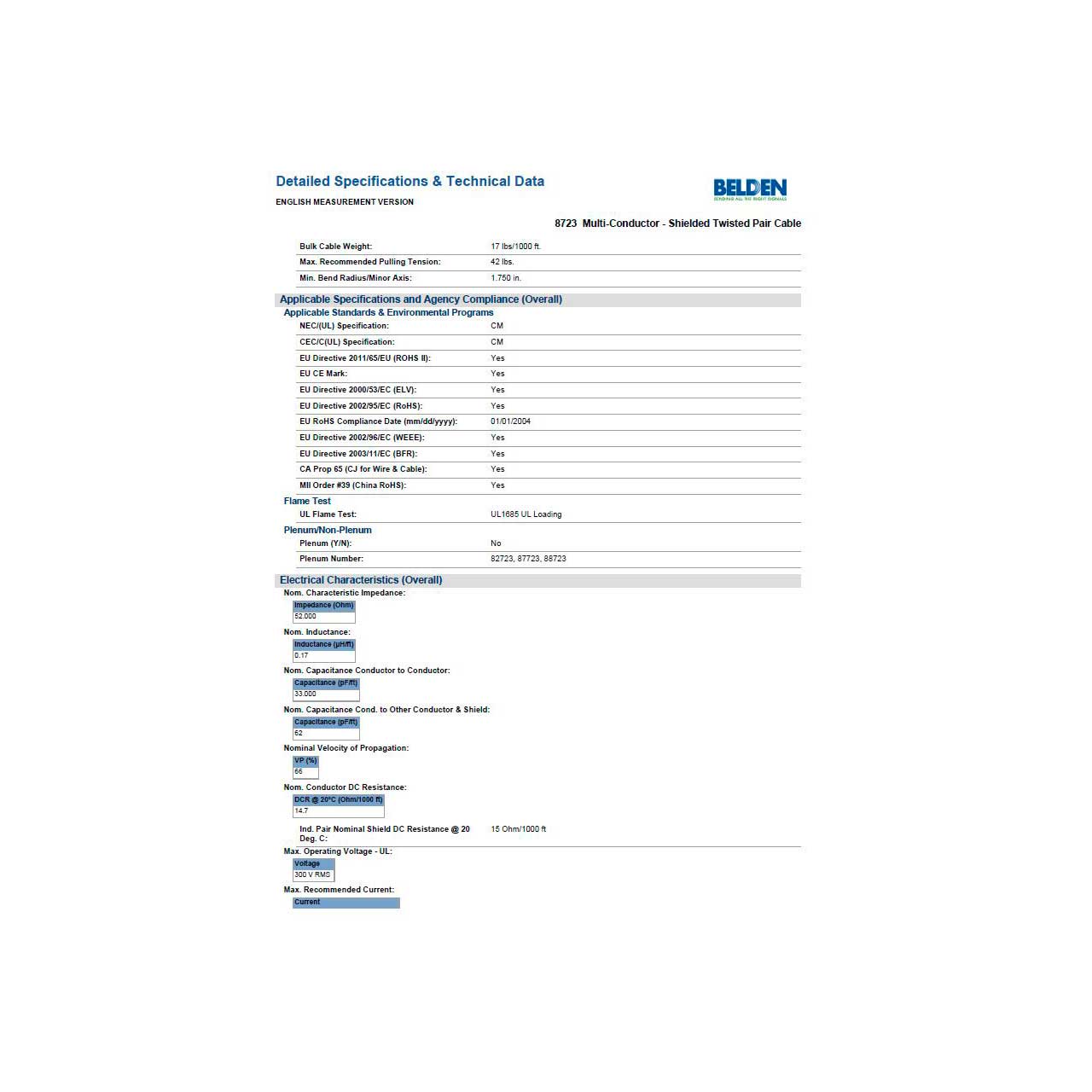

8723 Spec Sheet
