Belden 8760 Low Voltage 1-Pair Microphone & Electronic Multi-Pair Cable Str TC Shielded 18AWG - Chrome - 500 Foot

Name: Belden 8760 Low Voltage 1-Pair Microphone & Electronic Multi-Pair Cable Str TC Shielded 18AWG - Chrome - 500 Foot
Brand: Belden
SKU: BL-8760-500
Price: 667.75 USD
Availability: PreSale

ITEM #: BL-8760-500 MFG #: 8760 060500

Belden

Lengths:

Putup Types:

Lengths

Putup Types

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$852.00

Our Price:

$667.75

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

8760 060500 - Overview

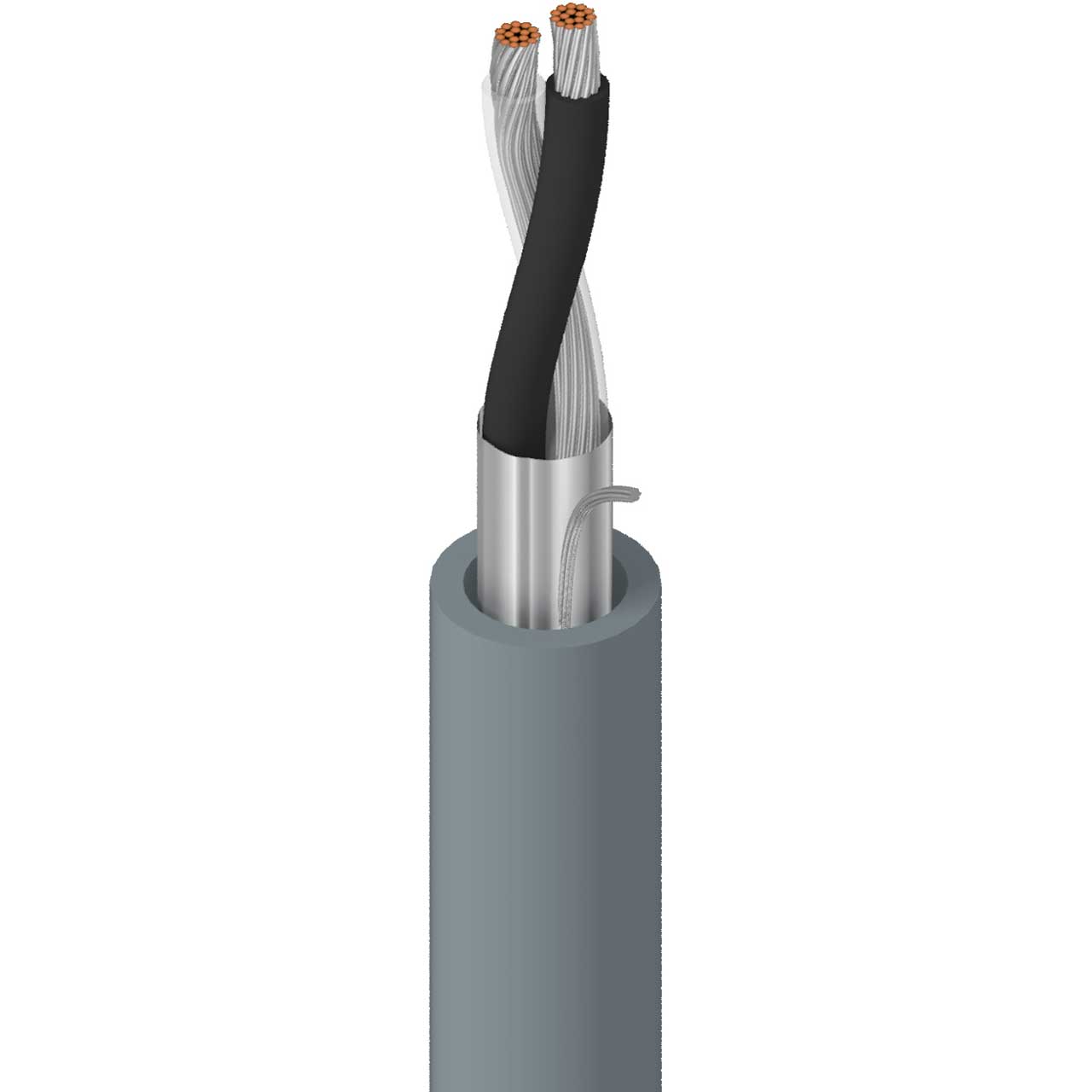

Belden 8760 is a 2 Conductor, 18AWG (16x30) Electronic and Microphone Cable. It features Stranded Tinned Copper Conductors, PE Insulation with an Overall Beldfoil® Shield in a CM rated PVC Outer Jacket. Belden 8760 helps keep productivity high and downtime low!

Belden Multi-Pair Cable is an electronic cable that consists of multiple groups of twisted-pair circuits. This construction allows many wires to be bundled into one package, reducing electromagnetic interference and crosstalk, as well as providing easier installation.

Applications
Broadcasting
Instrumentation and control panel wiring
Low voltage analog signals (4-20ma, 0-10v, ...)
Low voltage digital control (24v, …)
Line level audio
Microphones
Computer and Data communications
Water meters, thermometers

Features:
- Dependable Signaling: Ideal for critical applications like telecommunications, water meters, thermometers, instrumentation and control panels, etc.
- Easier Installation: Bundling multiple wires within one cable allows for faster wire installation
- Prevent Downtime: Multi-pair cable offers consistency and reliability to your operations, guarding against crosstalk and electromagnetic interference
Specifications:
- Conductor Number of Elements: 1
- Total Number of Conductors: 2
- Conductor AWG: 18
- Conductor Stranding: 16x30
- Conductor Material: TC - Tinned Copper
- Insulation Element(s): Pair(s)
- Insulation Material: PE - Polyethylene
- Insulation Nom. Thickness: 0.018 in (0.46 mm)
- Insulation Nom. Insulation Diameter: 0.082 in (2.1 mm)
- Insulation Color Code: Black, Clear
- Outer Shield Type: Tape
- Outer Shield Material: Bi-Laminate (Alum+Poly)
- Outer Shield Coverage: 100%
- Outer Shield Drainwire Type: 20 AWG (7x28) TC
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Nom. Thickness: 0.028 in (0.71 mm)
- Outer Jacket Nom. Diameter: 0.222 in (5.64 mm)
- Overall Cable Diameter (Nominal): 0.222 in (5.64 mm)
- Plenum (Y/N): N
- Plenum Numbers: BL-88760, BL-87760 or BL-82760
- UL Voltage Rating: 300 V (CM), 300 V (UL AWM 2092))
- Max. Pull Tension: 54 lbs
- Bulk Cable Weight: 25 lbs/1000ft
- Environmental Suitability: Indoor
- Flammability / Fire Resistance: UL1685 UL Loading, IEC 60332-1-2
- NEC / UL Compliance: Article 800, CM
- AWM Compliance: 2092
- CEC / C(UL) Compliance: CM
- CPR Euroclass: Eca
Item Includes:
- Belden 8760 Multi-Pair Cable 18AWG - Chrome - 500 Foot
Warranty:
- Limited 10 Year Warranty
GTIN:
0612825215196
