Belden 8762 CM Rated 2-Conductor Multi-Pair Stranded Tinned Copper Electronic Cable 20AWG - Chrome - 1000 Foot

ITEM #: BL-8762-1000 MFG #: 8762 0601000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,813.10

Our Price:

$1,301.45

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    8762 0601000 - Overview

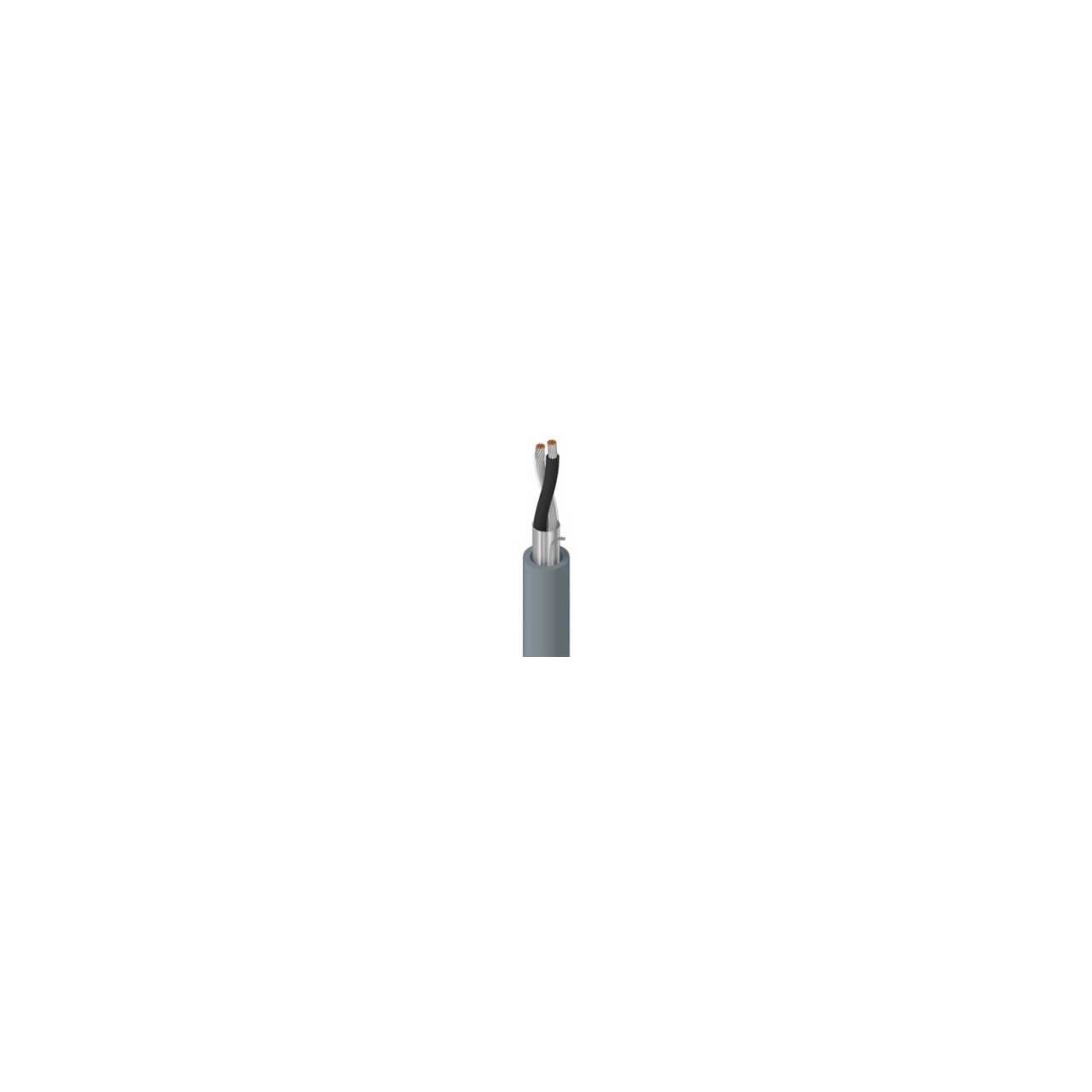

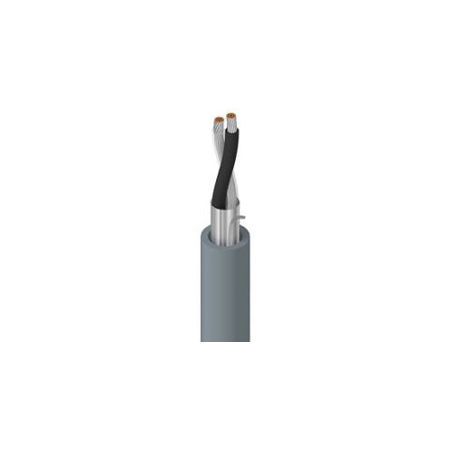

    Belden 8762 is a Multi-Pair Electronic cable with 2 20AWG (7x28) Conductors with Tinned Copper. It features PE Insulation, an Overall Beldfoil® Shield in a CM rated PVC Outer Jacket.

    A Multi-Pair Cable is an electronic cable that consists of multiple groups of twisted-pair circuits. This construction allows many wires to be bundled into one package, reducing electromagnetic interference and crosstalk, as well as providing easier installation.

    High performance Multi-Pair cabling solutions have changed the face of modern production facilities, manufacturing processes and the industrial infrastructure. Belden cables are designed to provide reliable communication between corporate headquarters and the plant, management and staff, and everywhere in between.

    Applications
    Low voltage analog signals (4-20ma, 0-10v, ...)
    Low voltage digital control (24v, .)
    Line level audio
    Computer communication
    Panel wiring

    • Features:

      • Dependable Signaling: Ideal for critical applications like telecommunications, water meters, thermometers, instrumentation and control panels, etc.
      • Easier Installation: Bundling multiple wires within one cable allows for faster wire installation
      • Prevent Downtime: Multi-pair cable offers consistency and reliability to your operations, guarding against crosstalk and electromagnetic interference

    • Specifications:

      • Number of Pairs: 1
      • Total Number of Conductors: 2
      • Conductor AWG: 20
      • Conductor Stranding: 7x28
      • Conductor Material: TC - Tinned Copper
      • Insulation Material: PE - Polyethylene
      • Insulation Nom. Thickness: 0.017 in (0.43 mm)
      • Insulation Nom. Insulation Diameter: 0.070 in (1.8 mm)
      • Insulation Color Code: Black, Clear
      • Outer Shield Material Trade Name: Beldfoil
      • Outer Shield Material: Bi-Laminate (Alum+Poly)
      • Outer Shield Type: Tape
      • Outer Shield Coverage: 100%
      • Outer Shield Drainwire Type: 20 AWG (7x28) TC
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Thickness: 0.028 in (0.71 mm)
      • Outer Jacket Nom. Diameter: 0.204 in (5.18 mm)
      • Overall Cable Diameter (Nominal): 0.204 in (5.18 mm)
      • UL Voltage Rating: 300 V (CM), 300 V (UL AWM 2092))
      • Plenum (Y/N): N
      • Max. Pull Tension: 38 lbs
      • Bulk Cable Weight: 21 lbs/1000ft
      • Environmental Suitability: Indoor
      • Flammability / Fire Resistance: UL1685 UL Loading, IEC 60332-1-2
      • NEC / UL Compliance: Article 800, CM

    • Item Includes:

      • 8762 2-Conductor Multi-Pair Electronic Cable 20AWG - Chrome - 1000 Ft

    • Warranty:

      • 10 Year Limited Warranty

    • GTIN:

      0612825215370
