Belden 9536 6 Conductor Computer Cable for EIA RS-232 Applications - 1000 Ft

Name: Belden 9536 6 Conductor Computer Cable for EIA RS-232 Applications - 1000 Ft
Brand: Belden
SKU: BL-9536-1000
Price: 1846.51 USD
Availability: PreSale

ITEM #: BL-9536-1000 MFG #: 9536 0601000

Belden

Length:

Length

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,210.70

Our Price:

$1,846.51

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

9536 0601000 - Overview

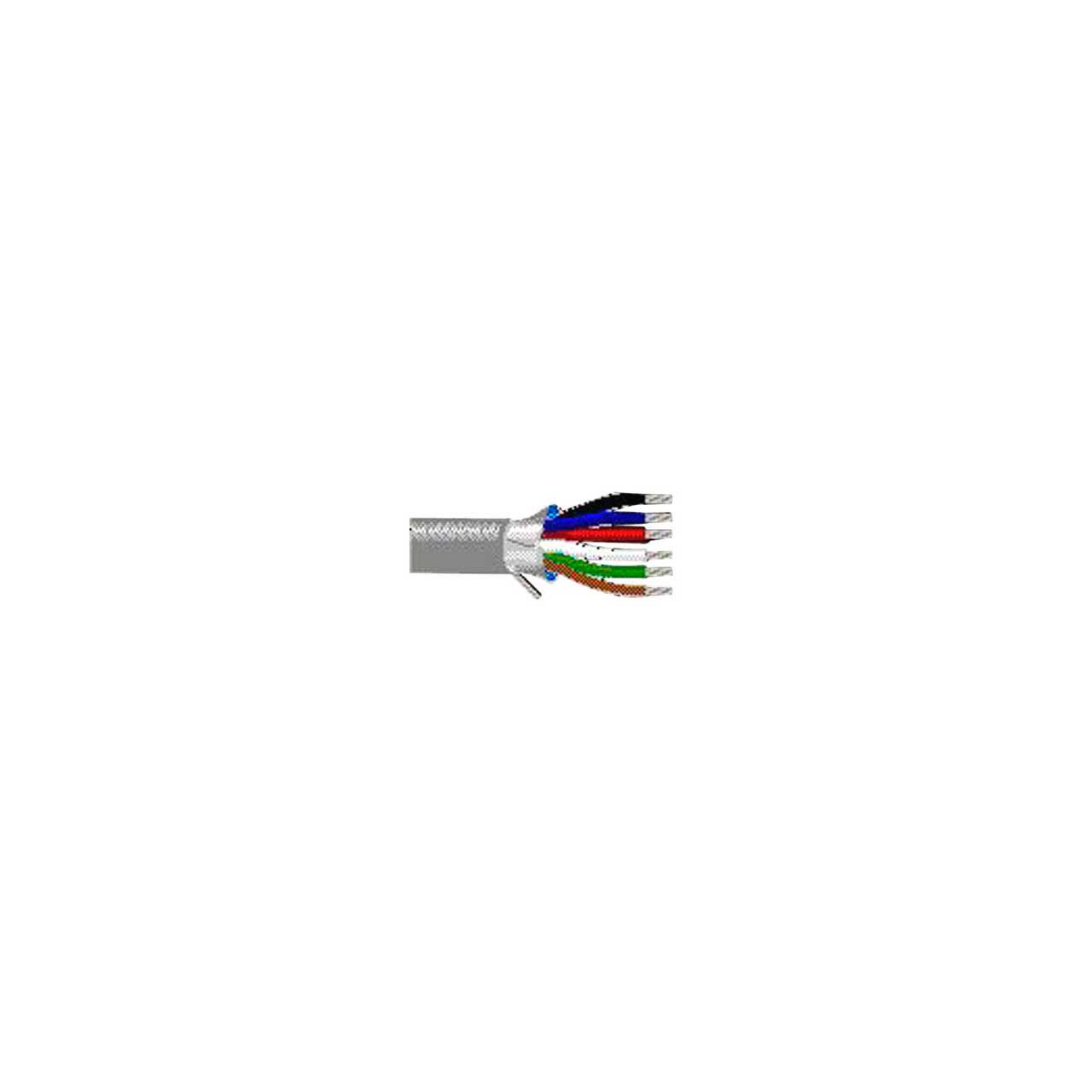

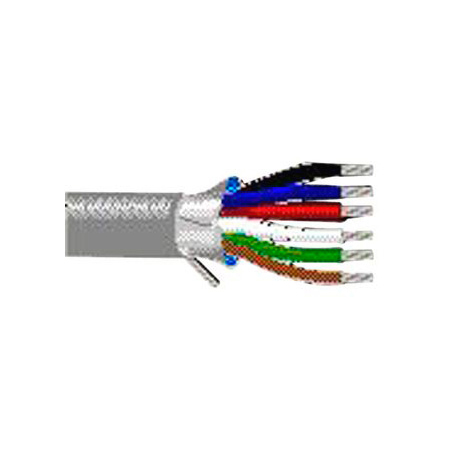

Belden 9536 Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoilr shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket. Suitable for RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20mA, 0-10V,); Low Voltage Digital Control (24V,); Line Level Audio; Panel Wiring applications.

Specifications:
- Conductors: 6
- AWG: 24
- Strand: 7x32
- Conductor: TC - Tinned Copper
- Insulation: PVC
- Outer Shield: Beldfoil Aluminum Foil-Polyester Tape
- Shield Coverage: 100%
- Outer Shield Drain Wire AWG:: 24 (7x32 Tinned Copper)
- Outer Jacket Material: PVC
- Overall Nominal Diameter: 0.209 in.
- UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)
- Max. Pull Tension: 39 lbs
- Bulk Cable Weight: 24 lbs/1000ft
- Environmental Suitability: Indoor
- Sustainability: CA Prop 65
- Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, IEC 60332-1-2
- NEC / UL Compliance: Article 800, CMG
GTIN:
0612825255239

9536 0601000 - Recommended Accessories

Assembled DB9 Male Solder D-SUB Connector with Plastic Backshell
C9PSM
Our Price: $7.33
LXS31 In-line 3-Pin DIN Male Cable End Connector
LXS31
Our Price: $3.35
Weller WE1010NA Digital Soldering Station with 70W Iron
WEL-WE1010NA
Our Price: $149.04
Qualitek RA300 Rosin Core 21 Gauge 60/40 0.032 Diameter 1 Lb. Solder
SOLDER-31
Our Price: $43.19
Black 8 Inch Softcinch VELCRO® Brand Hook & Loop Polytie Cable Tie 25 Pack
3108-X-25
Our Price: $19.10
Rip-Tie 9-Inch Caribiner Cable Carrier 2 Pack Black
RIP-9C2BK
Our Price: $11.93
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Pro Tapes 001CC350MFLGRN Hot Green CAUTION CABLE Tape 3 Inch x 60 Yard
GT-CABLE
Our Price: $50.24
SpoolMaster CC Wire Spool Cart Caddy
SPMA-CC
Our Price: $310.00
HellermannTyton 115-00049 Resealable/Reuseable CableTies 10in- 100 pack
REL50LOC2-100
Our Price: $28.72
Rip Tie Unitag Cable Identification Labels 100 Pk Yellow (5/8x1.5In)
U-15-100-Y
Our Price: $33.05

9536 0601000 - Reviews

9536 0601000 - Attachments

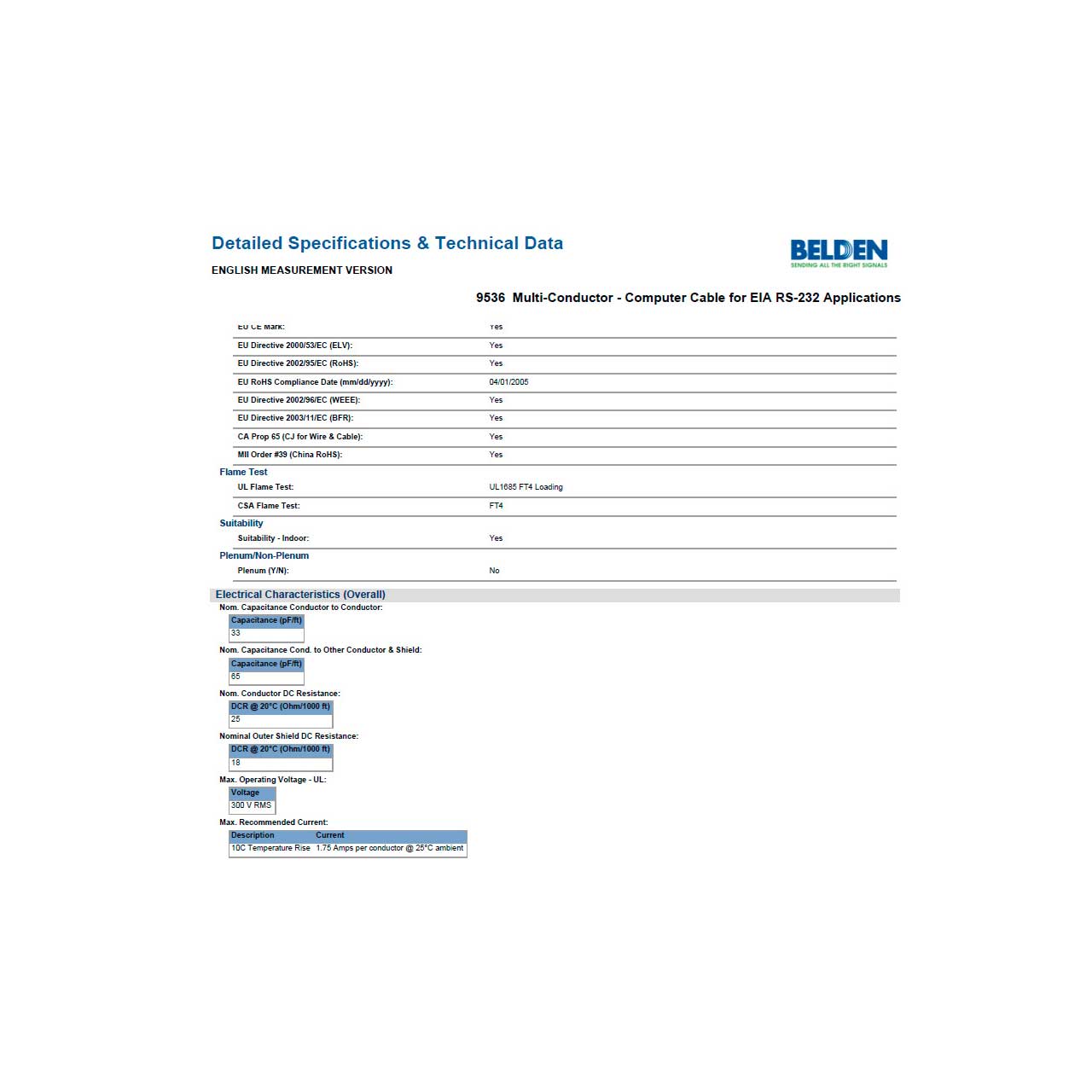

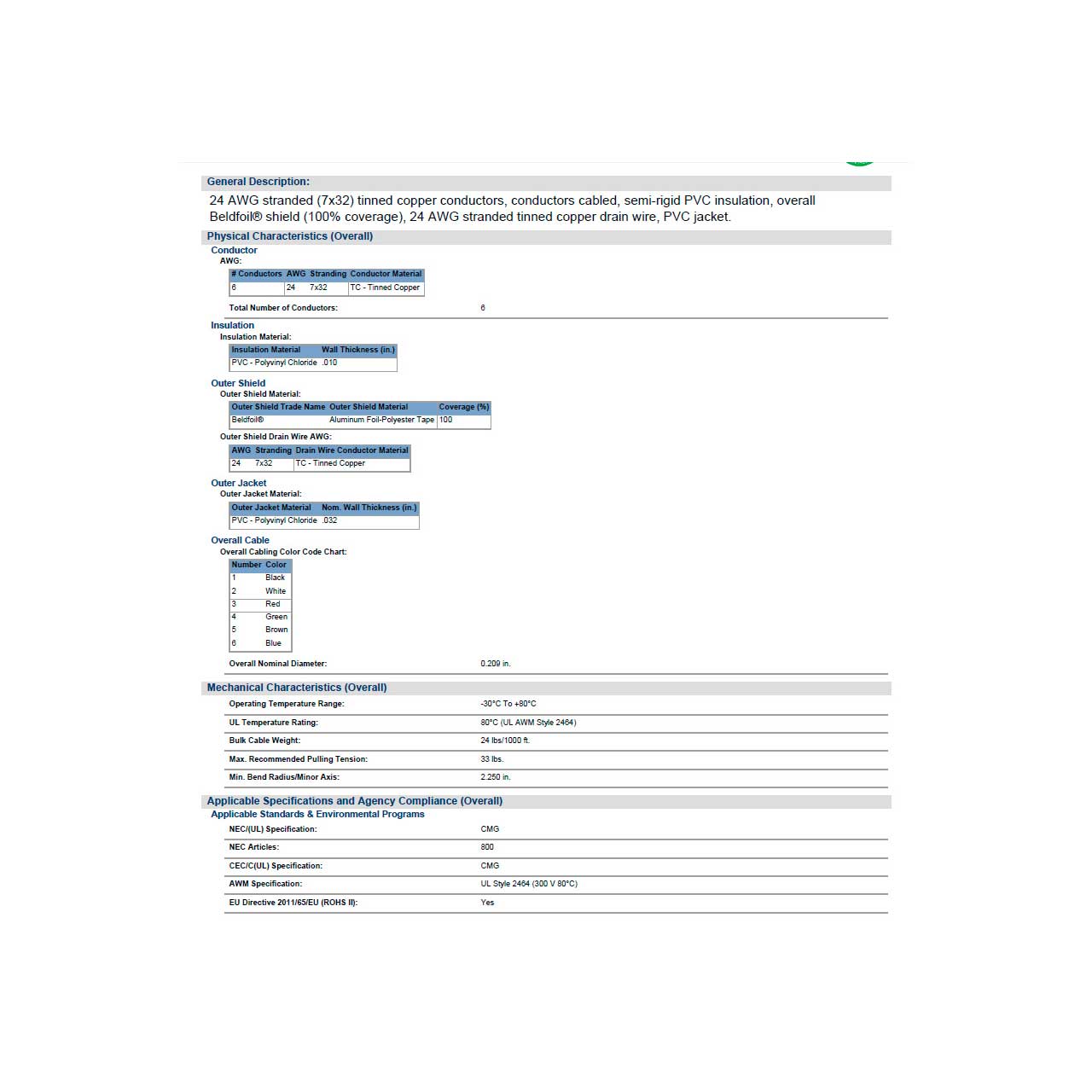

See Belden BL-9536-1000 Specifications (PDF)
