Belden 9773 CM Rated Audio Control & Instrument Cable Shld/TC 3-Pr 18AWG - Chrome - 500 Foot

ITEM #: BL-9773-500 MFG #: 9773 060500

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,612.75

Our Price:

$2,197.43

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

9773 060500 - Overview

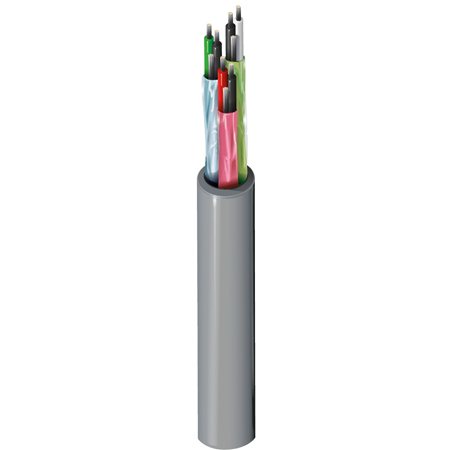

Belden 9773 is a Multi-Pair Audio, Control & Instrument Cable. It features 3 18AWG twisted pairs, stranded (19x30) tinned copper conductors with polypropylene insulation, individually shielded with Beldfoil® (100% coverage), a 20 AWG stranded tinned copper drain wire in a PVC jacket.

A Multi-Pair Cable is an electronic cable that consists of multiple groups of twisted-pair circuits. This construction allows many wires to be bundled into one package, reducing electromagnetic interference and crosstalk, as well as providing easier installation.

Applications
Low Voltage Analog Signals (4-20ma, 0-10v, ...)
Low Voltage Digital Control (24v, .)
Line Level Audio
Computer Communication
Panel Wiring

  • Features:

    • Dependable Signaling: Ideal for critical applications like telecommunications, water meters, thermometers, instrumentation and control panels, etc.
    • Easier Installation: Bundling multiple wires within one cable allows for faster wire installation
    • Prevent Downtime: Multi-pair cable offers consistency and reliability to your operations, guarding against crosstalk and electromagnetic interference

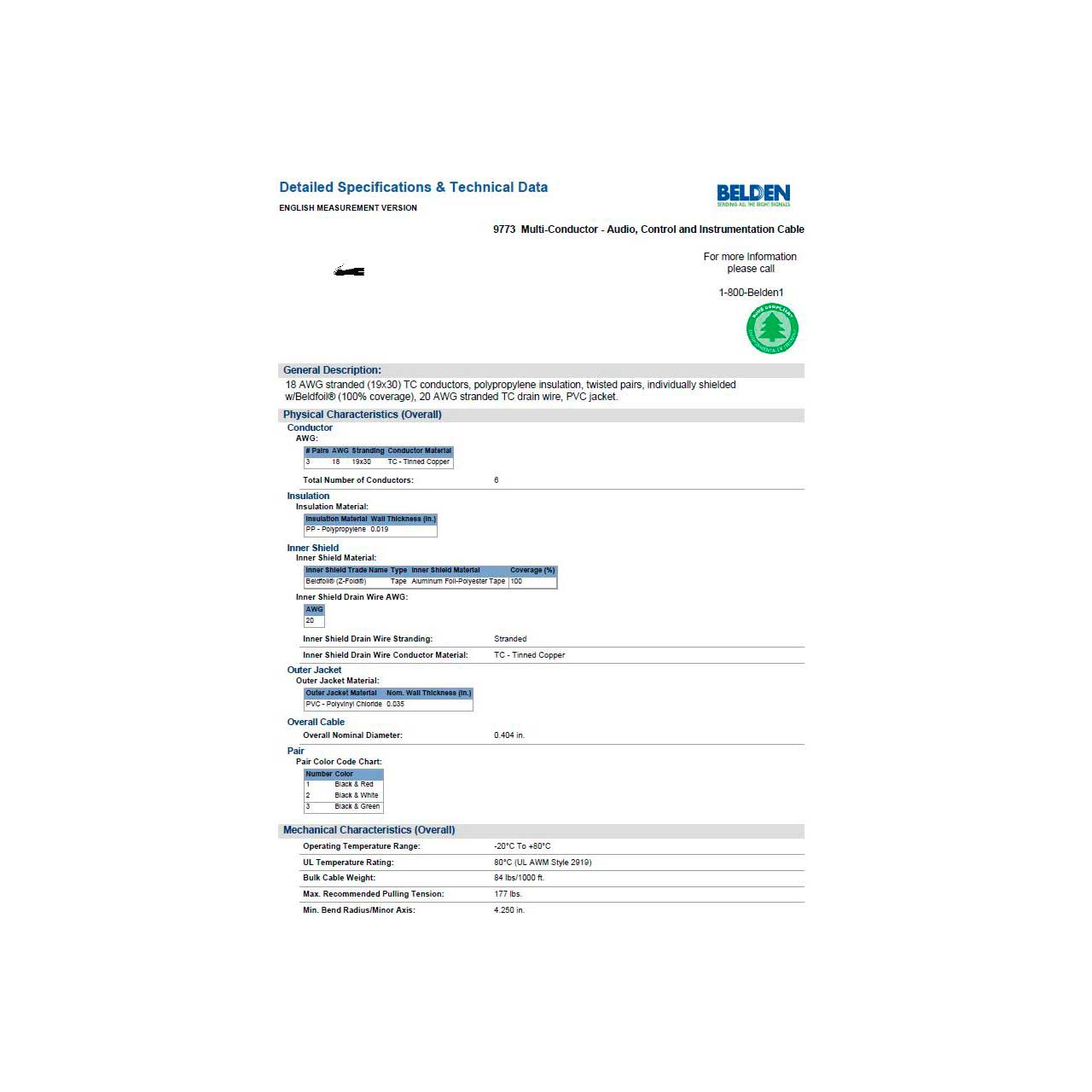

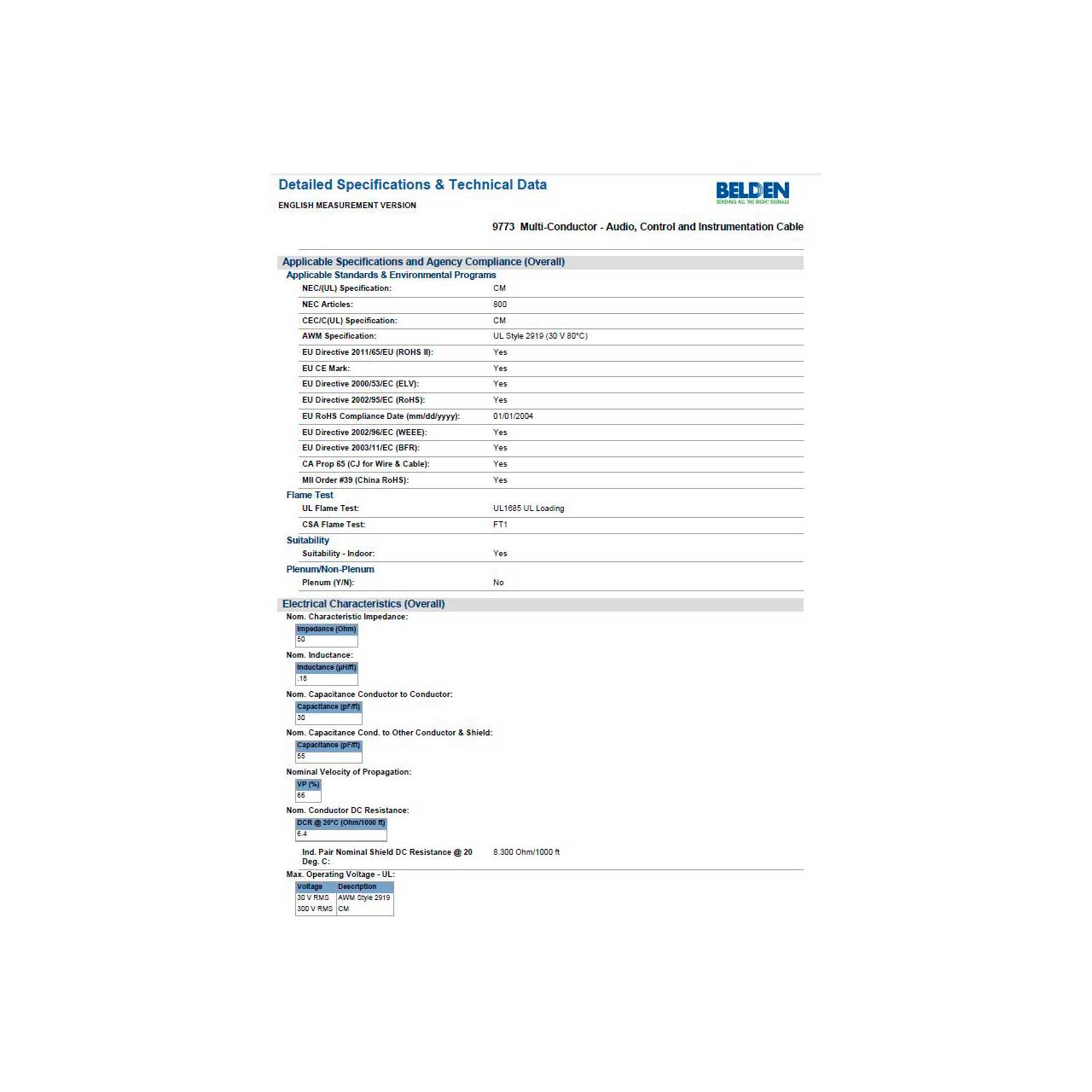

  • Specifications:

    • Conductor Number of Elements: 3
    • Total Number of Conductors: 6
    • Conductor AWG: 18
    • Conductor Stranding: 19x30
    • Conductor Material: TC - Tinned Copper
    • Insulation Material: PE - Polyethylene Pair
    • Insulation Nom. Thickness: 0.019 in (0.48 mm)
    • Insulation Nom. Insulation Diameter: 0.082 in (2.1 mm)
    • Insulation Color Code: Black & Red, Black & White, Black & Green
    • Inner Shield Material: Bi-Laminate (Alum+Poly) TAPE 100%
    • Inner Shield Drainwire Type: 20 AWG (7x28) TC
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Thickness: 0.035 in (0.89 mm)
    • Outer Jacket Nom. Diameter: 0.404 in (10.3 mm)
    • Overall Cable Diameter (Nominal): 0.404 in (10.3 mm)
    • Plenum (Y/N): N
    • Environmental Suitability: Indoor
    • Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2
    • CPR Compliance: CPR Euroclass: Eca
    • NEC / UL Compliance: Article 800, CM
    • AWM Compliance: AWM 2919
    • CEC / C(UL) Compliance: CM


  • Item Includes:

    • 9773 CM Rated Audio Control & Instrument Cable - Chrome - 500 Foot


  • Warranty:

    • 10 Year Limited Warranty


  • GTIN:

    0612825258483
