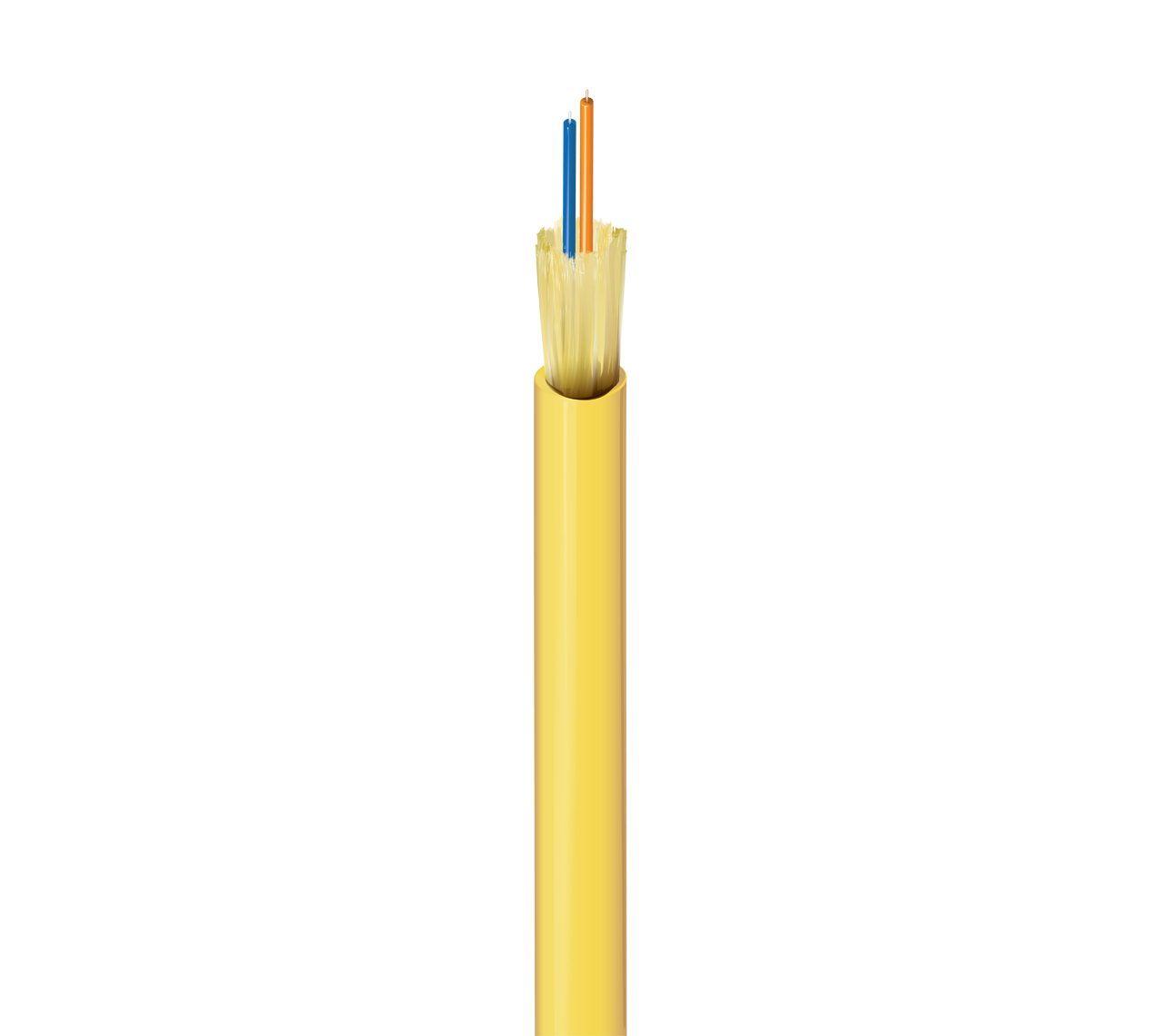

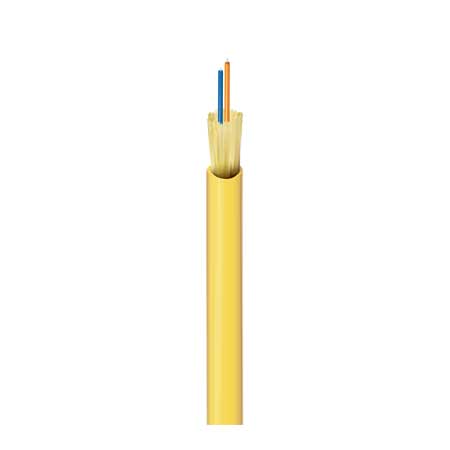

Belden FISD002R9 FX Indoor OS2 Distribution Tight Buffer 2 Fibers OFNR Non-Unitized Fiber Cable - Yellow - 1640FT/Reel

ITEM #: BL-FISD002R91640 MFG #: FISD002R9

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$311.60

Our Price:

$252.29

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


FISD002R9 - Overview

Belden FISD002R9 is an FX Indoor OS2 Distribution Tight Buffer, 2 Fiber, OFNR Non-Unitized Fiber Cable. Tight-Buffered Fiber Cables are one of Belden's best-selling, most popular fiber cabling systems for enterprise applications, including intra-building backbones and horizontal and vertical installations. They're available in fiber counts ranging from two to 144 and designed for indoor and indoor/outdoor applications. Distribution cables are offered in plenum and riser versions for flame resistance, as well as in unitized and non-unitized constructions that fit a wide array of environments. Their 900 µm tight-buffered fibers allow for fast installation and easy termination with FiberExpress (FX) Fusion Splice-On Connectors.

  • Features:

    • Fast, Easy Installation: Designed with strength members to withstand pulling stress without damage
    • No Need for Conduit: Interlocking armor feature provides an additional layer of protection
    • Rapid Field Termination: 900 æm tight-buffered cable features a small OD and quickly connects to FX Fusion Splice-On Connectors
    • Built for Tough Environments: Indoor/outdoor constructions feature materials that resist UV and moisture exposure

  • Specifications:

    • Product Category: Fiber Distribution Cable
    • Suitable Applications: Premise Backbone
    • Fiber Type: OS2
    • Fiber Core Diameter: 8.2/125 µm
    • Buffer Material: PVC - Polyvinyl Chloride
    • Buffer Diameter: 900 µm
    • Fiber Count: 2
    • Fiber Color Coding: TIA-598-D
    • Strength Member: Aramid Yarns
    • Jacket Material: PVC - Polyvinyl Chloride
    • Nom. Diameter: 0.184 in (4.7 mm)
    • Color: Yellow
    • Number of Ripcords: 1
    • Min. Bend Radius During Installation: 15x Cable OD
    • Min. Bend Radius During Operation: 10x Cable OD
    • Max. Tensile Strength During Installation: 660 N (150 lbf)
    • Max. Tensile Strength During Operation: 200 N (45 lbf)
    • Crush Resistance: 100 N/cm
    • Bulk Cable Weight: 14 lbs/kft (21 kg/km)
    • Installation Temperature Range: -10°C to +60°C
    • Operating Temperature Range: -20°C to +70°C
    • Storage Temperature Range: -40°C to +70°C
    • Environmental Suitability: Indoor
    • Sustainability: CA Prop 65, Product Lens, Environmental Product Declaration (EPD) Available
    • Flammability / Reaction to Fire: OFNR, FT4
    • ICEA Compliance: S-83-596

  • Item Includes:

    • 1x Belden FISD002R9 FX Indoor OS2 Distribution Tight Buffer 2 Fibers OFNR Non-Unitized Fiber Cable - Yellow - 1640FT/Reel

  • GTIN:

    0612825372233
