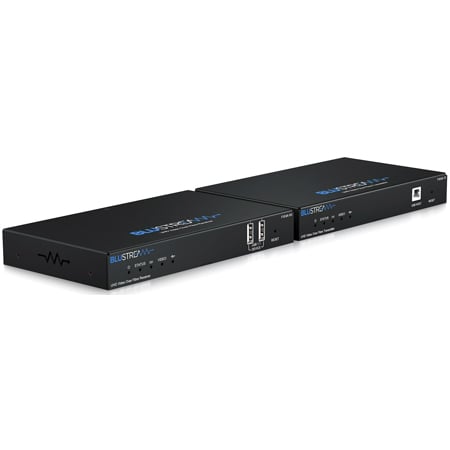

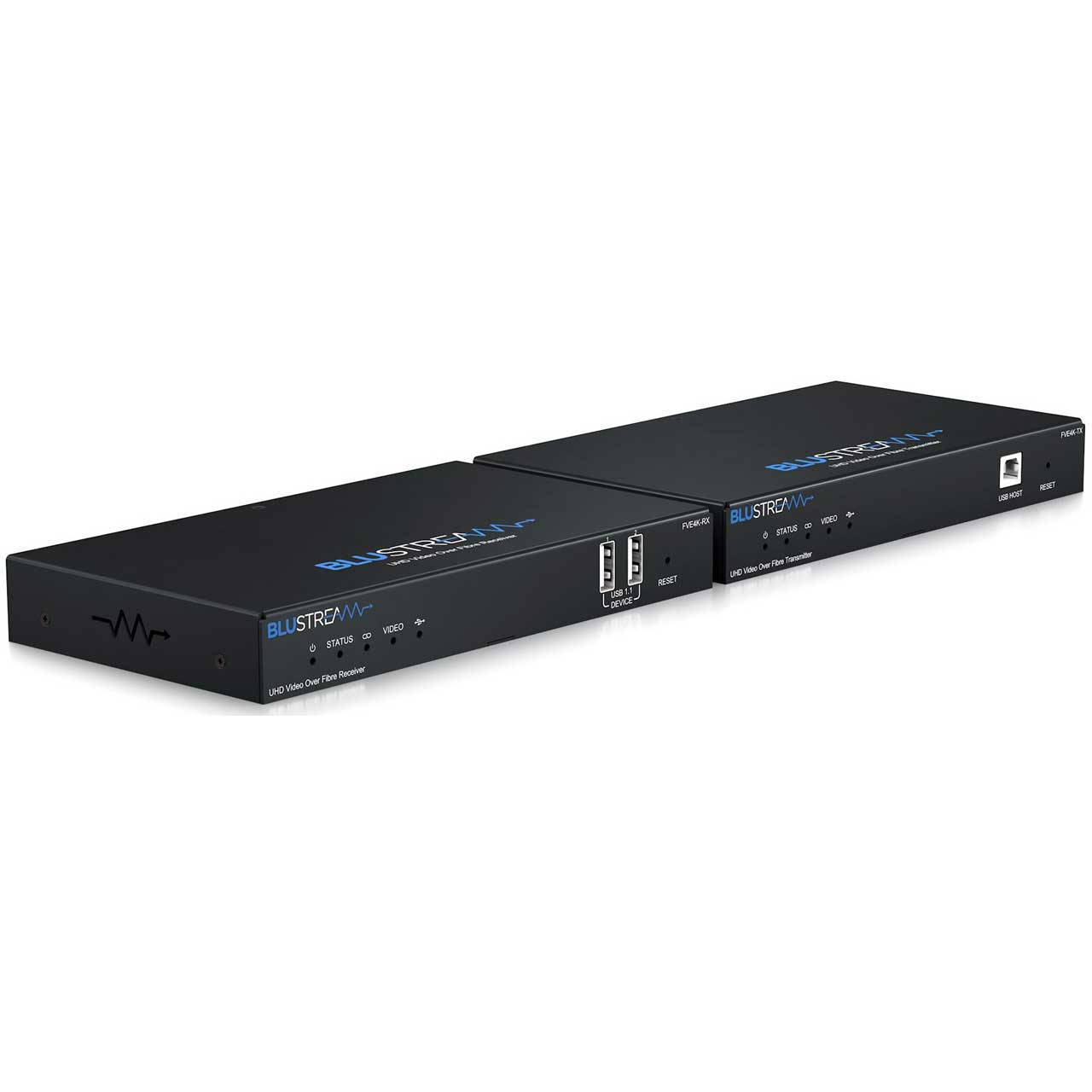

Blustream FVE4K-KIT 4K UHD HDMI2.0 4K 60Hz 4:4:4 HDCP 2.2 Video Over Fiber KVM Extender Kit

Name: Blustream FVE4K-KIT 4K UHD HDMI2.0 4K 60Hz 4:4:4 HDCP 2.2 Video Over Fiber KVM Extender Kit
Brand: Blustream
SKU: BLU-FVE4K-KIT
Price: 1700.00 USD
Availability: PreSale

ITEM #: BLU-FVE4K-KIT MFG #: FVE4K-KIT

Blustream

Our Price:

$1,700.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

FVE4K-KIT - Overview

The Blustream FVE4K-KIT is an industry leading HDMI2.0 4K 60Hz 4:4:4 HDCP 2.2 fiber extender solution utilizing the latest in SDVoE technology.

The FVE4K-KIT supports un-compromised distribution of the latest 4K resolutions including HDR / Dolby Vision LLM resulting in the ability to transmit 18Gbps signals over distances not capable of being achieved over copper cabling.

The FVE4K-KIT supports bi-directional IR, RS-232, USB1.1, and 1Gbps LAN up to distances supported by the 10Gbps SFP+ modules and fiber cable in use.

Features:
- Advanced 18Gbps UHD Video over 10Gbps fiber cable with visually lossless compression and zero latency
- Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4 and 10/12-bit HDR sources, including Dolby Vision LLM
- Features 1x HDMI loop-out on FVE4K-TX for integrating local displays or cascading to multiple devices
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- USB 1.1 point to point pass-through
- Bi-directional 10/100/1000BaseT Ethernet pass-through
- Supports bi-directional 5V or 12V IR pass-through
- Bi-directional RS-232 pass-through
- HDCP 2.2 compliant with advanced EDID management
- Local 12V 2A power supply required at TX & RX (supplied)
Specifications:

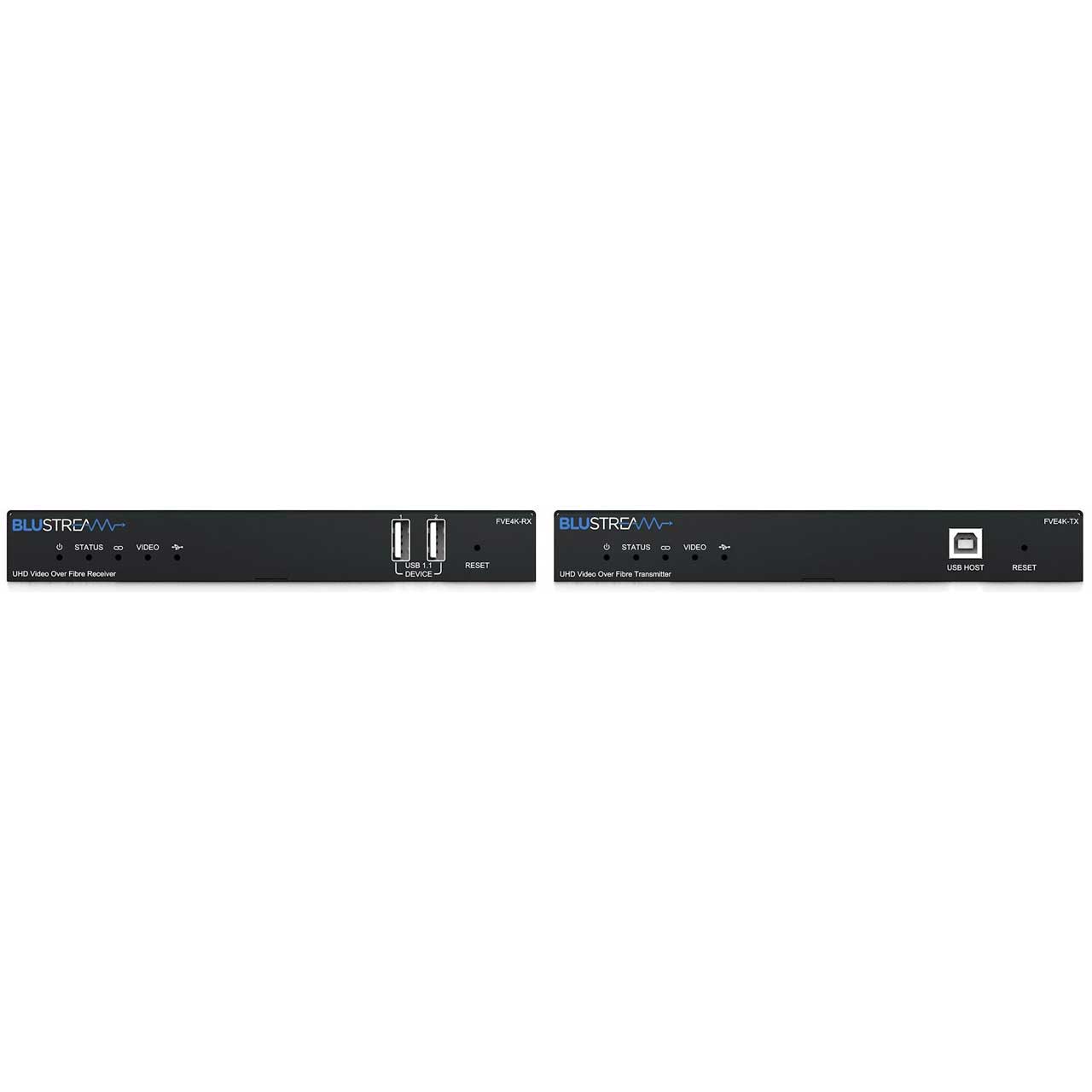

- Specifications - RX
- Video Input Connectors: 1x SFP+ module video network (SFP+ module not supplied)
- Video Output Connectors: 1x HDMI Type A, female
- Ethernet Port: 1x 1Gb LAN RJ45 pass-through
- USB / KVM Port: 2x USB-Type A (Devices)
- 5V IR Input Port: 1x 3.5mm stereo jack
- 5V IR Output Port: 1x 3.5mm mono jack
- RS-232 Port: 1x 3-pin Phoenix connector
- Power Supply: 12V/2A DC, screw type connector

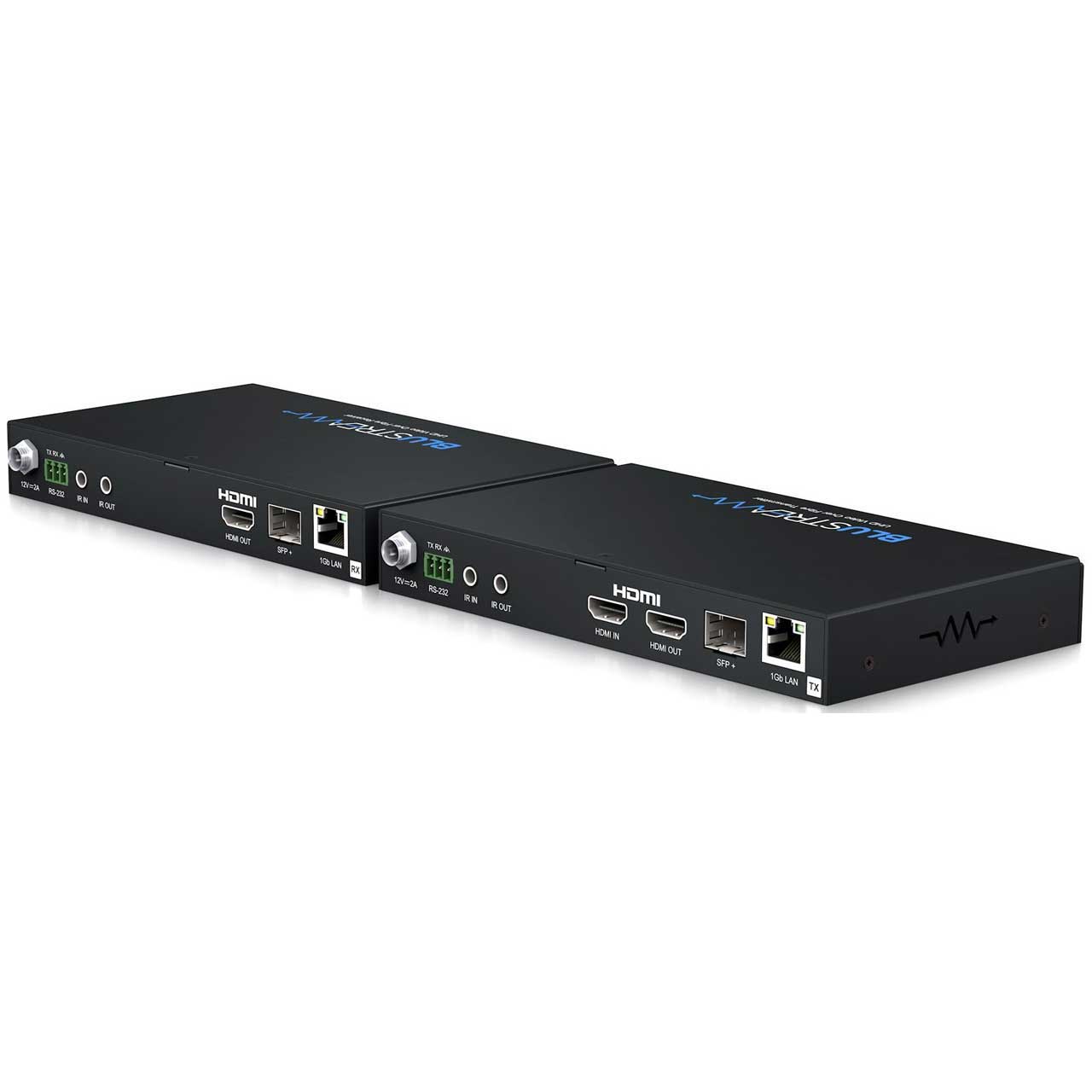

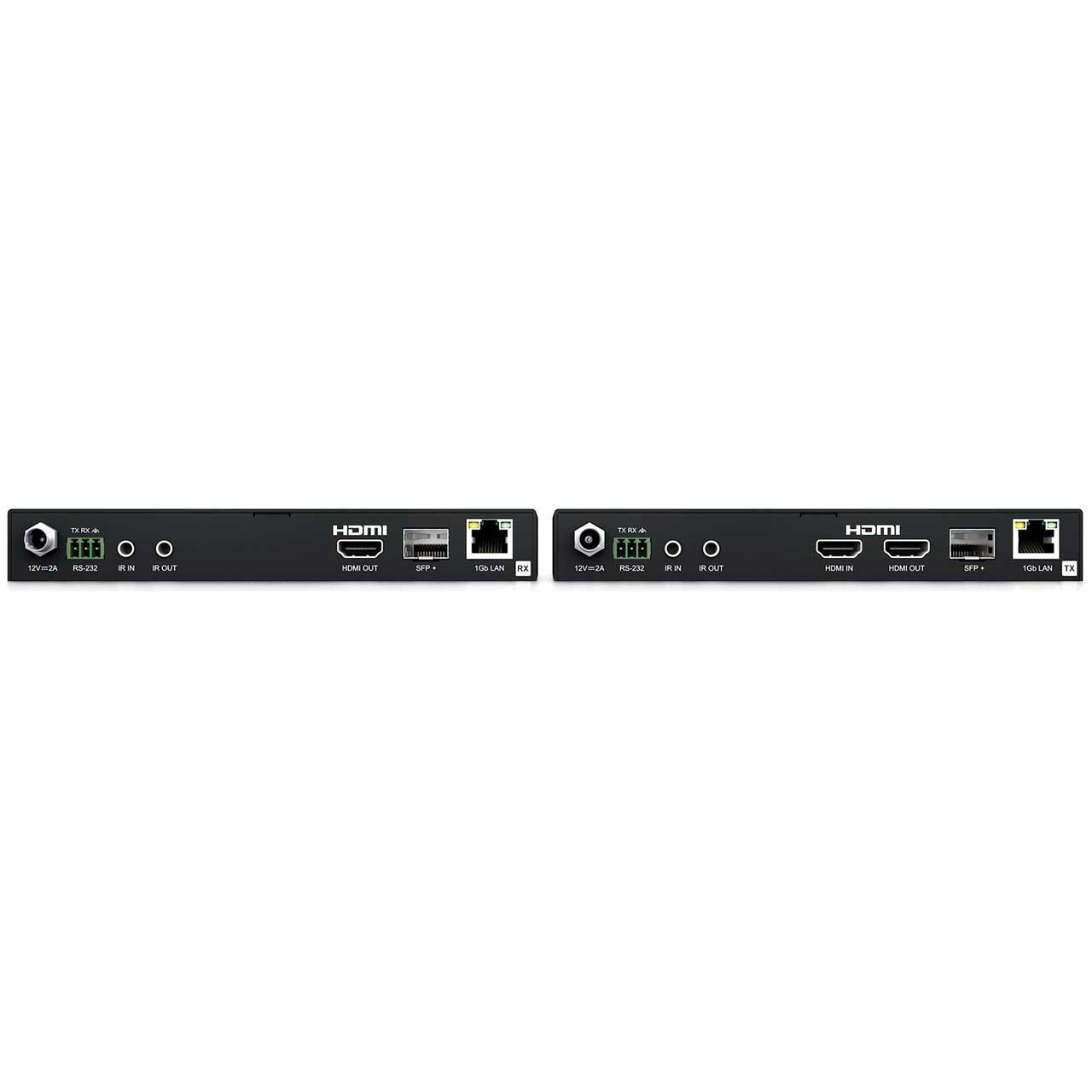

  Specifications - TX
- Video Input Connectors: 1x HDMI Type A, female
- Video Output Connectors: 1x SFP+ module video network, 1x HDMI Type A, female (SFP+ module not supplied)
- Ethernet Port: 1x 1Gb LAN RJ45 pass-through
- USB / KVM Port: 1x USB-Type B (Host)
- 5V IR Input Port: 1x 3.5mm stereo jack
- 5V IR Output Port: 1x 3.5mm mono jack
- RS-232 Port: 1x 3-pin Phoenix connector
- Power Supply: 12V/2A DC, screw type connector

  Specifications - KIT
- Casing Dimensions (W x D x H): 7.0" x 4.05" x .94" (180mm x 103mm x 24mm) (TX / RX - without connections)
- Casing Dimensions (W x D x H): 7.0" x 4.2" x .94" (180mm x 108mm x 24mm (TX / RX - with connections)
- Shipping Weight: 3.5lbs (1.6kg)
- Operating Temperature: 32°F to 104°F (0°C to +40°C)
- Storage Temperature: -4°F to 140°F (-20°C to +60°C)

  Fiber Distances
- Single mode fiber is suitable for long-distance applications, while multimode optical fiber is designed for short-distance runs. When it comes to single mode versus multimode distances, the below can be used a guide for the 10Gb LAN requirement of the FVE4K-KIT:
- Single mode fiber (OS2) - up to 10km (10Gb Base SE-SR)
- Multimode fiber (OM3) - 300m
- Multimode fiber (OM4) - 400m
- Multimode fiber (OM5) - 300m
Item Includes:
- 1x FVE4K-TX
- 1x FVE4K-RX
- 2x 12V/2A DC power supply
- 1x IR emitter
- 1x IR receiver
- 2x Mounting kit
- 1x Quick reference guide
Warranty:
- 3-Year Warranty
GTIN:
9340242004925
