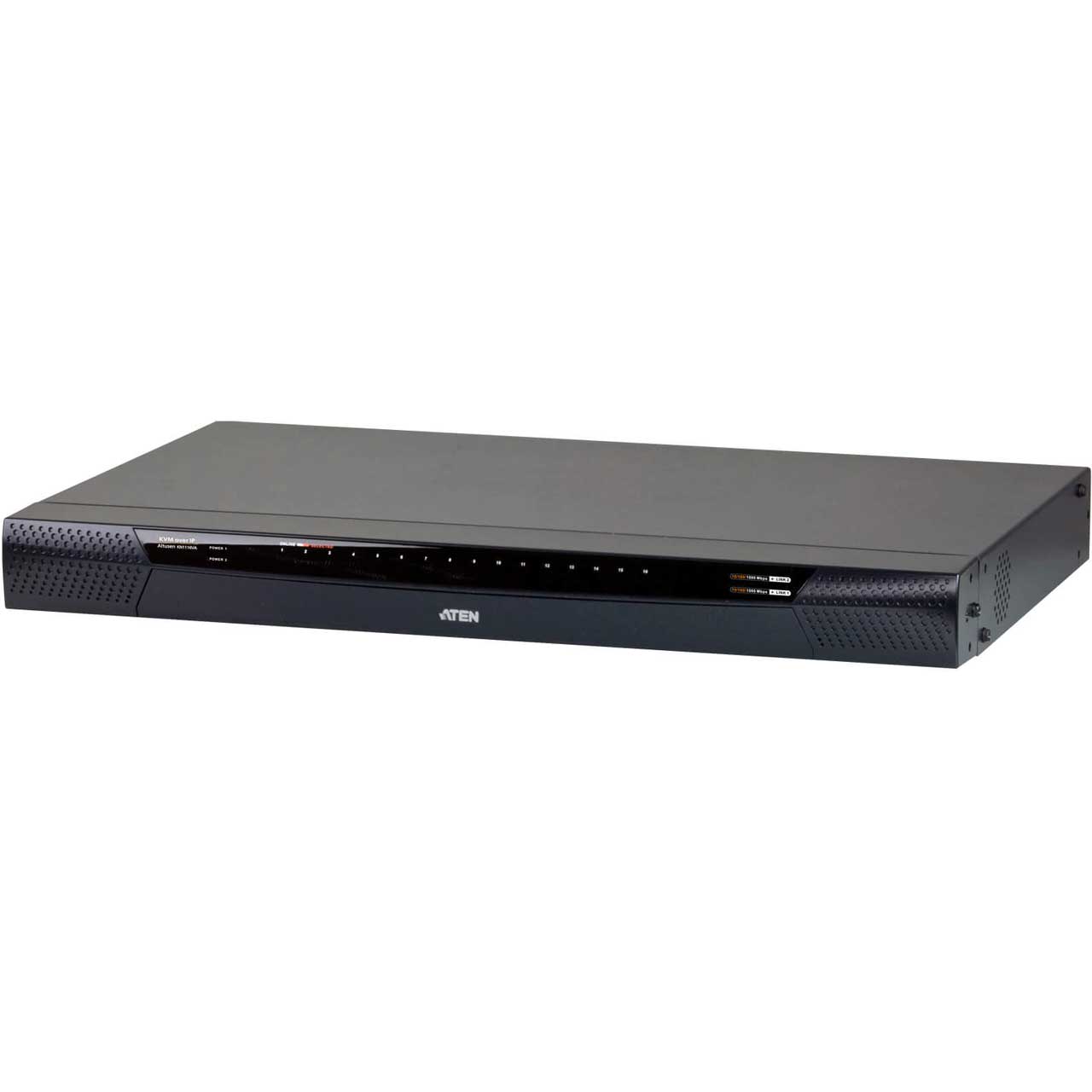

ATEN KN1116VA KVM Over IP Switch - TAA Compliant

KN1116VA - Overview

• Features:

  • High port density - RJ-45 connectors for up to 16 ports in a 1U housing
  • Laptop USB Console (LUC) - A dedicated USB port directly connects to a laptop for easy console operation
  • Up to 64 user accounts
  • UP to 32 concurrent logins
  • End session feature - administrators can terminate running sessions
  • Local Console, browser-based, and AP GUIs offer a unified multilanguage interface to minimize the user training time and increase productivity
  • Multiplatform client support (Windows, Mac OSx, Linux, Sun)
  • High grade security - supports FIPS 140-2 level 1 security standards
  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Virtual media enables file applications, OS patching, software installation and diagnostic testing
  • Works with USB enabled servers in operating system and BIOS level
  • Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
  • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Full screen video display or scalable video display


• Specifications:

  • Console Connections
  • Local: 1
  • Remote: 1

    Computer Connections
  • Direct: 16
  • Maximum: 256 (via Cascade)

    Port Selection
  • Pushbuttons, GUI, Hotkeys

    Connectors
  • Console Ports:
  • 2x USB Type-A Female (White)
    1x 6-pin Mini-DIN Female (Purple)
    1x 6-pin Mini-DIN Female (Green)
    1x HDB-15 Female (Blue)
  • USB Port: 3x USB Type-A Female
  • Audio: 2x Audio Jack Female
  • Laptop USB Console (LUC) Port: 1x USB Mini-B Female
  • KVM Ports: 16x RJ-45 Female
  • Serial: 2x RJ-45 Female
  • PON: 1x RJ-45 Female
  • Modem: 1x RJ-45 Female
  • LAN Ports: 2x RJ-45 Female
  • Power: 2x IEC 60320/C14

    Switches
  • Port Selection: 2x Pushbutton
  • Reset: 1x Semi-recessed Pushbutton
  • Power: 2x Rocker

    LEDs
  • Online: 16 (Green)
  • Link: 10 / 100 / 1000 Mbps; 2 (Red/Orange/Green)
  • Power: 2 (Blue)

    Emulation
  • Keyboard/Mouse
  • PS/2 /USB

    Video
  • Local: 1920x 1200@60 Hz
  • Remote: 1920x 1200@60 Hz

    Scan Interval
  • 1-255 Seconds

    Maximum Input Power Rating
  • 100-240V AC, 50-60Hz, 1A

    Power Consumption
  • AC110V: 14W:102BTU
  • AC220V: 15W:107BTU

    Environmental
  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Storage Temperature: -4° to 140°F (-20° to 60°C)
  • Humidity: 0 - 80% RH, Non-condensing

    Physical Properties
  • Housing: Metal
  • Weight: 7.84Lbs (3.56kg)
  • Dimensions (Lx Wx H): 17.26x 11.33x 1.73" (43.84x 28.78x 4.40cm)


• Item Includes:

  • 1x KN1116VA KVM over IP Switch
  • 2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
  • 2x Power Cords
  • 1x Laptop USB Console Cable
  • 1x Rack Mount Kit
  • 1x Foot Pad Set (4 pcs.)
  • 1x User Instructions


• GTIN:

  0672792403880
