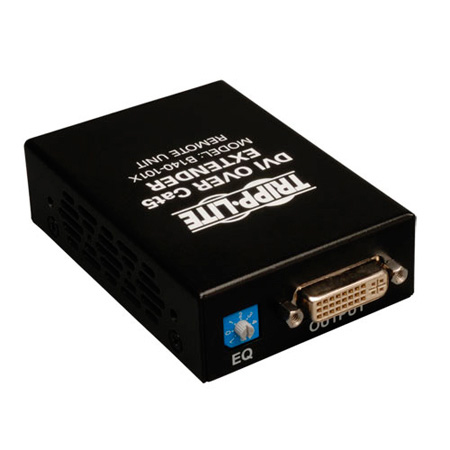

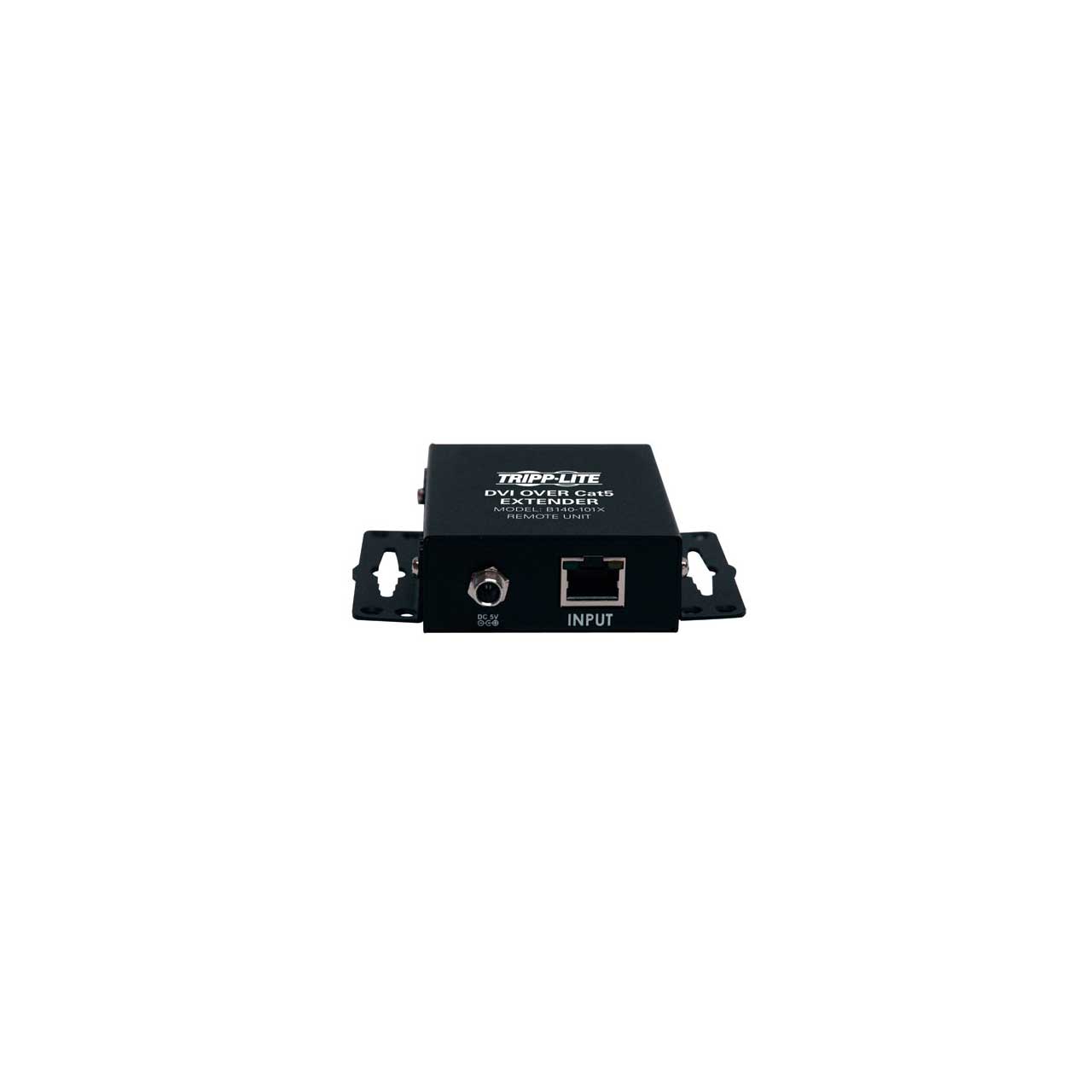

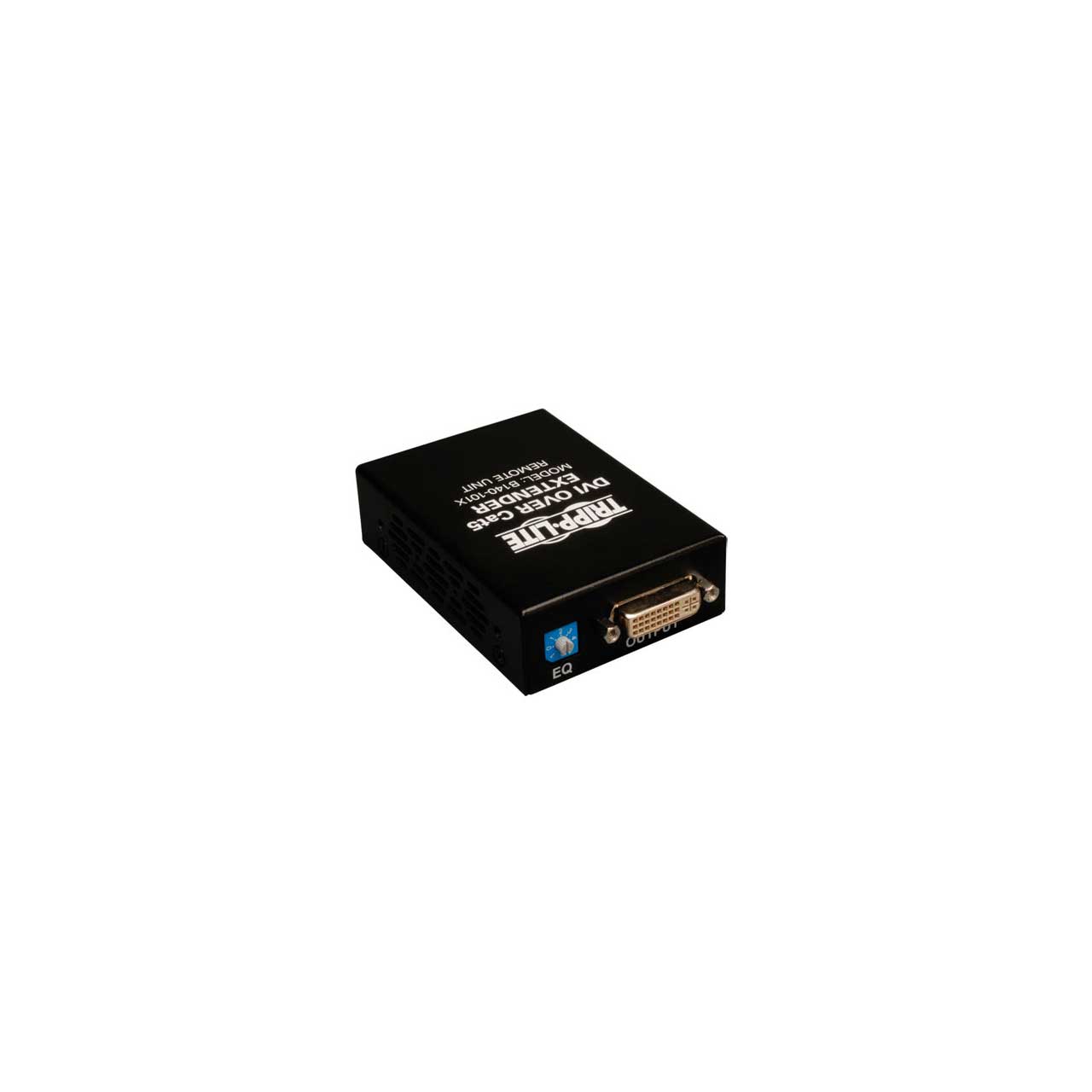

Tripp Lite B140-101X DVI over Cat5 Active Extender Kit

ITEM #: TRL-B140-101X MFG #: B140-101X

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$321.60

Our Price:

$232.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info


B140-101X - Overview

Tripp Lite's B140-101X DVI over Cat5 Active Extender Kit is the perfect solution for those who need to extend a DVI-D Single-Link signal up to 200 ft. from the source. When using 24Awg, solid wire Cat5e/6 cabling (Tripp Lite N202-Series), the B140-101X can extend a 1024 x 768 (60Hz) signal up to 200 ft., or a 1920 x 1080 (60Hz) up to 150 ft.. Installation is quick and easy: Simply attach the local unit to your DVI source, attach the remote unit to your display, and then connect a Cat5e/6 patch cable between the two. If necessary, use the built-in Equalization setting on the remote unit to adjust the video image. Mounting hardware is included that allows the remote unit to be wallmounted, rackmounted or pole-mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

  • Features:

    • Kit comes with both local transmitter and remote receiver units.
    • Extend a DVI-D Single-Link signal up to 200 ft. at 1024 x 768 (60Hz), or up to 150 ft. at 1920 x 1080 (60Hz), when using 24Awg, solid wire Cat5e/6 cabling. (Tripp Lite N202-Series)
    • Remote unit features built-in Equalization setting that allows for adjustment of the video image.
    • Mounting hardware is included that allows the remote unit to be wallmounted, rackmounted or pole-mounted.
    • No software or drivers required.
    • HDCP and DDC compatible
    • Compatible with all operating systems.
    • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

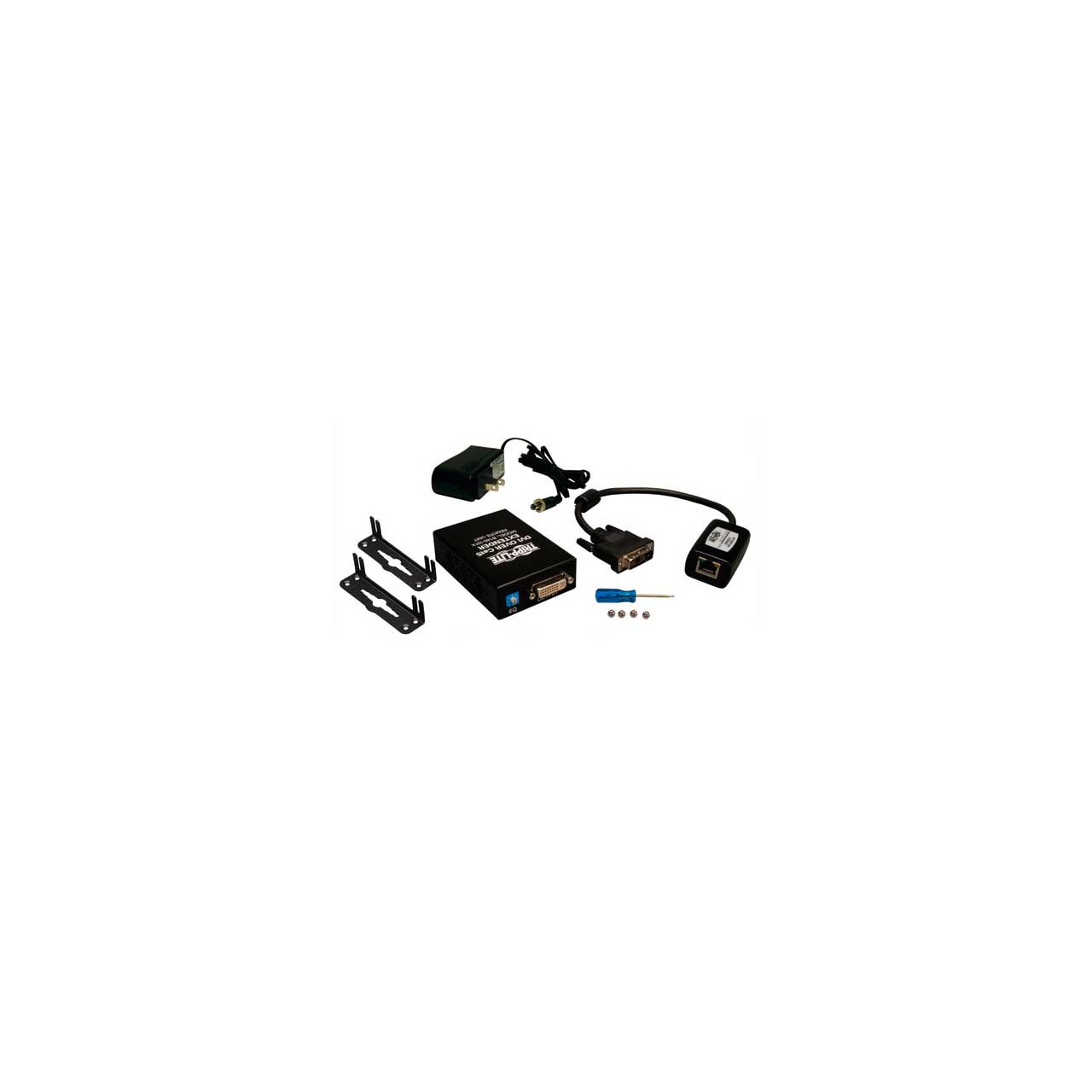

  • Item Includes:

    • B140-101X local transmitter unit
    • B140-101X remote receiver unit
    • Screwdriver (used for Equalization control)
    • Mounting hardware
    • External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
    • Owner's manual

  • GTIN:

    0037332154095
