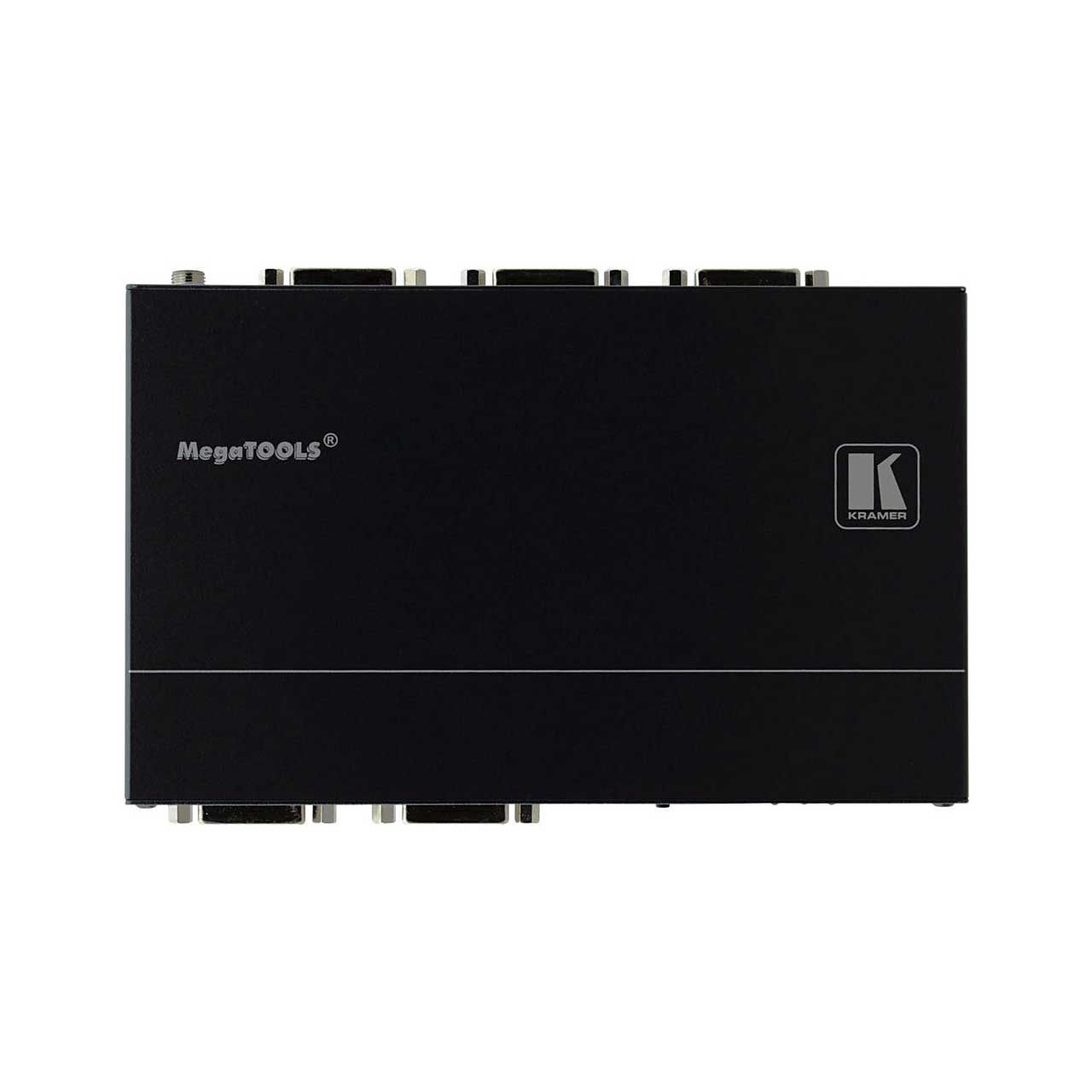

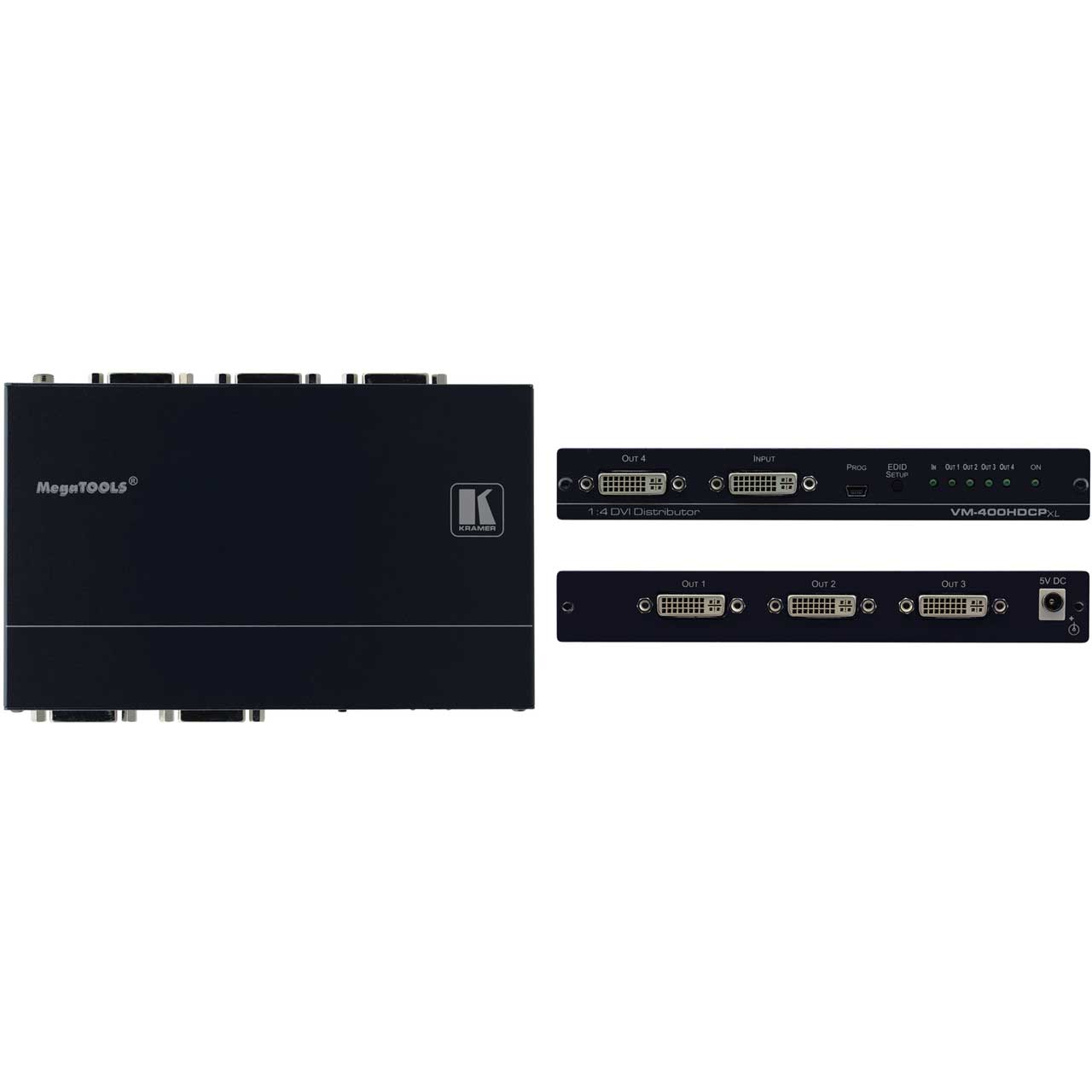

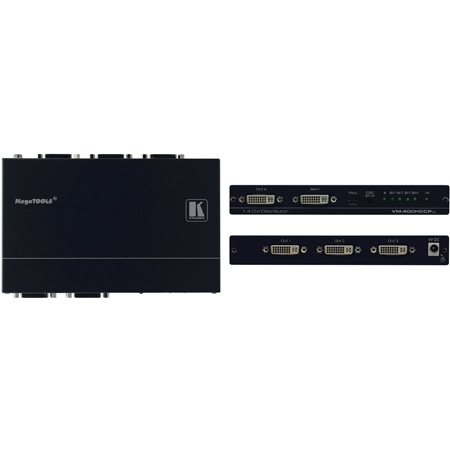

Kramer VM-400HDCPXL 1:4 4K60 4:2:0 DVI Distribution Amplifier

10-80429090 - Overview

Up to 4K@60Hz (4:2:0) video resolution

• Features:

  • High Performance Distributor - Professional 1:4 DVI distributor for up to 4K@60Hz (4:2:0) video resolution signals. Via single-link DVI-I connections, one HDMI HDCP 1.4 input signal is amplified and distributed to four identical output signals, with signals rebuilt using Kramer Equalization & re-Klocking™ Technology to gain longer distances.
  • Secured Operation - Highly-secured operation is ensured by lockable wiring connectivity with protection against unintentional cables connection.
  • HDMI Signal Transmission - HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through from the source to the displays.
  • EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for DVI source and display systems.
  • User-Friendly Operation - Comprehensive signal distribution features and signal mode-forcing options such as RGB forcing, with convenient EDID selection front panel button.
  • Cost-Effective Field Maintenance - Mini-USB connection for simple field firmware upgrade using the Kramer K-Upload tool. Status indicators for fast and effective troubleshooting.
  • Easy Installation - Compact MegaTOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting.


• Specifications:

  • INPUTS
  • 1 DVI on a DVI-I female connector


  • OUTPUTS
  • 4 DVI on DVI-I female connectors


  • PORTS
  • 1 RS-232 on Mini-USB female connector for firmware upgrade


  • VIDEO
  • Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
  • Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
  • HDCP 1.4 signal compliance
  • Supports deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0


  • CONTROLS
  • EDID setup button


  • INDICATOR LEDS
  • OUTPUTS 1 to 4, ACTIVE input and power ON LEDs


  • POWER SOURCE
  • 5V DC, 4A


  • POWER CONSUMPTION
  • 5V DC, 1.1A


  • ENCLOSURE
  • MegaTools size, aluminum type


  • COOLING
  • Convection ventilation


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • VM-400HDCPXL Distribution Amp
  • Power Adapter/Cord
  • Bracket Set (1)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063079482
