Tripp Lite B140-002-DD 2-Port Dual Display DVI over Cat5/Cat6 Extender Splitter Video Transmitter - 60Hz Up to 200 Ft

B140-002-DD - Overview

• Features:

  • Transmits a DVI-D Single-Link signal from a set of Dual DVI inputs to two sets of Dual Displays
  • A B140-Series remote receiver is needed at each monitor
  • For longer distances: Use a B140-1A0 or B140-1A0-WP active receiver to extend a 1920 x 1200 @ 60Hz signal up to 150 ft. from the transmitter (or a 1024 x 768 @ 60Hz signal up to 200 ft. from the transmitter)
  • For shorter distances: Use a B140-1P0 passive receiver to extend a 1920 x 1200 @ 60Hz signal up to 50 ft. from the transmitter (or a 1024 x 768 @ 60Hz signal up to 100 ft. from the transmitter)
  • Use 24 AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite’s N202-Series to achieve maximum distance and resolution
  • Further expand the range and number of monitors by adding B140-110 remote repeater units
  • Add up to three repeaters on each of the B140-002-DD channels, for a total of 4 displays per channel (An active receiver should be the last unit in a channel)
  • A 1920 x 1200 @ 60Hz signal can be extended up to 125 ft. for each repeater added into a channel (or up to 175 ft. for a 1024 x 768 @ 60Hz signal)
  • DVI 1.0 compliant
  • HDCP compatible
  • Mounting hardware included that allows the unit to be wall-mounted, rackmounted, or pole mounted
  • Plug and play; no software or drivers required
  • Compatible with all operating systems
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases


• Specifications:

  • AC Adapter: Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A
  • Unit Dimensions (hwd / in.): 1.2 x 5 x 3.6
  • Unit Dimensions (hwd / cm): 3.05 x 12.7 x 9.14
  • Unit Weight (lbs.): 0.8
  • Unit Weight (kg): 0.36
  • Included Mounting Accessories: Y
  • Max 1024 x 768 Range (ft): 200
  • Max 480P Range (ft): 200
  • Max 1440 x 900 Range (ft): 150
  • Max 1080i Range (ft): 150
  • Max 1080P Range (ft): 150
  • Max 480i Range (ft): 200
  • Max 640 x 480 Range (ft): 200
  • Max 800 x 600 Range (ft): 200
  • Max 1600 x 1200 Range (ft): 150
  • Max 720P Range (ft): 150
  • Ports: 2

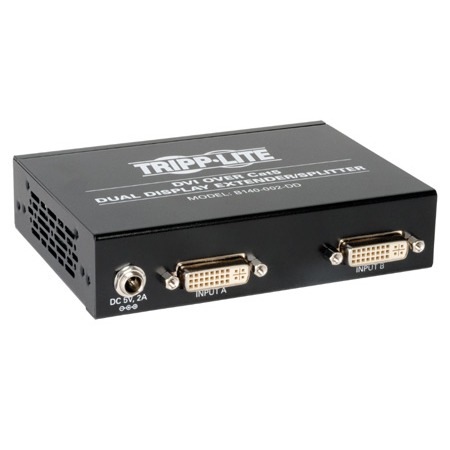

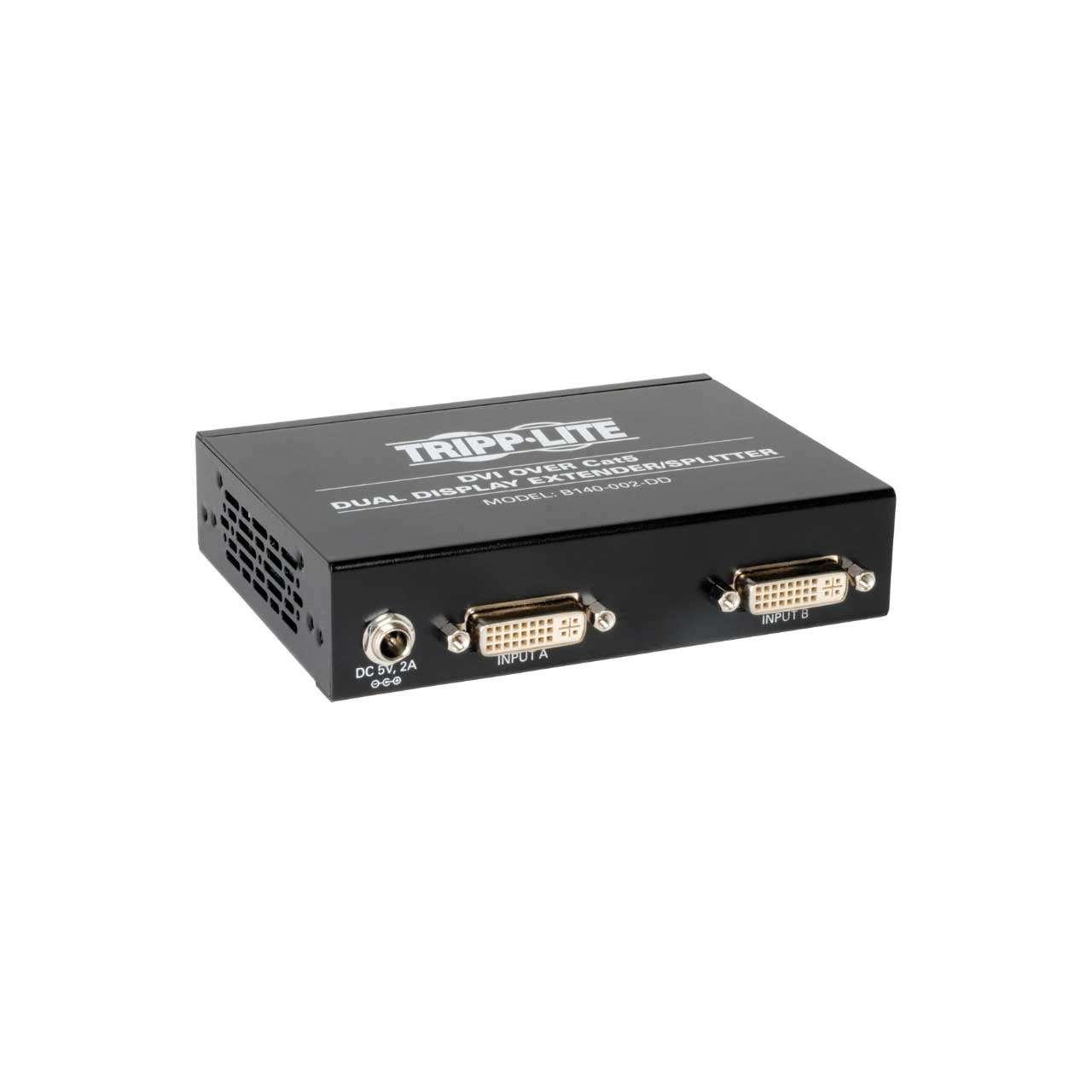

  • Side A - Connector 1: (2) DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)

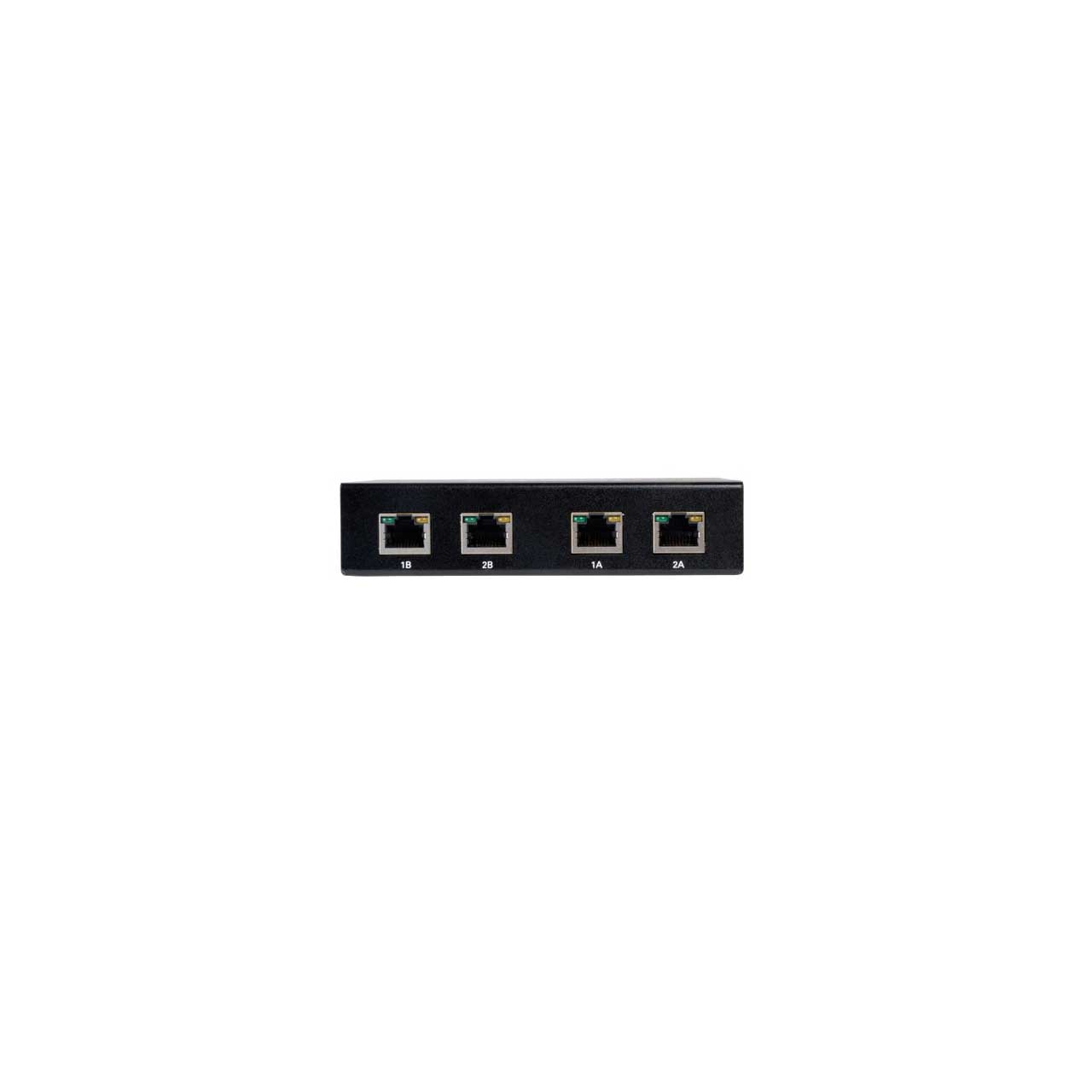

  • Side B - Connector 1: (2) RJ45 (FEMALE)
  • Product Warranty Period (Worldwide): 1-year limited warranty

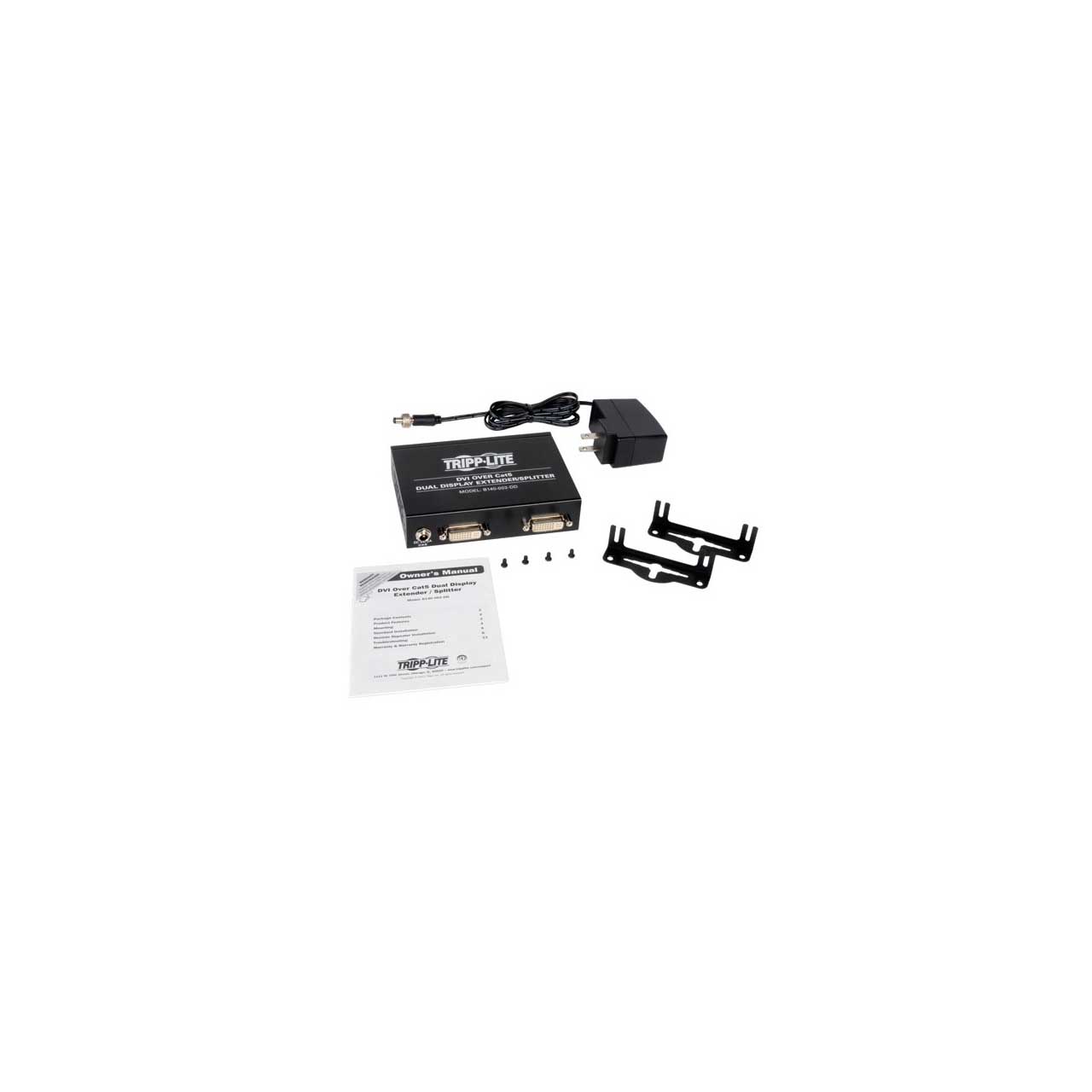

• Item Includes:

  • B140-002-DD Extender / Splitter Transmitter Unit
  • External Power Supply with NEMA 1-15P Plug ( Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A )
  • Mounting Hardware
  • Owner's Manual


• Warranty:

  • 1 Year


• GTIN:

  0037332177513
