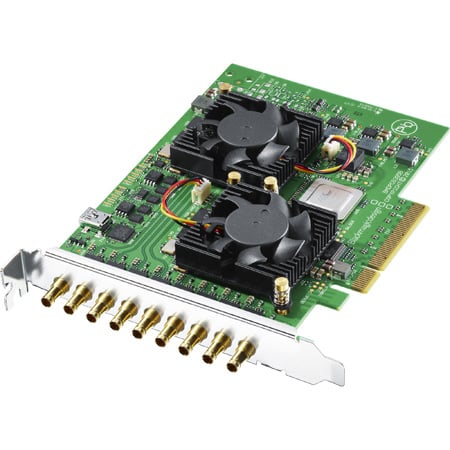

Blackmagic Design BDLKDVQD2 DeckLink Quad 3G-SDI 8 Channel Capture and Playback Card

Name: Blackmagic Design BDLKDVQD2 DeckLink Quad 3G-SDI 8 Channel Capture and Playback Card
Brand: Blackmagic Design
SKU: BMD-BDLKDVQD2
Price: 995.00 USD
Availability: PreSale

ITEM #: BMD-BDLKDVQD2 MFG #: BDLKDVQD2

Blackmagic Design

Our Price:

$995.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

This item is not returnable. See Terms & Conditions for details.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

BDLKDVQD2 - Overview

The Blackmagic Design BDLKDVQD2 DeckLink Quad 2 converts Quad Link SDI to 12G-SDI so you can connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. The DeckLink Quad 2 allows equipment that uses four BNC cables to be connected using a single12G-SDI BNC cable. Easily connect to the latest routers, switchers, projectors and more! Fully supports both Level A and Level B 3G-SDI equipment.

The DeckLink Quad 2 features 8 independent SDI capture and playback channels in a single card! Fully compatible with the previous 4 channel model, this model also allows 4 independent capture and playback channels but now also includes 4 extra channels that developers can use for configuring the card in any combination of up to 8 capture or 8 playback channels. This means DeckLink Quad 2 allows each of the 8 3G-SDI BNC connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.

Features:
- Software Applications
  DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Adobe Photoshop CC
- Other Supported Applications
  The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Autodesk Flame, Zoom.
- Supported Codecs
  AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Specifications:

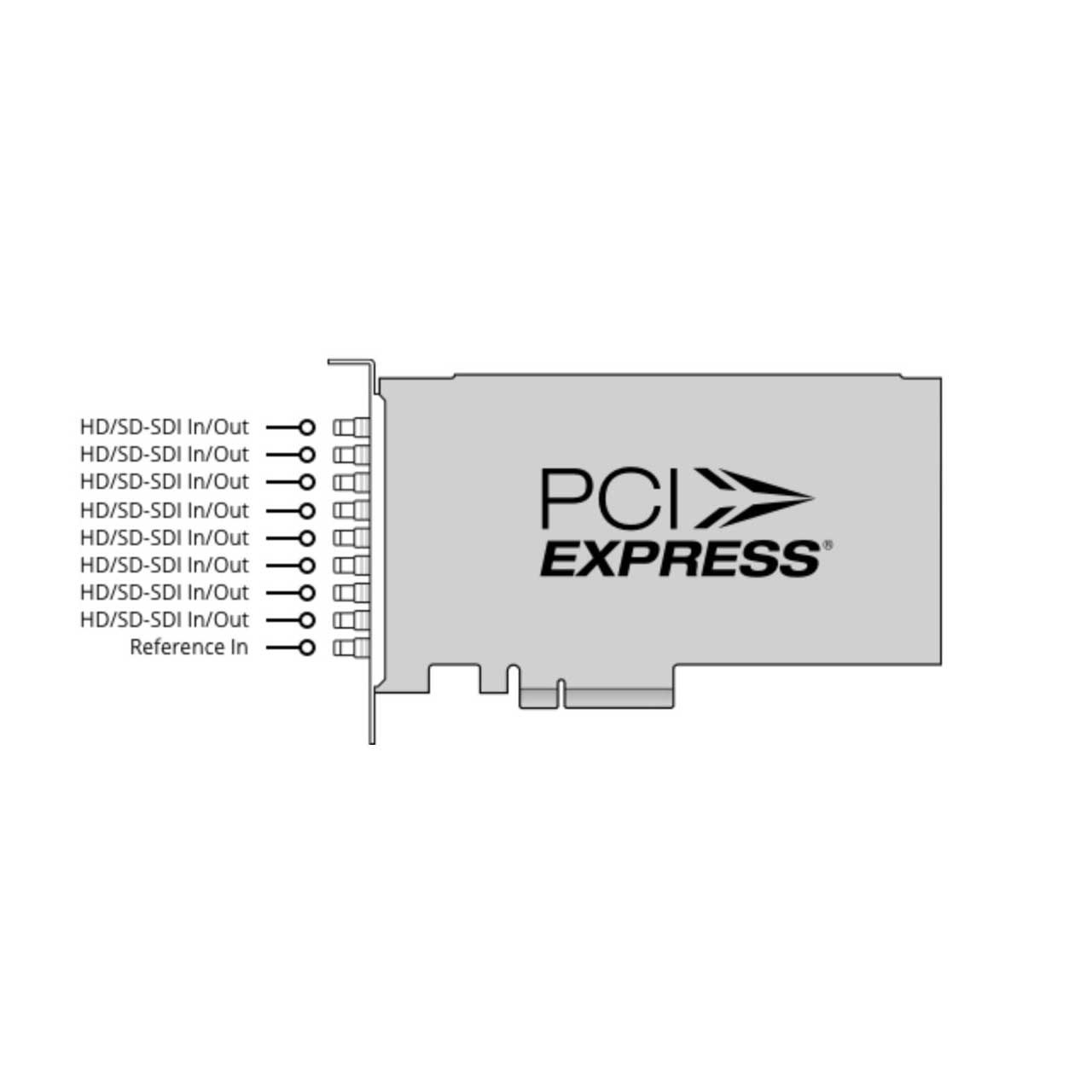

- Connections
- SDI Video Inputs (on DIN 1.0/2.3 connectors): 8x bi-directional 12-bit SD/HD independently configurable as either Input or Output
- SDI Video Outputs (on DIN 1.0/2.3 connectors): 8x bi-directional 12-bit SD/HD independently configurable as either Output or Input
- SDI Audio Inputs:16 channels embedded in SD and HD
- SDI Audio Outputs: 16 channels embedded in SD and HD
- Sync Input: Tri-Sync or Black Burst
- Computer Interface: PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots

  Video Standards
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601
- SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning
- Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
- SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
- SDI Video Sampling: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
- Color Space: REC 601, REC 709

  Video Standards
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601
- SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning
- Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
- SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
- SDI Video Sampling: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
- Color Space: REC 601, REC 709

  Processing
- Colorspace Conversion: Hardware based real time
- HD Down Conversion: Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles.
- HD Up Conversion: Built in, high quality software up conversion from SD to 720HD or 1080HD on capture. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.
- Operating Systems: Mac 10.15 Catalina,Mac 11.1 Big Sur or later. Windows 8.1 and 10, both 64-bit. Linux
- Power Draw: 22 Watts
Warranty:
- 3 Year Limited Manufacturer's Warranty
GTIN:
9338716003468
