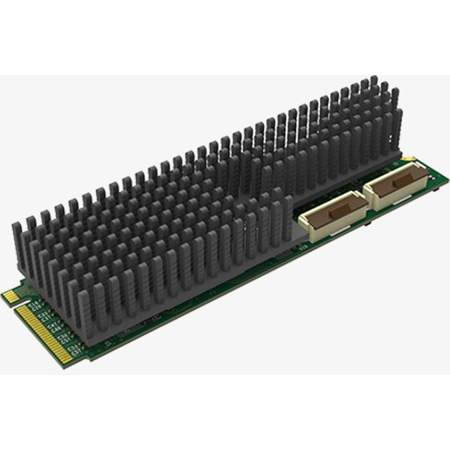

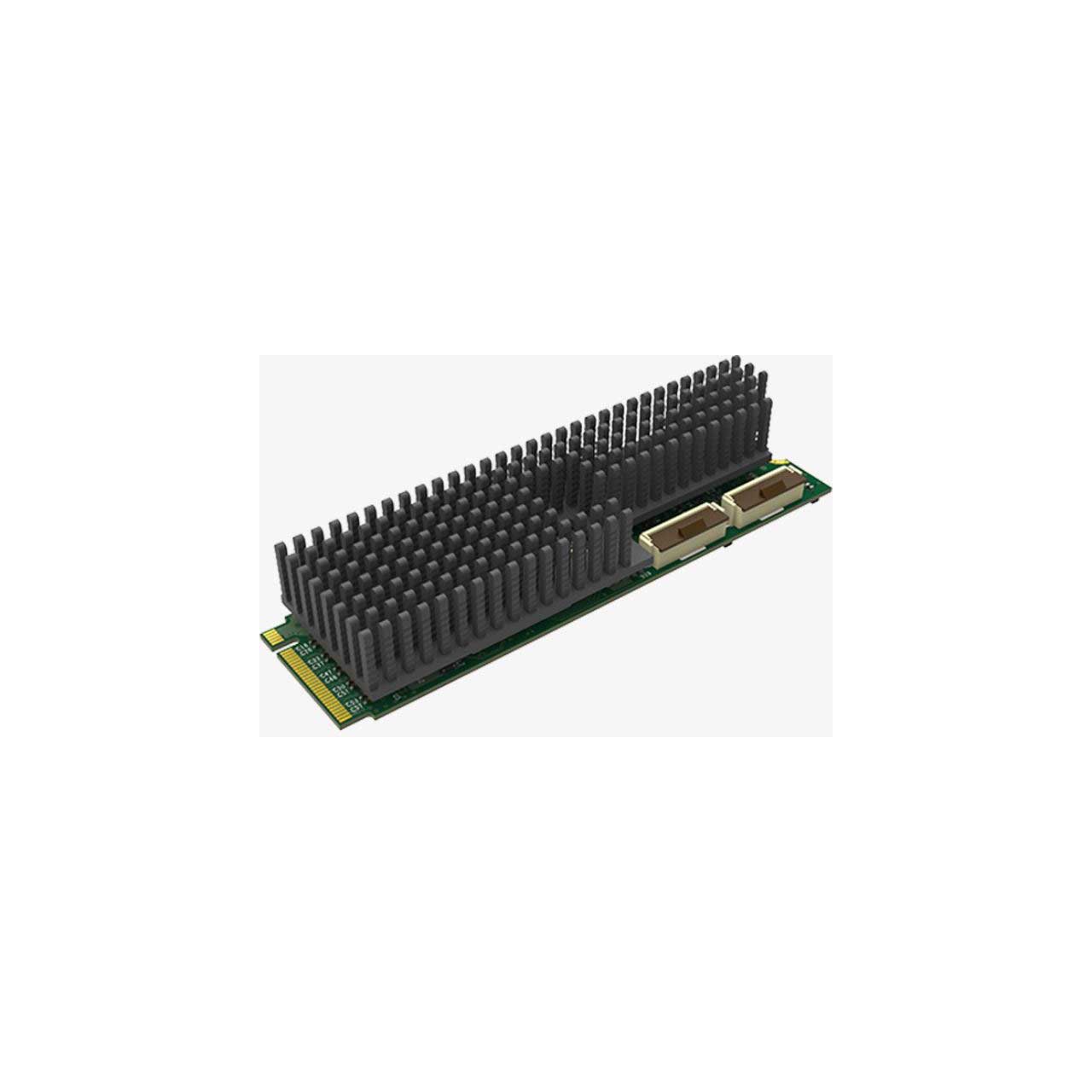

Magewell 11514 Eco Capture M.2 Form Factor 2-Channel HDMI Capture Card with Two Modified Connectors - Windows/Linux

11514 - Overview

• Features:

  • HDMI x2
  • Support input resolution up to 2048x2160 pixels
  • M.2(PCIe Gen2 x4)
  • 8-bit video processing
  • Deinterlace
  • Cropping
  • Color Adjustment
  • Hardware Timestamp
  • Color Space Conversion
  • Up/down Conversion
  • Aspect Ratio Conversion
  • SG-DMA Transmission mode
  • Auto Detection of Input Signal Format
  • 3D HDMI
  • Time Code
  • Low Power Consumption
  • Multiple Replicated Capture Streams
  • Low Latency Mode
  • Multiple Devices on One Host
  • Mounting Hole
  • Continuously Work for 24hx7
  • Windows&Linux SDK
  • 2-year Warranty
  • Dip Switch
  • LED Status Indicator


• Specifications:

  • Supported OS
  • Windows - Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
  • Linux (support x86, x64 & ARM architecture) - Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64), CentOS 6.5/7 (x86 & x64), Fedora 25/26/27 (x86 & x64), Red hat 6.5 and above (x86 & x64), Other Linux OS with kernel version 2.6.35 and above

    Recommended OS (tested)
  • Windows - Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
  • Linux - Ubuntu 12.04/14.04/16.04 (x86 & x64), Ubuntu 17.04/17.10/18.04 (x64), CentOS 6.5/7.2 (x86 & x64), Fedora 25/26 (x64), Red hat 6.5 (x86 & x64)

    Supported APIs
  • Windows
  • DirectShow
  • DirectKS
  • Wave API/DirectSound/WASAPI
  • Linux
  • V4L2
  • ALSA

    Input Interfaces

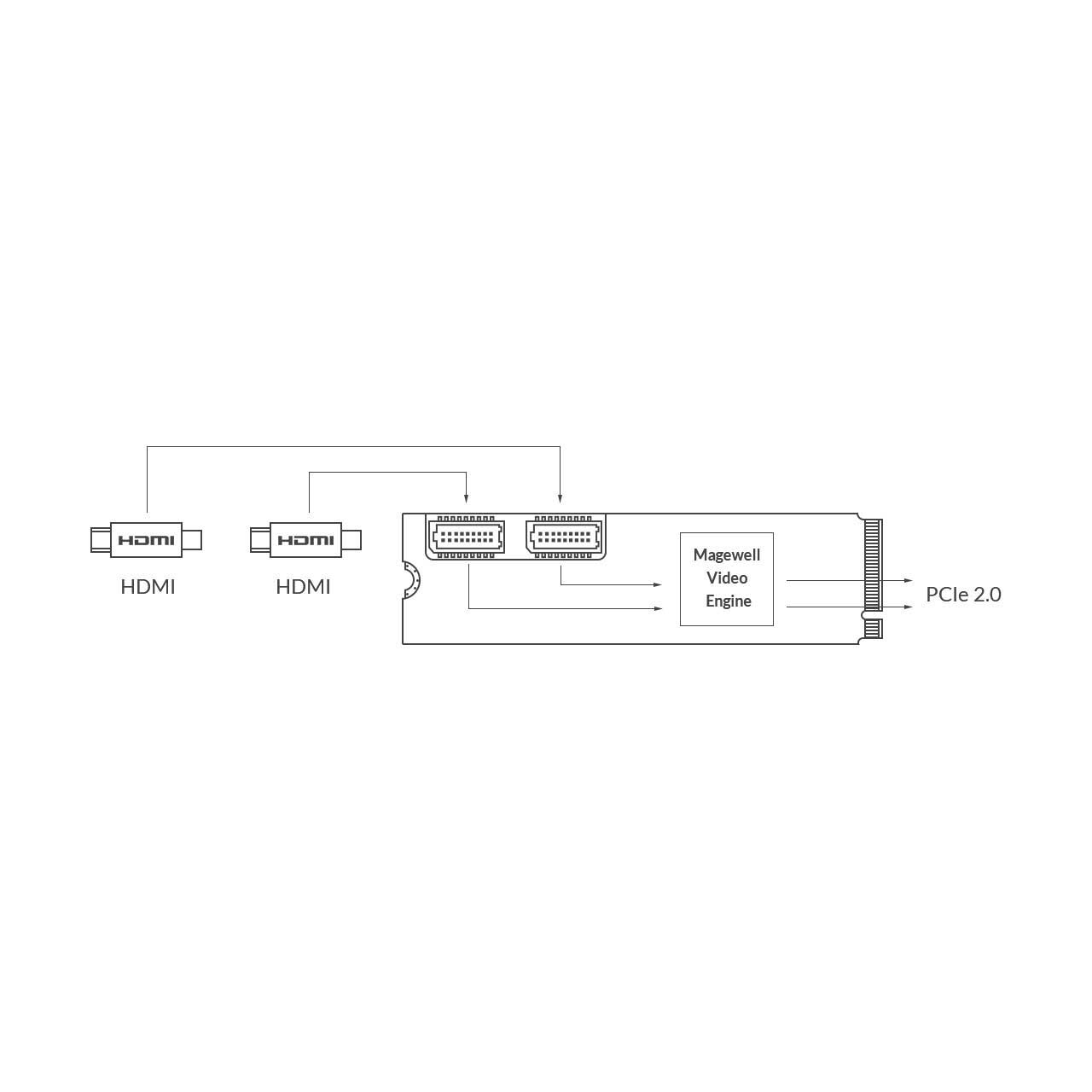

  • 2x JST SHD 20-Pin socket (Part number: 11510), DVI 1.0, HDMI 1.4a
  • 2x FPC 20-Pin socket (Part number: 11514) DVI 1.0, HDMI 1.4a

    Host Interface
  • M.2 2280 Type M (PCIe Gen2 x4)

    Input Features
  • Support for input video resolutions up to 2048x2160 pixels

    Video Capture Formats
  • Support for capture image resolutions up to 2048x2160 pixels
  • Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth. For the resolution of 1280x1024 and higher, the actual frame rate may be limited by the onboard video processing hardware pixel clock. For example, the maximum frame rate of 1920x1080 resolution can be up to 80fps.)
  • Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
  • Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
  • Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
  • More capture formats are supported via SDK

    HDMI Specific Features
  • 165MHz HDMI receiver
  • Adaptive HDMI equalizer, the HDMI transmission distance can be up to 30 meters
  • Support for customized EDID
  • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
  • Full colorimetry support
  • Support for 8/10/12-bit color depths
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for up to 8-channel IEC60958/IEC61937 audio streams via SDK
  • Support for extraction of audio formation information & channel status data
  • Support for extraction of video timing information
  • Support for extraction of 3D format information
  • Support for extraction of Sony/Canon DSLR time code
  • Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

    Supported Software
  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow/V4L2 encoding/streaming software

    Video Processing Features
  • Video processing pipelines with ~180Mpixels/s processing bandwidth
  • 8-bit 4:4:4 video processing
  • Video scaling
  • Video de-interlacing
  • Weave
  • Blend top & bottom field
  • Video color format conversion
  • Auto or manual selection of input color format & quantization range
  • Auto or manual selection of capture color format, quantization range & saturation range
  • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
  • Support for Limited or Full quantization range
  • Support for Limited, Full & `Extended gamut' saturation range
  • Video frame rate conversion

    Multiple Cards per System
  • Support for multiple cards plugged to one system

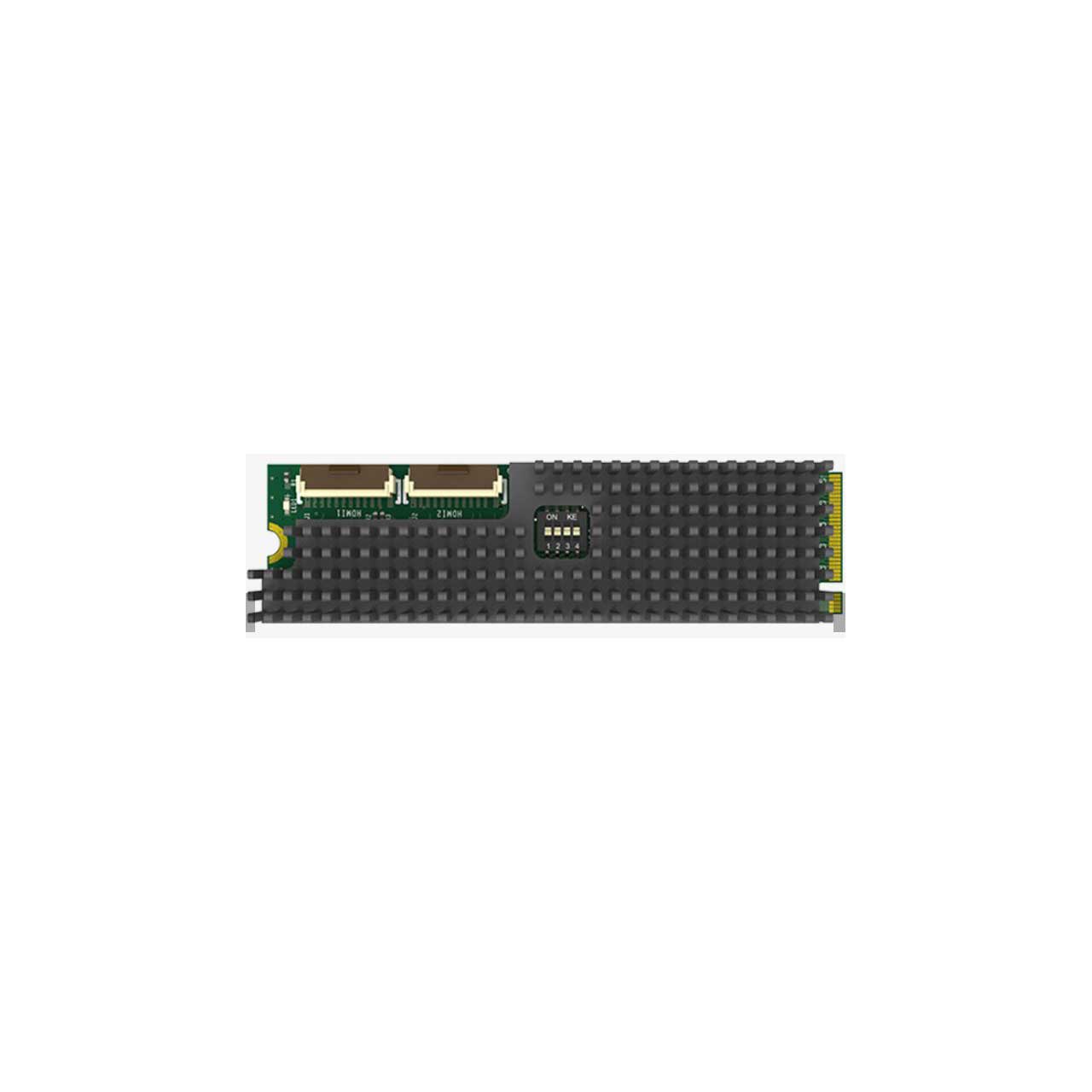

  • On-board dip switch to set card number with 16 positions
  • System hardware device tree will display "01: Eco Capture Dual HDMI M.2" when dip switch is set to 0001, and so on
  • The video and audio device names displayed in your software will include the card number (set by the dip switch)

    Multiple Replicated Capture Streams
  • Unlimited capture streams for any one input channel, but the capture streams should be in the same capture format.

    Timestamp & A/V Synchronization
  • Hardware based 100ns high resolution clock
  • Audio frames (192 audio samples) & video frames are stamped with hardware clock
  • Hardware clock can be synchronized across cards


• Item Includes:

  • 1x Magewell 11514 M.2 Form Factor 2-Channel HDMI Capture Card with Two Modified Connectors - Windows/Linux


• GTIN:

  0814395021249
