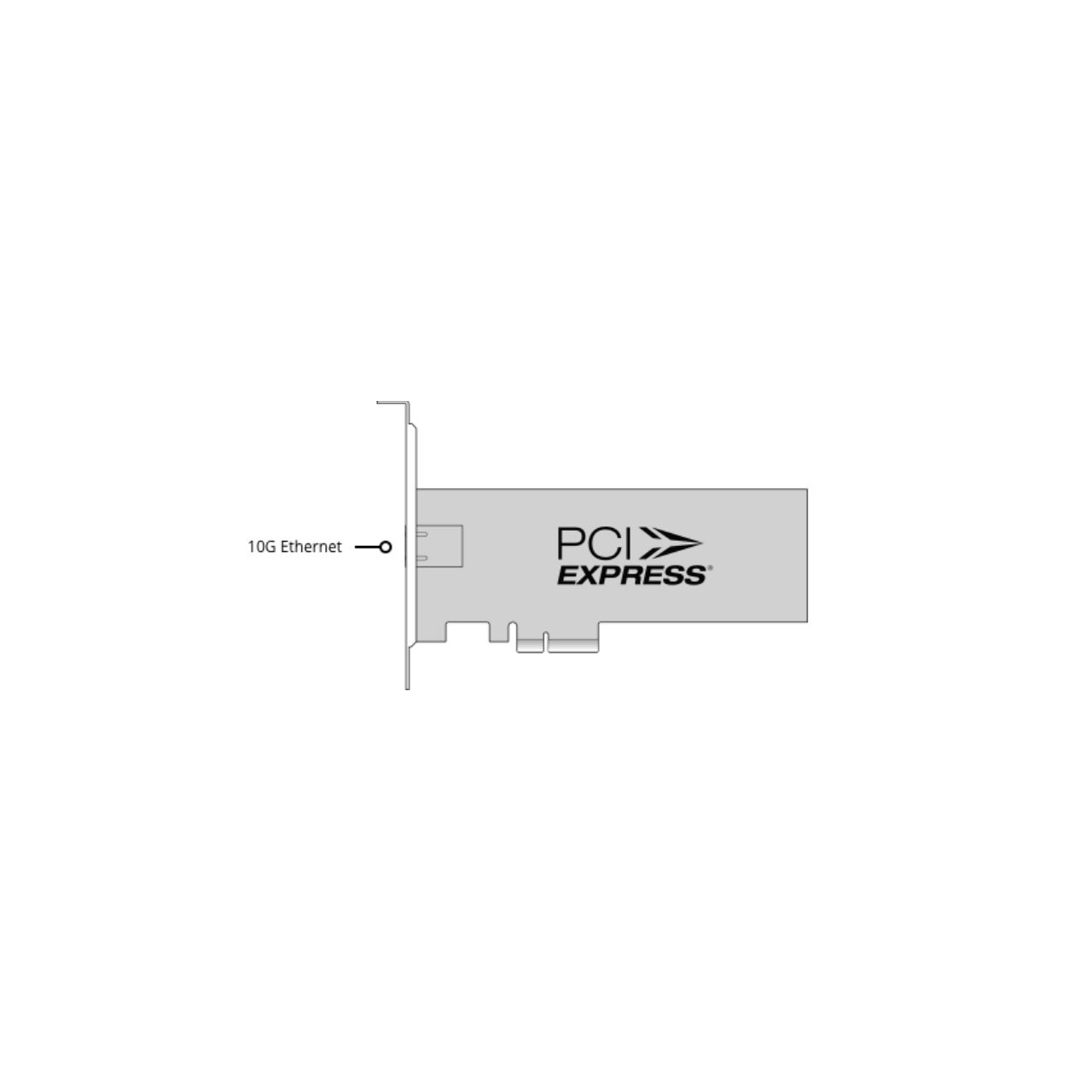

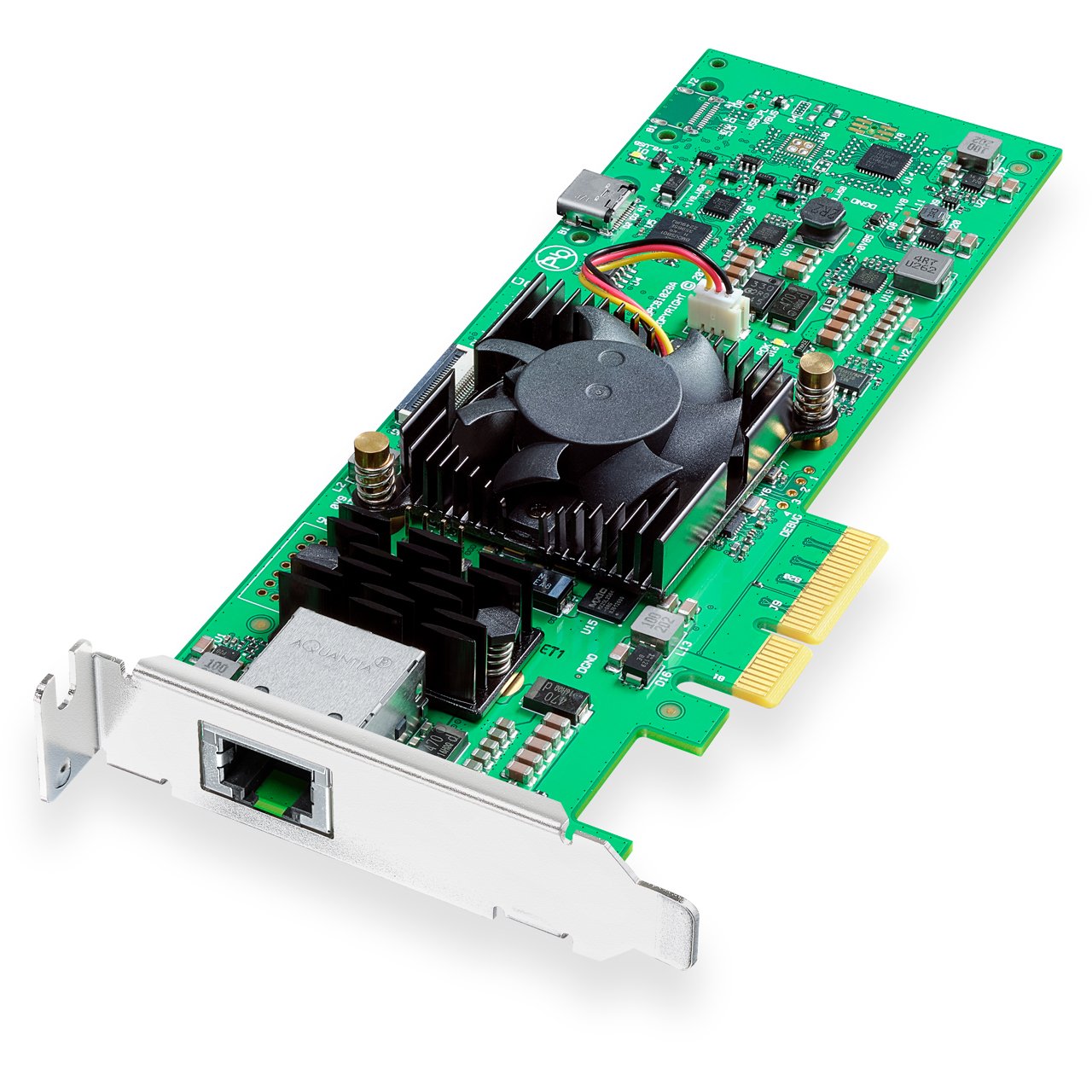

The Blackmagic Design DeckLink IP HD features 2 channels of video capture and 2 channels of video playback to SMPTE 2110 IP broadcast systems via a standard RJ45 Ethernet connection. It is designed to work with the highest quality video with support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed. DeckLink IP connections are multi rate so they support 525i, 625i, 720p, 1080i and 1080p video standards up to 1080p60.
DeckLink IP cards are the easiest way to capture and play back video directly into 2110 IP based broadcast systems. They have the same DeckLink features so all your existing software will just work! DeckLink IP cards support multiple video channels plus each channel can capture and play back at the same time. This means you can build racks of servers generating broadcast graphics, virtual sets, or GPU based AI image processing, all directly integrated into 2110 IP broadcast infrastructure. You can even use DaVinci Resolve for 2110 IP based broadcast editing workstations. DeckLink IP features a high speed PCIe connection so it works on the latest Mac Pro, Windows and Linux computers.
DeckLink IP cards conform to the SMPTE ST2110 standard for IP video, which specifies the transport, synchronization and description of video, audio and ancillary data over managed IP networks for broadcast. It also keeps video sources in sync using a common PTP clock. DeckLink IP supports SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data. The big advantage of SMPTE 2110 is all video, audio and ancillary data are transported independently over the network. Plus DeckLink IP supports multicast, which is an extremely efficient way of distributing video, audio and data from a single source to multiple destinations.
With a high speed 4 lane PCI Express interface, DeckLink IP cards feature a PCIe connection to the host computer that's fast enough to handle multiple HD video channels, as well as simultaneous capture and playback on each of the channels. With PCI Express, you get very low latency combined with highly accurate time synchronization to the software that's capturing or playing video. Only DeckLink IP cards give you this performance all while using a simple and low cost 4 lane PCIe connection. This means you can install DeckLink IP into compact and very low cost computers. Plus DeckLink IP HD and DeckLink IP HD Optical are low profile, so they can be installed in rack mount servers.
