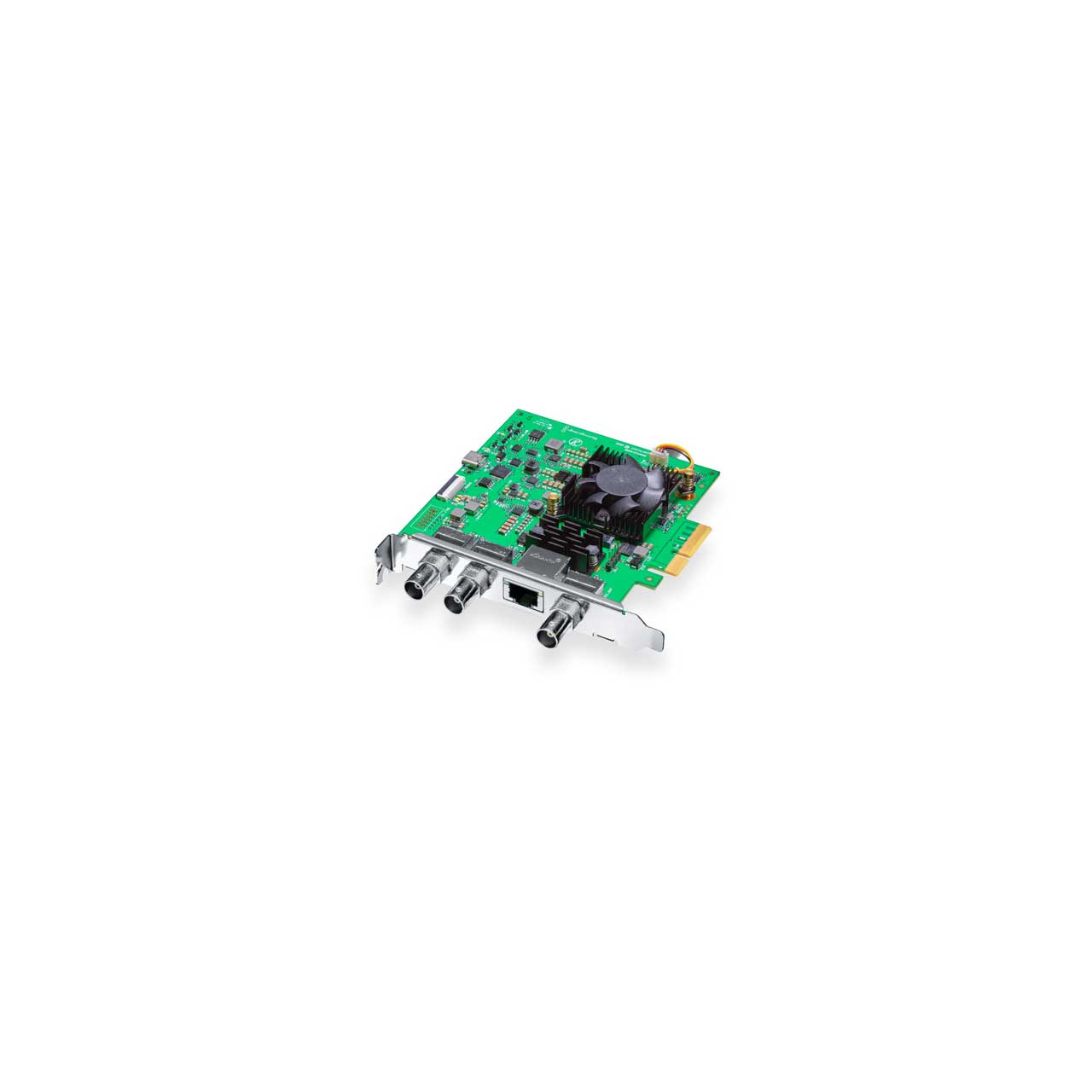

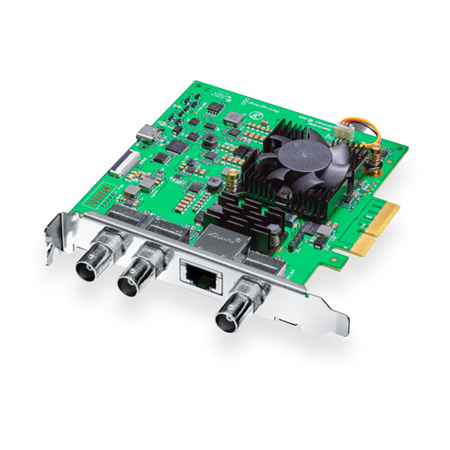

Blackmagic Design BDLKIPFIP/SDI/HD DeckLink IP/SDI HD Capture/Playback Card - Connect 3G-SDI & 2110 IP via RJ45

BDLKIPFIP/SDI/HD - Overview

• Specifications:

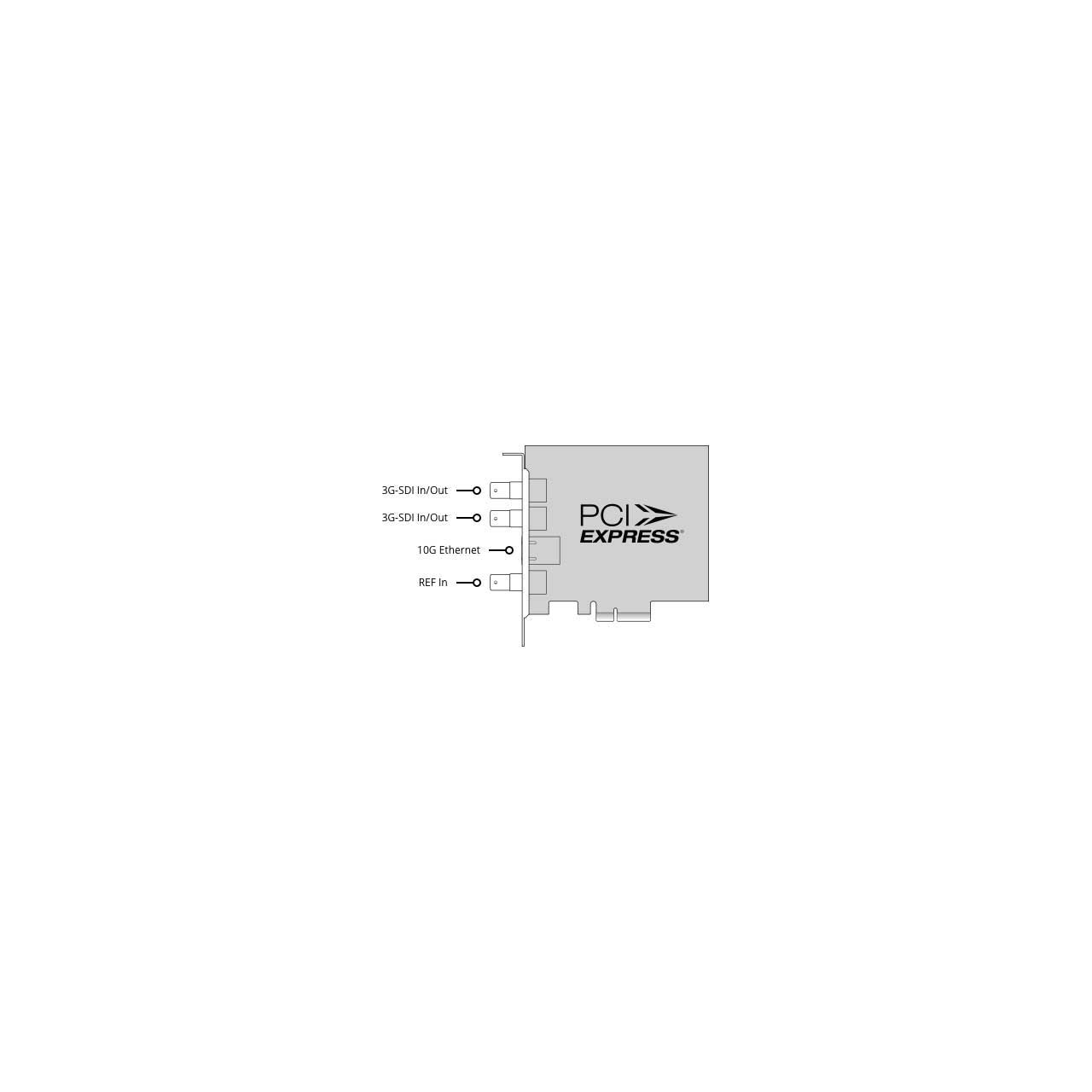

  • Connections
  • SDI Ports: 2x bidirectional 12-bit SD/HD independently configurable as either Input or Output. 16 channels audio embedded in SD and HD
  • 10G Ethernet Port: 1x 10G BASE-T, 10G ethernet supports 2 input channels and 2 output channels, each up to 1080p60 with 16 audio channels
  • Sync Output: Tri-Sync or Black Burst
  • Computer Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots

    Supported Codecs
  • AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4

    Software
  • Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
  • Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software
  • Physical Installation: PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements

    Video Standards
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60, 1080PsF23.98*, 1080PsF24*, 1080PsF25*, 1080PsF29.97*, 1080PsF30*, * PsF SDI ONLY
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, level A and B, ITU-R BT.656 and ITU-R BT.601
  • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning
  • Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
  • Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes
  • Color Space: REC 601, REC 709, REC 2020
  • HDR Support: HDR static metadata packing, HLG and PQ transfer characteristics

    IP Video Compliance
  • SMPTE 2110-20 (Uncompressed Video): IGMP v2
  • SMPTE 2110-21 (Traffic Shaping): Sender: Narrow, Receiver: Narrow, Wide Synchronous, Asynchronous
  • SMPTE 2110-30 (PCM): Audio Conformance level: Level C
  • SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
  • Precision Time Protocol: IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2
  • NMOS IS-04 Discovery and Registration: v1.3.2, Peer-to-peer via mDNS/DNS-SD
  • NMOS IS-05 Connection Management: v1.1.2
  • NMOS BCP-002-01: Natural Grouping
  • NMOS BCP-004-01: Receiver capabilities

    Operating Systems
  • Mac 12.0 Monterey, Mac 13.0 Ventura or later
  • Windows 10, 64-bit. Windows 11.
  • Linux

    Power Requirements
  • Power Consumption: 10 Watts

    Environmental
  • Operating Temperature: 32° to 104° F
  • Storage Temperature: -4° to 113° F
  • Relative Humidity: 0% to 90% non-condensing


• Item Includes:

  • 1x DeckLink IP/SDI HD
  • 1x Welcome wallet with QR code for software download


• Warranty:

  • 3 Year Limited


• GTIN:

  9338716008265
