CINSTUDMFT/G24PDF - Overview

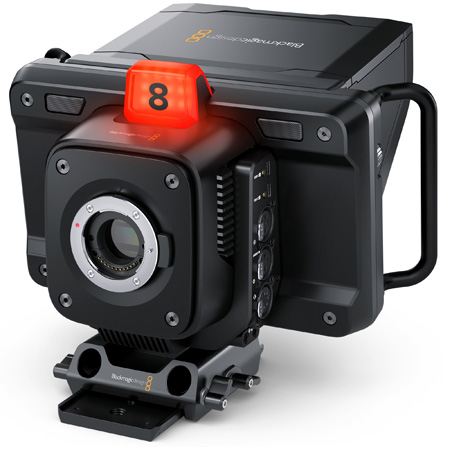

Blackmagic Studio Camera 4K Pro
Designed for powerful SDI switchers, Blackmagic Studio Camera 4K Pro adds professional 12G-SDI and 10G Ethernet connections. That's perfect when the camera is located a long distance from a switcher. There's a 12G-SDI output and a 12G-SDI program return input that includes camera control, talkback and tally. You also get the same powerful HDMI output with control features. Plus the 10G Ethernet connection allows all connections on a single cable for a SMPTE style workflow that's much lower cost.

The Ultimate Self Contained Live Production Camera!
Introducing the world's most advanced self contained studio camera! Blackmagic Studio Cameras have the same features as large studio cameras, miniaturized into a single compact and portable design. Plus with digital film camera dynamic range and color science, the cameras can handle extremely difficult lighting conditions while producing cinematic looking images. The sensor features an ISO up to 25,600 so you can create amazing images even in dimly lit venues. It even works under moonlight! Advanced features include talkback, tally, camera control, built in color corrector, Blackmagic RAW recording to USB disks and much more! You can even add a focus and zoom demand for lens control!

Designed for Live Production
While Blackmagic Studio Camera is designed for live production, it's not limited to use with a live switcher! That's because it records Blackmagic RAW to USB disks, so it can be used in any situation where you use a tripod! The large 7" viewfinder makes it perfect for work such as chat shows, television production, broadcast news, sports, education, conference presentations and even weddings! The large bright display with side handles, touch screen and physical controls makes it easy to track shots while being comfortable to use for long periods of time. Because it's so lightweight, it's perfect when you're constantly changing locations and doing different kinds of work.

  • Specifications:

    • Camera Features
    • Effective Sensor Size: 17.78mm x 10mm (Four Thirds)

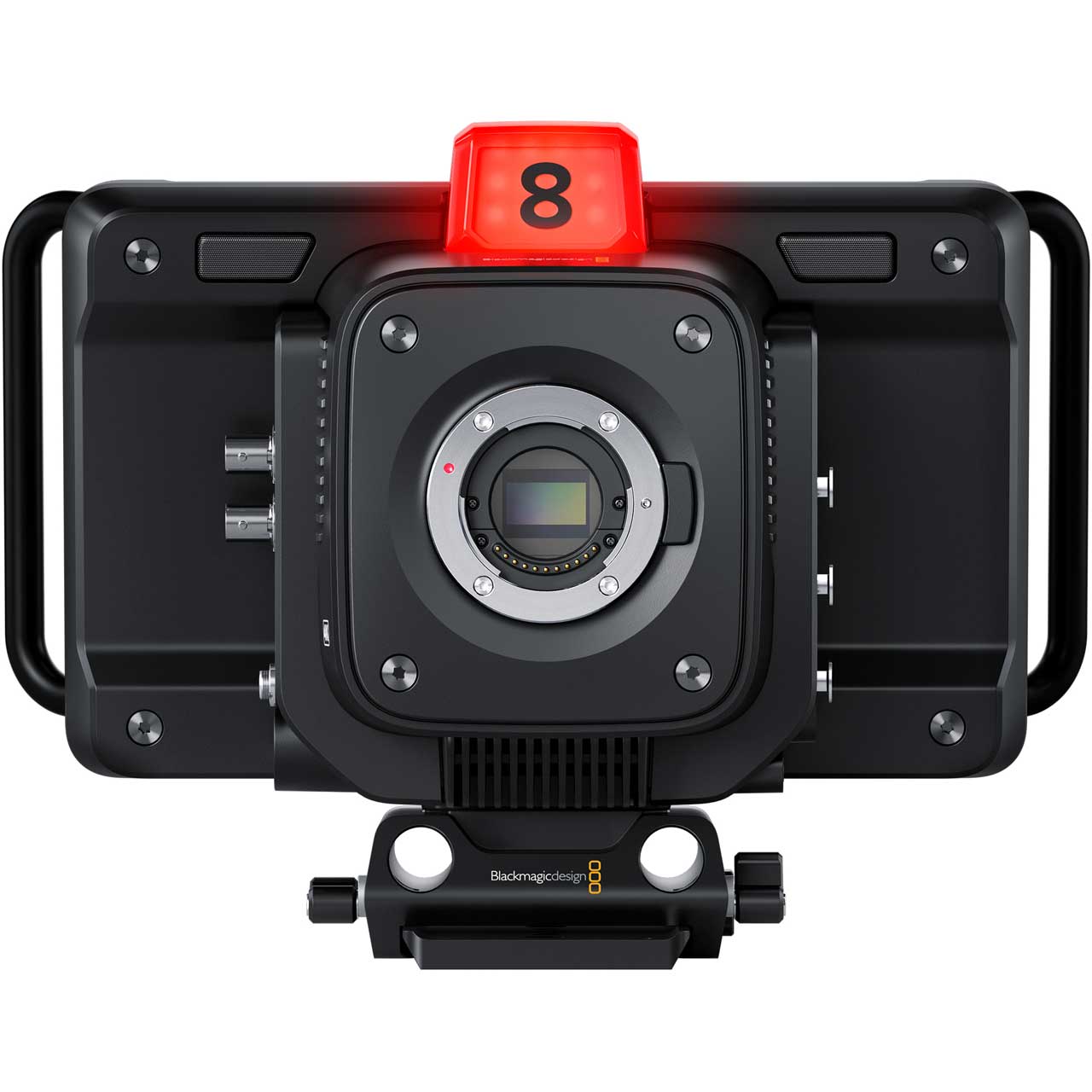

    • Lens Mount: Active MFT Mount
    • Lens Control: Iris, focus, zoom on supported lenses
    • Dynamic Range: 13 Stops
    • Dual Native ISO: 0dB and 18dB gain
    • Sensitivity at 0dB Gain: f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance
    • Signal to Noise Ratio: 63dB for 2160p.
    • Shooting Resolutions: 3840 x 2160 (Ultra HD) up to 60 fps.
    • Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD
    • Focus: Auto focus available using compatible lenses

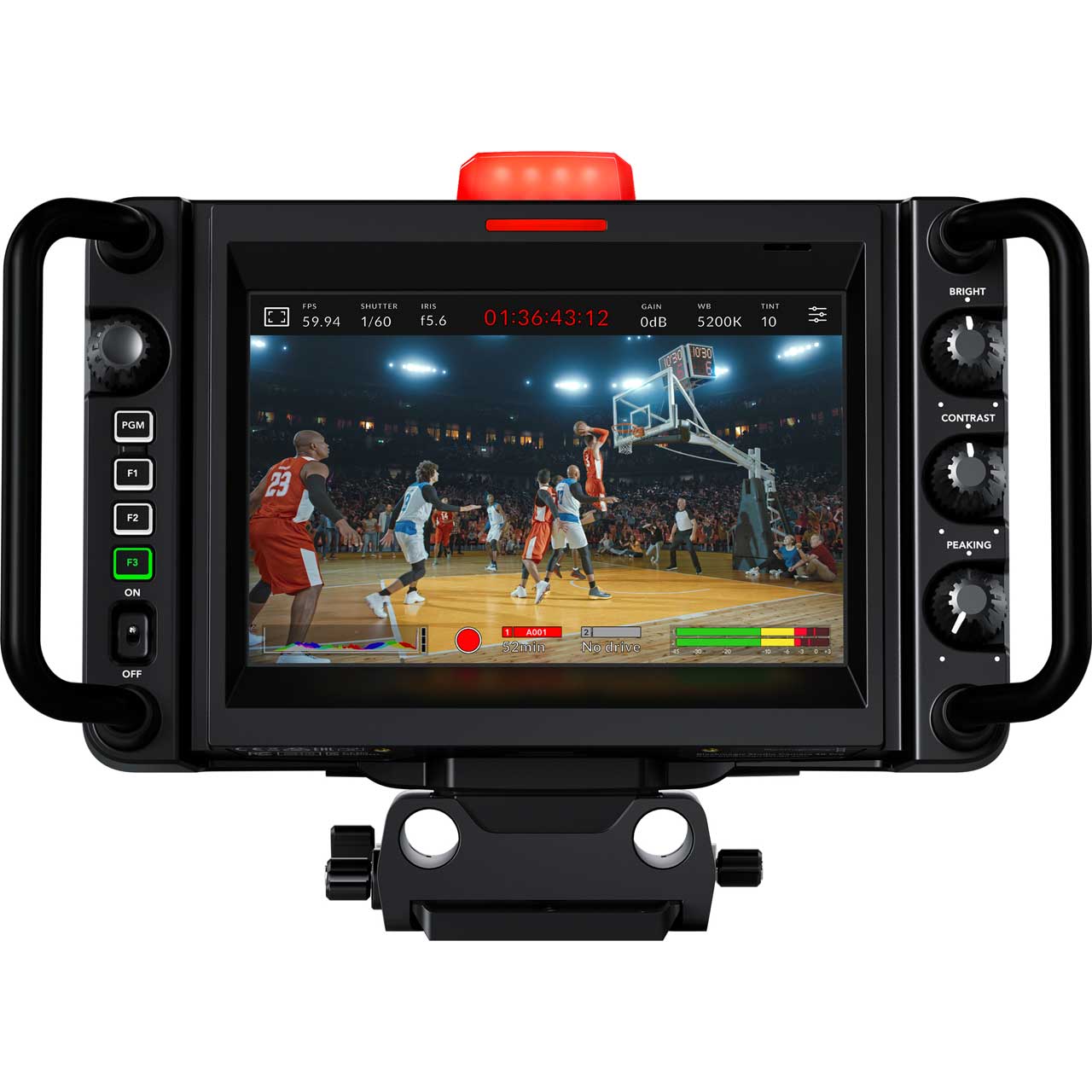

    • Screen Dimensions: 7 inch 1920x1200
    • Screen Type: LCD capacitive touchscreen
    • Screen Brightness: 2000 nits
    • Controls: Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
    • Mounting Options: 2x 1/4 inch tripod mount, 1x 3/8 inch tripod mount

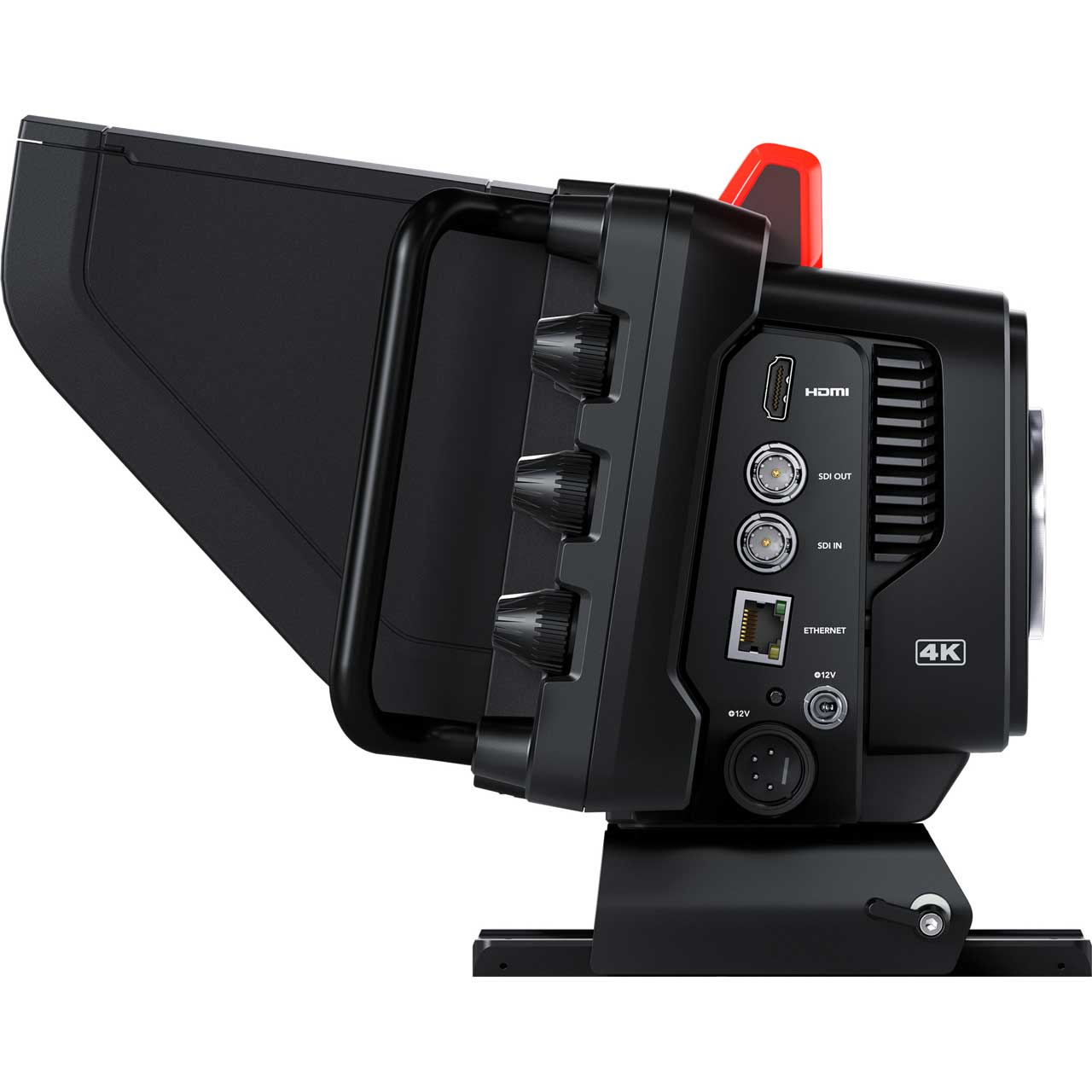

      Connections
    • SDI Video Inputs: 1
    • SDI Video Outputs: 1
    • SDI Rates: 1.5G, 3G, 6G, 12G
    • HDMI 2.0 Video Outputs: 1
    • Analog Audio Input: 2x XLR analog switchable between mic and line levels. Phantom power support. 1x 3.5mm Stereo Input. Can also be used for Timecode input
    • Analog Audio Output: 1x 5-pin XLR for talkback headset. 1 x 3.5mm TRRS mini jack for headphones with mic
    • Reference Inputs: Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter
    • SDI Audio Output: 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16
    • Remote Control: Remote camera control over SDI, HDMI or Ethernet
    • Ethernet: 10Gb/s
    • Computer Interface: 2x USB Type-C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB-C Port A
    • Standards
    • SD Video Standards: None
    • HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • SDI Compliance: SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit

      Media
    • Media: 2x USB-C 3.1 Gen 1 expansion ports for external: media for recording Blackmagic RAW
    • Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems

      Storage Features
    • Storage Type: 2x USB-C 3.1 Gen 1 expansion ports for external media
    • Recording Formats: Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840x2160 at the selected frame rate
    • Storage Rates - Rates based on 30fps 3840x2160 (Ultra HD):
      Blackmagic RAW 3:1 - 127 MB/s
      Blackmagic RAW 5:1 - 77 MB/s
      Blackmagic RAW 8:1 - 48 MB/s
      Blackmagic RAW 12:1 - 32 MB/s
      Blackmagic RAW Q0 - 96 to 190 MB/s
      Blackmagic RAW Q1 - 64 to 153 MB/s
      Blackmagic RAW Q3 - 43 to 109 MB/s
      Blackmagic RAW Q5 - 26 to 64 MB/s

      Color Corrector
    • DaVinci YRGB

      Talkback and Tally
    • Live Tally Indicator: 1x front facing for talent, 1x rear facing for operator
    • Talkback: SDI Channels 15 and 16

      Operating Systems
    • Mac 10.15 Catalina
    • Mac 11.1 Big Sur or later
    • Windows 10, 64-bit

      Power
    • Power Supply: 1x External 12V DC 60W power supply.
    • Power Inputs: 1x 12V DC locking 5.5 mm barrel connector. 1x 12V DC 4 pin XLR input for external power supply or battery use. 1x RJ45 Ethernet connector for power from Type 4 PoE power supplies
    • Power Usage: 26 - 40 W using DC input. 30 - 46 W using PoE input.

      Environmental
    • Operating Temperature: 32° to 104° F
    • Storage Temperature: -4° to 113°

  • Item Includes:

    • 1x Studio Camera 4K Pro
    • 1x Studio Camera Sun Shade
    • 1x Tripod Mount compatible with 15mm lightweight rails
    • 1x Turret Dust Cap
    • 1x External 12V DC power supply with locking connector and international sockets adapters for most countries

  • Warranty:

    • 12 Month Limited Manufacturer's Warranty

  • GTIN:

    9338716007572
