CINSTUDMFT/G24PDD - Overview

Introducing the world's most advanced self contained studio camera!

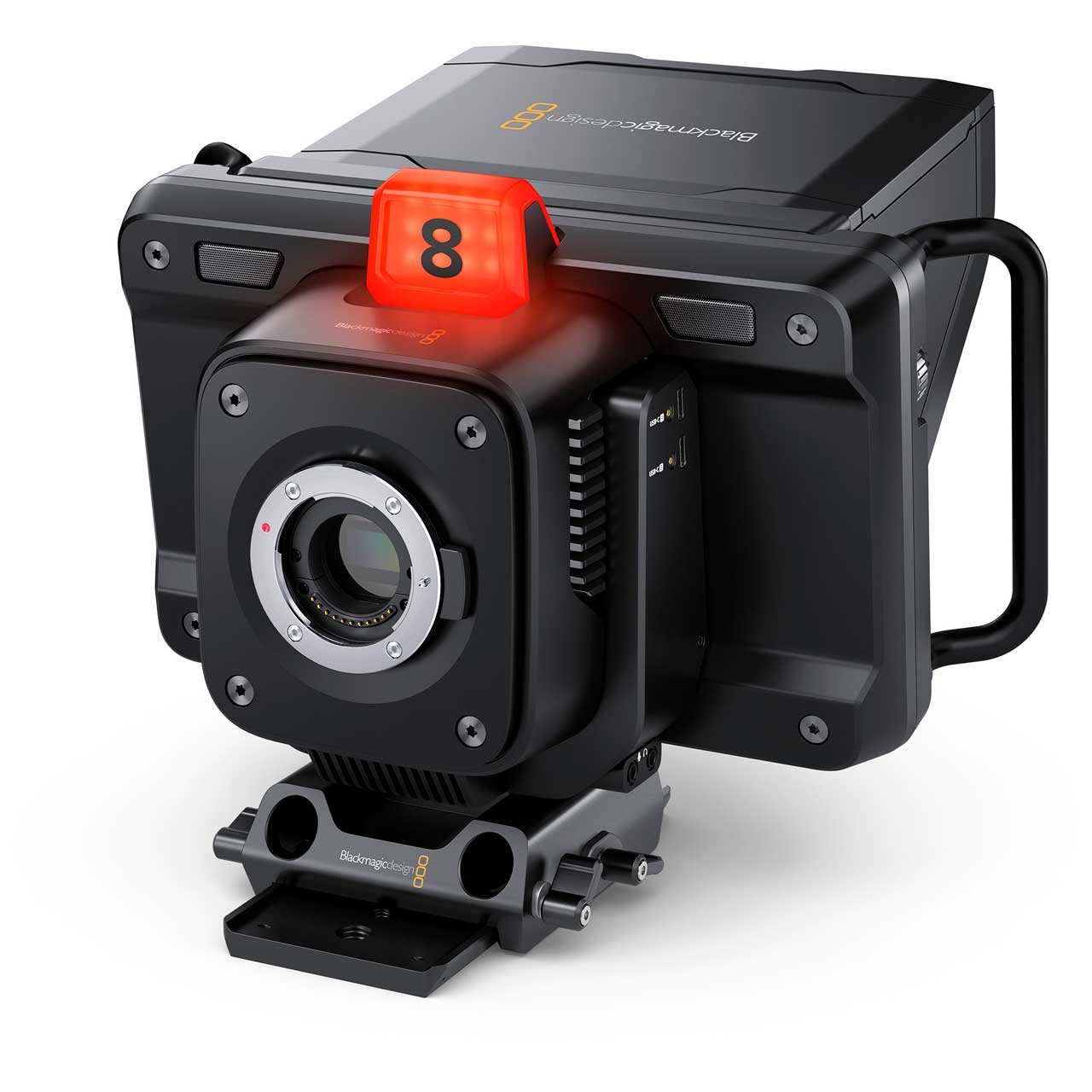

Blackmagic Studio Camera 4K Plus
Designed for professional SDI or HDMI switchers, the Blackmagic Studio Camera 4K Plus has all the great features of the Plus model, as well as 12G-SDI, professional XLR audio, a brighter HDR LCD, 5 pin talkback and 10G Ethernet IP. The Blackmagic Studio Camera 4K Plus model is designed as the perfect studio camera for ATEM Mini. This model has a 4K sensor up to 25,600 ISO, MFT lens mount, HDMI out, 7" LCD with sunshade, built-in color correction and will record Blackmagic RAW to USB disks so you can do editing after live production.

The Ultimate Self Contained Live Production Camera!
Blackmagic Studio Cameras have the same features as large studio cameras, miniaturized into a single compact and portable design. Plus with digital film camera dynamic range and color science, the cameras can handle extremely difficult lighting conditions while producing cinematic looking images. The sensor features an ISO up to 25,600 so you can create amazing images even in dimly lit venues. It even works under moonlight! Advanced features include talkback, tally, camera control, built in color corrector, Blackmagic RAW recording to USB disks and much more! You can even add a focus and zoom demand for lens control!

Designed for Live Production
While Blackmagic Studio Camera is designed for live production, it's not limited to use with a live switcher! That's because it records Blackmagic RAW to USB disks, so it can be used in any situation where you use a tripod! The large 7" viewfinder makes it perfect for work such as chat shows, television production, broadcast news, sports, education, conference presentations and even weddings! The large bright display with side handles, touch screen and physical controls makes it easy to track shots while being comfortable to use for long periods of time. Because it's so lightweight, it's perfect when you're constantly changing locations and doing different kinds of work.

Revolutionary Studio Camera Design
Large broadcasters use expensive studio cameras that are extremely large, so they're not very portable. The distinctive Blackmagic Studio Camera has all the benefits of a large studio camera because it's a combination of camera and viewfinder all in a single compact design. It features a lightweight carbon fiber reinforced polycarbonate body with innovative technology in a miniaturized design. The camera is designed for live production so it's easy to track and frame shots with its large 7" viewfinder. The touchscreen has menus for camera settings, and there's knobs for brightness, contrast and focus peaking. Plus a tripod mount with mounting plate is included for fast setup!

  • Specifications:

    • Camera Features
    • Effective Sensor Size: 17.78mm x 10mm (Four Thirds)
    • Lens Mount: Active MFT Mount
    • Lens Control: Iris, focus, zoom on supported lenses
    • Dynamic Range: 13 Stops
    • Dual Native ISO: 0dB and 18dB gain
    • Sensitivity at 0dB Gain: f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance
    • Signal to Noise Ratio: 63dB for 2160p
    • Shooting Resolutions: 3840x2160 (Ultra HD) up to 60 fps
    • Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD
    • Focus: Auto focus available using compatible lenses
    • Screen Dimensions: 7 inch 1920 x 1200
    • Screen Type: LCD capacitive touchscreen
    • Screen Brightness: 2000 nits
    • Controls: Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials
    • Mounting Options: 2x 1/4 inch tripod mount. 1x 3/8 inch tripod mount

      Standards
    • SD Video Standards: None
    • HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • SDI Compliance: SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit

      Storage Type
    • 2x USB-C 3.1 Gen 1 expansion ports for external media

      Recording Formats
    • Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840x2160 at the selected frame rate

      Storage Rates - Storage rates based on 30 frames per second. 3840x2160 (Ultra HD)
    • Blackmagic RAW 3:1 - 127 MB/s
    • Blackmagic RAW 5:1 - 77 MB/s
    • Blackmagic RAW 8:1 - 48 MB/s
    • Blackmagic RAW 12:1 - 32 MB/s
    • Blackmagic RAW Q0 - 96 to 190 MB/s
    • Blackmagic RAW Q1 - 64 to 153 MB/s
    • Blackmagic RAW Q3 - 43 to 109 MB/s
    • Blackmagic RAW Q5 - 26 to 64 MB/s

    • Control
    • External Control: Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
    • Blackmagic Control Protocol over SDI and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Advanced Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port

      Color Corrector
    • DaVinci YRGB

      Talkback and Tally
    • Live Tally Indicator: 1x front facing for talent, 1x rear facing for operator
    • Talkback: SDI Channels 15 and 16

      Operating Systems
    • Mac 10.15 Catalina
    • Mac 11.1 Big Sur or later
    • Windows 10, 64-bit

      Power
    • Power Supply: 1x External 12V DC 60W power supply
    • Power Inputs: 1x 12V DC locking 5.5 mm barrel connector
    • Power Usage: 26 - 40 W

      Environmental
    • Operating Temperature: 32° to 104° F
    • Storage Temperature: -4° to 113° F
    • Relative Humidity: 0% to 90% non-condensing

  • Item Includes:

    • 1x Studio Camera 4K Plus
    • 1x Studio Camera Sun Shade
    • 1x Tripod Mount compatible with 15mm lightweight rails
    • 1x Turret Dust Cap
    • 1x External 12V DC power supply with locking connector and international sockets adapters for most countries.

  • Warranty:

    • 12 Month Limited Manufacturer's Warranty

  • GTIN:

    9338716007589
