Blackmagic Design URSA Mini Pro 4.6K G2 Digital Film Camera - Super 35mm 4.6K HDR - Body Only

CINEURSAMUPRO46KG2 - Overview

• Specifications:

  • Camera
  • Effective Sensor Size: 25.34mm x 14.25mm (Super35)
  • Lens Mount: EF mount included. Interchangeable with optional PL, B4 and F lens mounts.
  • Lens Control: Electronic control via EF mount pins or 12pin broadcast connector for compatible lenses
  • Dynamic Range: 15 Stops
  • Shooting Resolutions: 4608x2592, 4608x1920 (4.6K 2.40:1), 4096x2304(4K 16:9), 4096x2160 (4K DCI), 3840x2160 (Ultra HD), 3072x2560 (3K Anamorphic), 2048x1152 (2K 16:9), 2048x1080 (2K DCI), 1920x1080
  • Frame Rates: Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
  • High Speed Frame Rates: Blackmagic RAW 8:1 4.6K Full - Up to 120 fps UHD Windowed - Up to 150 fps HD Windowed - Up to 300 fps, ProRes 422 HQ 4.6K Full - Up to 80 fps UHD Windowed - Up to 120 fps HD Windowed - Up to 240 fps
  • Built in ND Filters: Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters
  • Focus: Focus button turns on peaking, auto focus available using compatible lenses
  • Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
  • Screen Dimensions: 4 inch
  • Screen Type: LCD capacitive touchscreen.
  • Metadata Support: Automatically populated lens data from electronic EF, B4 and i/Technology compatible PL lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
  • Controls: Touchscreen menus on 4 inch screen. Push buttons for other controls. 2 assignable shortcut keys.
  • Timecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

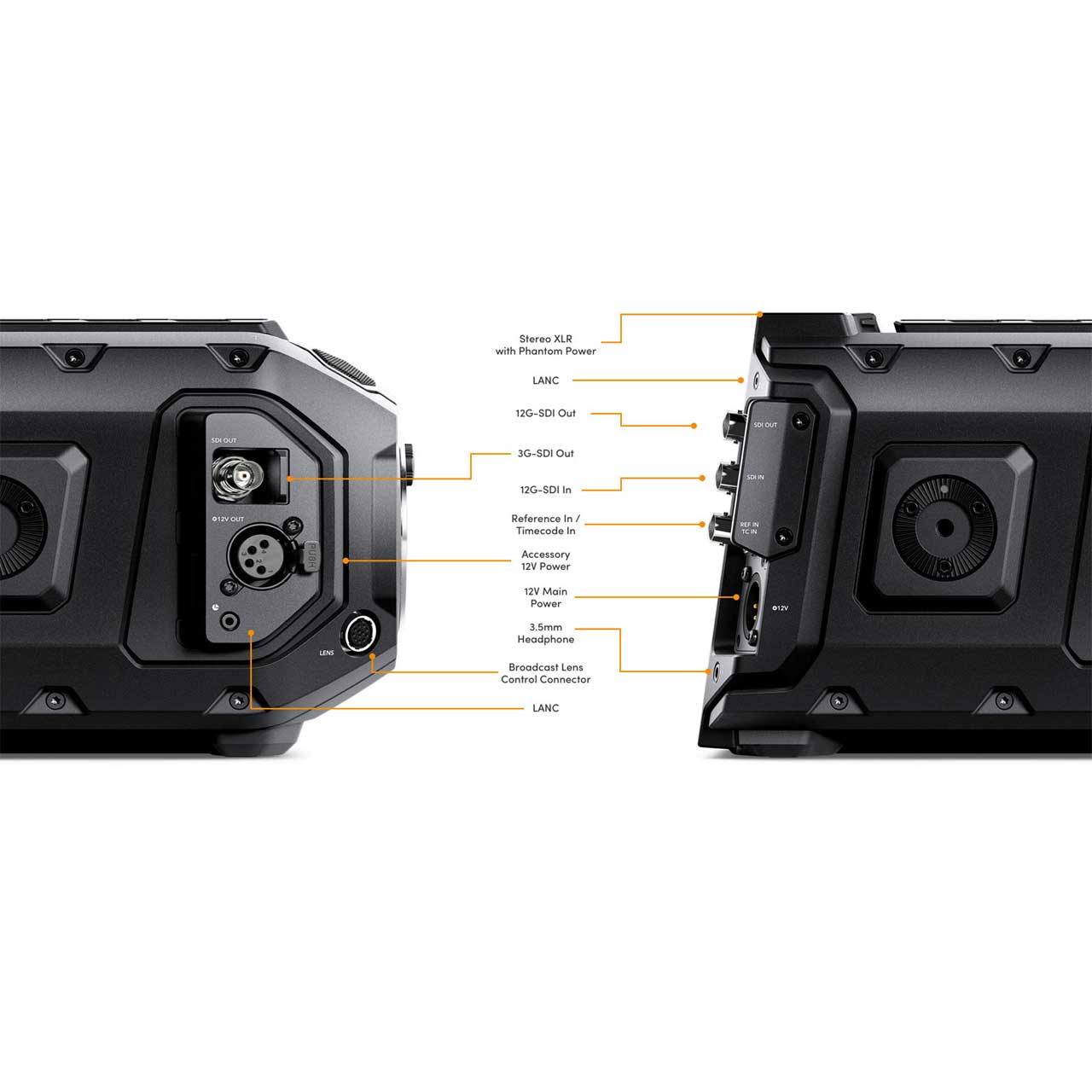

    Connections
  • Total Video Inputs: 1x SDI
  • Total Video Outputs: 1x SDI, 1x SDI Monitoring
  • SDI Rates: 1.5G, 3G, 6G, 12G
  • Analog Audio Inputs: 2x XLR analog switchable between mic, line and AES audio. Phantom power support.
  • Analog Audio Outputs: 1x 3.5mm headphone jack, supports iPhone microphone for talkback
  • Reference Inputs: Tri-Sync/Black Burst/Timecode
  • Remote Control: 2x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses
  • Computer Interface: USB Type-C 3.1 Gen 1 for external drive recording and software updates

    Standards
  • SD Video Standards: None
  • HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30,2160p50, 2160p59.94, 2160p60
  • SDI Compliance: SMPTE 292M, SMPTE 424 level A and B, SMPTE 2081-1, SMPTE 2082-1
  • SDI Audio Sampling: 48 kHz and 24 bit

    Media
  • Media: 2x CFast 2.0 card slots, 2x SD UHS-II card slots, 1x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes recording
  • Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems

    Storage
  • Storage Type: 2x CFast 2.0, 2x SD UHS-II cards, 1x high speed USB-C expansion port for external media
  • Storage Rates: Storage rates based on 30 frames per second.

    Operating Systems
  • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.


• Item Includes:

  • Blackmagic URSA Mini Pro 4.6K G2 body
  • Turret dust cap
  • EF lens mount
  • Power supply
  • SD card with software and manual

    *Software Included:
  • DaVinci Resolve Studio for Mac and Windows including activation key
  • Blackmagic OS
  • Blackmagic Camera Setup
  • Blackmagic RAW Player
  • Blackmagic RAW QuickLook Plugin
  • Blackmagic RAW SDK


• Warranty:

  • 12 Month Limited Manufacturer's Warranty.


• GTIN:

  9338716005837
