BMD-URSANSVF-BS - Overview

Turn your URSA into the ultimate live production camera!

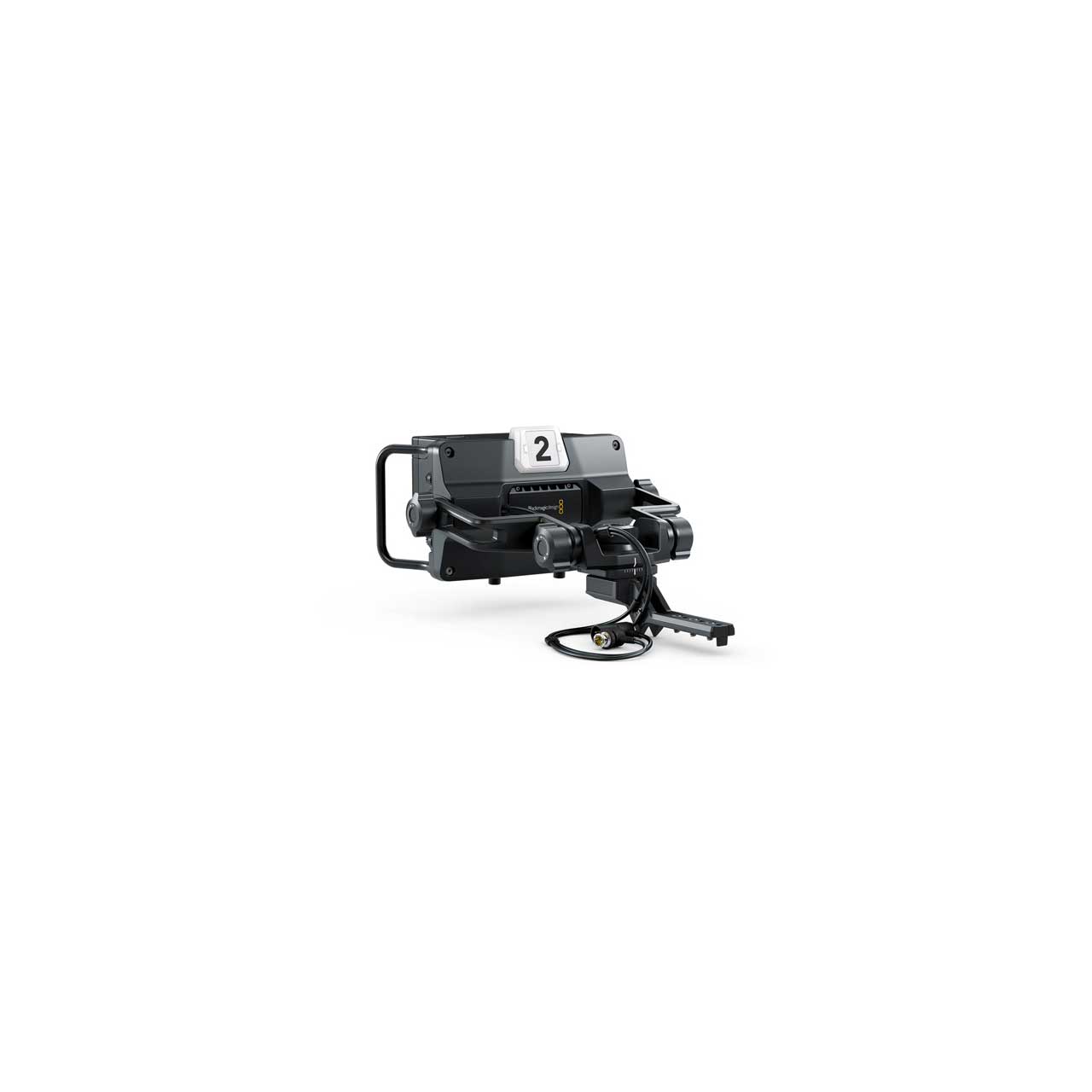

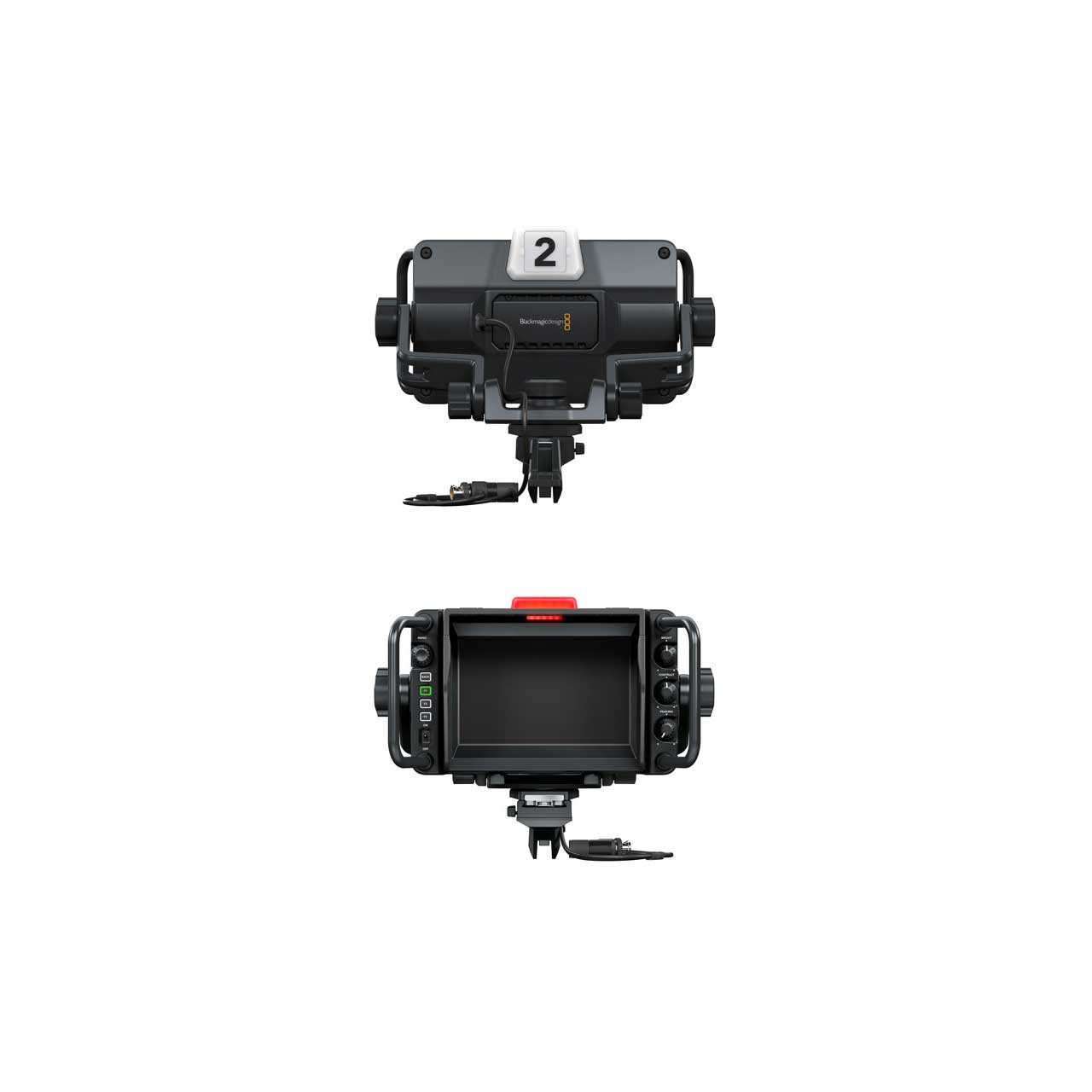

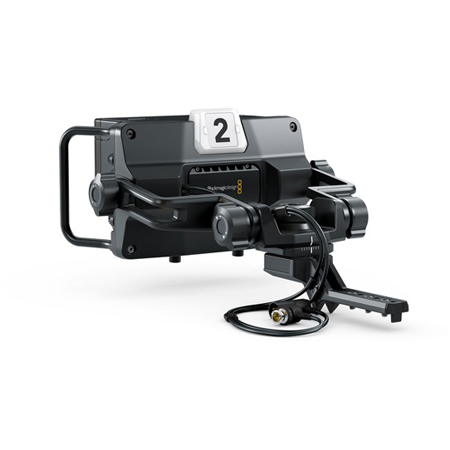

This vendor refurbished URSA Studio Viewfinder from Blackmagic Design is specifically built to provide studio viewfinder functionality to your URSA Mini camera. With a 7 inch screen, manual control knobs, camera ID/tally light, and a tension adjustable articulating mount, the Studio Viewfinder seamlessly integrates into a studio style workflow for relaxed camera operation at sporting events, concerts, or in the studio. Three manual knobs next to the view screen provide control over brightness, contrast, and peaking without having to dive into the menu system.

The URSA Studio Viewfinder is designed to mount on top of your URSA Mini camera (sold separately). The articulating mount is tension adjustable so you can easily adjust it to suit you best. Featuring a 1920 x 1080 IPS display, the viewfinder provides sharp, clear images with good off-axis viewing for when sudden camera moves don't allow for screen angle adjustment. It features a detachable sun hood and grab handles on either side for left or right-handed height adjustment.

The Blackmagic Design BMD-CINEURSANSVF URSA Studio Viewfinder is compatible with URSA Broadcast, URSA Broadcast G2, URSA Mini Pro 4.6K G2 & URSA Mini Pro 12K.

Please Note: This is a B-Stock item. This viewfinder has been vendor refurbished and is still under warranty. There appears to be no visual damage.

  • Features:

    • Articulating Mount
    • 7 inch LCD Viewfinder
    • Display
    • Manual Knobs
    • Menu and Function Buttons
    • Frame Guides
    • Tally

      Please Note: This is a B-Stock item. This viewfinder has been vendor refurbished and is still under warranty. There appears to be no visual damage.

  • Specifications:

    • Connections
    • SDI Video Input: 1 x HD/Ultra HD 3G-SDI via BNC.
    • Power Input: 1 x 4 pin XLR 12V.
    • Screen Dimensions: 7" 1920 x 1200 resolution.
    • Screen Type: 7" IPS LCD.
    • Computer Interface: 1 x USB type C connector for initial setup and software updates via Blackmagic Camera Setup software.
    • Power Requirements: 12V power input via 4 pin XLR connected via URSA Mini 12v power output.

    • SDI Video Standards
    • HD Format Support
    • 720p50, 59.94, 60.
    • 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60.
    • 1080i50, 59.94, 60.
    • SDI Compliance
    • SMPTE 259M, SMPTE 292M, SMPTE 296M,
    • SMPTE 425M 2084.
    • Video Sampling: 4:2:2 YUV, 4:4:4 RGB.
    • Color Precision: 10-bit.
    • Color Space: REC 601, REC 709, REC 2020.
    • Multiple Rate support: SDI switches between 1.5 Gb/s HD and 3.0 Gb/s 60P HD.
    • Compatible with URSA Broadcast, URSA Broadcast G2, URSA Mini Pro 4.6K G2 & URSA Mini Pro 12K

  • Warranty:

    • 12 Month Limited Manufacturer's Warranty

  • GTIN:

    9338716003895
