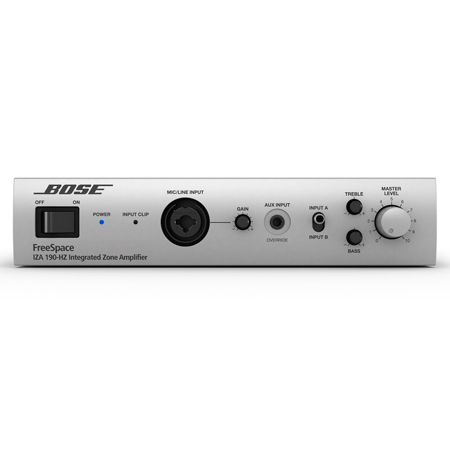

Bose FreeSpace IZA 190-HZ Integrated Zone Amplifier

ITEM #: BOSE-IZA-190-HZ MFG #: 344871-1410

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BOSE-IZA-190-HZ

344871-1410 - Overview

For background/foreground music and paging applications, the Bose FreeSpace IZA 250-LZ and IZA 190-HZ integrated zone amplifiers are designed to deliver premium sound, provide simplified set up and easy daily operation, and offer the flexibility to expand when more loudspeakers are required. When used with FreeSpace DS 16 and DS 40 loudspeakers, even further sound optimization is possible through onboard selectable EQ presets.

  • Specifications:

    • Amplifier Power
    • FreeSpace IZA 250-LZ integrated zone amplifier: 2 x 50 W @ 4 Ω, 2 x 25 W @ 8 Ω
    • FreeSpace IZA 190-HZ integrated zone amplifier: 1 x 90 W @ 70/100 V
    • Frequency Response
    • FreeSpace IZA 250-LZ integrated zone amplifier: 40 Hz - 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz)
    • FreeSpace IZA 190-HZ integrated zone amplifier: 60 Hz - 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz)
    • THD+N
    • FreeSpace IZA 250-LZ integrated zone amplifier: ?0.3 % (at full rated power)
    • FreeSpace IZA 190-HZ integrated zone amplifier: ?1 % (at full rated power)
    • Dynamic Range
    • FreeSpace IZA 250-LZ integrated zone amplifier: 88 dB
    • FreeSpace IZA 190-HZ integrated zone amplifier: 88 dB
    • Built-in Loudspeaker EQ
    • Bose FreeSpace DS 16 or DS 40, No EQ
    • Input Channels
    • Line Inputs: 2 Unbalanced line
    • Mic/Line Inputs: 1 Balanced mic/line
    • Page Inputs: 1 Balanced mic
    • Auxiliary Input: 1 Unbalanced line

    • Physical
    • Rack Space Units
    • 1 RU high, half rack wide
    • Dimensions: 1.8" H x 8.4" W x 12.2" D (45 mm x 214 mm x 310 mm)
    • Net Weight
    • FreeSpace IZA 250-LZ integrated zone amplifier: 4.8 lb (2.2 kg)
    • FreeSpace IZA 190-HZ integrated zone amplifier: 7.0 lb (3.2 kg)
    • Cooling System Natural convection

  • GTIN:

    0017817564021
