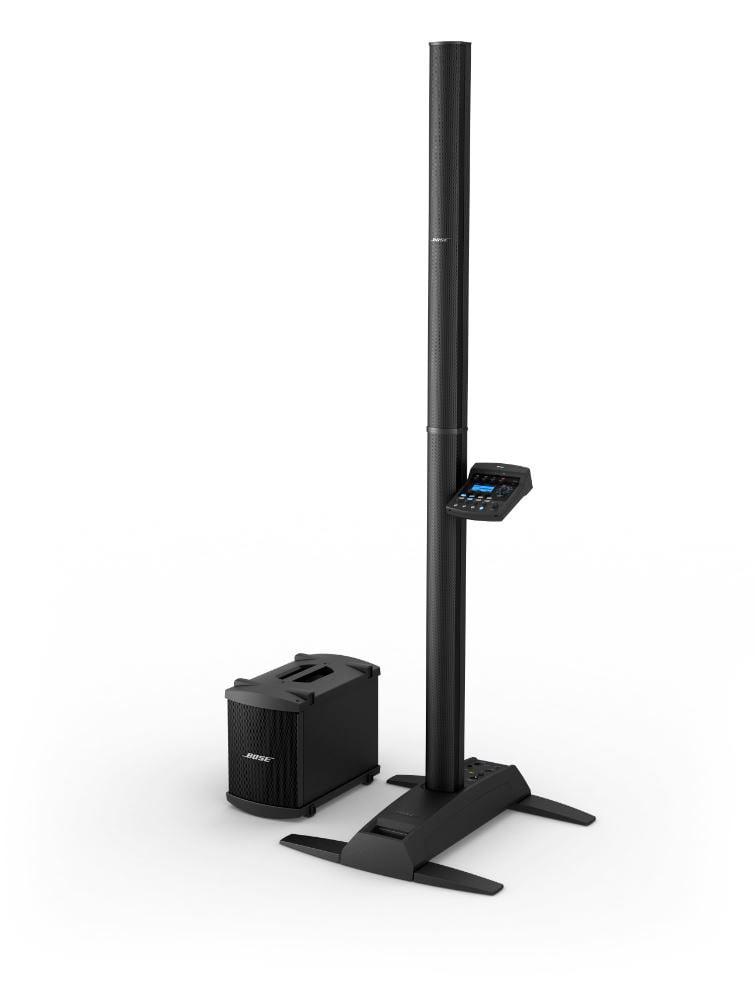

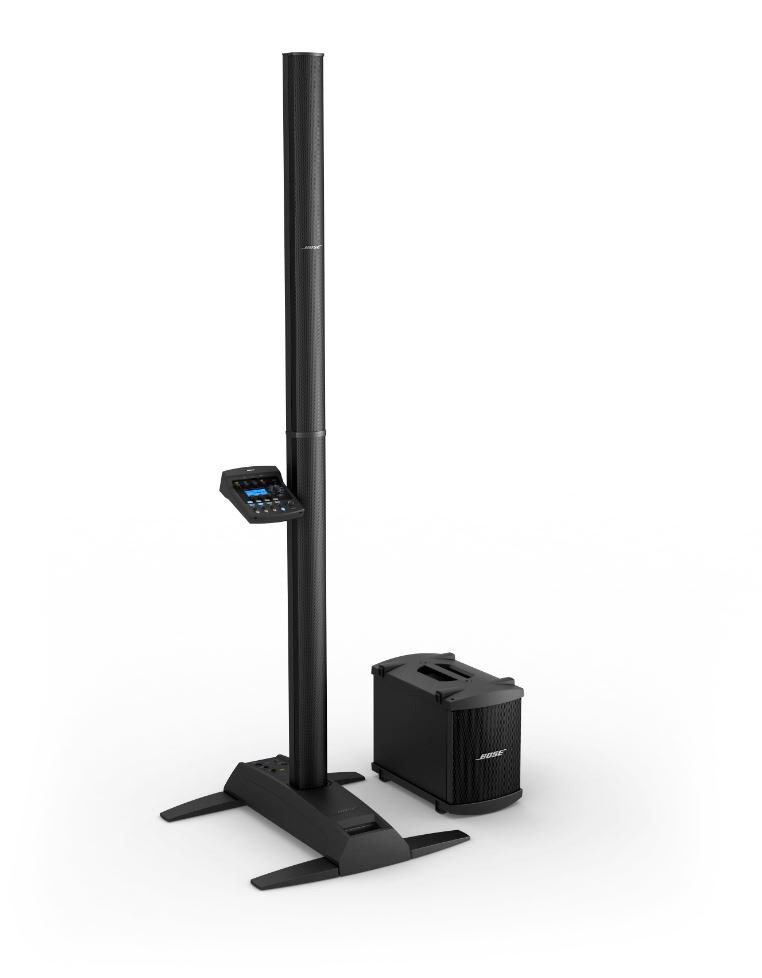

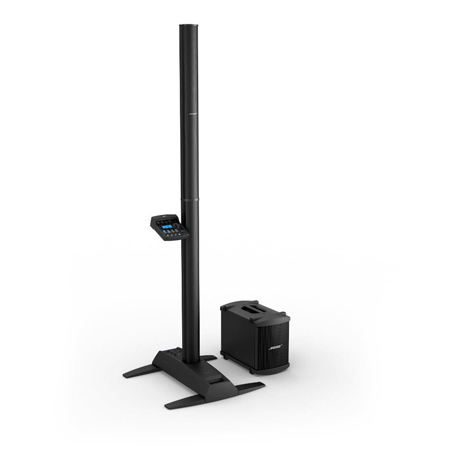

Bose L1 Model II System Single B1 Bass Package with T1 ToneMatch Audio Engine

ITEM #: BOSE-L1-MII-SYS MFG #: 044015

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BOSE-L1-MII-SYS

044015 - Overview

Bose's most advanced L1 system for an audience of up to 500. With a 24-speaker articulated line array providing 180 degrees clear, even coverage, it combines our best sound reproduction with easy transport and setup. Designed to work with the T1 ToneMatch audio engine, which provides four additional inputs, our largest library of ToneMatch presets and a complete suite of studio-class effects and processing.
For indoor applications only

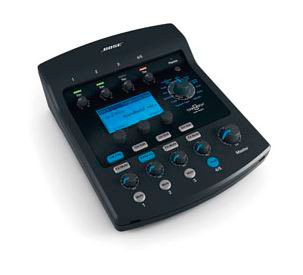

The T1 ToneMatch audio engine is a digital multichannel mixer designed for use with Bose L1 sound systems. It provides four independent channels, over 100 proprietary ToneMatch presets for instruments and microphones and a complete suite of studio-class effects and sound processors.

Proprietary ToneMatch presets optimize L1 system to match the intended natural sound of specific instruments and vocal mics. Over 100 presets are organized into quick-access banks and can be independently assigned to each channel. Free ongoing updates can be downloaded via a USB connection between your computer and the ToneMatch audio engine.

  • Features:

    • High-performing, powered, portable two-way loudspeaker system with a 195° H x 0° V nominal dispersion designed for the production and reproduction of live music, music playback, speeches and A/V sound reproduction
    • 24-driver articulated line array loudspeaker technology produces wide, uniform sound coverage throughout the entire listening area-even off to the extreme sides
    • Consistent front-to-back coverage, 24 drivers mounted in a vertical line array produce little drop in sound pressure level per doubling in distance than a conventional point source
    • Retractable folding leg mechanism for easy transport
    • Lightweight, interlocking components
    • Expandable bass design supports the use of multiple B1 bass modules or a single B2 bass module
    • Digital Ethercon port provides single-wire connectivity for the T1 ToneMatch audio engine

  • Specifications:

    • Frequency Response (+/-3 dB): 40 Hz - 12 kHz
    • Frequency Range (-10 dB): 32 Hz - 14 kHz
    • Nominal Dispersion: 195Ý H x 0Ý V
    • Maximum SPL @ 1 m: 115 dB SPL (121 dB SPL peak)

    • Physical
    • Enclosure: Power Stand: Polypropylene cover with cast aluminum legs and steel chassis base
    • Cylindrical Radiator: Aluminum enclosuure with ABS baffle
    • Dimensions: Assembled height: 84.0" (2134 mm)
    • Net Weight: Power Stand: 23.7 lb (10.7 kg)
    • Cylindrical Radiators (pair): 33.7 lb (15.3 kg)
    • B1 bass module: 26.6 lb (12.1 kg)

  • Item Includes:

    • L1 Model II Cylindrical Radiator loudspeaker with powerstand, single B1 bass module, T1 audio engine, and carry bags

  • GTIN:

    0017817426671
