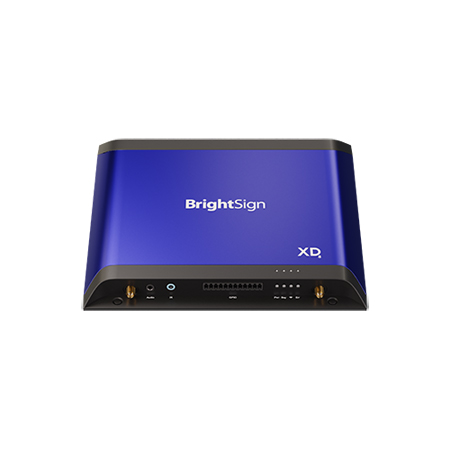

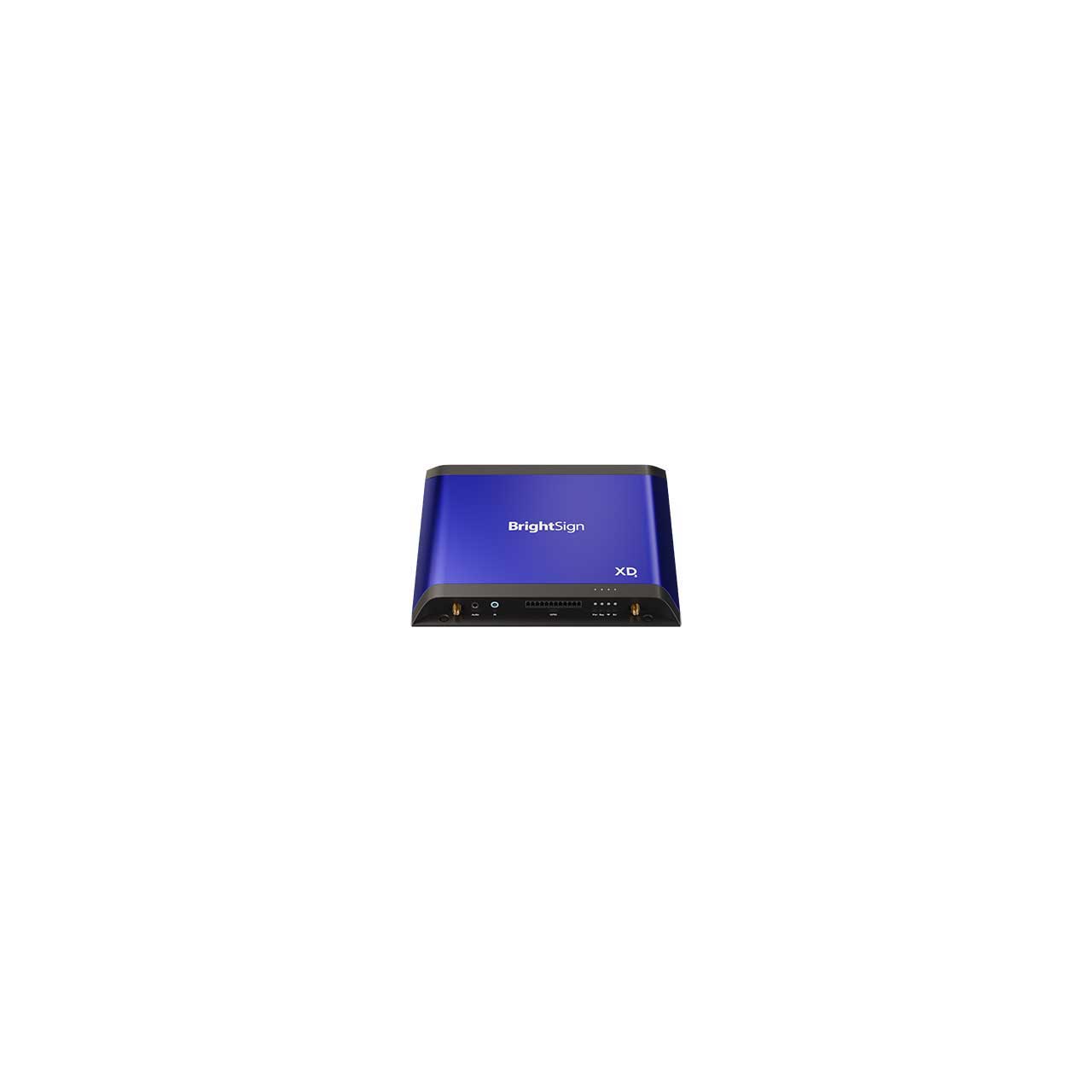

BrightSign XD235 Pro 4K Player with PoE+ & Live TV & Dynamic Mosaic Mode for Enterprise+ Experiences with Standard I/O

ITEM #: BRI-XD235 MFG #: XD235

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$600.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


XD235 - Overview

BrightSign XD5 has been redesigned to power state of the art digital signage experiences with enhanced 4K video and motion graphics performance. Hardware accelerated 4K video rotation streamlines the presentation authoring process by automatically rotating your content which eliminates developing in portrait orientations. The new architecture also delivers optimized motion graphics performance with fast load times, smooth animations and highly responsive interactions of HTML, CSS & JavaScript content at 60fps frame rates. The efficient new hardware design adds Power over Ethernet (PoE+), a thinner design and simplified Wi-Fi & SSD installation. BrightSign XD5 is designed to exceed your enterprise digital signage needs for applications that emphasize portrait 4K video and high-performance motion graphics now and into the future.

  • Features:

    • Enterprise+ HTML Performance
    • Optimized for motion graphics
    • Smooth animations & tickers with 60fps frame rates
    • Highly responsive & fluid content interactions
    • Enhanced 4K Video Engine
    • Hardware accelerated 4K rotation
    • 4K60p video
    • 4K images & graphics
    • Efficient Industrial Design
    • Power over Ethernet (PoE+)
    • Thinner profile
    • Simplified Wi-Fi and SSD installation
    • Real time clock with 14 days of uninterrupted operation
    • Patented aluminum enclosure to dissipate heat
    • BrightSign OS
    • Purpose-built for digital signage
    • Delivers ultra-high reliability, security & uptimes
    • Unlocks features for full signage potential
    • Offers guaranteed updates for longevity
    • Includes cloud connectivity for real- time access

  • Specifications:

    • Video & Html Engines
    • Native 4K@60p video
    • Hardware accelerated 4K rotation
    • Dynamic Mosaic Mode
    • 4K image and motion graphic support
    • Dual video decoding
    • HDR10 and HLG
    • HTML5 performance level: Enterprise+
    • Dynamic memory allocation

      Media Formats
    • Video codecs for 4K content: H.265/H.264
    • Video Containers for 4K H.265 content: .ts, .mov, .mp4, .mkv
    • Video Codecs for Full HD: H.265, H.264(MPEG-4, Part 10), MPEG-2
    • Video Containers for Full HD content: .ts, .mpg, .vob, .mov, .mp4, .m2ts
    • Images: BMP, JPEG, PNG
    • Audio: MP2, MP3, AAC and WAV (AC3 is passed through)
    • HTML5: Chromium-based, Open GL|ES

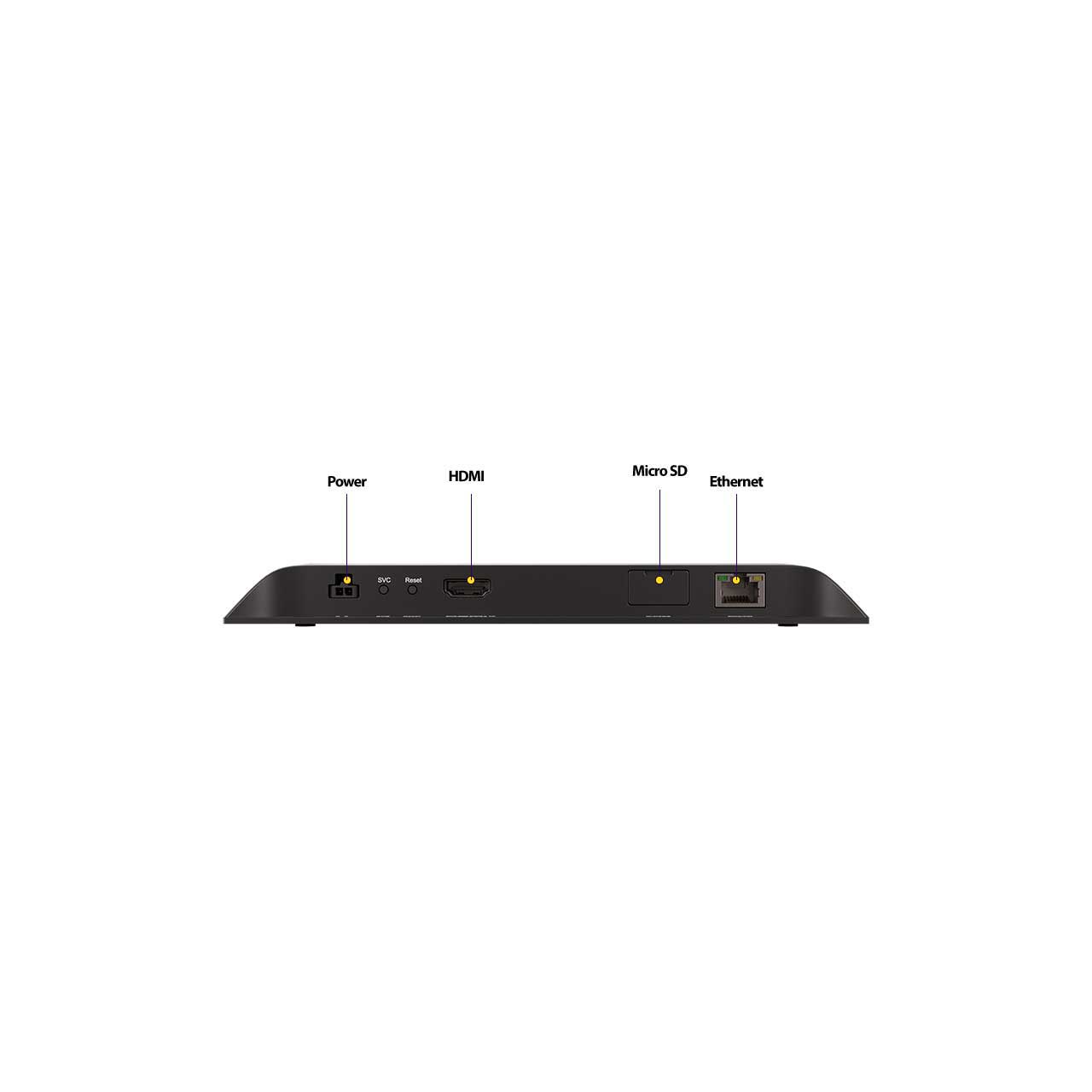

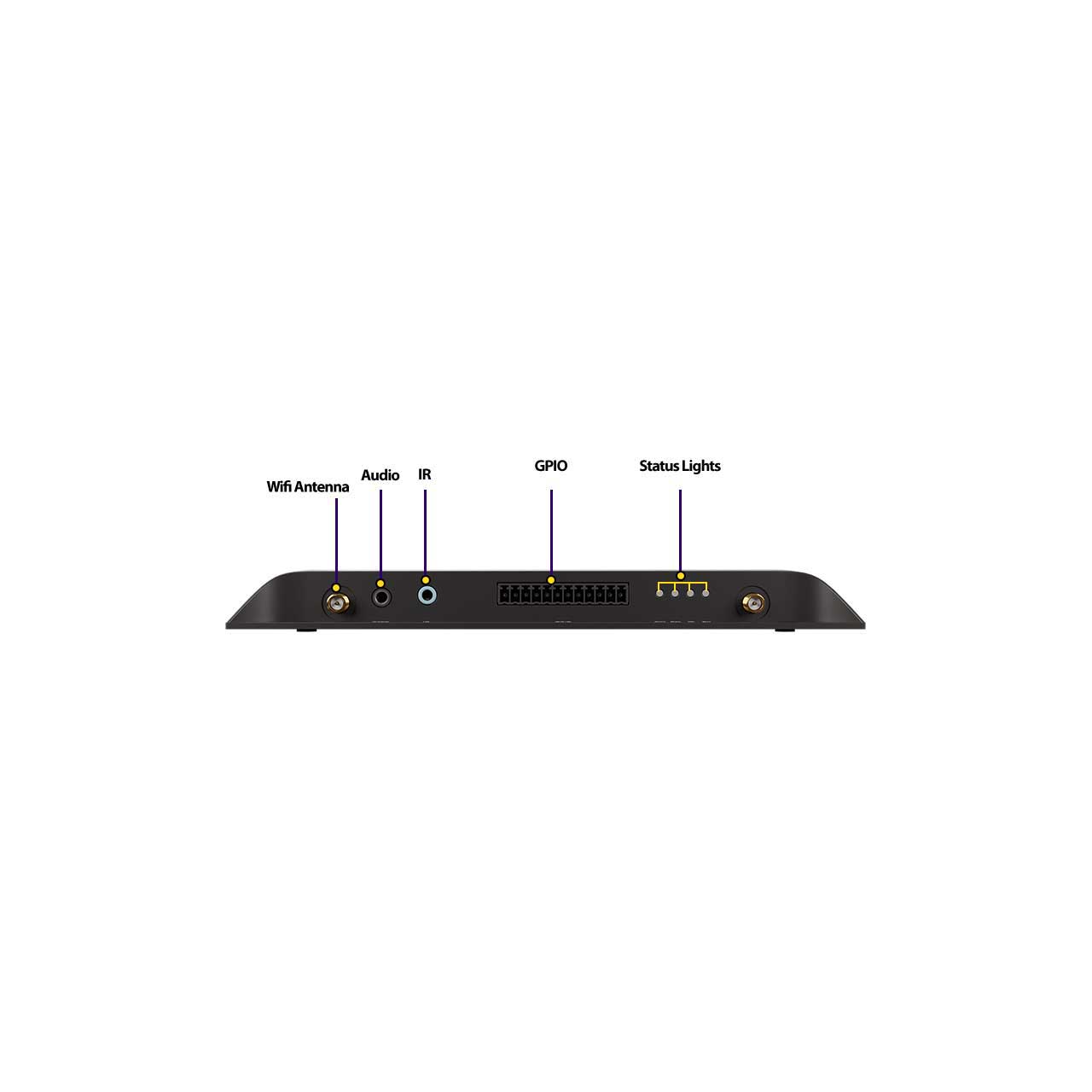

      Hardware Interfaces
    • HDMI™ Output 2.0a: 1
    • 12-pin Phoenix GPIO port with 8 bidirectional GPIOs
    • 3.5mm IR In/Out
    • 3.5mm Audio Out (analog & SPDIF digital)
    • Gigabit Ethernet with PoE+ (Power over Ethernet)
    • External micro SD Slot for primary storage
    • M.2 PCIe for optional NVMe SSD storage
    • E Key M.2 for optional dual antenna Wi-Fi/Bluetooth module
    • 4 Status LEDs
    • Reset and Service Buttons
    • Real Time Clock with 14 days of life
    • Locking Power Connector

      Accessories
    • BP200 & BP900 USB Button Pads
    • WD-105 Dual Antenna Wireless/Bluetooth Module
    • MicroSD Class 10 Cards (various capacities)
    • 256GB PCIE NVME M.2 SSD

      Miscellaneous
    • 12V / 3A Power Supply
    • Perfected Industrial Design - Simplified WiFi & SSD installation & Patented aluminum enclosure dissipates heat
    • Dimensions (WxHxD): 8.07 x 0.756 x 7.32" (205 x 19.2 x 185.9mm)
    • Weight: 1Lbs
    • Power: 12V / 3A (30 Watts)
    • Multi-Country Power & Regulatory Approvals
    • Built-in Wall Mounting Brackets

  • Item Includes:

    • 1x XD235 Standard I/O Player

  • Warranty:

    • 1 year warranty, parts and labor
