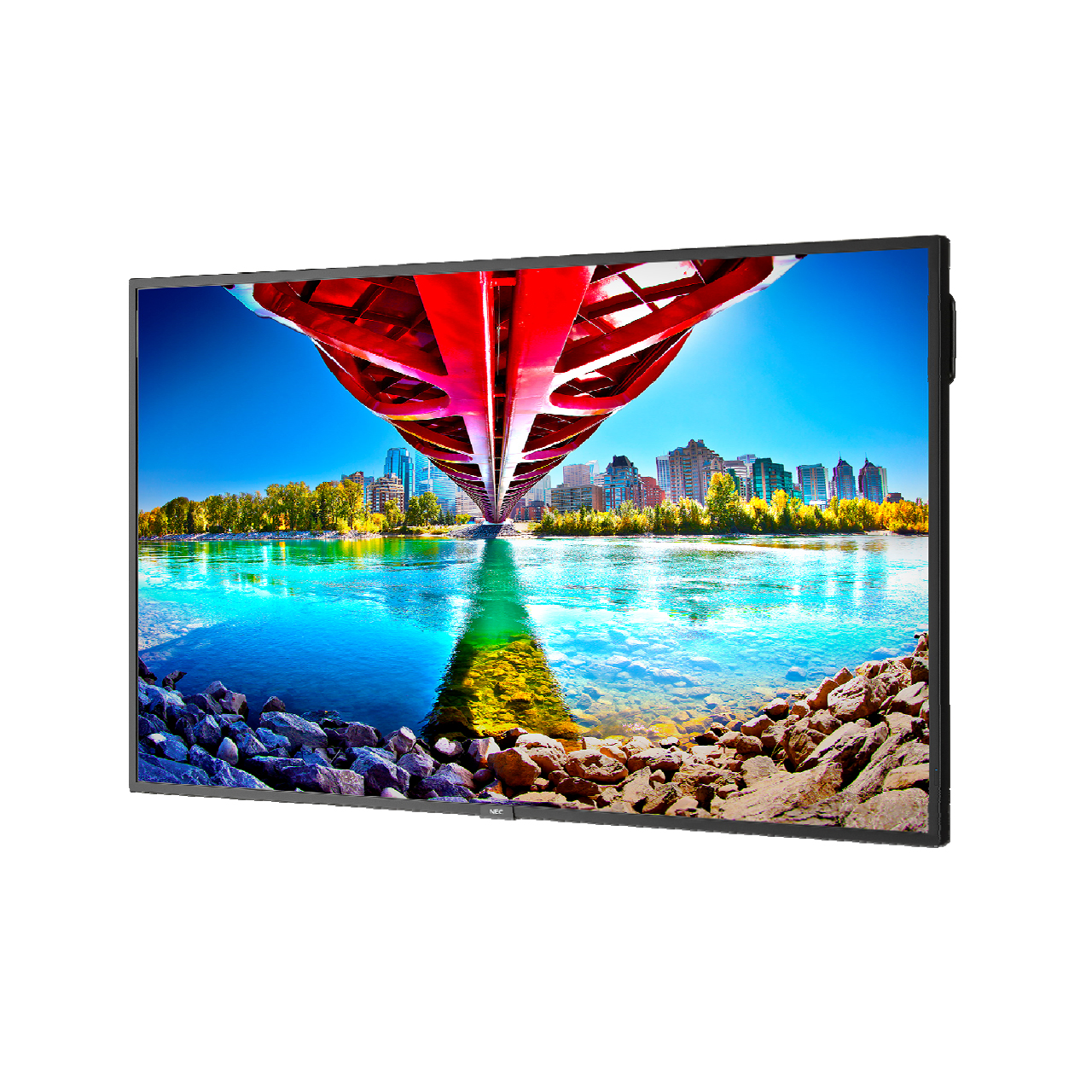

NEC M551-2 4K UHD Pro 55 Inch Large Format Display with Integrated Media Player for Digital Signage

ITEM #: NEC-M551-2 MFG #: M551-2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,799.00

Our Price:

$1,659.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


M551-2 - Overview

The NEC Display Solutions M551-2 creates a pixel-perfect imagery with the high-end panel quality of professional NEC M Series large format displays. M series displays give customers a pro digital signage display lineup without high costs. The M series can support both landscape and portrait orientations while also allowing the modularity possibilities to customize their needs dependent on their application and use. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The NEC M series boasts 500 cd/m2 brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget.

  • Features:

    • 4K UHD Native Resolution

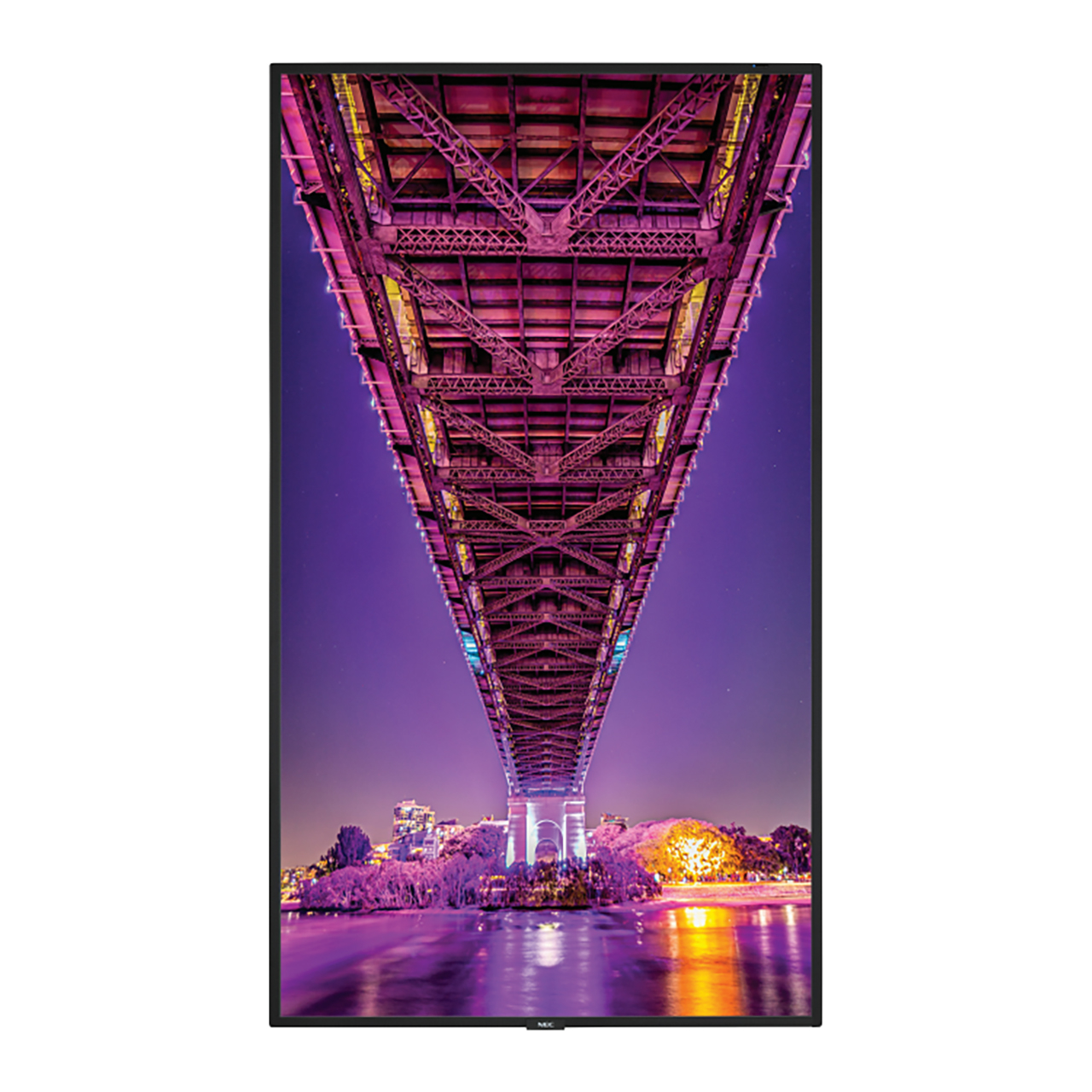

    • Landscape and Portrait Orientation
    • Accepts Intel® Smart Display Module Small or Large
    • Optional Integrated Raspberry Pi Compute Module 4
    • Bidirectional and Full External Control
    • 500 cd/m2 brightness
    • Integrated USB Media Player
    • Integrated Temperature sensor
    • Full Input Detect Functionality
    • Programmable Gamma
    • Energy Star 8.0
    • Scheduler Function
    • Off Timer
    • Vacation Switch
    • Display Browser Control
    • Display Wall Calibrator Compatible
    • HDR Support (PQ, HLG, HDR10)

  • Specifications:

      Physical
    • Dimensions (WxHxD): 48.9" x 28.1" x 2.5" (1241.8mm x 712.6mm x 62.6mm)
    • Shipping Dimensions: 56.3" x 36.2" x 9.8" (1430.0mm x 920.0mm x 250.0mm)
    • Weight: 41.4lbs (18.8kg)
    • Shipping Weight: 65.0lbs (29.5kg)
    • VESA Hole Configuration: 400mm x 400mm (M6 x 4-hole)
    • Bezel Width (Left/Right, Top/Bottom): 0.55"/0.55", 0.55"/0.55" (13.9mm/13.9mm, 13.9mm/13.9mm)

      Display
    • Panel Technology: VA
    • Viewable Image Size: 55"
    • Aspect Ratio: 16:9
    • Screen Resolution: 3840x2160
    • Pixel Pitch: 0.32mm
    • Pixels Per Inch: 81 @ native resolution
    • Backlight Type: LED Direct-lit
    • Brightness (typical): 500cd/m2:
    • Contrast Ratio (typical): =8,000:1 (Out of the box conditions, local dimming ON)
    • Viewing Angle (typical): 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
    • Response Time (Gray to Gray): 8 ms
    • Refresh Rate: 60Hz
    • Active Screen Area: 47.2" x 26.8" (1209.6mm x 680.4mm)
    • Orientation: Landscape/Portrait
    • Dimming Capability: Local Dimming Capable
    • Displayable Colors: More than 1.07 billion (8-bit+FRC):
    • Gamma (Typical): Native, 2.2, 2.4, S-Gamma, DICOM, Programmable1, Programmable2, Programmable3

      Synchronization Range
    • Horizontal (Analog/Digital): Digital: 26.0 135.0kHz:
    • Vertical: Digital: 23.0 86.0Hz

      Input Signal
    • Video: Digital TMDS/DisplayPort

      Signal Compatibility/Connectivity
    • PC Signal Compatibility: Yes
    • Macintosh Signal Compatibility: Yes
    • Video: Digital TMDS/DisplayPort
    • External Control: LAN and RS232 In Full external control capabilities

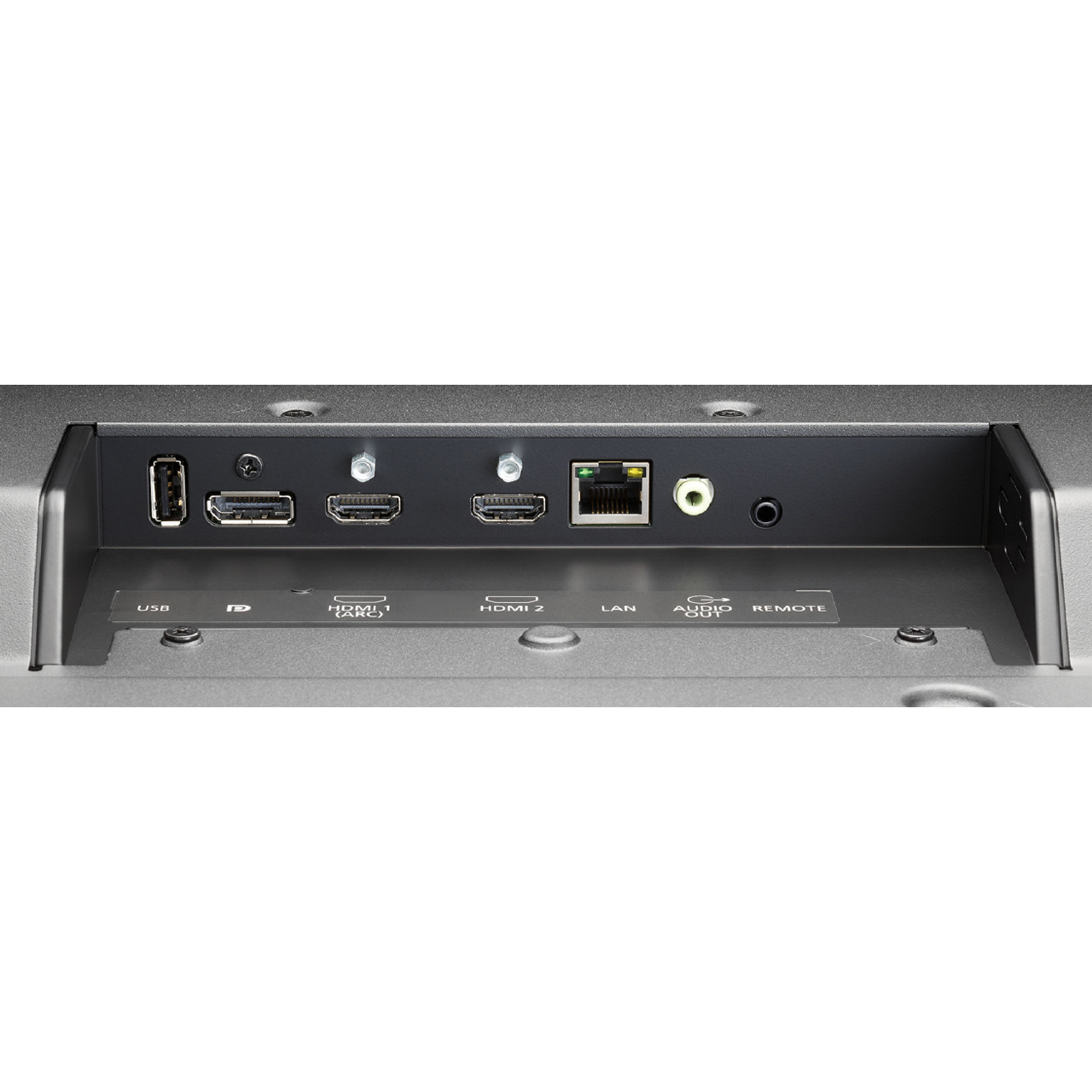

      Input Terminals
    • Digital:
      - 2x HDMI 2.0(with HDCP)
      - 1x DisplayPort 1.2 (with HDCP)
    • Audio:
      - 2x 3.5mm Mini-Jack
      - 1x DisplayPort Audio
      - 3x HDMI Audio
    • External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)
    • Data: USB 2.0 (Media Player)

      Output Terminals
    • Audio: 3.5mm Mini-Jack

      Power Consumption (typical)
    • On: 120W
    • ECO Mode Standby: <0.5W
    • Network Standby: 0.5W
    • Power Consumption (max): 120W (Max Brightness), 265W (Brightness Max, SDM Max, Volume Max)
    • Power Savings Mode: 2W

      Environmental Conditions
    • Operating Humidity: 20% - 80%
    • Operating Altitude: 9843ft (3000m)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Storage Humidity: 10% - 80%
    • Storage Altitude: 40,000ft (12,192m)

  • Item Includes:

    • 1x Power cord
    • 1x HDMI cable
    • 1x Wireless Remote Control

  • Warranty:

    • 3 Year Limited Warranty
