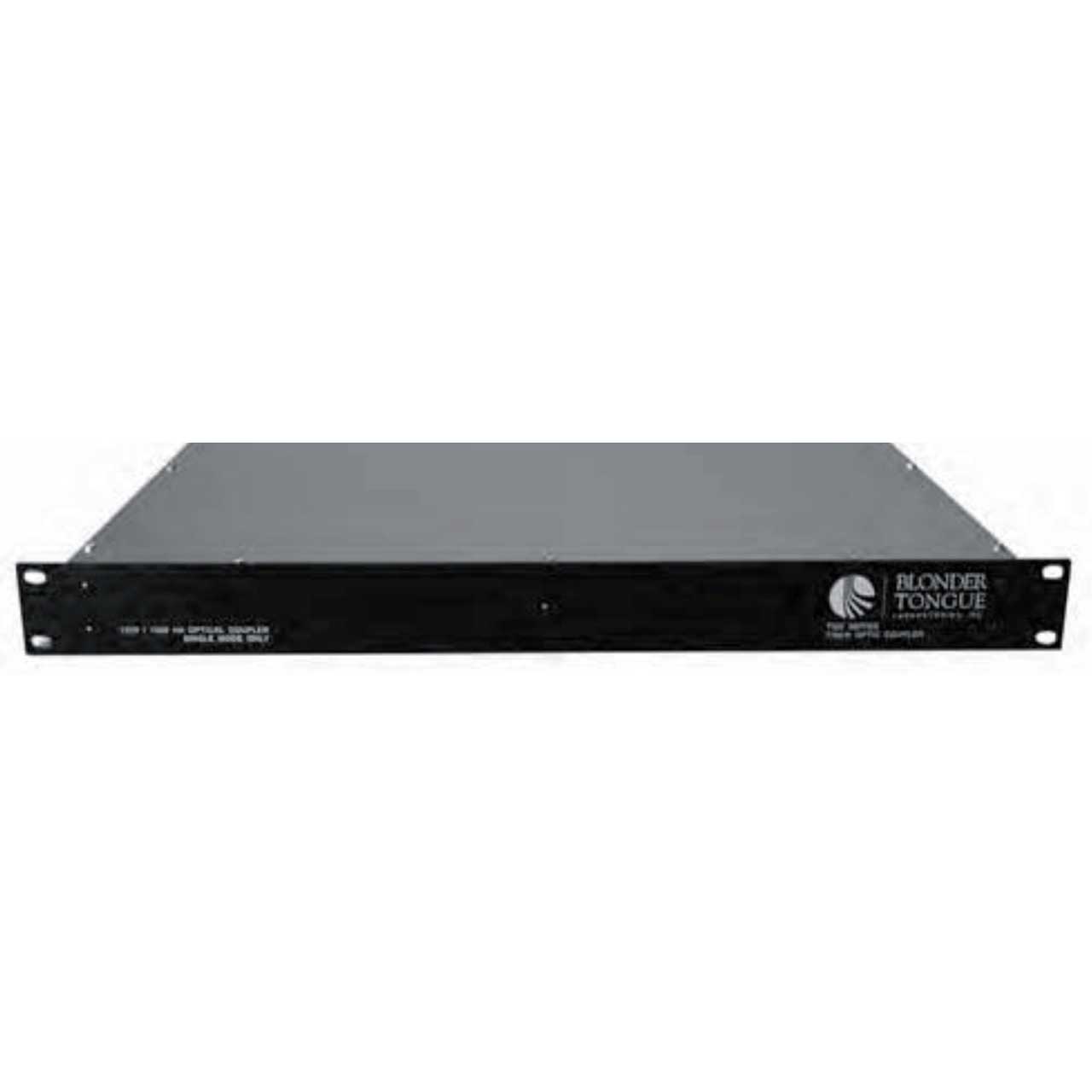

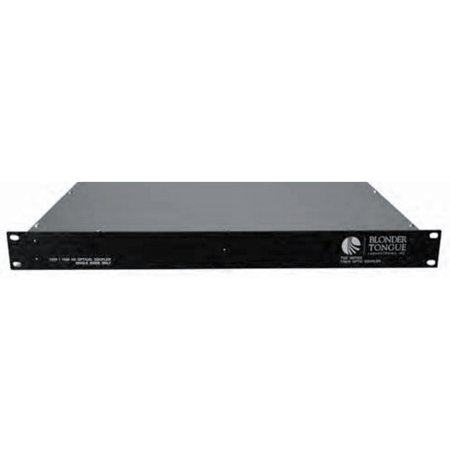

Blonder Tongue FOC-104U-SA 1x4 Optical Coupler 19 Inch Rack Mount - SC/APC Connectors

ITEM #: BT-FOC-104U-SA MFG #: FOC-104U-SA

Primary Image
Blonder Tongue
Free Shipping with $49 Minimum Order

List Price:

$303.00

Our Price:

$245.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

FOC-104U-SA - Overview

The FOC Series of optical couplers are used to split 1310 & 1550 nm light sources, with minimal loss. The couplers are 19 inch rack mountable and have FC/APC or SC/APC connectors for superior reflection performance.

  • Features:

    • Low Insertion Loss - High Directivity
    • 1310 & 1550nm Dual Window Operation
    • 1 x 2, 3, 4, 6, 8, 16 Models
    • Rack Mount
    • FC/APC & SC/APC Connector Models


  • Specifications:

    • Number of Inputs: 1
    • Wavelength: 1310 & 1550nm
    • Number of Outputs: 4
    • Insertion Loss (dB): 6.3
    • Uniformity (dB): > 1.4
    • Directivity (dB): > 50
    • Dimensions (W x H x D): 19 x 1.75 x 12.25 in., 483 x 44.5 x 311 mm
    • Weight: 3.8 lbs., 1.7 kg
    • Connectors: SC/APC
