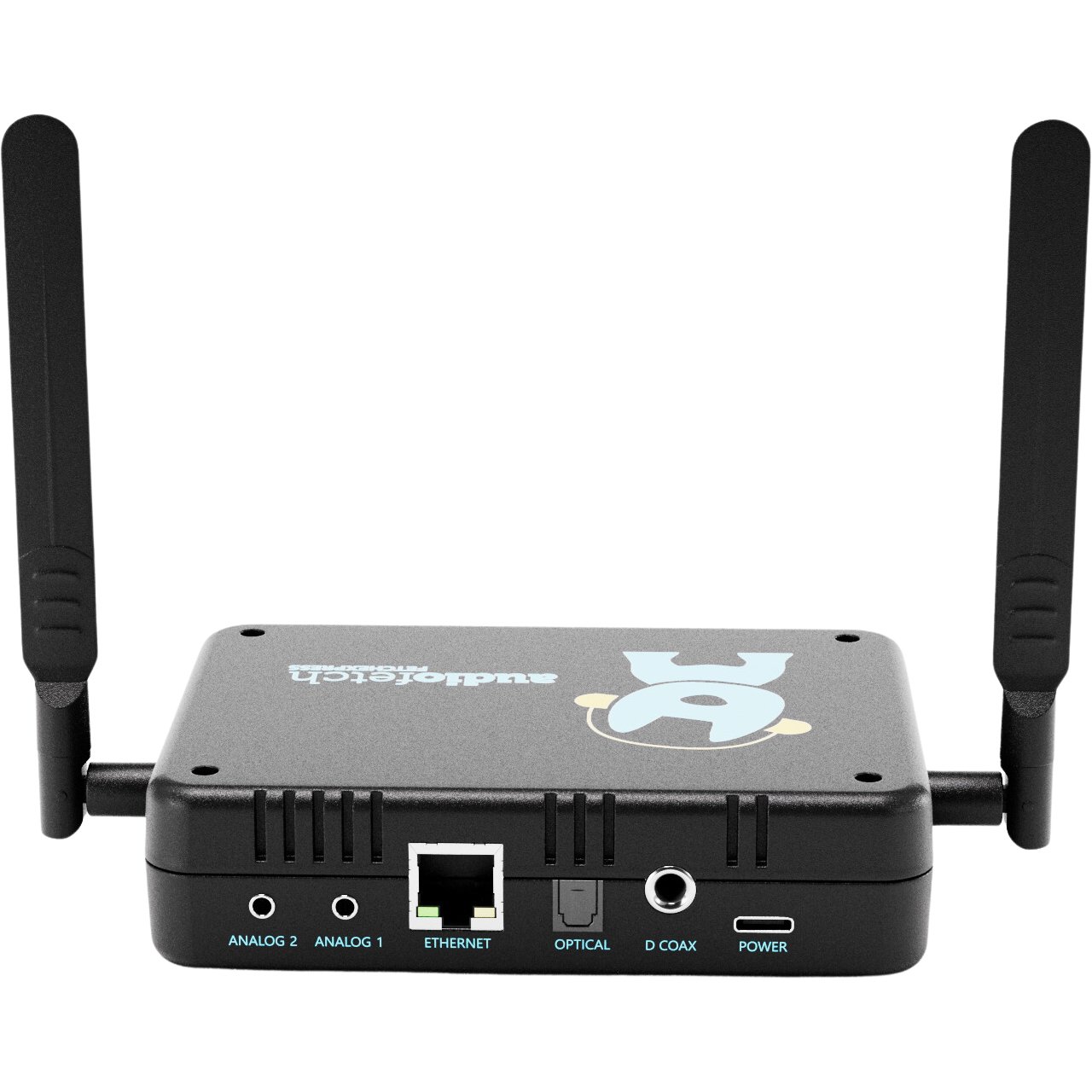

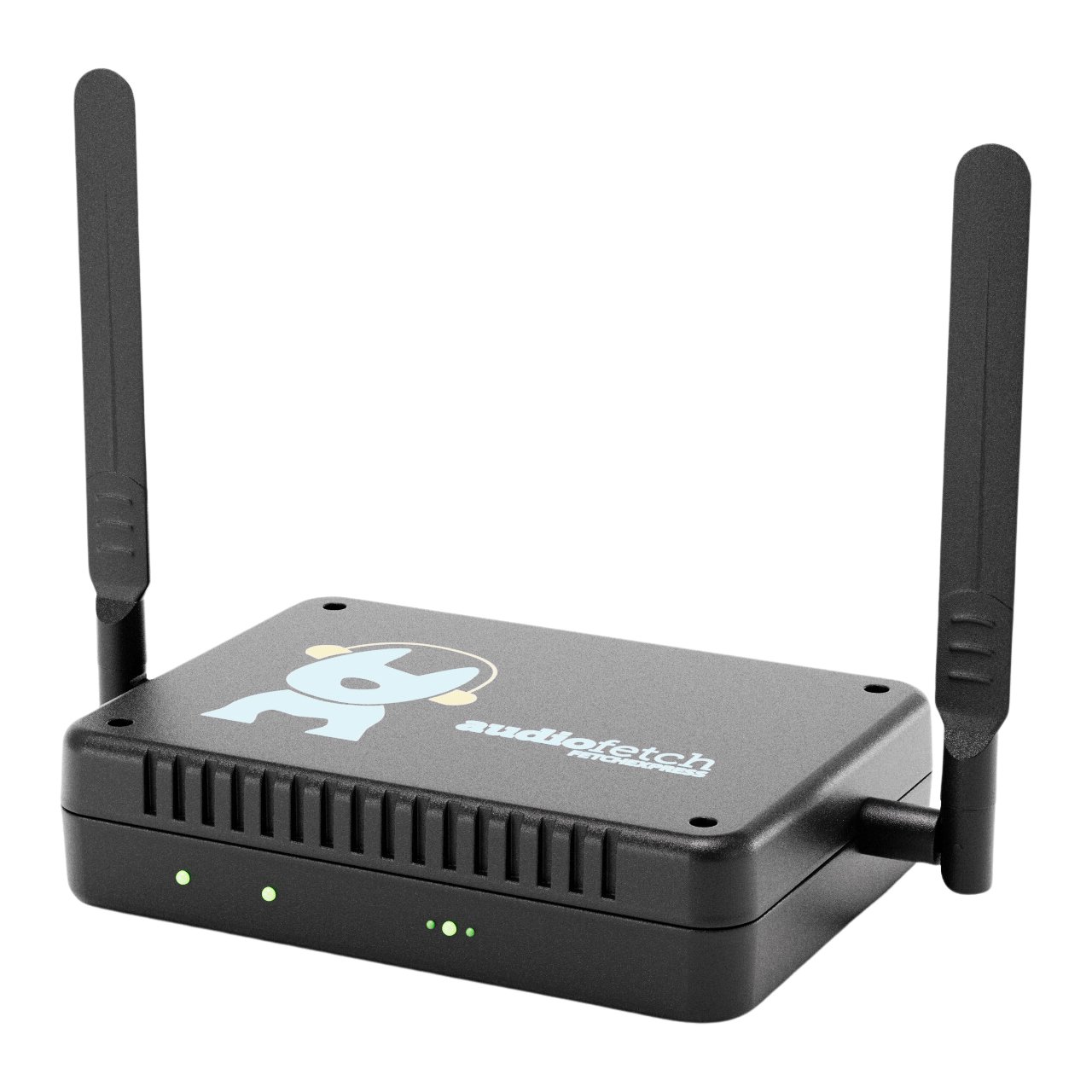

Broadcastvision FETCH-EX-V5 AudioFetch Express Two-Channel Audio Over WiFi to Smartphones - Supports 2.4GHz and 5GHz

FETCH-EX-V5 - Overview

• Features:

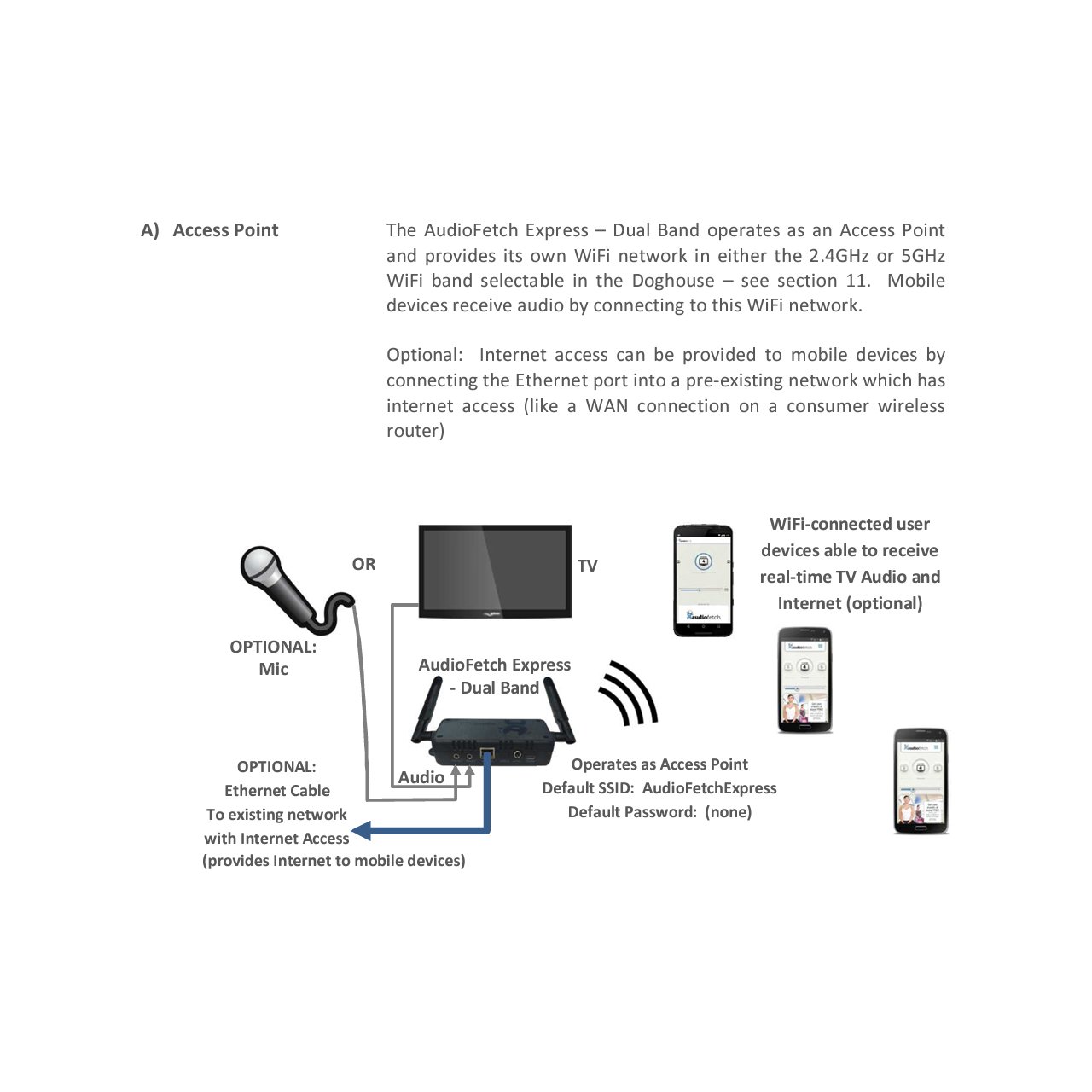

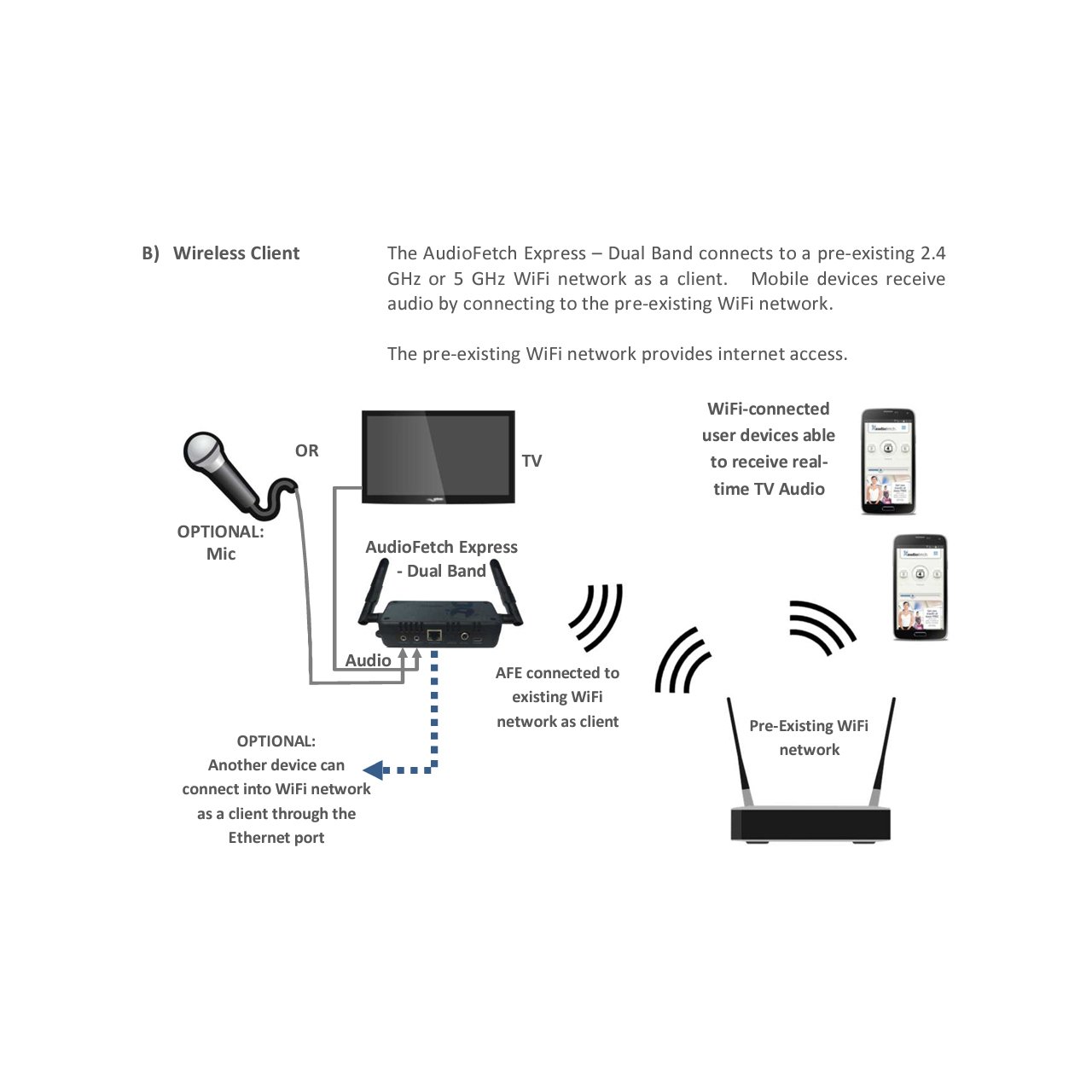

  • Wireless Networking: Flexibility is paramount, and AudioFetch Express v5 delivers. Whether operating as an Access Point or connecting to existing WIFI networks via Wireless or Hardwired connections, it ensures hassle-free setup and operation.
  • Multiple Audio Channels: Select either one stereo or two mono audio channels, offering flexibility for diverse audio configurations and preferences. Scale up by installing multiple units, or seamlessly integrate with our wired solution, AudioFetch Signature, for virtually limitless audio channel options.
  • Low Latency: Experience unnoticeable system audio latency of approximately 115ms, ensuring synchronized audio playback for an immersive listening experience.
  • Microphone Input: For PA applications, AudioFetch Express v5 features a separate Input for condenser microphones, enabling clear and crisp voice amplification.
  • Dual Band Compatibility: With support for both 2.4GHz and 5GHz Wi-FI bands, users can experience reliable, interference free audio streaming in any environment.
  • Wide Compatibility: AudioFetch Express v5 seamlessly integrates with multiple audio sources, including analog (RCA or 3.5mm Headphone Jack), digital coax, and digital optical, ensuring compatibility with a wide range of devices.
  • Plug-n-Play Installation: Setting up AudioFetch Express v5 is a breeze with its plug-and-play installation, allowing users to start streaming audio effortlessly.
  • Audio Adjustments: Fine-tune audio levels with ease using the built-in audio gain adjustment and real-time signal level monitor, ensuring optimal audio quality at all times.


• Specifications:

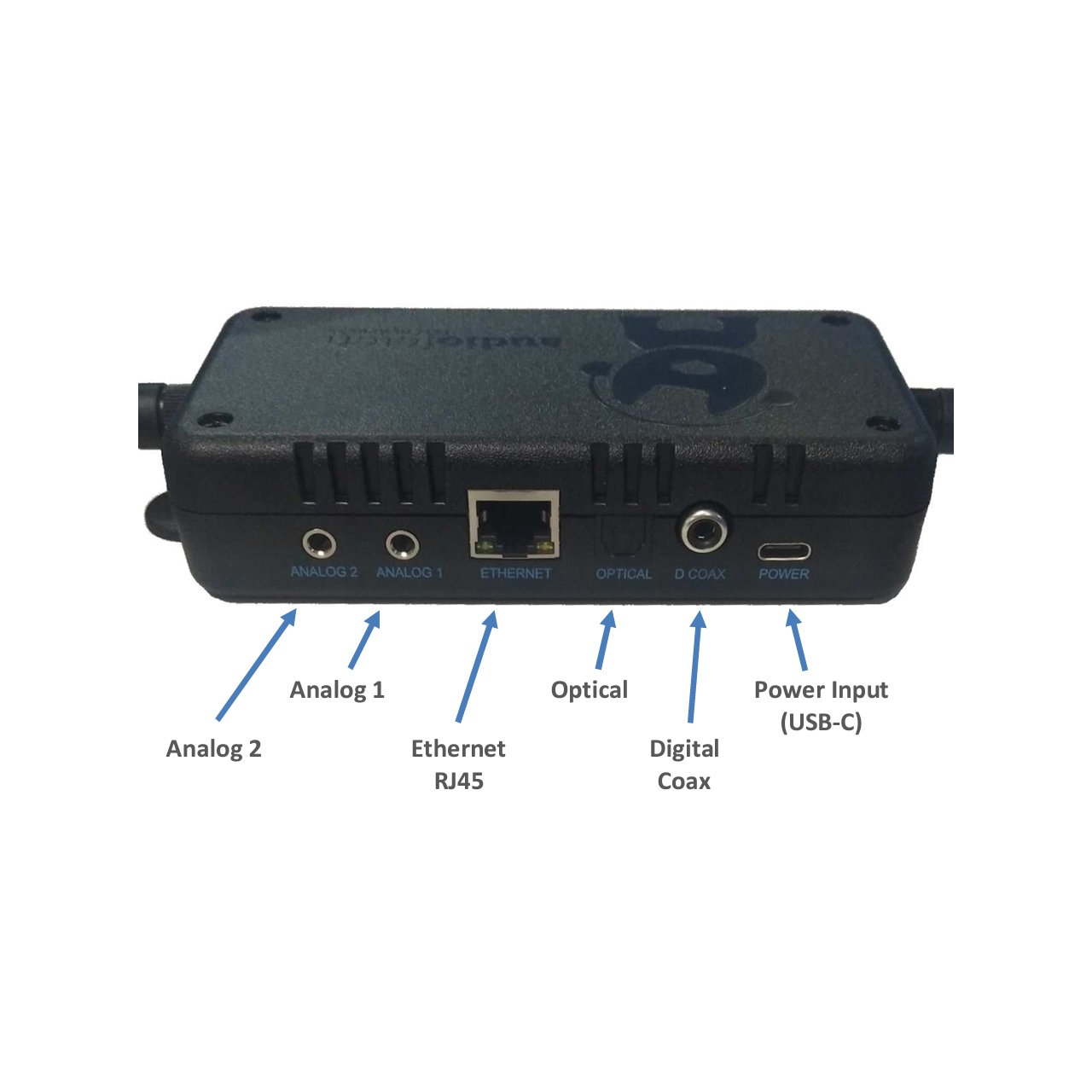

  • Audio Inputs
  • Digital Optical Input: S/PDIF signal format over fiber-optic TOSLINK cable
    - Encoding: Uncompressed PCM, interleaved stereo
    - Sample Rates supported: 48KHz
  • Digital Coax Input: S/PDIF signal format over coaxial cable
    - 0.55 Volts P-P typical
    - Input Impedance: 75 Ω
    - Encoding: Uncompressed PCM, interleaved stereo
    - Sample Rates supported: 48KHz
  • Analog Input 1: L/R Stereo into stereo 3.5mm connector, AC-coupled
    - Input Signal Level: 2.4 Volts P-P maximum
    - Input Impedance: 10 KΩ minimum
  • Analog Input 2: Condenser microphone (compatible with PC sound card inputs)
    - Mic Enabled (1-Ch mode): Compatible with smartphone mics by using adapter cable
    - Signal connections: 0.42 Volts P-P maximum
    - Input Signal Level: 2.8 KΩ typical
    - Input Impedance: 3.9 KΩ to 5V typical (supplied through tip of phone jack)
    - Bias: L/R Stereo into stereo 3.5mm connector, AC-coupled
    - 2-Channel mode (mic not avail.): 2.4 Volts P-P maximum
    - Input Signal Level: 10 KΩ minimum
  • Audio Gain Adjustment Range: +20 to -100 dB in 0.5 dB steps
  • Audio Frequency Response: 20Hz - 20KHz +/-3dB
  • System Latency: 115ms typical

    Network Connectivity
  • WiFi: AudioFetch Express - Dual Band contains built-in WiFi adapter which can operate in 2.4GHz or 5GHz WiFi band (selectable). Operation is in selected band only, simultaneous operation in both bands not supported.
  • Ethernet: 1000Base-TX, half/full duplex, auto-negotiated
  • Addressing: IPv4 (IPv6 not supported)
  • Network Discovery: Supported protocols by which AudioFetch App (on mobile device) can discover AudioFetch Express - Dual Band devices on the local network. At least one of these must be supported by the local network.
  • SSDP: Multicast based - network must support multicast traffic to/from 239.255.255.250 on all connected devices (AudioFetch Express - Dual Band and all user mobile devices)
  • SSDP Fallback: Modified version of SSDP - network must support multicast traffic from AudioFetch Express - Dual Band to 239.255.255.250 and then forwarded to user mobile devices
  • DNS (local DNS server required): Standard DNS protocol however the network must implement a local DNS server to intercept/respond to AudioFetch DNS queries from user mobile devices
  • Broadcast Fallback: User mobile device sends query packet to local broadcast address 255.255.255.255

    WiFi
  • Frequency Range: 2.402-2.472, 5.170-5.250, 5.735-5.815 GHz
  • Wireless Standard: 802.11 b/g/n
  • WiFi Channels Supported:
    - 2.4 GHz Band: 1 - 11, auto
    - 5 GHz Band: 36, 40, 44, 48, 149, 153, 157, 161
  • Transmit Power: +21dBm (max)
  • Range - Open Air Test: 130 feet typical

    Mobile App
  • Availability: "AudioFetch" in Google Play Store or Apple App Store
  • Android Compatibility: 8.0 or later
  • iOS Compatibility: 11.0 or later

    Dimensions and Weight
  • Dimensions (LxWxH): 5.30" x 2.63" x 1.25"
  • Weight: 0.75lbs


• Item Includes:

  • 1x Broadcastvision BV-FETCH-EX-V AudioFetch Express v5
  • 1x USB-C Power Supply
  • 1x RCA Cable


• Warranty:

  • 3-Year Limited Warranty
