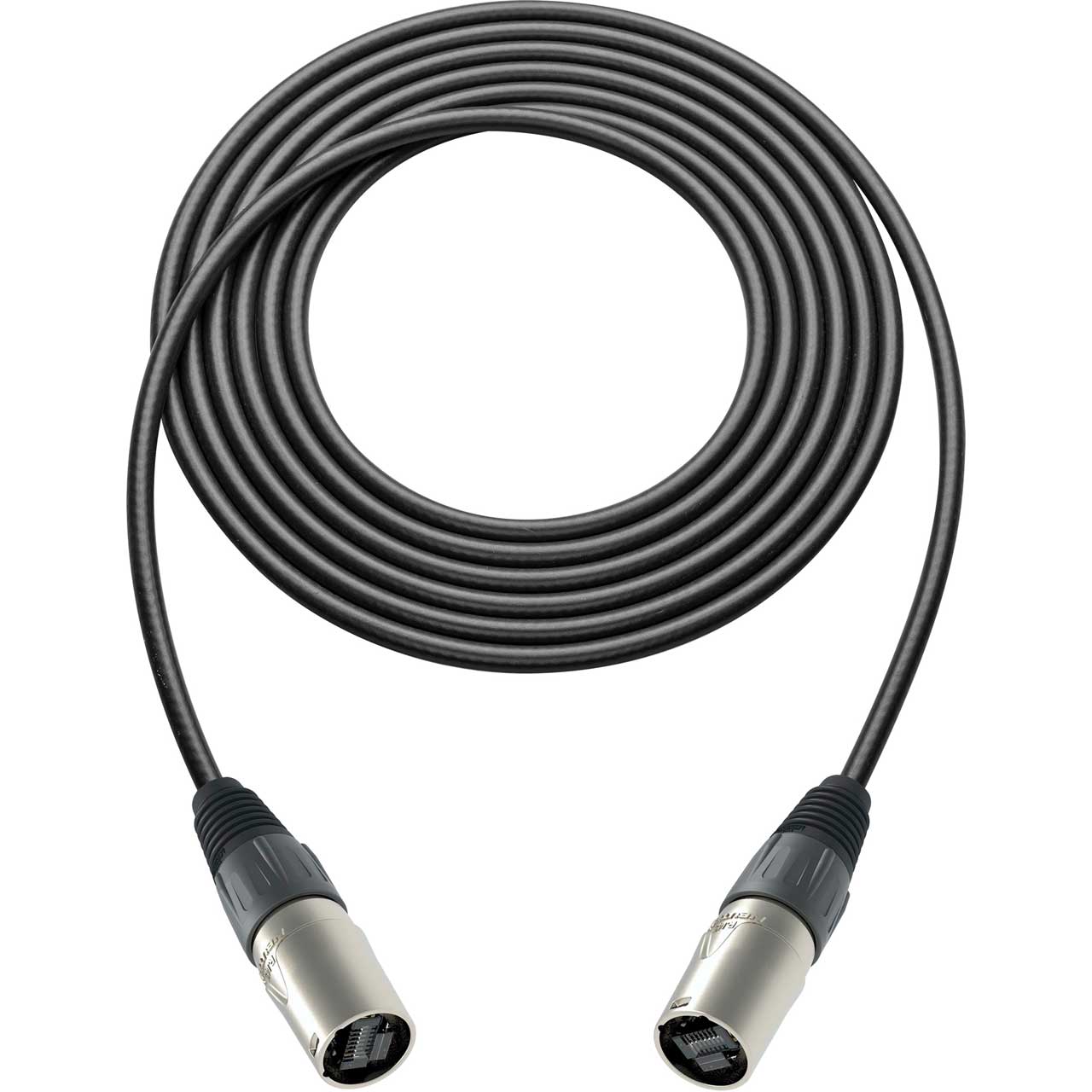

Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 150 Foot

ITEM #: CAT5XTRM-150 MFG #: CAT5XTRM-150

Primary Image
Laird Digital Cinema
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$217.95

Our Price:

$198.49

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    CAT5XTRM-150 - Overview

    Laird's CAT5e Extreme etherCON cables are high quality CAT-5e cables built with Belden 7923A DataTuff cable with Neutrik NE8MC RJ45 heavy duty cable end housings. Cables are designed to withstand punishing conditions in the field or on-stage. The cable features four Cat 5e 24 AWG bonded-pairs in an industrial grade oil and UV-resistant PVC jacket suited for outdoor harsh environments. Signal bandwidth sits at 350MHz enhanced Category 5e for Gigabit Ethernet, 100BaseTX and 100BaseVG ANYLAN applications in NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51 and RS-422.


    Please Note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

    • Features:

      • Belden 7923A Paired CAT5e DataTuff Twisted Pair Cable
      • Neutrik etherCON NE8MX-1 CAT5 Connector
      • Four Cat 5e 24 AWG Bonded-Pairs
      • UV-Resistant PVC Jacket Suited for Outdoor & Harsh Environments


    • Specifications:

      • Belden 7923A Paired CAT5e DataTuff Twisted Pair Cable
      • Conductor AWG: 24
      • Conductor Number of Pairs: 4
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • UL Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)
      • UL Rating Temp: 75°C
      • Operating Temp: -40°C To +75°C
      • Storage Temp: -25°C To +75°C
      • Max. Pull Tension: 40 lbs
      • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
      • Flammability / Fire Resistance: UL1666 Riser, FT4, FT4, 1202 Vertical Tray, IEC 60332-1-2
      • NEC / UL Compliance: 800, CMR;CMX-Outdoor;CMG
      • CEC / C(UL) Compliance: CMX-Outdoor;CMG
      • Data Category: Category 5e
      • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e

        Neutrik etherCON NE8MX-1
      • Insertion force: ≤ 20 N
      • Withdrawal force: ≤ 20 N
      • Lifetime: > 1000 mating cycles
      • Temperature range: -30 °C to +80 °C


    • Warranty:

      • 1 Year
