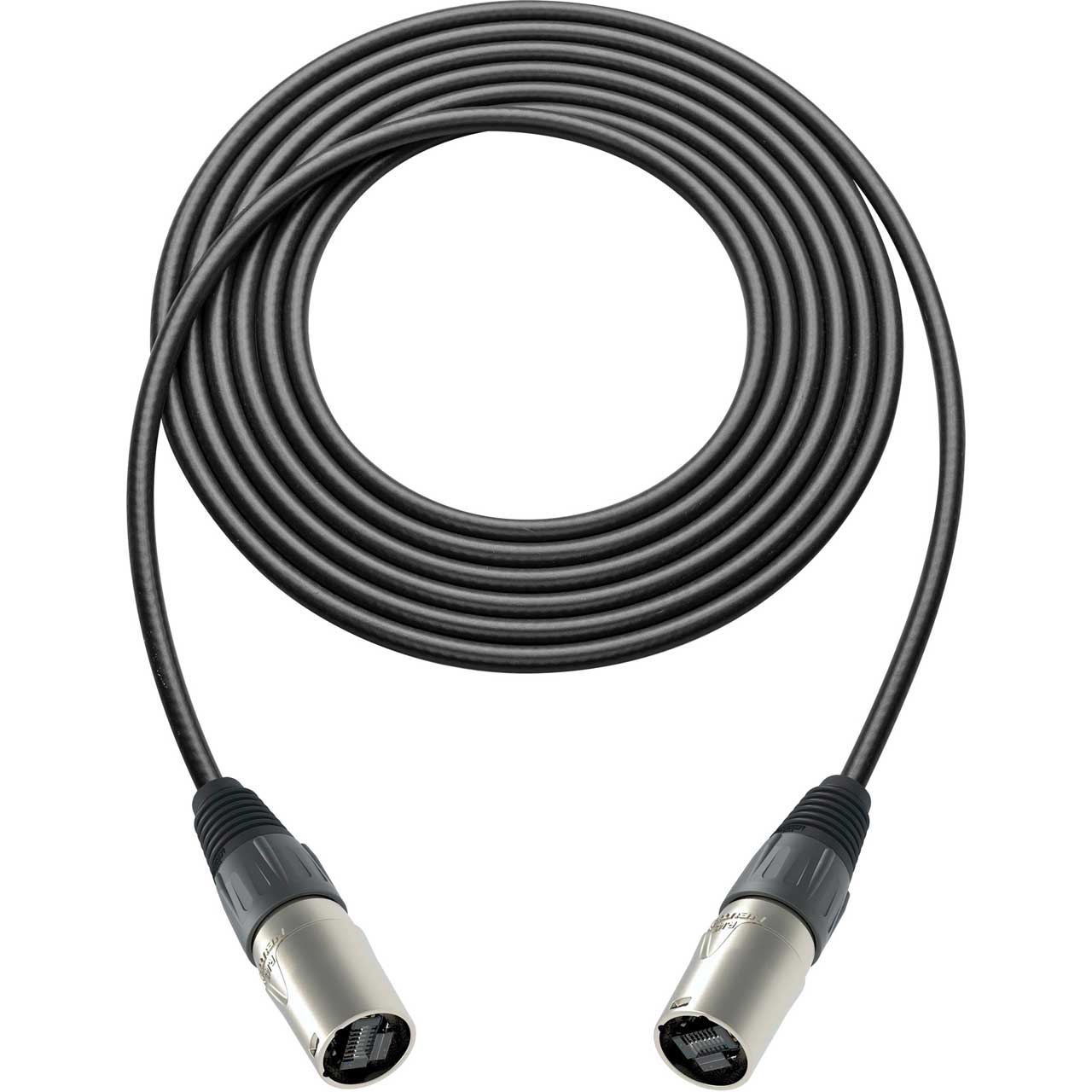

Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 200 Foot

ITEM #: CAT5XTRM-200 MFG #: CAT5XTRM-200

Primary Image
Laird Digital Cinema
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$281.95

Our Price:

$255.95

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

CAT5XTRM-200 - Overview

Laird's CAT5e Extreme etherCON cables are high quality CAT-5e cables built with Belden 7923A DataTuff cable with Neutrik NE8MC RJ45 heavy duty cable end housings. Cables are designed to withstand punishing conditions in the field or on-stage. The cable features four Cat 5e 24 AWG bonded-pairs in an industrial grade oil and UV-resistant PVC jacket suited for outdoor harsh environments. Signal bandwidth sits at 350MHz enhanced Category 5e for Gigabit Ethernet, 100BaseTX and 100BaseVG ANYLAN applications in NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51 and RS-422.


Please Note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

  • Features:

    • Belden 7923A Paired CAT5e DataTuff Twisted Pair Cable
    • Neutrik etherCON NE8MX-1 CAT5 Connector
    • Four Cat 5e 24 AWG Bonded-Pairs
    • UV-Resistant PVC Jacket Suited for Outdoor & Harsh Environments


  • Specifications:

    • Belden 7923A Paired CAT5e DataTuff Twisted Pair Cable
    • Conductor AWG: 24
    • Conductor Number of Pairs: 4
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • UL Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)
    • UL Rating Temp: 75°C
    • Operating Temp: -40°C To +75°C
    • Storage Temp: -25°C To +75°C
    • Max. Pull Tension: 40 lbs
    • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
    • Flammability / Fire Resistance: UL1666 Riser, FT4, FT4, 1202 Vertical Tray, IEC 60332-1-2
    • NEC / UL Compliance: 800, CMR;CMX-Outdoor;CMG
    • CEC / C(UL) Compliance: CMX-Outdoor;CMG
    • Data Category: Category 5e
    • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e

      Neutrik etherCON NE8MX-1
    • Insertion force: ≤ 20 N
    • Withdrawal force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Temperature range: -30 °C to +80 °C


  • Warranty:

    • 1 Year
