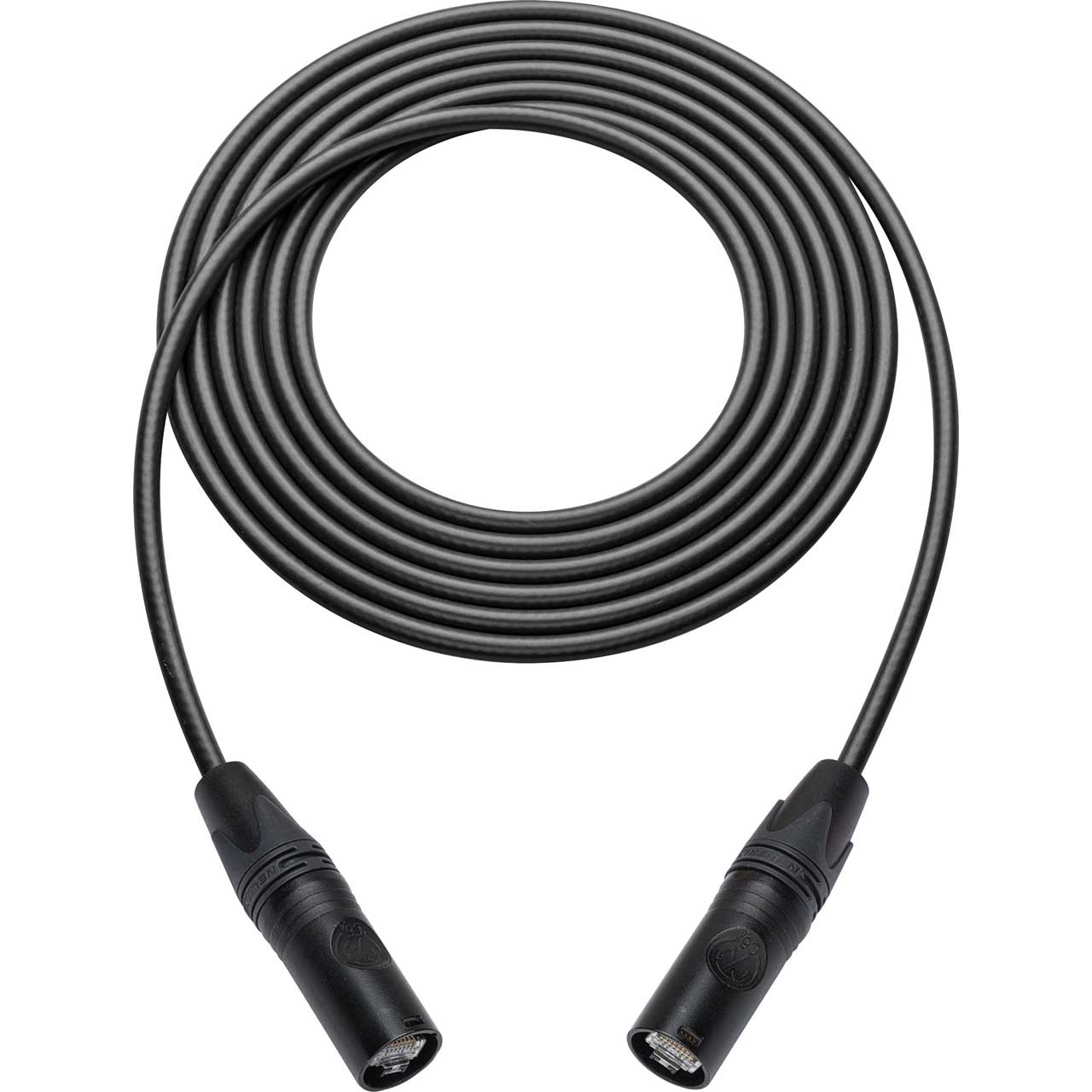

Laird Belden CAT6A 10GX IP Ethernet Cable with etherCON Connectors - 6 Foot

ITEM #: CAT6A-EC-EC-006 MFG #: CAT6A-EC-EC-006

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$81.95

Our Price:

$74.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Extended Lead Time; estimated delivery in November.


CAT6A-EC-EC-006 - Overview

Laird 10GX Series Category 6A 10 Gigabit Ethernet cables deliver the all-important backbone of your Video Over IP cable infrastructure in ST-2022, HDBaseT, HDBitT, DANTE, AES67 and similar environments. These cables meet stringent HD video and Digital Audio IP packetization bandwidth needs. Built Laird tough with Belden 4-pair, 23 AWG UTP copper 10GX cable and Neutrik etherCON RJ45 Connectors. Belden 10GX cable exceeds the ANSI/TIA-568-B.2-10 Category 6A standard and is ready for your high speed Local Area Networks (LANs), Server Farms, Storage Area Networks (SANs) and any other heavy data traffic environment. In addition to its super high bandwidth advantages, the Laird 10GXS saves you up to 25% on space reducing the Rats Nest in your Data Center with its small diameter (0.295 inches!), lightweight and superior flexibility helping you make easy connections in high density applications. Plus, its reduced cross-talk helps protect your data in harsh EMI environments. The Laird 10GX cable is the perfect companion for Cat6a HDBaseT Ethernet Convertors and Extenders as well as being backwards compatible to perform perfectly with existing Cat6/5E components. Rest easy knowing your signal is always streaming with a Laird CAT6A high speed Ethernet cable.

  • Features:

    • Belden 10GX Cable for Higher Density & Reduced Crosstalk
    • Rugged Neutrik Ethercon Cat6A Connectors
    • Small Diameter & Flexibility for Easy Handling
    • Electrical Performance Beyond Category 6A
    • Backward Compatible with Cat6/5e Components
    • Rated Up To 625 Mhz with Max Distance 328 Ft

  • Specifications:

    • Belden 4-pair, 23 AWG UTP Copper 10GX Cables
    • PVC Jacket
    • CMR Riser Rated Ethernet Cable
    • Cable Diameter: 0.295 inches
    • ANSI/TIA/EIA 568-C.2 Cat6a Standard
    • Termination: Neutrik etherCON Cat6A Connectors

  • Warranty:

    • 1 Year
